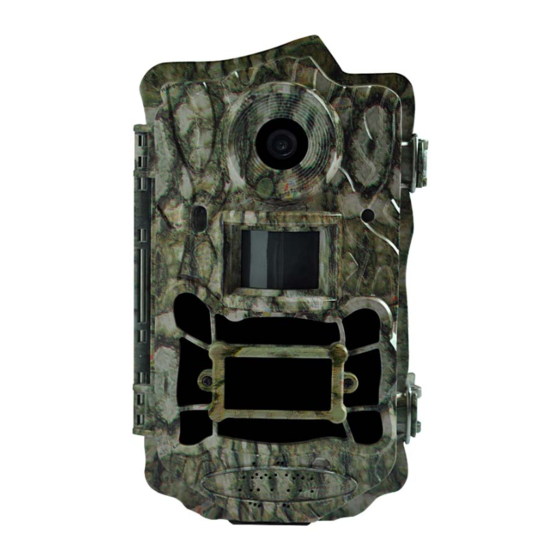

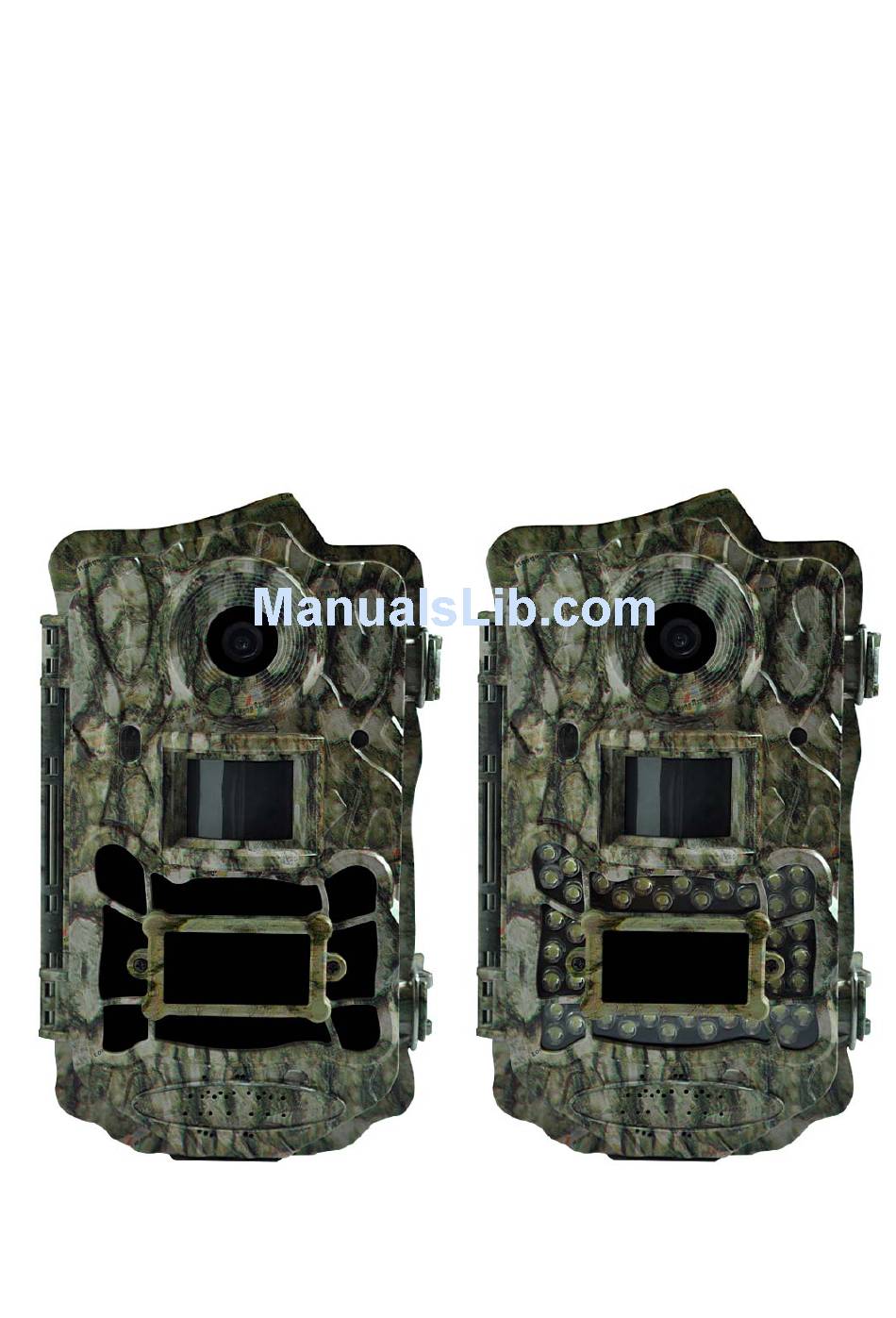

- Page 1 Infrared Digital Scouting Camera User’s Manual SG968D/S-10M...
-
Page 2: Table Of Contents
Content 1 Instruction................... 1 1.1 General Description..............1 1.2 Application ..................1 1.3 Camera Overview ................2 1.4 Saving Images or Videos.............. 5 2 Cautions ....................6 3 Easy Operations ................. 7 3.1 Loading batteries................7 3.2 Inserting the SD card..............7 3.3 Dismantling the external filter ........... -
Page 3: Instruction
SG968D/S-10M 1 Instruction 1 Instruction 1.1 General Description This camera is a surveillance device working automatically. It can be triggered by any movement of human (or animals) in a certain region of interest (ROI) monitored by a highly sensitive Passive Infra-Red (PIR) motion sensor，... -
Page 4: Camera Overview
SG968D/S-10M 1 Instruction homes, shops, schools, depots, offices, taxis, work sites etc. It can also be used as a trail camera for hunting or monitoring animals by recording the traces of wild animals. It can be left alone for weeks and months and will save event records automatically in digital format. - Page 5 SG968D/S-10M 1 Instruction Fig. 1: Front view Fig. 2: Inner panel view Page...
-
Page 6: Shooting Information Display
SG968D/S-10M 1 Instruction Fig. 3: Bottom view 1.3.2 Key Notes “MENU”: to enter the program menu in preview mode; “▲”“▼”“◄”“►”: for parameter settings as described in the user’s manual. “OK”: to save parameter settings and play videos. “ ”: to exchange between playback and preview. -
Page 7: Saving Images Or Videos
SG968D/S-10M 1 Instruction Fig. 4: LCD Display 1.4 Saving Images or Videos The camera uses a standard SD (Secure Digital) memory card to save images (in .jpg format) and videos (in .avi format). SD and SDHC (High Capacity) cards up to a maximum 32 GB capacity are supported. -
Page 8: Cautions
SG968D/S-10M 2 Cautions 2 Cautions ★The working voltage of the camera is 6V. The camera is supplied by four or eight AA batteries. ★Please install batteries according to shown polarity. ★Must insert the SD card before power on camera. The... -
Page 9: Easy Operations
SG968D/S-10M 3 Easy Operations 3 Easy Operations 3.1 Loading batteries Use 8 or 4 AA batteries or 6V external battery for power supply (Fig. 5). Fig. 5: Battery Configurations of 8 or 4 batteries Please use high-capacity and high-performance alkaline batteries (recommended), rechargeable Lithium batteries or rechargeable NiMH batteries. -
Page 10: Dismantling The External Filter
SG968D/S-10M 3 Easy Operations 3.3 Dismantling the external filter The camera has a specific function that you can dismantle the covered external filter to take color night picture at Mount Off. Fig. 6: Dismantle the external filter 3.4 Powering on and Entering into the ON Mode The camera has three basic operation modes: OFF mode: to turn off the camera. -
Page 11: Power Off
SG968D/S-10M 3 Easy Operations region. After switching the camera to ON position, the motion indication LED (red) will blink for about 10 seconds. This time interval is for you to make the camera ready for automatic surveillance operation, e.g., to close the bottom cover and to lock it, to fix the camera on a tree and to walk away. -
Page 12: Advanced Operations
SG968D/S-10M 4 Advanced Operations 4 Advanced Operations After you are familiar with the basic operations of the camera, you are now ready for advanced operations，and the options and parameters of the camera are explained in more detail. 4.1 Enter into the SETUP mode... -
Page 13: Settings Menu
SG968D/S-10M 4 Advanced Operations button just works in Playback state. So if it’s in Preview state, you should press to enter into Playback state first. 4.2 Triggering modes There are 3 triggering modes of the camera: PIR trigger， Time lapse (i.e. Timer trigger) and both PIR trigger &... -
Page 14: 1Setting Items
SG968D/S-10M 4 Advanced Operations 4.3.1 Setting Items Setting Items Description Choose dismantling the external filter or not. If you have dismantled the external filter, please choose this submenu as Mount Off. Otherwise, External Filte select Mount On. When you choose Mount On, the camera will take B&W pictures at night, in Mount Off,... - Page 15 SG968D/S-10M 4 Advanced Operations press “▲” or “▼” to change the value. Photo Size 5MP (mega pixels) or 10MP (mega pixels). It means the shooting number of each Photo Burst triggering in Photo mode. You can choose from 1 to 6 Photos.
- Page 16 SG968D/S-10M 4 Advanced Operations then the Time Lapse can’t be set to This parameter defines the sensitivity of the PIR. There are four parameters: High, Normal, Low and Off. The default value is “Normal”. The higher degree indicates that the camera is more...
-
Page 17: 2Default Set
SG968D/S-10M 4 Advanced Operations hour after each triggering). Please note that there are a few seconds of internal processing delay between each trigger, even if 0 second is set. It means camera position. You can set A-Z Camera Posit position for your camera, so that you can distinguish which photo is taken by which camera. -
Page 18: Firmware Upgrade
SG968D/S-10M 4 Advanced Operations Photo Burst 1 Photo 2~6 Photos Video Size 1280x720 640x480 Video Length 10 Sec 20~180 Sec Work Hour On (00:00~23:59) Time Lapse 5 Min to 8 Hour PIR Trigger Normal High, Low, Off PIR Interval 5 Sec 0-55 sec, 1-5 Min，10-60 Min... -
Page 19: Mounting The Camera
SG968D/S-10M 5 Mounting the Camera Mounting the Camera When using the camera in outdoor environment, such as scouting or monitoring the living habits of wild animals, you need to mount the device on a certain place properly. It is recommended to mount the camera on a tree with diameter about 5.9 inches (15cm). -
Page 20: Appendix I: Pir Detection Zone
SG968D/S-10M Appendix Ⅰ：PIR Detection Zone Appendix I: PIR Detection Zone Fig. 8 shows Bolymedia’s 4 kinds of detection range at different detection angles. This camera is super long range. Fig. 8: PIR Detection Zone The PIR detection angle (α) is just smaller than the field of view (FOV) angle (β). - Page 21 SG968D/S-10M Appendix Ⅰ：PIR Detection Zone This camera has a new, patented design of PIR. The new patented PIR’s detection range can reach to 100ft (in good environments). Fig. 10 shows the comparison of the detection zones between normal PIR and the new patented PIR.
-
Page 22: Appendixⅱ: Technical Specifications
SG968D/S-10M AppendixⅡ: Technical Specifications Appendix : Technical Specifications Ⅱ 5MP Color CMOS, Image Sensor 10MP interpolation SG968D-10M FOV=100° Lens SG968S-10M FOV =70° Lighting Range（with Flash） Up to 80ft Detection Range Up to 100ft Display Screen 2.0” TFT Memory Card Up to 32 GB 10MP = 3648 ×2736... -
Page 23: Appendix Ⅲ: Parts List
SG968D/S-10M Appendix Ⅲ: Parts List Appendix : Parts List Ⅲ Part Name Quantity Digital Camera USB Cable Belt User’s Manual Warranty Card Security Box Option (Version 1.0) Page 21...
