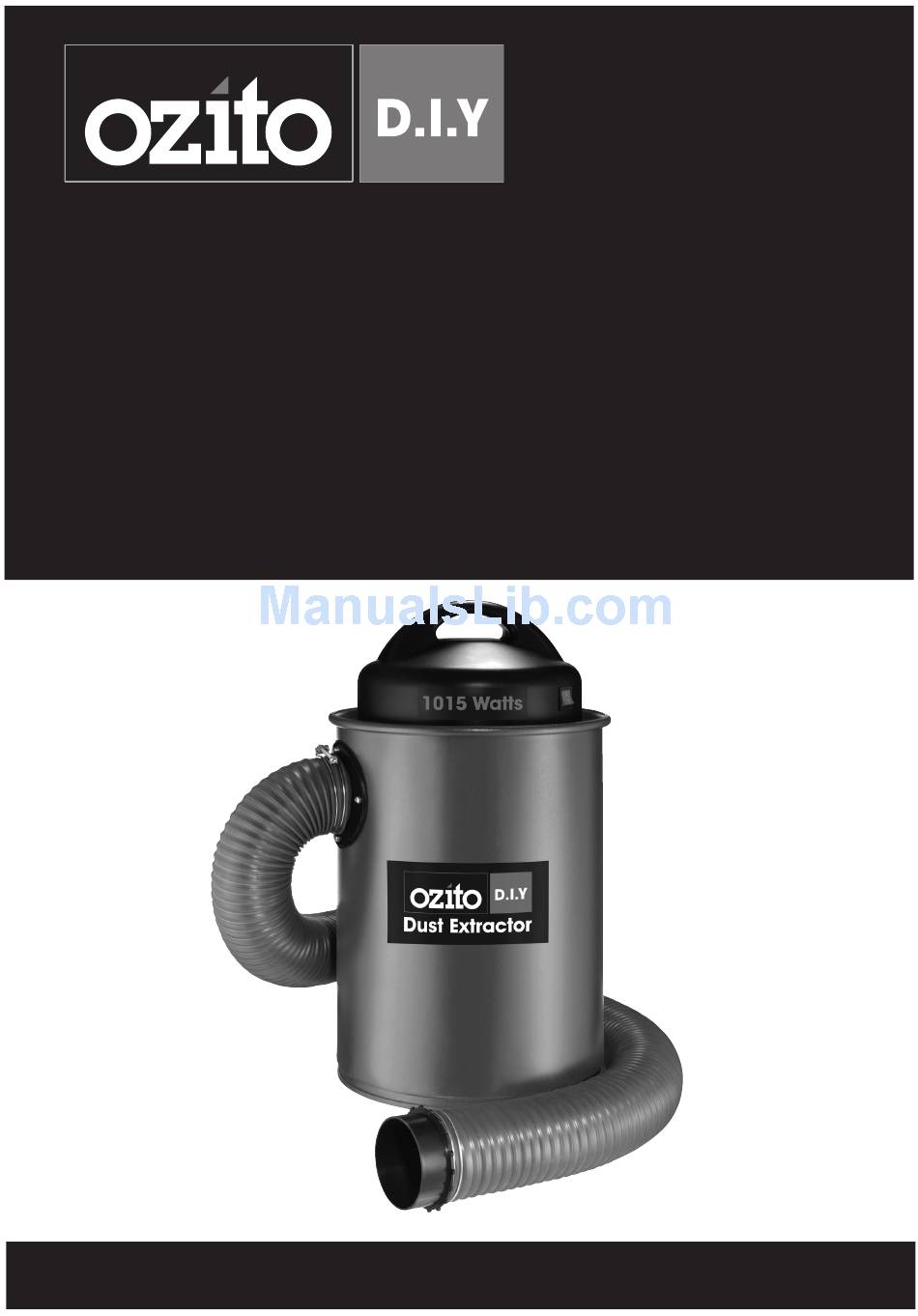

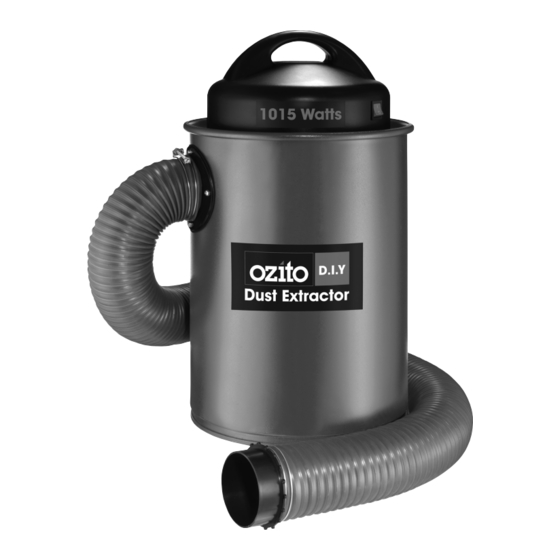

- Page 1 Dust Extractor 1100 Watt Operation Manual 3 Year Replacement Warranty OZDE1015WA CAUTION: Read this operation manual before using this tool. 1208 www.ozito.com.au To view the full range visit:...
-
Page 2: Specifications
SPECIFICATIONS – MODEL NO. OZDE1015WA Motor size: 1100W Input: 230 - 240V ~ 50Hz No load speed: 20,000 /min Exhaust connection: ø100mm Hose length: 1,500mm Suction capacity: 461 CFM Dust collection drum: Noise level: 85 dB (A) Weight: Features: Large Carry Handle Flexible Hose 100mm (4") -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 2 TABLE OF CONTENTS………………………………….. Page 3 INTRODUCTION………………………………………... Page 4 SAFETY INSTRUCTIONS……………………………….. Page 4 ASSEMBLY……………………………………………….. Page 8 OPERATION …………………………………………….. Page 9 MAINTENANCE …………….………………………….. Page 10 CONTENTS ……………………………………………... Page 11 WARRANTY……………………………………………… Page 12... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. - Page 5 GENERAL SAFETY INSTRUCTIONS Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Page 6 GENERAL SAFETY INSTRUCTIONS (cont.) e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
- Page 7 ADDITIONAL SAFETY RULES FOR DUST EXTRACTOR Warning! For your own safety, do not try to use your dust extractor or plug it in until it is completely assembled and installed according to the instructions and until you have read and understood the following: •...
-
Page 8: Assembly
ASSEMBLY For packaging reasons your machine is not entirely assembled. Remove packaging. Release the locking strap (2) and remove the motor housing (1). Warning! During assembly ensure the tool is disconnected from the power supply. In the dust collection drum (6) you will find all Fig. -
Page 9: Operation
ASSEMBLY (cont.) Mount the flexible hose (4) and hose clamps with the 4 screws supplied. (Fig.5) Ensure that the flexible hose (4) is flush with the hose coupling (5) of the dust collection drum (6) before tightening the hose clamp (3). Fig. -
Page 10: Maintenance
6. Regularly check that all bolts, screws and nuts are securely fixed as these could work loose during normal operation. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 11: Contents
Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Dust Extractor OZDE1015WA 1 x Filter bag 1 x Cartridge filter 4 x Hose adaptors 1 x Flexible hose... -
Page 12: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
