Ozito VWD-1225PT Instruction Manual

Ozito VWD-1225PT Instruction Manual

Wet & dry vacuum

Advertisement

Quick Links

WET & DRY
VACUUM
1250W 25L
INSTRUCTION MANUAL
SPECIFICATIONS
Mains Voltage:
230 – 240V ~ 50Hz
Input Power:
1250W
Max. Suction Power:
140mbar
Air Flow:
27.2L/s
Tank Capacity:
25L
Power Outlet Max.:
1150W
Psum:
2400W
IP Rating:
IP24
Product weight:
5.3kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: Filters and dust
bag.
WARNING
The following actions will result in the warranty being void.
If the tool has been operated on a supply voltage other
than that specified on the tool.
If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
Failure to perform maintenance as set out within the
instruction manual.
If the tool is disassembled or tampered with in any way.
Professional, industrial or high frequency use.

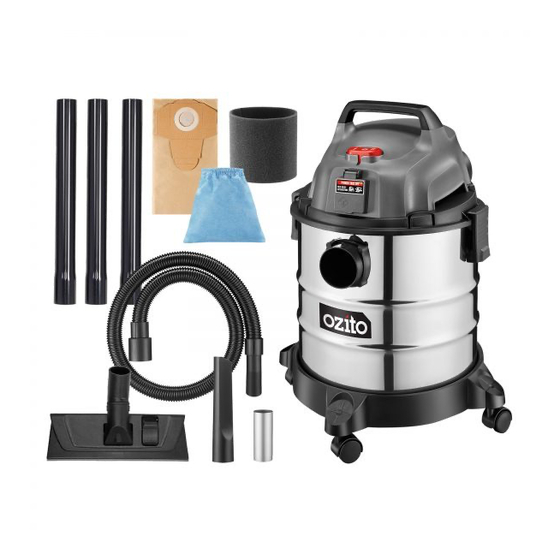

STANDARD EQUIPMENT
25L Wet & Dry Vacuum
Floor Tool, Crevice Tool & Power
Tool Adaptor
Hose, Premium Extension Tubes &
Adaptor
Filter Bag, Dust Bag & Foam Filter
Castor Wheels, Handle Screws
VWD-1225PT
1218

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VWD-1225PT and is the answer not in the manual?

Questions and answers

Summary of Contents for Ozito VWD-1225PT

  • Page 1 Product weight: 5.3kg ozito.com.au Filter Bag, Dust Bag & Foam Filter Castor Wheels, Handle Screws VWD-1225PT WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition WARRANTY YOU MUST RETURN THE PRODUCT to other rights and remedies which are available to you at law.
  • Page 2 KNOW YOUR PRODUCT SETUP & PREPARATION WET & DRY VACUUM 1. ASSEMBLY 1. On/Off/Power Take Off Switch 8. Power Take-Off Socket 2. Carry Handle 9. Vacuum Inlet 3. Accessory Mount 10. Tank WARNING! ENSURE THE TOOL IS DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE 4.
  • Page 3 2. FITTING THE FILTER Mounting the Cable Hook IMPORTANT! NEVER USE THE WET AND DRY VACUUM CLEANER WITHOUT A FILTER! ALWAYS ENSURE THAT THE FILTERS ARE PERFECTLY SECURE! 1. Press the cable hook for the cable store into the mount on the base of the unit. Fitting the Foam Filter - Vacuuming Liquid 2. A fter use, the power cable can...
  • Page 4 Crevice Tool 2. Set the switch on the wet and dry The crevice tool is designed for cleaning vacuum cleaner to the Auto: Power crevices and edges. Take Off mode. The moment you AUTO switch on the power tool, the wet and dry vacuum cleaner switches on as well. When you switch off the power tool, the wet and dry vacuum cleaner switches off as well after a preset delay. VWD-1225PT...
  • Page 5 Bunnings Warehouse. For further information, or any parts not listed here, visit Keep all the accessories with the unit to avoid losing them. www.ozito.com.au or contact Ozito Customer Service: Australia 1800 069 486 Keep in a dry place out of reach of children. New Zealand 0508 069 486...
  • Page 6 Save these instructions and other documents supplied with this tool for future reference. inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if The electric motor has been designed for 230V and 240V only. Always check that the power damaged or defective. supply corresponds to the voltage on the rating plate. When using an extension lead on a reel, always unwind the lead completely. Use of an extension Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and lead not suitable for the power input of the tool or which is damaged or defective may result in a New Zealand. risk of fire and electric shock. Note: The power outlet used for the vacuum must be protected by a 30mA residual current device or earth leakage circuit breaker.
