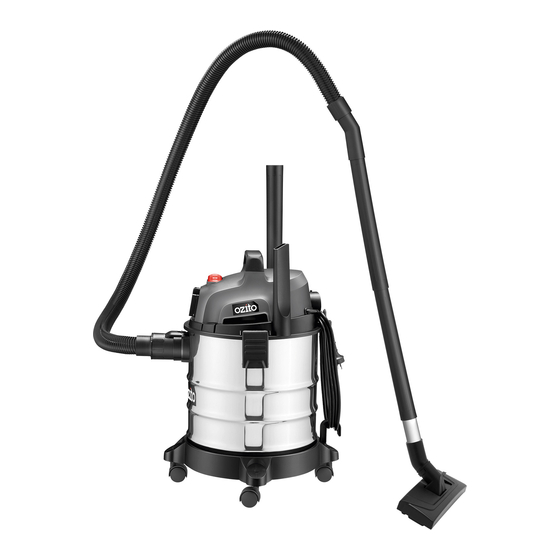

WET & DRY
VACUUM
1250W 20L
INSTRUCTION MANUAL
SPECIFICATIONS
Mains Voltage:
230 – 240V ~ 50Hz
Input Power:
1250W
Suction Power Max.:
180 mbar
Air Flow:
68 l/s
Tank Capacity:
20 l
Power Outlet Max.:
1150W
Psum:
2400W
IP Rating:
IP24
Product weight:
4.7 kg
ozito.com.au
WHAT'S IN THE BOX
Adapters
Crevice Tool
Floor Tool
Castors x 4
Suction Hose Ø36mm x 1.5m
Extension Tubes x 3
Filter Bag
Foam
Dust Bag
Filter
VWD-1220PT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ozito VWD-1220PT
Summary of Contents for Ozito VWD-1220PT
-
Page 1: Instruction Manual
180 mbar Air Flow: 68 l/s Suction Hose Ø36mm x 1.5m Tank Capacity: 20 l Power Outlet Max.: 1150W Psum: 2400W IP Rating: IP24 Product weight: 4.7 kg ozito.com.au Extension Tubes x 3 Filter Bag Foam Dust Bag Filter VWD-1220PT... -
Page 2: Assembly
KNOW YOUR PRODUCT SETUP & PREPARATION WET & DRY VACUUM 1. ASSEMBLY 1. Handle 9. Tank 2. Motor 10. Cable Hook Assembling the Castors 3. Suction Hose 11. Adapter 4. Filter Basket 12. On/Off/Auto Switch 1. Turn the container upside down. 5. -
Page 3: Fitting The Dust Bag
2. FITTING THE FILTER Mounting the Cable Hook IMPORTANT! NEVER USE THE WET AND DRY VACUUM CLEANER WITHOUT A FILTER! ALWAYS ENSURE THAT THE FILTERS ARE PERFECTLY SECURE! 1. Press the cable hook for the cable store into the mount on the base of the unit. Fitting the Foam Filter - Vacuuming Liquid 2. -
Page 4: Fitting Hoses & Nozzles
The floor tool is for vacuuming solids and liquids over medium to large areas. Blowing Connect the suction hose to the blow outlet on the wet and dry vacuum cleaner. Crevice Tool The crevice tool is designed for cleaning crevices and edges. VWD-1220PT... -
Page 5: Spare Parts
For further information, or any parts not listed here, visit The tank can be cleaned with a damp cloth and some soft soap or under www.ozito.com.au or contact Ozito Customer Service: running water, depending on the amount of dirt. Australia 1800 069 486... -
Page 6: Electrical Safety
When using an extension lead on a reel, always unwind the lead completely. Use of an extension Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and lead not suitable for the power input of the tool or which is damaged or defective may result in a New Zealand. - Page 7 Tool: 20L Wet & Dry Vacuum SPARE PARTS Wet/Dry Vacuum Cleaner (elect) Ident-Nr.: 11011 Model No. VWD-1220PT The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No.
-
Page 8: Warranty
Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0515...
