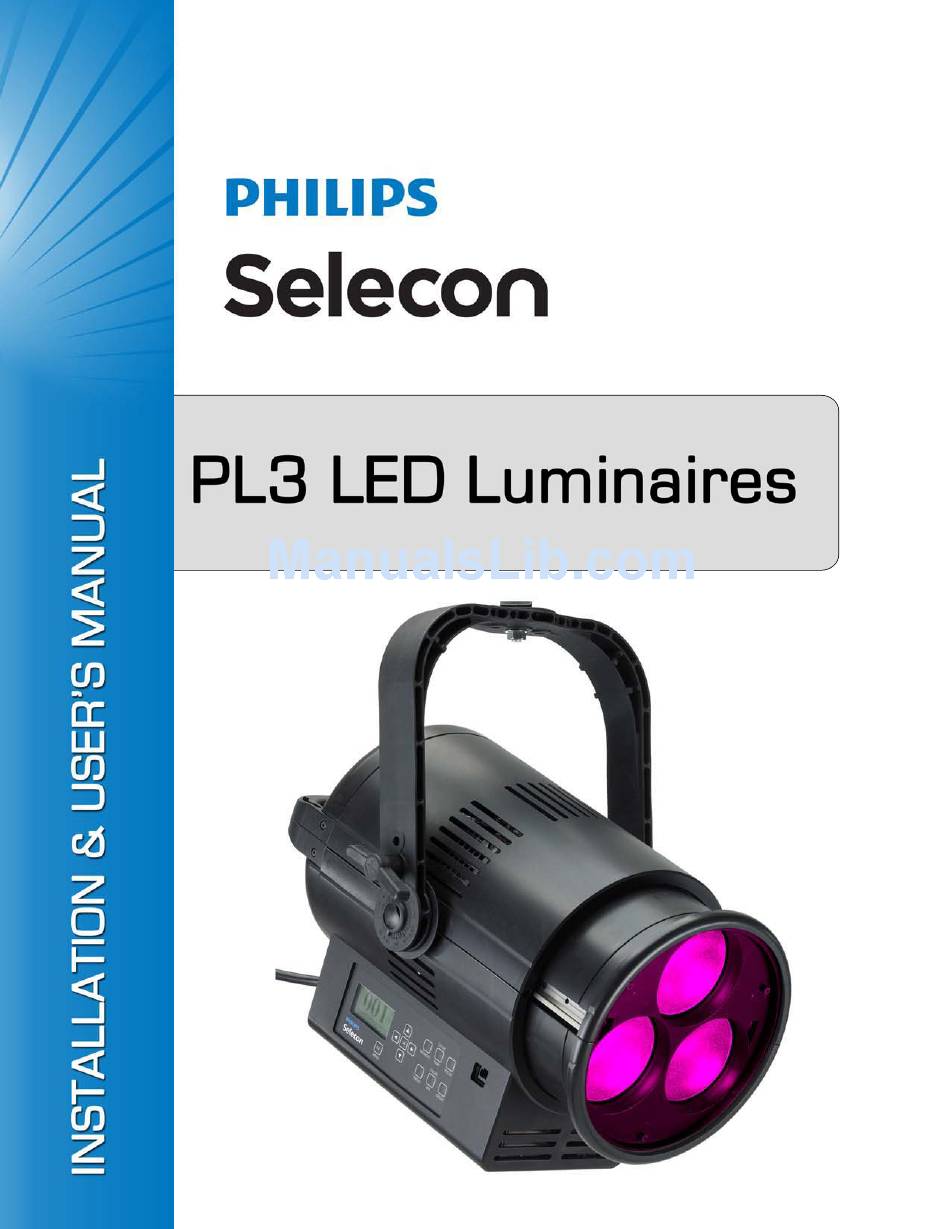

Philips Selecon PL3 LED Luminaires Installation & User Manual
  1. Manuals
  2. Brands
  3. Philips Manuals
  4. Lighting Equipment
  5. Selecon PL3 LED Luminaires
  6. Installation & user manual

Philips Selecon PL3 LED Luminaires Installation & User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Philips Selecon PL3 LED Luminaires

Summary of Contents for Philips Selecon PL3 LED Luminaires

  • Page 2: Philips Selecon Offices

    Information contained in this document may not be duplicated in full or in part by any person without prior written approval of Philips Selecon. Its sole purpose is to provide the user with conceptual information on the equipment mentioned. The use of this document for all other purposes is specifically prohibited.

  • Page 3: Important Information

    Philips Selecon offers a three-year limited warranty of its luminaires against defects in materials or workmanship from the date of delivery. A copy of Philips Selecon three-year limited warranty containing specific terms and conditions can be obtained from the Philips Selecon web site at www.seleconlight.com or by contacting your local Philips Selecon office.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Philips Selecon Offices........................... Inside Front Cover IMPORTANT INFORMATION Warnings and Notices................................. 1 Additional Resources for DMX512............................ 1 Philips Selecon Limited Three-Year Warranty ........................1 TABLE OF CONTENTS PREFACE About this Manual ..................................3 ACCESSORIES..................................3 PL3 LED LUMINAIRE OVERVIEW PL3 LED Luminaire Components ..............................

  • Page 5: Preface

    Product accessories can be found in "ACCESSORIES". 2. ACCESSORIES Contact your Authorized Philips Selecon Dealer for price and availability of all accessories for PL3 LED Luminaires. Additional information can be found on the Philips Selecon web site at www.seleconlight.com. PL3 LED Luminaire IR Remote...

  • Page 6: Pl3 Led Luminaire Overview

    PL3 LED Luminaires Installation & User’s Manual PL3 LED LUMINAIRE OVERVIEW 1. PL3 LED Luminaire Components Luminaire Components "LCD Display / 1) LCD Display Menu (see Menu" on page 4 for more information) 2) Lens (Head) Assembly 3) Tilt Locking Knob 4) Yoke Assembly 5) DMX512 In/Out Connections (see detail) 6) Power Input Connection (PowerCon)

  • Page 7: Installation And Set Up Power Requirements

    PL3 LED Luminaires Installation & User’s Manual INSTALLATION AND SET UP 1. Power Requirements The PL3 LED Luminaire operates on 120 to 240 volts AC (+/- 10%, auto-ranging). The luminaire contains an auto- ranging power supply. Depending on supply voltage, each luminaire can draw up to 4.60 amps. 2.

  • Page 8: Mounting

    PL3 LED Luminaires Installation & User’s Manual 4. Mounting PL3 LED Luminaires offer a plastic monocoque yoke design for mounting by theatrical clamps or hooks (sold separately). Note: Do Not install the PL3 LED Luminaire using C-Clamp (82019 or USCLAMP). This Luminaire requires the longer bolt utilized in clamps Molded Yoke Rated C-Clamp (SC) or Mega Claw (MC).

  • Page 9: Pan & Tilt Adjustments

    PL3 LED Luminaires Installation & User’s Manual 5. Pan & Tilt Adjustments WARNING! Before adjusting pan or tilt, the luminaire should be mounted per local and national safety codes. To adjust tilt: Step 1. Locate yoke lock handle, as illustrated in Figure 1, on side of yoke assembly. Yoke Assembly Yoke Lock Handle Luminaire Tilt Indicator...

  • Page 10: Operation And Programming User Interface

    PL3 LED Luminaires Installation & User’s Manual OPERATION AND PROGRAMMING 1. User Interface The PL3 LED Luminaire’s LCD Display and Menu System provides local control for accessing all the fixture’s status information, menu options, and settings. Note: If there are multiple luminaires in a system, changes would need to be made at each LCD Menu as desired. Upon power up, the LCD will display the main screen showing the product type/name.

  • Page 11: Function Keys

    PL3 LED Luminaires Installation & User’s Manual 2. Function Keys These keys provide single touch access to commonly changed parameters of the fixture. Intensity Button Once pressed the [UP ARROW] or [DOWN ARROW] keys can be used to change the Intensity level of the Fixture's output.

  • Page 12: Menu Options

    PL3 LED Luminaires Installation & User’s Manual 4. Menu Options The menu provides access to numerous Screens to control the Fixtures operation and configuration. • Press [MENU], while at one of the Status Screens to display the Menu List. • Use the [UP ARROW] and [DOWN ARROW] keys to select the Menu option, then press [OK] to go to that sub screen.

  • Page 13: Color Mix

    PL3 LED Luminaires Installation & User’s Manual Menu Structure (continued) Continued from previous page Edit a Preset Sub Menu Options Comments Users can: • Edit the current settings (look) to a specific recallable Preset in the fix- ture’s memory. • Edit the values for Red, Green, Scratch Pad Blue, White, and Intensity values...

  • Page 14: Security

    PL3 luminaires are shipped with default passwords. Users may set their own password (four-digit number). When setting a password, write it down and keep it in a secure location. Note, Philips Selecon does not have records of passwords established by users or owners.

  • Page 15: Security Levels

    PL3 LED Luminaires Installation & User’s Manual Step 3. Select a Level to change ( Level 1 PIN / Level 2 PIN / Level 3 PIN). Step 4. Press [OK] to edit using the [UP ARROW], [DOWN ARROW], [LEFT ARROW] or [RIGHT ARROW] keys to enter a four-digit password (using 0 to 9).

  • Page 16: Editing Preset Names

    PL3 LED Luminaires Installation & User’s Manual Preset 0, the "off" preset is also Locked to the OFF value. Protected Protected Presets are also Factory Calibrated, and by default are Protected from changes to their Color Mix. Their Intensity can be changed. Protected Presets are Presets 5-25. They can be Un-Protected by setting "Protected" to "No";...
  • Page 17 PL3 LED Luminaires Installation & User’s Manual General When the Fixture Powers-Up what does it Off, Scratch Pad, output. Scratch Pad is an automatically Warm White, Cool saved Preset. Last Set is the last thing Power-Up White, Day Light, Cool White coming out of the fixture, this could be Preset30, Preset31, Warm White with the intensity changed...

  • Page 18: Dmx Control

    PL3 LED Luminaires Installation & User’s Manual DMX CONTROL This section contains information for operating the luminaire using DMX control in 16-Bit, 8-Bit, or 3-Channel (3- Chan) modes. For Menu options and detailed information, see "Settings" on page Note: These tables assume a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in sequence.
  • Page 19 PL3 LED Luminaires Installation & User’s Manual Table 2: PL3 Luminaire DMX Channel Mapping (16-Bit Mode) Allows for luminaire timing of intensity. Profile should default to DMX 255 for smoothest Intensity Time 0 - 255 0 - 100% console fade times. Refer to "PL3 Luminaire DMX Timing Channel Detail"...

  • Page 20: Pan & Tilt Dmx Operation Notes

    PL3 LED Luminaires Installation & User’s Manual Table 2: PL3 Luminaire DMX Channel Mapping (16-Bit Mode) Controls Tilt motor in 3 speeds, forward and backwards as follows . . . Motor Stop = DMX 0 - 15 Tilt Motor <<< Fast = DMX 16 - 49 Motor <<...

  • Page 21: 8-Bit Mode

    PL3 LED Luminaires Installation & User’s Manual 2. 8-Bit Mode Table 2-1 provides DMX channel mapping of all DMX512 control values when the PL3 LED Luminaire is in 8-bit DMX512 mode (as set by the luminaire’s menu system). Table 2-1: PL3 Luminaire DMX Channel Mapping (8-Bit Mode) Default - recommended Parameter...
  • Page 22 PL3 LED Luminaires Installation & User’s Manual Table 2-1: PL3 Luminaire DMX Channel Mapping (8-Bit Mode) Used to set different modes, parameters, and functions of the luminaire. Set control channel value for desired action. Hold value for at least 3 seconds.

  • Page 23: Dmx 3-Channel (3-Chan) Mode

    PL3 LED Luminaires Installation & User’s Manual 3. DMX 3-Channel (3-Chan) Mode Table 2-1 provides DMX channel mapping of all DMX512 control values when the PL3 LED Luminaire is in 3- Channel (3-Chan) DMX512 mode (as set by the luminaire’s menu system). Table 2-2: PL3 Luminaire DMX Channel Mapping (3-Chan Mode) Default - recommended...

  • Page 24: Lighting Console Settings For Preset White

    PL3 LED Luminaires Installation & User’s Manual 4. Lighting Console Settings for Preset White 16-Bit Mode Below are the DMX512 console values and levels* for Warm White, Cool White, and Day Light presets in 16-bit mode. Red Channel Green Channel Blue Channel White Channel White Preset...
  • Page 25 PL3 LED Luminaires Installation & User’s Manual Table 3: PL3 Luminaire Timing Channel Detail % Value = Seconds 0 (Full Speed) 10.2 PL3 Luminaire DMX Timing Channel Detail...
  • Page 26 PL3 LED Luminaires Installation & User’s Manual % Value = Seconds 10.4 10.6 10.8 11.2 11.4 11.6 11.8 12.2 12.4 12.6 12.8 13.2 13.4 13.6 13.8 14.2 14.4 14.6 14.8 15.2 15.4 15.6 15.8 16.2 16.4 16.6 16.8 17.2 17.4 17.6 17.8 18.2...
  • Page 27 PL3 LED Luminaires Installation & User’s Manual % Value = Seconds PL3 Luminaire DMX Timing Channel Detail...
  • Page 28 PL3 LED Luminaires Installation & User’s Manual % Value = Seconds DMX CONTROL...
  • Page 29 PL3 LED Luminaires Installation & User’s Manual % Value = Seconds 250* 60mS 251* 80mS 252* 100mS 253* 120mS 254* 140mS 255* 160mS (default) Note: * DMX values 250 to 255 provide smoothing when using console fade timing. DMX value 255 (recommended default) will provide the smoothest timing.

  • Page 30: Infrared Remote Control

    PL3 LED Luminaires Installation & User’s Manual INFRARED REMOTE CONTROL 1. Infrared Remote Control Overview The PL3IRR infrared preset programming remote (sold separately) allows users convenient access to adjust and program luminaire parameters - presets (1 through 6 and Off), intensity, preset color temperatures, zoom/focus control, or full color mixing from the floor.
  • Page 31 PL3 LED Luminaires Installation & User’s Manual To select and program PL3 LED luminaire with PL3IRR remote: Note: The IR, on the PL3 LED luminaire, must be set to "Enabled" in order for the PL3IRR remote to communicate and control the fixture. Each luminaire to be programmed/adjusted needs to be selected and programmed/adjusted individually.

  • Page 32: Cleaning And Care

    Repeat the cleaning with isopropyl alcohol to eliminate streaks and soap residue. If you have any questions regarding the use or care of your PL3 LED Luminaire, please contact Philips Selecon technical support or your local Authorized Dealer.

  • Page 33: Service And Maintenance

    Contact your local Philips Selecon office or an Authorized Service Center for technical support and service. 4. Accessories Only Philips Selecon approved accessories should be used with your PL3 LED Luminaire. For a list of available accessories from Philips Selecon, please see "ACCESSORIES" on page 3.

  • Page 34: Troubleshooting Troubleshooting Guide

    The chart below provides possible causes and remedies for various error messages and/or symptoms. WARNING! Any service and maintenance (including troubleshooting), other than described herein should be performed by an Authorized Philips Selecon Dealer or Service Center. The PL3 LED Luminaire contains no user- serviceable parts.

  • Page 35: Technical Specifications

    ETL / cETL Listed (North America models) and CE Marked (International models) Note: For complete model specifications, features, and accessories, refer to the product specification sheet or visit the Philips Selecon web site at www.seleconlight.com for more details. 2. PL3 LED Luminaire Dimensions Dimensions 9.75 in /...
