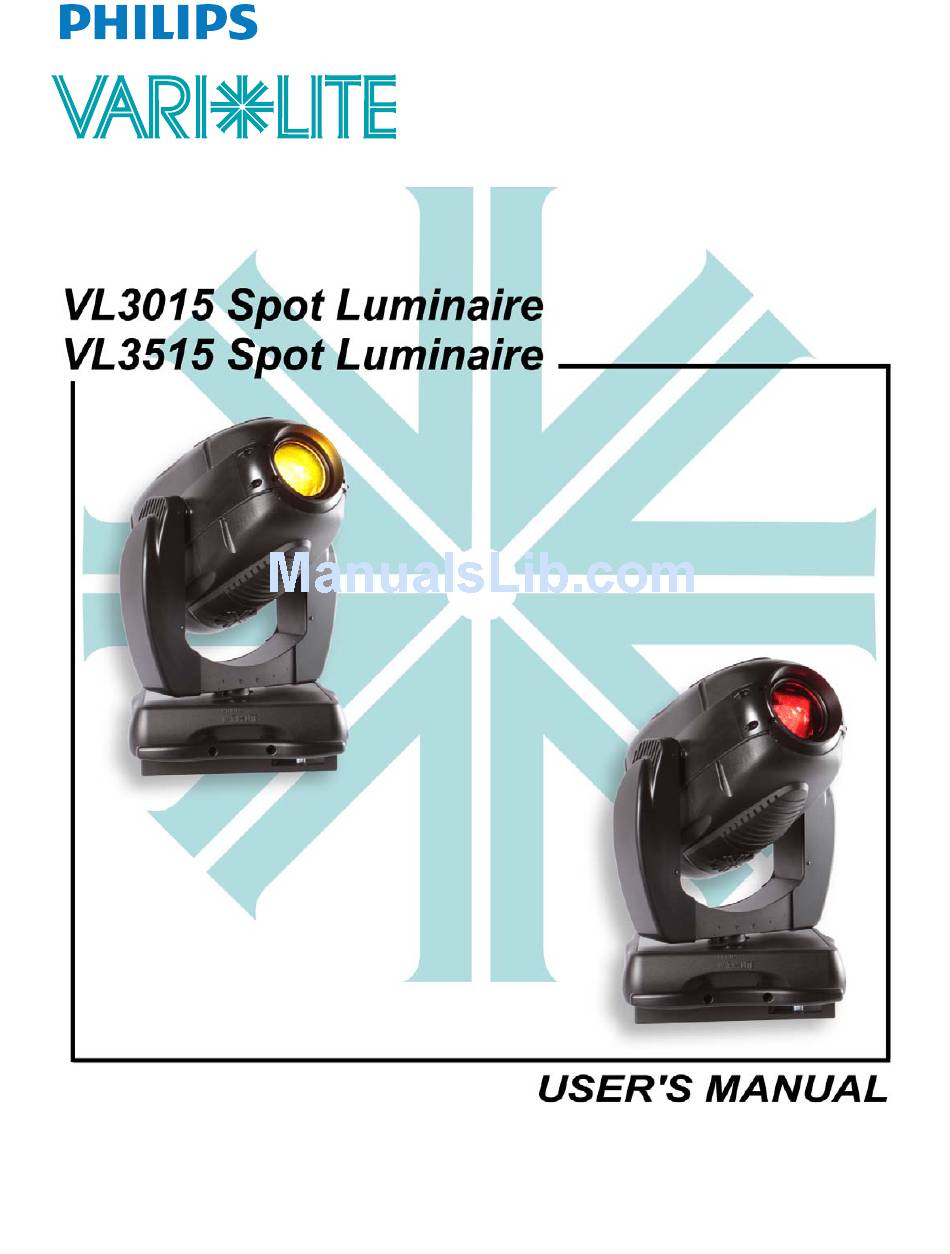

Philips Vari-Lite VL3015 Spot Luminaire User Manual

Flood light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Philips Vari-Lite VL3015 Spot Luminaire

Summary of Contents for Philips Vari-Lite VL3015 Spot Luminaire

  • Page 2 Philips Vari-Lite assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. All information and graphics are property of Philips Vari-Lite, a Philips group company, 10911 Petal Street Dallas, Texas 75238 USA.
  • Page 3 OREWORD How To Obtain Warranty Service A copy of the Philips Vari-Lite Limited Warranty was included in the shipping package for this VARI❋LITE product. To obtain warranty service, please contact customer service at 1-877-VARI-LITE (1-877-827-4548), +1-214-647-7880, or entertainment.service@philips.com and request a Return Material Authorization (RMA) for warranty service.
  • Page 4 Philips Vari-Lite system, service, and safety guidelines, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his/her own expense.

  • Page 5: Safety Notice

    OREWORD Safety Notice It is extremely important to read ALL safety information and instructions provided in this manual and any accompanying documentation before installing and operating the products described herein. Heed all cautions and warnings during installation and use of this product. Safety symbols used throughout this manual are as follows: CAUTION advising of potential damage to product.
  • Page 6 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL WARNING: INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST EXCESSIVE EXPOSURE TO UV RADIATION 1. Many VARI❋LITE luminaires use a lamp that produces UV radiation. DO NOT look directly at lamp. 2. It is hazardous to operate luminaires without lens or shield. Shields, lenses, or ultraviolet screens shall be changed if they have become visibly damaged to such an extent that their effectiveness is impaired.
  • Page 7 OREWORD Sicherheitshinweise Es ist äußerst wichtig, ALLE Sicherheitsinformationen und -hinweise in diesem Handbuch und dem beiliegenden Informationsmaterial zu lesen, bevor Sie die hierin beschriebenen Produkte installieren bzw. bedienen. Halten Sie bei der Installation und dem Einsatz dieses Produkts alle Warnhinweise und Vorsichtsmaßnahmen ein.
  • Page 8 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL WARNUNG: HINWEISE ZUM SCHUTZ GEGEN ÜBERHÖHTE UV-STRAHLUNG 1. Viele VARI❋LITE -Scheinwerfer verwenden die Lampentyp, der UV-Strahlen abgibt. SCHAUEN SIE NICHT direkt in die Lampe. 2. Es ist gefährlich, Leuchten ohne Linsen oder Blenden zu bedienen. Blenden, Linsen oder Ultraviolettschirme müssen ausgetauscht werden, sofern deren Schutzwirkung durch sichtbare Beschädigung (z.
  • Page 9 OREWORD Notes de sécurité Avant de procéder à l’installation des produits décrits dans ce guide et de les mettre en marche, il est extrêmement important de lire TOUS les renseignements et TOUTES les directives de sécurité contenues dans ce guide ainsi que toute documentation jointe. Tenir compte de tous les avertissements et suivre toutes les précautions pendant l’installation et l’utilisation de cet appareil.
  • Page 10 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL AVERTISSEMENT: DIRECTIVES POUR SE PROTÉGER CONTRE UNE EXPOSITION EXCESSIVE AUX RAYONS UV 1. Plusieurs luminaires VARI❋LITE utilisent une lampe qui produit des rayons UV. NE PAS fixer son regard sur la lampe. 2.
  • Page 11 OREWORD Aviso sobre Seguridad Es muy importante leer TODA la información e instrucciones sobre seguridad que se indica en este manual así como en los documentos adjuntos antes de instalar y operar los productos descritos. Se debe prestar atención a todos los avisos y advertencias durante la instalación y uso de este producto. Los símbolos de seguridad usados en este manual son los siguientes: CUIDADO, indica posibles daños al producto.
  • Page 12 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL ADVERTENCIA: INSTRUCCIONES PARA PROTECCIÓN CONTINUA CONTRA LA EXPOSICIÓN EXCESIVA DE RADIACIÓN ULTRA VIOLETA 1. Muchas luminarias VARI❋LITE usan un tipo de lámpara que produce radiación UV. NO mire directamente a la lámpara. 2.
  • Page 13 OREWORD 02.96 79.000 2 A 2 7 Au gu st 2 013...
  • Page 14 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL 2 7 Au gu st 2 013 02 .9 679 .00 02 A...

  • Page 15: Table Of Contents

    ABLE OF ONTENTS Introduction About This Manual ...................... 1 Additional Documentation................... 1 Text Conventions ......................2 Customer Service......................2 Chapter 1. Description Features VL3015 Spot Standard Features .................. 4 VL3515 Spot Standard Features .................. 5 Components Included Items ......................6 Replacement Items/Accessories ..................
  • Page 16 ’ UMINAIRE ANUAL Gobo Wheel 3 ..................... 30 Index/Rotation..................... 31 VL3015 Spot Luminaire Timing VL3015 Spot Timing Channel Information............... 32 VL3515 Spot DMX Channels VL3515 Spot Channel Mapping................40 VL3515 Spot Control Channel Functions ..............42 VL3515 Spot DMX Mapping VL3515 Spot Dimmer Wheel..................
  • Page 17 Color Filter Replacement................... 88 Reflector Change ....................... 89 Cleaning Optics, Filters and Gobos ................92 Appendix B. Technical Specifications VL3015 Spot Luminaire .................... 93 VL3515 Spot Luminaire .................... 96 02.96 79.000 2 A 2 7 Au gu st 2 013...
  • Page 18 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL 2 7 Au gu st 2 013 02 .9 679 .00 02 A...

  • Page 19: About This Manual

    • Testing, Troubleshooting, Component Replacement and Illustrated Parts Breakdown. Note: Performing maintenance procedures may void the product warranty. Refer to the Philips Vari- Lite Limited Warranty card included in the product shipping package for more information. For more information regarding DMX512 systems, refer to the following document available from United States Institute for Theatre Technology, Inc.

  • Page 20: Text Conventions

    Customer Service Our Goal At Philips Vari-Lite, we are committed to providing you the highest quality in customer service. Our comprehensive resources are available to help your business succeed and ensure you get the full benefit of being a Philips Vari-Lite customer. Whether your needs are telephone troubleshooting assistance, product training or technical service, our full-time staff of experienced professionals is on- hand to provide support.

  • Page 21: Chapter 1. Description

    HAPTER Description This chapter contains descriptions of luminaire features and components, along with a list of accessories which are available. • Features • Components 02.96 79.000 2 A 27 Au g ust 2 013...

  • Page 22: Features

    LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Features VL3015 Spot Standard Features The VL3015 Spot Luminaire has the following standard features: • 6:1 zoom optics system with 10° to 60° range. • CYM color mixing system. • Fixed, rotating color wheel with six interchangeable color filters.

  • Page 23: Vl3515 Spot Standard Features

    ESCRIPTION EATURES VL3515 Spot Standard Features The VL3515 Spot Luminaire has the following standard features: • Shutter assembly with four blades: +/- 50° system rotation and +/- 30° blade rotation. • 6:1 zoom optics system with 10° to 60° range. •...

  • Page 24: Components

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Components Included Items The following illustration shows all items included with the luminaire: VL3015 / VL3515 Spot Luminaire Documentation CD ROM Product Registration Product Support Sheet VL3015 or VL3515 Spot Luminaire Unpack &...

  • Page 25: Replacement Items/Accessories

    ESCRIPTION OMPONENTS Replacement Items/Accessories The following optional and/or replacement items can be ordered directly from Philips Vari-Lite. (Please order by Philips Vari-Lite part number.) Philips Vari-Lite Accessory Description Part Number 22.9620.0194 Safety Cable Assembly 25.9661.0057 DMX Termination Connector Assembly 28.8500.0054 USB Luminaire Programming Kit 55.6840.0001...

  • Page 26: Luminaire Overview

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Luminaire Overview The following illustration shows the external luminaire components and controls. Head Assembly Houses color, gobo, strobe, zoom lens and iris or shutter mechanisms*. Also, the alternative reflector (Flat Field) is stored under the bottom head cover.

  • Page 27: Chapter 2. Installation

    HAPTER Installation This chapter contains instructions for installation of the luminaire. It includes connecting power and data, along with instructions for powering up the luminaire for the first time and addressing it within your system. • Power and Data Cabling Requirements •...

  • Page 28: Power And Data Cabling Requirements

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Power and Data Cabling Requirements Power The luminaire requires standard AC power distribution from 200-240 VAC, 50/60 Hz. Current required is 8 to 12 Amps depending on the AC supply voltage and product model. Note: The mating Neutrik PowerCon connector is supplied, however, you will need to purchase or construct a cable appropriate for your application.
  • Page 29 NSTALLATION OWER AND ABLING EQUIREMENTS For single-phase power at 200-240 volts RMS: Connection AC Neutral AC Line Ground (Earth) For three-phase power at 208 volts RMS: Connection Phase 1 Phase 2 Ground (Earth) WARNING: It is not recommended to power any VARI❋LITE luminaire from a dimmer - even in 'NONDIM' mode.

  • Page 30: Data Cables

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Data Cables The VL3015 / VL3515 Spot Luminaire is equipped with two, 5-pin XLR connectors for DATA IN and DATA THRU (out) applications. DATA IN requires a 5-pin, female XLR connector and DATA THRU requires a 5-pin, male XLR connector.

  • Page 31: Recommended Cable Types/Manufacturers

    5-pin, male XLR connector. • Two 1/4W 5% 120 ohm resistors. Note: A DMX termination connector assembly is available as an accessory from Philips Vari-Lite. “Replacement Items/Accessories” on page 02.96 79.000 2 A 2 7 Au gu st 2 013...

  • Page 32: Installation Procedures

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Installation Procedures Reflector Selection Users have the option of using one of the two supplied reflectors - one Peaked Reflector (installed in unit) and one Flat Field Reflector (stored in the luminaire’s head assembly under the bottom head cover) - with the VL3015 Spot and VL3515 Spot Luminaires.
  • Page 33 NSTALLATION NSTALLATION ROCEDURES Step 3. While pulling up on locking mechanism release, fit keyed holes onto raised mounting buttons at bottom of enclosure. Slide forward and release locking mechanism to lock in place. Ensure brackets are locked securely. (Always face brackets in same direction as shown.) WARNING: Ensure that the bracket locking mechanism is fully seated after the bracket is installed on the luminaire.
  • Page 34 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Installing in Truss: Step 1. Using two people, lift luminaire into mounting position. Step 2. Secure in place with truss hook. Ensure truss hook hardware that locks hook in place (e.g. wing bolt) is properly tightened and that luminaire is fully supported.

  • Page 35: Floor Mounting The Luminaire

    NSTALLATION NSTALLATION ROCEDURES Floor Mounting the Luminaire The luminaire enclosure is sufficient to stabilize the luminaire in a floor installation, provided that the mounting surface is flat and sturdy. Luminaire Enclosure Figure 2-6: Floor Mounting Connecting Data and Power A maximum of 32 luminaires may be connected in any one DMX data link. Note: This maximum limit applies to the luminaire "daisy chain"...

  • Page 36: Powering Up

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Powering Up Power Up and Configuration Procedure Since Lamp On is the default state, the lamp will strike when the luminaire is powered up for the first time. When AC power is applied and the luminaire’s power switch is in the "On" position, the luminaire will immediately begin a calibration sequence that steps it through pan and tilt movements.

  • Page 37: Addressing

    NSTALLATION DDRESSING Addressing Program Starting Address The address setting for DMX console controlled systems is entered using the Menu Display (refer to “Menu Operation” on page 64). The luminaire retains the DMX address even if power is removed. Note: Refer to your console operating instructions for specific information regarding its addressing requirements.
  • Page 38 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Notes 2 7 Au gu st 2 013 02 .9 679 .00 02 A...

  • Page 39: Chapter 3. Operation

    This chapter contains instructions for operating the luminaire using DMX control and for updating the internal software. • VL3015 Spot DMX Channels • VL3015 Spot DMX Mapping • VL3015 Spot Luminaire Timing • VL3515 Spot DMX Channels • VL3515 Spot DMX Mapping • VL3515 Spot Luminaire Timing •...

  • Page 40: Vl3015 Spot Dmx Channels

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL VL3015 Spot DMX Channels VL3015 Spot Channel Mapping These tables assume a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in sequence. Table 1: VL3015 Spot DMX Channel Mapping DMX Channel Parameters...
  • Page 41 : VL3015 S DMX C PERATION HANNELS Table 1: VL3015 Spot DMX Channel Mapping DMX Channel Parameters Range (DMX) Range (%) Default Value* Description Controls Gobo Wheel 2 using the following levels from 0 to 216. From 217 to 255 will give different speeds of wheel spin.
  • Page 42 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Table 1: VL3015 Spot DMX Channel Mapping DMX Channel Parameters Range (DMX) Range (%) Default Value* Description Used to strike/douse the lamp, set lamp levels, and other various functions, as well as resetting the luminaire via the console.

  • Page 43: Vl3015 Spot Control Channel Functions

    : VL3015 S DMX C PERATION HANNELS VL3015 Spot Control Channel Functions Control channel functions allow special actions such as reset, lamp on/off and partial recalibration. These must be executed with zero time transition or with timing disabled. Discrete values must be used;...
  • Page 44 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Step 3. Set control channel value to zero. (This must occur without any scaling values. Action will be voided if other values are detected between action value and zero.) Note: A numerical keypad is required for sending values. An encoder or fader does not allow for a quick value change, which is required to effect the control functions.

  • Page 45: Vl3015 Spot Dmx Mapping

    : VL3015 S DMX M PERATION APPING VL3015 Spot DMX Mapping VL3015 Spot Color Control The luminaire’s color system is composed of a color mixing mechanism and a fixed color wheel. The follow sections describe these components. Color Mixing The color mixing mechanism is made up of four graduated color disks: blue, amber, magenta and CTO (color temperature orange).
  • Page 46 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Table 3-3: VL3015 Spot Color Wheel Standard Configuration Chart Position Color Filter Part Number Congo Blue 41.9678.0305.03 Orange 41.9678.0305.05 Kelly Green 41.9678.0305.02 Dark Fuchsia 41.9678.0305.06 Magenta 41.9678.0305.04 Deep Red 41.9678.0305.01 Table 3-4: VL3015 Spot DMX Map for Fixed Color Wheel Position DMX Value...

  • Page 47: Vl3015 Spot Beam Control

    : VL3015 S DMX M PERATION APPING VL3015 Spot Beam Control Strobe Table 3-5: VL3015 Spot DMX Map for Strobe % Value DMX Value Action Open Closed Slow Random 8-10 Med Random 11-12 Fast Random 5-100 13-255 Speed Range VL3015 Spot Gobo/Effects Control Gobo Wheels 1 and 2 These wheels have six positions, one being open.

  • Page 48: Gobo Wheel 3

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Table 3-7: VL3015 Spot Gobo Wheel 2 Standard Configuration Chart Position Gobo Style Part Number open Palm Leaves 41.6030.5503 Shock Break-up 41.6030.7018 Uneven Bars 41.6030.4211 Ice Blocks Gag 41.6030.8509 Droplets Gag 41.6030.8506 Gobo Wheel 3 This wheel has five positions, one being open.

  • Page 49: Index/Rotation

    : VL3015 S DMX M PERATION APPING Index/Rotation The gobo wheels operate in two modes: INDEX Mode and ROTATE Mode. The corresponding values are given in the DMX Map Tables below. Gobos will also behave as follows: • Gobo wheels will only stop at whole images. •...

  • Page 50: Vl3015 Spot Luminaire Timing

    "steppy" in console timed moves. Note: Some parameters have been excluded from the timing channels. Wheel spin and gobo rotation rate changes are not affected by timing channels. VL3015 Spot Luminaire Channel Function / Timing Channel Relationship Table 3-12: Timing Channel...
  • Page 51 : VL3015 S PERATION UMINAIRE IMING A timing value of zero is full speed. A time value of 100% (or 255 in DMX) enables the associated parameter(s) to follow cue fade time (console time) rather than the timing channel. Note: The particular storing syntax for your console, as well as instructions on how to write part cues, can be found in the operation manual for that console.
  • Page 52 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Timing Channels Map Table 3-13: (Continued) % Value = Seconds 10.2 10.4 10.6 2 7 Au gu st 2 013 02 .9 679 .00 02 A...
  • Page 53 : VL3015 S PERATION UMINAIRE IMING Timing Channels Map Table 3-13: (Continued) % Value = Seconds 02.96 79.000 2 A 2 7 Au gu st 2 013...
  • Page 54 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Timing Channels Map Table 3-13: (Continued) % Value = Seconds 2 7 Au gu st 2 013 02 .9 679 .00 02 A...
  • Page 55 : VL3015 S PERATION UMINAIRE IMING Timing Channels Map Table 3-13: (Continued) % Value = Seconds 02.96 79.000 2 A 2 7 Au gu st 2 013...
  • Page 56 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Timing Channels Map Table 3-13: (Continued) % Value = Seconds 2 7 Au gu st 2 013 02 .9 679 .00 02 A...
  • Page 57 : VL3015 S PERATION UMINAIRE IMING Timing Channels Map Table 3-13: (Continued) % Value = Seconds Follows Cue Data 02.96 79.000 2 A 2 7 Au gu st 2 013...

  • Page 58: Vl3515 Spot Dmx Channels

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL VL3515 Spot DMX Channels VL3515 Spot Channel Mapping These tables assume a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in sequence. Table 4: VL3515 Spot DMX Channel Mapping DMX Channel Parameters...
  • Page 59 : VL3515 S DMX C PERATION HANNELS Table 4: VL3515 Spot DMX Channel Mapping DMX Channel Parameters Range (DMX) Range (%) Default Value* Description Controls Gobo Wheel 2 using the following levels from 0 to 216. From 217 to 255 will give different speeds of wheel spin.

  • Page 60: Vl3515 Spot Control Channel Functions

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL • Use of Timing Channels: The default value setting in the profile should be 255 (proportional control) to allow smooth movement when using console timing. The Timing channel data should change as a snap.
  • Page 61 : VL3515 S DMX C PERATION HANNELS To use control channel functions: Step 1. Select an action to be sent*. Step 2. Set control channel value for desired action (for example, 84 for reset). Hold value for 3 seconds. Step 3. Set control channel value to zero. (This must occur without any scaling values. Action will be voided if other values are detected between action value and zero.) Note: A numerical keypad is required for sending values.

  • Page 62: Vl3515 Spot Dmx Mapping

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL VL3515 Spot DMX Mapping VL3515 Spot Dimmer Wheel The luminaire is equipped with a graduated glass dimmer wheel. The dimmer wheel allows for smooth timed fades from full light output to absolute black. VL3515 Spot Color Control The luminaire’s color system is composed of a color mixing mechanism and a fixed color wheel.

  • Page 63: Fixed Color Wheel

    : VL3515 S DMX M PERATION APPING Fixed Color Wheel The fixed color wheel offers fast or timed changes, partial and full frame positions, and various spin rates in either direction. The wheel contains seven positions, one being open. The following illustration shows the standard positions and color configuration: Pos 3 Orange...
  • Page 64 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Table 3-4: DMX Map for Fixed Color Wheel Position DMX Value Action Half Center Half Center Half Center Half Table 3-5: DMX Map for Fixed Color Wheel Spin DMX Value Wheel Spin / Direction 85 - 91 217 - 233...

  • Page 65: Vl3515 Spot Beam Control

    : VL3515 S DMX M PERATION APPING VL3515 Spot Beam Control Strobe A dual blade strobe and dousing system provide variable strobe effects capable of slow, medium, fast, random, and plus a synchronized variable rate (up to 14 Hz.) operation. The strobe blades can be used to augment fades or rapid dousing (blocking of the beam) of the luminaire.

  • Page 66: Vl3515 Spot Gobo/Effects Control

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL VL3515 Spot Gobo/Effects Control Gobo Wheel 1 (Rotating) and 2 (Fixed) Gobo Wheel 1 has six positions, one being open. The gobo wheel assembly can spin and individual gobos can rotate. Gobo Wheel 2 is fixed with seven positions with one being open. Fixed means only the gobo wheel will spin.

  • Page 67: Index/Rotation

    : VL3515 S DMX M PERATION APPING Index/Rotation The rotating gobo wheel operates in two modes: INDEX Mode and ROTATE Mode. The corresponding values are given in the DMX Map Tables below. Gobos will also behave as follows: • Gobo wheels will only stop at whole images. •...
  • Page 68 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL The Gobo Index function utilizes 16-bit control which offers enhanced resolution whether in INDEX or ROTATE mode. Table 3-13: VL3515 Spot Index Rotation Range Function Range Index 0-65535 Rotate 0 (cw max) - 32599 (cw min) 32600 - 33047 (stop) 33048 - 65535 (ccw max) 2 7 Au gu st 2 013...

  • Page 69: Vl3515 Spot Shutter Control

    : VL3515 S DMX M PERATION APPING VL3515 Spot Shutter Control Shutter Mechanism The shutter mechanism is comprised of four frame blades that move independently or in unison on two planes for a crisp, sharp image (refer to Figure 3-6 below).

  • Page 70: Vl3515 Spot Luminaire Timing

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL VL3515 Spot Luminaire Timing VL3515 Spot Timing Channel Information Timing channel control improves the timed moves of certain groups of parameters. We provide up to four timing channels, one for focus (Pan and Tilt), one for color parameters, one for beam parameters, and one for gobo wheel position (spot version only).
  • Page 71 : VL3515 S PERATION UMINAIRE IMING A timing value of zero is full speed. A time value of 100% (or 255 in DMX) enables the associated parameter(s) to follow cue fade time (console time) rather than the timing channel. Note: The particular storing syntax for your console, as well as instructions on how to write part cues, can be found in the operation manual for that console.
  • Page 72 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Timing Channels Map Table 3-16: (Continued) % Value = Seconds 10.2 10.4 10.6 2 7 Au gu st 2 013 02 .9 679 .00 02 A...
  • Page 73 : VL3515 S PERATION UMINAIRE IMING Timing Channels Map Table 3-16: (Continued) % Value = Seconds 02.96 79.000 2 A 2 7 Au gu st 2 013...
  • Page 74 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Timing Channels Map Table 3-16: (Continued) % Value = Seconds 2 7 Au gu st 2 013 02 .9 679 .00 02 A...
  • Page 75 : VL3515 S PERATION UMINAIRE IMING Timing Channels Map Table 3-16: (Continued) % Value = Seconds 02.96 79.000 2 A 2 7 Au gu st 2 013...
  • Page 76 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Timing Channels Map Table 3-16: (Continued) % Value = Seconds 2 7 Au gu st 2 013 02 .9 679 .00 02 A...
  • Page 77 : VL3515 S PERATION UMINAIRE IMING Timing Channels Map Table 3-16: (Continued) % Value = Seconds Follows Cue Data 02.96 79.000 2 A 2 7 Au gu st 2 013...

  • Page 78: Updating Software

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Updating Software USB Download and Programming To download files with a PC equipped with a Universal Serial Bus (USB) port, you need the VARI❋LITE USB Luminaire Programming Kit (28.8500.0054). The USB Luminaire Programming Kit can be ordered directly from your Authorized VARI❋LITE Dealer.

  • Page 79: Transferring Software From Luminaire To Luminaire

    PERATION PDATING OFTWARE Lists specific versions of downloaded software (on PC) Device Connection Status and USB Downloader Controls Click to download specific software version to connected luminaire(s) Click logo to go to Vari-Lite web site (internet connection required) Download History Will show current progress of download Figure 3-7: VL Download Program Window...
  • Page 80 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL A DMX termination connector is used in this process. Refer to page 13 for more information regarding the construction of this connector. Master luminaire containing Luminaire 1 Luminaire 2 software version to download requiring update requiring update AC IN...

  • Page 81: Chapter 4. Menu System

    HAPTER Menu System This chapter contains instructions for operating the luminaire using the Menu Display feature. • Menu Operation • Menu Functions • Self-Tests 02.96 79.000 2 A 27 Au g ust 2 013...

  • Page 82: Menu Operation

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Menu Operation What Is the Menu System? The menu system is a programmable set of commands used to configure, address, operate, and test the luminaire. The menu system is controlled at the Menu Display available at the enclosure input panel. Menu Display AC IN DATA IN...

  • Page 83: Default State

    YSTEM PERATION To enter the menu system, first press [Menu]. The functions displayed will be 1st level functions. Scroll through the 1st level functions by pressing [Up] / [Down] arrows. Once the desired function appears in the display, press [Enter]. You are now at the 2nd level. Once again, press the [Up] / [Down] arrows to scroll through 2nd level functions.

  • Page 84: Menu Functions

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Menu Functions VL3015 Spot Menu System Overview The following is a graphic representation of the entire menu system. Data Chan XXX data Address value Pan/Tilt Swap Config Lamp Power Inv Pan Power Up Lamp OFF Inv Tilt...

  • Page 85: Vl3015 Spot Menu System Function Chart

    YSTEM UNCTIONS VL3015 Spot Menu System Function Chart The following is a detailed look at the internal menu system. Table 4-1: VL3015 Spot Menu System Chart 1st Level 2nd Level 3rd Level 4th Level 5thLevel Address XXX Address value Config LAMP Lamp Options Power Lamp Power ON (default)
  • Page 86 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Table 4-1: VL3015 Spot Menu System Chart 1st Level 2nd Level 3rd Level 4th Level 5thLevel Test All @1 Test All mechanisms RUN TEST Run-Test in Progress Press [Menu] to at once, 2 steps stop tests All SEQ Test all...
  • Page 87 YSTEM UNCTIONS Table 4-1: VL3015 Spot Menu System Chart 1st Level 2nd Level 3rd Level 4th Level 5thLevel Manual Pan * XXXX Value Manual Tilt * XXXX Value Commands Dimmer XXX Value Strobe XXX Value Blue XXX Value Amber XXX Value Magenta XXX Value ColWheel Color Wheel...

  • Page 88: Vl3515 Spot Menu System Overview

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL VL3515 Spot Menu System Overview The following is a graphic representation of the entire menu system. Data Chan XXX data Address value Pan/Tilt Swap Config Lamp Power Inv Pan Power Up Lamp OFF Inv Tilt Cal ON...

  • Page 89: Vl3515 Menu System Function Chart

    YSTEM UNCTIONS VL3515 Menu System Function Chart The following is a detailed look at the internal menu system. Table 4-2: VL3515 Menu System Chart 1st Level 2nd Level 3rd Level 4th Level 5thLevel Address XXX Address value Config LAMP Lamp Options Power Lamp Power ON (default) Configuration...
  • Page 90 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Table 4-2: VL3515 Menu System Chart 1st Level 2nd Level 3rd Level 4th Level 5thLevel Manual Pan * XXXX Value Manual Tilt * XXXX Value Commands Dimmer XXX Value Strobe XXX Value Cyan XXX Value...
  • Page 91 YSTEM UNCTIONS Table 4-2: VL3515 Menu System Chart 1st Level 2nd Level 3rd Level 4th Level 5thLevel Test All @1 Test All mechanisms RUN TEST Run-Test in Progress Press [Menu] to at once, 2 steps stop tests All SEQ Test all RUN TEST Run-Test in Progress mechanisms in order, X steps.

  • Page 92: Menu Function Definitions

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Menu Function Definitions For easy reference, each possible menu item is listed alphabetically in the first column by its display abbreviation. The second column follows with a definition of the abbreviation and then a third column provides an explanation of its purpose and function.
  • Page 93 YSTEM UNCTIONS Table 4-3: Menu Function Definitions (Continued) Display Definition Purpose Index1 Gobo Index Specifies rotating the gobo index for manual control (Manual) and testing (Test) (EOT sensor, etc.) Inv Pan Invert Pan Reverses pan action for special focus requirements. Inv Tilt Invert Tilt Reverses tilt action for special focus requirements.

  • Page 94: Self-Tests

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Self-Tests Running Parameter Tests The luminaire is capable of running self-tests by using the Test menu functions. When running tests on multiple luminaires, a DMX termination connector is required at the last luminaire in the link.
  • Page 95 YSTEM ESTS Movement Disable The Movement option allows pan and tilt to be disabled so that the luminaire can be placed in any position for testing without movement occurring. In order to regain full control of the luminaire, Movement will need to be enabled after testing. Note: When using the Movement option, pan and tilt will be disabled for all the luminaires that are linked.
  • Page 96 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Notes 2 7 Au gu st 2 013 02 .9 679 .00 02 A...

  • Page 97: Appendix A. Luminaire Care And Routine Maintenance

    PPENDIX Luminaire Care and Routine Maintenance This appendix provides instructions for troubleshooting and routine maintenance which may be necessary during the life of the luminaire. • Equipment Handling • Troubleshooting • Routine Maintenance WARNING: All maintenance procedures are to be performed with power removed from the luminaire.

  • Page 98: Equipment Handling

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Equipment Handling Below are some basic tips and information on handling luminaires and their associated components. Locations/Use VARI❋LITE luminaires are designed for dry locations only. Exposure to rain or moisture (including, but not limited to, fog machines, misters, etc.,) may damage luminaire.

  • Page 99: Solid State Electronics

    ROUBLESHOOTING AND AINTENANCE compounds is greater around the top electrode than the bottom electrode. In addition, the fill components that are difficult to vaporize congeal around the bottom electrode, thereby reducing lamp life. Solid State Electronics Electrostatic Discharge (ESD) Electrostatic discharge (ESD) presents a significant danger to solid state electronic components (semiconductor devices and PC board assemblies).

  • Page 100: Troubleshooting

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Troubleshooting Error Messages If a problem occurs during luminaire calibration, at the end of the calibration sequence the Menu Display will cycle through any applicable error message(s) until the end of the list is reached. To review the error messages again, it will be necessary to access them using the Status function.

  • Page 101: Troubleshooting Guide

    ROUBLESHOOTING AND AINTENANCE Troubleshooting Guide If a problem is suspected, first try recalibrating the luminaire to prompt an error message. The chart below provides possible causes and remedies for various error messages and/or symptoms. Table A-2: Troubleshooting Chart Message Symptom Description Possible Cause/Remedy Lamp...

  • Page 102: Routine Maintenance

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Routine Maintenance Lamp Replacement WARNING: Ensure that power is removed from luminaire when installing lamp. CAUTION: Wear cotton gloves or other covering while installing lamp. Touching lamp glass with bare fingers will leave oil and may cause the lamp to explode or reduce lamp life. If touched, use alcohol and cotton cloth to thoroughly clean glass portion of lamp.

  • Page 103: Align Lamp

    ROUBLESHOOTING AND AINTENANCE Align Lamp The design of the VL3015 / VL3515 Spot Luminaire optical system allows for a flat or peaked field. A flat field is one where there is no detectable hot spot and a peaked field is one where the intensity of the beam is greater at the center of the beam than at the perimeter.

  • Page 104: Gobo Replacement - Gobo Wheels (Rotating And Fixed)

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Gobo Replacement - Gobo Wheels (Rotating and Fixed) Tools: #2 Phillips screwdriver WARNING: Remove power from luminaire before performing maintenance. Gobos may be HOT after operation. Allow to cool before replacing. To replace a gobo: Step 1.
  • Page 105 ROUBLESHOOTING AND AINTENANCE * Head covers are attached by tethers. Top Head Cover * 1/4-Turn Screw (4 per head cover) Bottom Head Cover * Gobo Wheel (see detail) OTATING HEELS Gobo Assembly Rotating Gobo Wheel Front of luminaire Carrier Do not touch glass with bare fingers. Press on gobo carrier only.

  • Page 106: Color Filter Replacement

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Color Filter Replacement Tools: #2 Phillips screwdriver WARNING: Remove power from luminaire before performing maintenance. Filters may be HOT after operation. Allow to cool before replacing. To replace a color filter: Step 1.

  • Page 107: Reflector Change

    ROUBLESHOOTING AND AINTENANCE Reflector Change The VL3015 Spot and VL3515 Spot luminaires come with both a Peaked and Flat Field Reflector. Users can choose between either reflector as desired. Note: The unit, when shipped from the factory, has the Peaked Reflector installed in the unit’s hot box and the Flat Field Reflector stored in the luminaire head assembly underneath the bottom head cover.
  • Page 108 ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Step 5. As shown in Figure A-6, remove stored reflector by removing acorn nut and foam washer securing reflector in luminaire head assembly. Set reflector aside on a soft clean cloth. Reflector Assembly Storage Location Reflector Assembly Acorn Nut...
  • Page 109 ROUBLESHOOTING AND AINTENANCE Step 8. Using a flat screwdriver, remove current reflector from hot box assembly as follows: a. Press tabs (one on each side) securing reflector assembly into hot box (as shown in Figure A-8), inwards to release reflector assembly. b.

  • Page 110: Cleaning Optics, Filters And Gobos

    ❋ VARI LITE VL3015 / VL3515 S ’ UMINAIRE ANUAL Cleaning Optics, Filters and Gobos WARNING: Remove power from luminaire before performing maintenance. WARNING: Acetone is a harsh cleaning agent and solvent. Acetone is very flammable. Please handle acetone according to manufacturer’s safety instructions and precautions. The front lens, optics/color filters, and reflector may require cleaning after extended use.

  • Page 111: Appendix B. Technical Specifications

    PPENDIX Technical Specifications VL3015 Spot Luminaire PROGRAMMABLE FUNCTIONS Zoom Optics 13-element 6:1 zoom optics system covering a range of 10° to 60°. Color System A three-filter CYM cross-fading mechanism. A fixed color wheel with six interchangeable color filters and continuous wheel rotation for additional effects.
  • Page 112 ❋ VARI LITE - VL3015 / VL3515 S ’ UMINAIRE ANUAL Reflector Precision glass reflector with dichroic cold mirror coating. Color Filter Fixed wheel color filters: .044" thick, 2.039" diameter. Gobo Gobos are E size. Metal gobos are not acceptable. OPERATIONAL Power Requirements Standard AC power distribution from 200-264 VAC, 50/60 Hz.
  • Page 113 ECHNICAL PECIFICATIONS PHOTOMETRIC 1500W Short Arc Lamp (Flat Field Reflector) FIELD Zoom Lens CENTER BEAM CENTER BEAM TOTAL FIELD ANGLE DIAMETER Position CANDELA FOOT-CANDLE LUMENS (degrees) NFOV 1,483,115 4,734 21,592 0.1695 MFOV 225,449 4,601 21,408 24.2 0.4286 WFOV 39,968 5,098 21,918 57.2 1,0714...

  • Page 114: Vl3515 Spot Luminaire

    ❋ VARI LITE - VL3015 / VL3515 S ’ UMINAIRE ANUAL VL3515 Spot Luminaire PROGRAMMABLE FUNCTIONS Zoom Optics 13-element 6:1 zoom optics system covering a range of 10° to 60°. Color System A three-filter CYM cross-fading mechanism. A fixed color wheel with six interchangeable color filters and continuous wheel rotation for additional effects.
  • Page 115 ECHNICAL PECIFICATIONS Gobo Gobos are E size. Metal gobos are not acceptable. OPERATIONAL Power Requirements Standard AC power distribution from 200-264 VAC, 50/60 Hz. The unit requires 8 to 12 A depending on the AC supply voltage. Operational Temperatures -20° to 104°F (-29° to 40°C) Cooling Forced air cooled.
  • Page 116 ❋ VARI LITE - VL3015 / VL3515 S ’ UMINAIRE ANUAL PHOTOMETRIC 1500W Short Arc Lamp (Flat Field Reflector) FIELD Zoom Lens CENTER BEAM CENTER BEAM TOTAL FIELD ANGLE DIAMETER Position CANDELA FOOT-CANDLE LUMENS (degrees) NFOV 1,483,115 4,734 21,592 0.1695 MFOV 225,449 4,601...
  • Page 118 Philips Vari-Lite 10911 Petal Street Dallas, Texas 75238 USA 1-877-VARI-LITE . 1-214-647-7880 www.vari-lite.com. 2013 Philips Vari-Lite, a Philips group company. All Rights Reserved. ©...
