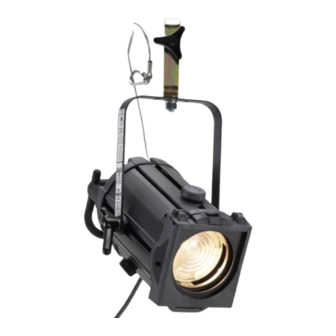

ACCLAIM FRESNEL AND PC
THANK YOU FOR PURCHASING A PHILIPS SELECON LUMINAIRE. WE HAVE DESIGNED THIS
LUMINAIRE TO PROVIDE YOU WITH A SUPERIOR FITTING IN PERFORMANCE, DESIGN AND
ENGINEERING. WE ARE CONFIDENT THAT IT WILL PERFORM TO YOUR EXPECTATIONS FOR MANY
YEARS TO COME.
Before operating your new luminaire please read this information to assist you in making maximum use of your
luminaire, its maintenance and care. If you would like further assistance contact your Philips Selecon dealer or
Philips Selecon.
LAMPING YOUR LUMINAIRE
Before lamping – DISCONNECT THE LUMINAIRE FROM THE POWER SUPPLY. Be aware also that the
lamp or luminaire may still be hot, so exercise the necessary caution to avoid burns. Please note also
that these luminaires are not suitable for mounting on a normally flammable surface.
The Philips Selecon Acclaim Fresnel and PC range is designed for use with either the T/25 500W or T/27
650W or the FRK 650W lamp.
To fit the lamp:
Release the clip fastener and swing down the rear door.
Insert lamp taking care not to touch the quartz envelope with your fingers.
Close door and lock off the fastener.
The luminaire should be at least 1.5m / 5ft away from the nearest object it is lighting.
© June 2009 All Rights Reserved
OPERATION MANUAL
IMPORTANT
NOTE:
discarding the packaging ensure
you have the suspension bolt set,
colour frame, lampbase spacers
&/or the lamp.
Before

Advertisement

loading

Related Manuals for Philips Selecon

Summary of Contents for Philips Selecon

  • Page 1 Please note also that these luminaires are not suitable for mounting on a normally flammable surface. The Philips Selecon Acclaim Fresnel and PC range is designed for use with either the T/25 500W or T/27 650W or the FRK 650W lamp.

  • Page 2: Mounting Your Luminaire

    To replace the safety chain, remove the rear lamphouse moulding, slide out the safety chain locking clamp, and pull out the safety chain, taking care to retain the safety chain loop bar. Reverse the process with a new safety chain. Replace only with the approved safety chains available from Philips Selecon or your distributor.

  • Page 3: Earth Test Point

    N.B. Luminaire Cable – your Philips Selecon luminaire is fitted with a special heat-resistant, flexible cable, replace with genuine Selecon spare part cable kit only – refer to your Philips Selecon distributor. (Replacement cables are supplied complete with necessary terminal connectors).

  • Page 4: Physical Data (Fresnel) - Us

    LAMPS: 220V-240V 500W T/25, T/18 11,000 lumens 400hrs average life 500W M40 10,000 lumens 2000hrs average life 650W T/26, T/27 14,500 lumens 600hrs average life Tests conducted using a standard T27, 650W, 240V, 15,000 lumens lamp. PHYSICAL DATA (Fresnel) - US Weight: 7lb 4oz Packed:...

  • Page 5: Physical Data (Pc) - Us

    Tests conducted using a standard FRK, 650W, 120V lamp. LIMITED WARRANTY Philips Selecon warrants its luminaires against defects in materials or workmanship. The term of this warranty is based on the product usage and is from the date of delivery.
  • Page 6 However, the owner shall bear the cost of freight and insurance on the luminaire, both ways. If Philips Selecon does not wish to service, repair or replace the defective luminaire, it shall refund the purchase price.
