H-CMD4015

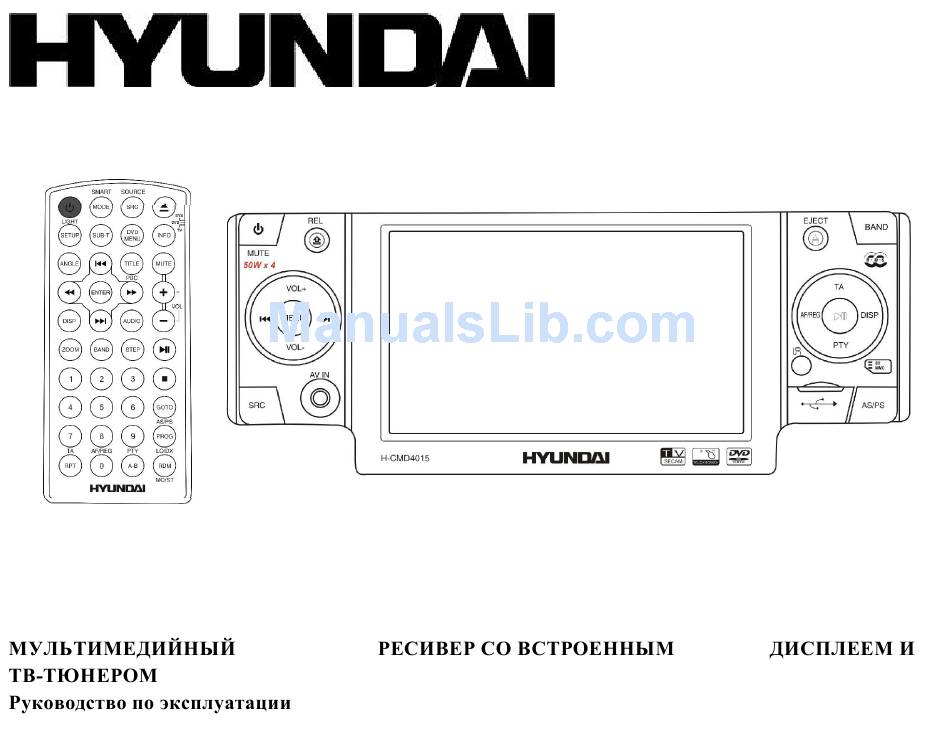

MULTIMEDIA DVD/CD/MP3 RECEIVER WITH BUILT-IN 4.3" TFT DISPLAY AND TV TUNER
Instruction manual
DVD/CD/MP3-
4,3" TFT-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-CMD4015 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai H-CMD4015

Summary of Contents for Hyundai H-CMD4015

  • Page 1 H-CMD4015 MULTIMEDIA DVD/CD/MP3 RECEIVER WITH BUILT-IN 4.3” TFT DISPLAY AND TV TUNER Instruction manual DVD/CD/MP3- 4,3” TFT-...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ...............................2 Important safeguards ............................3 Accessories................................4 Installation.................................5...

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature. Use the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen and other components of device and can result an outage.

  • Page 4: Accessories

    Accessories Receiver 1 pc Front panel 1 pc Remote controller 1 pc Protective case 1 pc ISO connector 1 pc GPS external antenna 1 pc TV antenna wire 1 pc AV IN cable 1 pc Installation parts: Hexagon nut 1 pc Mounting box 1 pc Release keys...

  • Page 5: Installation

    Installation Notes: Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's negative (-) terminal. 2. Disconnect the wire harness and the antenna. 3. Press RELEASE button to remove the control panel. 4. Lift the top of the outer trim ring then pull it out to remove it. 5.
  • Page 7 9. To further secure the unit, use the supplied metal strap to secure the back of the unit in place. Use the supplied hardware (Hex Nut (M5mm) and Spring Washer) to attach one end of the strap to the mounting bolt on the back of the unit.
  • Page 8 2. DIN REAR-MOUNT (Method B) If your vehicle is a Nissan, Toyota, follow this mounting instruction. Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle.
  • Page 9 2. Pull off the front panel from the main unit. Store the front panel in the protective case provided for safe keeping. TO ATTACH THE FRONT PANEL First fasten the right side of the front panel onto the bracket of main unit. Then slightly push the left side of the front panel to attach the main unit.

  • Page 10: Electrical Connection

    Electrical Connection Note: The parking wire is connected with brake signal; for safety, the programs can be seen on the monitor after braking the car.
  • Page 11 Connecting the reversing line to taillight on the car After connecting, when you start up the reverse gear, the unit will receive the picture from car rear view camera.

  • Page 12: Unit Controls

    Unit controls Front panel 1. POWER/MUTE button 2. MENU button 3. RELEASE button 4. AF/REG button 5. EJECT button 6. TA button 7. BAND button 8. DISPLAY button 9. AS/PS button 10. PTY button 11. USB jack 12. PLAY/PAUSE button 13.
  • Page 13 Inner panel 18. Card slot for GPS map card 19. Disc slot 20. Panel status indicator 21. RESET button 22. SD/MMC memory card slot...
  • Page 14 Remote control (RC) POWER/LIGHT button MODE/SMART button SETUP button SUB-T button ANGLE button PREVIOUS/NEXT, FAST REWIND/ FAST FORWARD/Cursor buttons ENTER button DISPLAY button ZOOM button 10. BAND button 11. Digit buttons 12. 9/PTY button 13. 7/TA button 14. 8/AF/REG button 15.
  • Page 15 24. VOL+/VOL- buttons 25. AUDIO button 26. PLAY/PAUSE button 27. STEP button 28. STOP button 29. GOTO/AS/PS button 30. PROGRAM/LO/DX button 31. RDM/MO/ST button 32. A-B button Changing the battery 1. Press the catch and at the same time pull out the battery tray (pic. 1). 2.

  • Page 16: General Operations

    General operations Reset the Unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Remove the front panel at first, and then press RESET button on the inner panel of the unit with a pointed object, (such as a ballpoint pen) to set the unit to initial state.
  • Page 17 System (SYS) DVD/TV joyswitch Move the switch to SYS, DVD or TV, to use the buttons on the RC served for system, DVD or TV playback. Otherwise you will not able to use the buttons. Source selection Press SOURCE button on the unit to enter the source menu and choose the source by touching the corresponding icon: USB, DISC, TUNER, TV, SD, GPS, AV1, AV2.
  • Page 18 Ejecting/Loading Note: Before removing a disc from the disc slot, you should retract the TFT screen, otherwise, the loaded disc cannot be removed from the disc slot when you press EJECT button. Press EJECT button to flip down the panel, now you can load the disc. Press EJECT button to flip down the panel.

  • Page 19: Using The Touch Screen Control

    Using the touch screen control The Touch Screen Control allows fingertip control of virtually all functions. Alternatively, you could also operate with ease with the user-friendly integrated big function buttons that are prominently visible. Source menu In every playback mode, when you press SOURCE button on the panel or click the icon on the touch screen, the Source menu will pop up.
  • Page 20 Tools Setup 1. Audio Setup In the tools setup interface mode, click the icon on touch screen, the first audio setup interface will pop up. You can adjust each item by pressing the icon on the touch screen. - Volume: 0~63; - Bass: -7~ 7;...
  • Page 21 2. Picture Setup In the tools setup interface mode, click the icon on the touch screen, the picture setup interface will pop up. Click the icon , you can select a video setup item. Then you can adjust the selected item by pressing the icon on the touch screen.
  • Page 22 1) Clock Setup mode Click the icon to access the clock setup interface. You can adjust each item by pressing the icon in the touch screen. Time: on/off; In this mode, you can select clock to appear or disappear on the touch screen. Time mode: 12/24 Hour display format;...
  • Page 23 When you turn on the front and rear dual zone playing mode, you can adjust each item by pressing the icon on the touch screen. The front zone mode will change as following: MEDIA => GPS => TV => AV 1 => AV2 => TUNER The rear zone mode will change as following: MEDIA=>...
  • Page 24 Aim at the “+” and click it, the symbol will moves around the touch screen, click it five times, system will finish calibration automatically and exit calibration mode. If the calibration setting has been finished, the interface will pop up or the following window will appear.
  • Page 25 Click the icon or press DOWN cursor button on the RC to move the cursor to the setup page below and then you can access different setup options by using the icon or UP/DOWN cursor buttons on the Click the icon or press RIGHT cursor button on the RC to move to the choice list of each setup option, and then use the icon , or UP/DOWN cursor button on the RC to change your selection.
  • Page 26 AUTO: will sense the type of monitor attached to the output and select NTSC or PAL as need. If you know the type of monitor, you should choose the type in this menu rather than letting AUTO select do it for you. This is because there may be a small undesirable delay and flickering of the screen during the AUTO select process.
  • Page 27 Enter the password. Then select the restriction level (1 to 8) in rating item, confirm it and enter the password one more time to restrict the editing. Default Select DEFAULT and confirm it to restore the System Settings to those programmed at the factory, except the Parental Controls and Password.
  • Page 28 Digital Setup OP MODE: Change among Line out/RF remod. LINE OUT: Line out mode, with digital dialog normalization. RF REMOD: RF remodulation mode, with heavy compression and digital dialog normalization. DYNAMIC RANGE: Change among FULL, 6/8, 4/8, 2/8, OFF. DUAL MONO: Change among STEREO, MONO L, MONO R, MIX MONO.

  • Page 29: Radio Operations

    Radio Operations To switch to radio mode Briefly press SOURCE button on the unit or press SOURCE/SRC on the RC to select the radio mode. Or click the icon on the touch screen to select the radio mode. The radio control interface will pop up. To select a radio band In radio mode, repeatedly press BAND button on the head unit or RC or click the icon on the touch screen...
  • Page 30 Automatic tuning mode Briefly press FAST FORWARD/FAST REWIND buttons on the RC or on the touch screen, the automatic search will start. It will search upward or downward for the strong signal radio station within the current band. When a stable radio station signal has been captured, the automatic tuning will stop and play the program from that radio station.
  • Page 31 the current frequency, and automatically store the 6 strongest stations into the preset memories. When auto store is complete, the radio will start preset scan of the stored 6 stations. Preset scan: Press AS/PS button on the head unit or GOTO/AS/PS button on the RC, or press the icon the touch screen to scan each preset station.
  • Page 32 The RDS data are the PI, PS, TP, PTY, TA and AF data. PI: Program Identification code. Code for identifying program PS: Program Service Name. Broadcasting station name data expressed in alphanumerically character. TP: Traffic Program Identification. Identification data for traffic information broadcasting station. TA: Traffic Announcement.
  • Page 33 Every time when new AF is stronger than the current station, it switches over to that frequency for very short time. Because the mute time of AF switching or checking time is very short, it is almost inaudible in case of normal program.
  • Page 34 PTY (Program Type) function Press PTY button or click the icon on the bottom of the touch screen to turn on/off the PTY list interface. The list interface as follows: When you press cursor buttons on the RC or click the icon repeatedly, to select a program type: NEWS =>...

  • Page 35: Disc Operations

    Disc operations Discs for playback This unit can play disc types: DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW. Compatible with formats: DVD/SVCD/VCD/MP3/WMA/HDCD/CDDA/MPEG4(DivX)/Picture-CD/ JPEG. The following file types are supported: Audio files: MP3 (*.mp3) WMA (*.wma) Video files: MP4 (*.avi, DIVX3.11/4.0/5.0) MPEG 2(*.vob) MPEG 1(*.dat) Picture file: JPEG (*.jpg) ISO 9660 or ISO 9660 +Joliet format - Max.
  • Page 36 Loading/Unload a Disc Press EJECT button on the head unit or the RC, you can flip down a front panel. Then insert the disc into the disc slot with the printed side facing up. The unit will retract the front panel and play the disc automatically.
  • Page 37 Playing forward and backward In DVD, VCD, MPEG4, MP3, CD disc, or the MP3/WMA file stored in the USB/SD/MMC playback, press FAST FORWARD/FAST REWIND buttons on the RC or click the icon on the touch screen to fast rewind or fast forward playback. Fast rewind/forward speed with each pressing of button changes in sequence: 2X =>...
  • Page 38 Note: REP 1: Only one track (file) is repeated. REP DIR: Only tracks (files) in a folder are repeated. REP CHAPTER: A chapter is repeated. REP TITLE: A title is repeated. REP ALL: An entire disc is repeated. REP OFF: Cancel the repeat mode and returns to normal playback. Note: The repeat feature is not supported for VCD 2.0 discs when PBC (playback control) is on.
  • Page 39 Disc Menu Operations Menu-driven playback is possible while playing a disc with menu-driven feature or when playing a VCD with the PBC (PlayBack Control). 1. Press TITLE/PBC button, a title list or disc menu will appear on the touch screen. 2.
  • Page 40 Not all discs will allow changing the audio language during playback. In these cases, select audio language from the DVD's menu. For VCD/SVCD Some VCD/SVCD discs have multiple audio channels; you can select the desired audio channel to play by pressing AUDIO button.
  • Page 41 ZOOM Function Press ZOOM button repeatedly to enlarge or reduce the size of image according to the disc as follows: => ZOOM 2 => ZOOM 3 => ZOOM 4 => ZOOM 1/2 => ZOOM 1/3 => ZOOM 1 / 4 => ZOOM OFF. Programmed Play Function Press PROGRAM/LO/DX button during playback to activate the program-editing interface as follows: For VCD/SVCD/CD:...
  • Page 42 1) Use cursor buttons on the RC to select the item that you want to program. The item you selected will be highlighted. 2) Input the track/chapter/title (depending on the disc) number that you want to program using the numeric buttons (0-9) on the RC.
  • Page 43 3. Time indication : Elapsed playing time of the disc; : Remaining time of the disc; T: Elapsed playing time of the current title; T-: Remaining time of the current title; C: Elapsed playing time of the current chapter; C-: Remaining time of the current chapter. 4.
  • Page 44 ForVCD/CD/MP3: To search for a particular Title, Chapter, or Track 1. Use the cursor buttons to highlight 1 (track number), 2 (chapter number) or 4 (VCD track number). 2. Then enter a number with the digit button to input the desired Title/Chapter, Track, then press ENTER button to confirm your selection.
  • Page 45 Click upper left part of touch screen to activate the main control screen of data disc playing. Left column - folder(s). (9 folders can be displayed at a time). Right column - files. (9 files can be displayed at a time). Press STOP button on the RC, or click icon on the touch screen, then use the cursor buttons to navigate in menu and to select an item on the...

  • Page 46: Sd/Mmc Memory Card/Usb Operations

    SD/MMC Memory Card/USB operations USB functions (flash memory type) MP3 music play. 1. SD/ MMC card support. 2. FAT 12/ FAT 16/ FAT 32 is possible FAT 12/16 (dir: 200 support, file: 500 support), FAT 32 (dir: 200 support, file: 500 support). 3.
  • Page 47 Notes: Use the USB adaptor cable, if necessary. The operations of playing MP3/WMA/MPEG4 files in the USB is the same as the operations of MP3/WMA/MPEG4 disc. When reading the USB device, be sure not to touch or remove it from the USB port. If following the instruction above, the unit can't read the file in the USB stick, please check if the device is in good condition, or take it out then insert it into the USB port once more.

  • Page 48: Av In Operations

    AV In Operations This DVD player is equipped with an Audio / Video Auxiliary input jack, so you can connect audio/video device you wish to use in this car DVD player. 1) To connect with a mobile audio/video system by using the auxiliary A/V input cable.

  • Page 49: Tv Operations

    TV Operations Switch to TV mode Press SOURCE button to switch to TV mode. Or click the icon main control interface to switch to TV mode. In TV mode, the function of the buttons served in DVD mode is locked. Note: Move the switch on the RC to TV position.
  • Page 50 1) Click the icon on the touch screen to access TV channel number input mode, then press the relevant icon (0-9) on the touch screen. 2) Click the icon to confirm your selection. Click the icon to return the upper tier TV work interface.

  • Page 51: Handling And Cleaning Discs

    Handling and cleaning discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 52: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc cannot be loaded. Presence of disc inside the player.

  • Page 53: Specification

    Specification DVD/CD/MP3 RECEIVER General Power supply: 12 V DC Maximum power output: 50 W x 4 channels Storage types: DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB/SD/MMC Compatible formats: DVD/SVCD/VCD/DVCD/HDCD/MP3/WMA/CDDA/DVD Audio/Super Audio CD/Picture-CD/JPEG ESP function: 40 sec. for Audio CD, 120 sec. for MP3 TFT display Screen size: 4.3 inches Resolution: 480 x 272...
  • Page 54 TEMP 25 ° Satellite Acquisition Sensitivity -149dBm Cold Start Time <60S (Open sky) Warm Start Time <35S (Open sky) Hot Start <10S (Open sky) 1st Positioning Time <100s (Open sky) Signal Format NMEA0183 format output signal Language of map Russian MAP Display 2D and 3D Display Voice...
  • Page 55 ..............................55 ..........................56 ............................58 ..........................59 ............................64 ...........................66 ............................70 .........................73 ............................83 ............................89 SD/MMC................100 AV....................102 GPS ( )..........................102 ..........................103 ..........................105 .....................106 ........................107...
  • Page 58 ( =5 ( =5 ( 5X5 ( 5X25...
  • Page 59 30° « » « » DIN,...
  • Page 60 DIN. (-). RELEASE ("L") ("R")
  • Page 61 5x25 – (-).
  • Page 62 (-). RELEASE, Nissan Toyota, T (Toyota), N (Nissan) (5x5...
  • Page 63 REL,...
  • Page 66 POWER/MUTE MENU RELEASE AF/REG EJECT BAND DISPLAY AS/PS PLAY/PAUSE VOL+/VOL-, PREVIOUS/NEXT SOURCE...
  • Page 67 RESET SD/MMC...
  • Page 68 POWER/LIGHT MODE/SMART SETUP SUB-T ANGLE PREVIOUS/NEXT, FAST REWIND/FAST FORWARD ENTER DISPLAY ZOOM BAND 9/PTY 7/TA 8/AF/REG SOURCE EJECT SYS/DVD/TV INFO DVD MENU MUTE TITLE...
  • Page 69 VOL+/VOL- AUDIO PLAY/PAUSE STEP STOP GOTO/AS/PS PROGRAM/LO/DX RDM/MO/ST (CR 2025 3V), – 6...
  • Page 70 RESET RESET RELEASE) POWER/LIGHT POWER/LIGHT POWER/MUTE POWER/LIGHT VOL+/VOL- MUTE POWER/MUTE...
  • Page 71 SYS/DVD/TV SYS, DVD DISC SOURCE : USB, DISC ( TUNER ( ), TV ( ), SD ( ), GPS, AV1, AV2. SOURCE BT, IPOD Dual Zone Dual Zone SMART/MODE SMART/MODE, : MEDIA => TV => AV1 => AV2.
  • Page 72 , USB SD/MMC, , USB SD/MMC, EJECT, , USB SD/MMC, AV1/AV2, DISPLAY...
  • Page 73 SOURCE (USB, Disc, SD, GPS, TV, AV 1, AV 2 Tuner), “Tools” “Tools” MENU (AUDIO, PICTURE, SYSTEM, DVD)
  • Page 74 “Tools” -Volume ( ): 0~63; -Bass ( ): -7~ 7; -Treble ( ): -7~7; -Balance ( ): L15~L-R~R15; Fader ( R15~R-F~F15; -EQ: FLAT, CLASSIC, POP, ROCK; Loudness ( Sub.w (...
  • Page 75 “Tools”; “Tools” Bright ( ): 0~63 Contrast ( ): 0~63; Color ( ): 0~63; Tint ( ): 0~63. “Tools”;...
  • Page 76 “Tools” Time ( Time mode ( ): 12 Hour ( Minute (...
  • Page 77 “Tools”; : MEDIA => GPS => TV => AV 1 => AV2 => TUNER. : MEDIA=> TV => AV 1 => AV2. “Tools”;...
  • Page 78 TV Mode ( Navigation Voice ( “Tools”; “+”. “+”;...
  • Page 79 ». “Tools” DVD. SETUP; ENTER...
  • Page 80 ENTER “Tools”; NTSC: PAL: “ ” 4:3 PS: 4:3 LB:...
  • Page 81 16:9: – 0000. DIVX...
  • Page 82 SPDIF/RAW: SPDIF/PCM:...
  • Page 83 SOURCE SOURCE/SRC BAND : FM 1-> FM 2 ->FM3->AM 1 ->AM2. SYS. FAST FORWARD/FAST REWIND FAST FORWARD/FAST REWIND...
  • Page 84 FAST FORWARD/FAST REWIND (18 FM, 12 MW (AM)). FAST FORWARD/FAST REWIND (1-6) (1-6), PREVIOUS/NEXT AS/PS GOTO/AS/PS...
  • Page 85 AS/PS GOTO/AS/PS RDM/MO/ST (LOCAL/DX) LOCAL ( PROGRAM/LO/DX RDS ( : PI, PS, TP, PTY, TA...
  • Page 86 – – – – RDS, AF/REG “AF”. “AF” “AF” “AF” RDS. “AF” –...
  • Page 87 RDS. REG ( AF/REG «TA», «TP».
  • Page 88 PTY ( PTY. : NEWS => AFFAIRS => INFO => SPORT => EDUCATE => DRAMA => CULTURE => SCIENCE => VARIED => POP M => ROCK M => EASY M => LIGHT M => CLASSICS => OTHER M => WEATHER => FINANCE =>...
  • Page 89 : DVD/DVD±R/ DVD±RW/CD/CD-R/CD-RW. : DVD/SVCD/VCD/MP3/WMA/HDCD/CDDA/MPEG4 (DivX)/Picture-CD/ JPEG. : MP3 (*.mp3) WMA (*.wma) : MP4 (*.avi, DIVX3.11/4.0/5.0) MPEG 2(*.vob) MPEG 1(*.dat) : JPEG (*.jpg) ISO 9660 ISO 9660 + Joliet - – 448. – 99. - 99 44,1 : 32 - 320 : *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, DRM.
  • Page 90 EJECT, EJECT DVD, VCD, MPEG4, MP3, CD, MP3/WMA USB SD/MMC PLAY/PAUSE DVD. DVD, VCD, MPEG4, MP3, CD, MP3/WMA USB SD/MMC PREVIOUS/NEXT...
  • Page 91 DVD, VCD, MPEG4, MP3, CD, MP3/WMA USB SD/MMC FAST FORWARD/FAST REWIND : 2X => 4X => 8X => 20X. PLAY/PAUSE MPEG4, MP3 MP3/WMA SD/MMC STOP PLAY/PAUSE; DVD, VCD, CD STOP, PLAY/PAUSE STOP CD/VCD/SVCD:...
  • Page 92 => => MP3/WMA: => => => DVD: => => VCD 2.0 PBC ( A-B ( A-B, “ ”. A-B, “ A-B”. A-B. RDM/MO/ST DVD, SVCD,VCD MPEG4 STEP PLAY/PAUSE.
  • Page 93 PBC (PlayBack Control – TITLE/PBC; ENTER SUB-T DVD. AUDIO...
  • Page 94 DVD. VCD/SVCD VCD/SVCD AUDIO. ANGLE. ANGLE...
  • Page 95 ZOOM, 2 => 3 => 4 => 1/2 => 1/3 => 1/4 => PROGRAM/LO/DX VCD/SVCD/CD: DVD/MP3/MPEG4:...
  • Page 96 (0-9) “ ” ENTER INFO DVD: VCD/CD/MP3/JPEG: 1/3: 1 /1: 9/18:...
  • Page 97 PBC ( PBC); (GOTO) GOTO/AS/PS, DVD:...
  • Page 98 VCD/CD/MP3: ), 2 ( VCD). ENTER ENTER (MP3), (MPEG4) (JPEG) AUDIO ( JPEG ( MOVIE (...
  • Page 99 STOP ENTER SYS/DVD/TV DVD. MPEG4 STOP...
  • Page 100 SD/MMC USB/SD/MMC SD/MMC. FAT 12/ FAT 16/ FAT 32 FAT 12/16 ( , 500 FAT 32 ( , 500 : 32 : 32 (id3tag ver 2.0) USB 2.0. USB: : Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung MMC: : Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems USB-...
  • Page 101 MP3/WMA/MPEG4 USB MP3/WMA/MPEG4. . USB MP3- MP3- SD/MMC SD/MMC. RELEASE, SD/MMC MP3/WMA/MPEG4 SD/MMC SOURCE SD/MMC. MP3/WMA/MPEG4 SD/MMC MP3/WMA/MPEG4. SD/MMC SD/MMC...
  • Page 102 SOURCE AV2. GPS ( GPS- SOURCE GPS. GPS- SD/MMC GPS- GPS-...
  • Page 103 SOURCE, GOTO/AS/PS NEXT PREVIOUS NEXT/PREVIOUS...
  • Page 104 (0-9) (0-9).
  • Page 106 “ ”. POWER...
  • Page 107 DVD/CD/MP3 DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB/SD/MMC DVD/SVCD/VCD/DVCD/HDCD/MP3/WMA/CDDA/DVD Audio/Super Audio CD/Picture-CD/JPEG CD, 120 480 272 16:9 400:1 PAL/NTSC – 74 /87,5 – 108 8-14 522 – 1620 SECAM...
  • Page 108 25 ° -149 « » <60 ( « » <35 ( « » <10 ( <100 ( NMEA0183 SAMSUNG 2SC2440A-40Arm9 400 Windows CE 5.0 SIRF3 GPS RF SDRAM (100 NAND Flash ROM...
