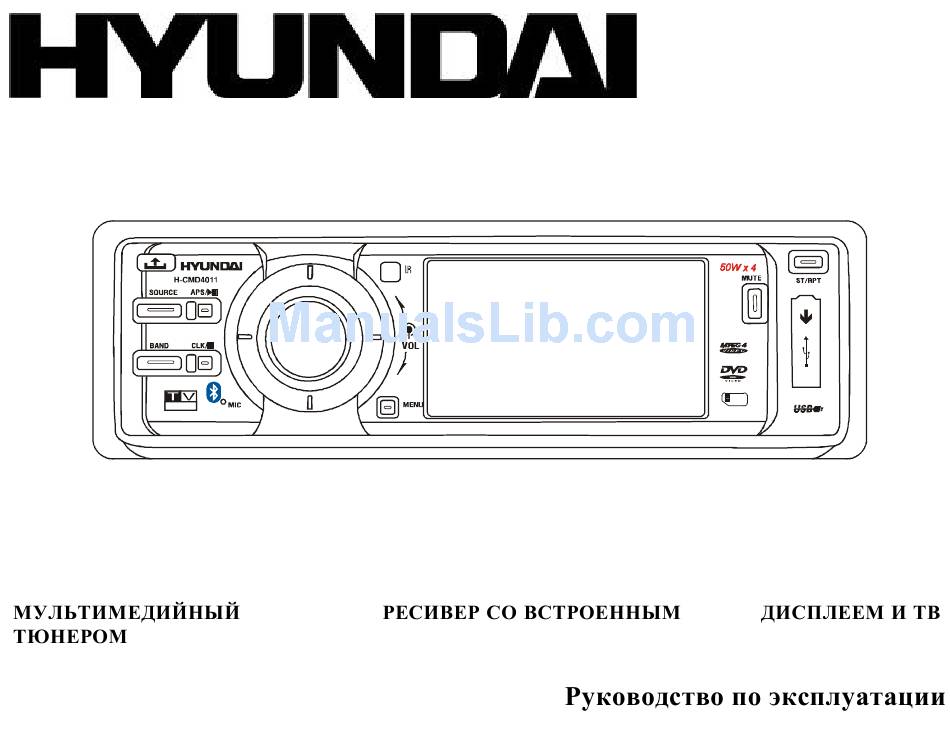

- Page 1 H-CMD4011 SECAM MULTIMEDIA DVD/CD/MP3 RECEIVER WITH BUILT-IN 3” TFT DISPLAY AND TV TUNER DVD/CD/MP3 3” TFT Instruction manual...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents..............................2 Important safeguards............................3 Accessories................................4 Installation/Connections ............................5... -
Page 3: Important Safeguards
Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit. -
Page 4: Accessories
Accessories Screw 2 pcs (To stable the deck) Mounting collar (Metal sleeve) 1 pc Wire connector 2 pcs (ISO and RCA) Front panel pouch 1 pc Trim plate (plastic frame) 1 pc Customer information 1 pc Warranty card 1 pc Instruction manual 1 pc... -
Page 5: Installation/Connections
Installation/Connections First complete the electrical connections, and then check them for correctness. Installation It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram. - Page 6 Attaching the control panel 1. Insert the left side of the control panel into the shaft of the main unit. 2. Push the panel to the left and insert the right side of it. 3. Press the right side of the panel until a “click” sound is heard. Detaching the front panel 1.
- Page 7 Connection diagram Notes: In spite of having any kinds of speaker system, use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit making the conductors of auto antenna and ground touch with each other.
- Page 8 For your driving safety, please link your brake detecting wire with low power level, and keep it controlled by manual brake switch. Wire should be high power level and the unit cannot play DVD or VCD disc. And this caution displays on the screen.
-
Page 9: Panel Controls
Panel controls Front panel 1. SOURCE button 2. BAND button 3. CLK/STOP button 4. Microphone 5. VOL/ENTER knob 6. MENU button 7. Display 8. USB jack 9. ST/RPT button 10. MUTE button 11. IR sensor 12. Cursor buttons 13. APS/PLAY/PAUSE button 14. - Page 10 Remote control PWR button SUB-T button R/L/LANGUAGE button VOL-/VOL+/PREV/NEXT/SEL buttons CLK button PLAY/PAUSE button AF button (option) TA button (option) SETUP button 10. PTY button (option) 11. Number buttons, GOTO button 12. SRC button 13. MUTE button 14. BAND/RDM button 15.
-
Page 11: General Operations
General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button, then press the RESET button with some sharp object to restore the unit to the original factory settings. Power button Press SOURCE button on the front panel or PWR button on the RC to switch the unit on. -
Page 12: Radio Operations
Radio operations BAND selection Press BAND button on the panel or on the RC repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3, AM1, AM2. Auto/Manual tuning Press and hold LEFT/RIGHT buttons on the panel or PREV/NEXT buttons on the RC to choose either manual or auto search. - Page 13 Select a station by LEFT/RIGHT cursor buttons on the unit or PREV/NEXT buttons on the RC. Hold UP/DOWN cursor buttons to store a station. To recall a station: Select a band (if needed). Press UP/DOWN cursor buttons to recall the stored station. Mono/Stereo selection Press the ST/RPT button on the RC or on the unit to select ST OFF (Mono) or ST ON (Stereo) mode.
-
Page 14: Dvd/Cd Operations
DVD/CD operations Disc glossary PBC (PlayBack Control) PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image. - Page 15 Following formats are NOT supported *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, files with DRM. Open session discs are NOT supported. Touch screen function Some functions can be operated with touch screen. To call the touch menu touch the screen once. R/L: Press R/L button on the screen to switch between mono L mono R or stereo.
- Page 16 During VCD/CD mode, press STOP button to pause playing, press PLAY/PAUSE to play, and press STOP button twice to stop playing completely. To start playing, press PLAY/PAUSE button. Using the number buttons Press the numbered buttons on the RC to insert the track/chapter number. Select a track by using Number buttons 0~9.
- Page 17 If DVD disc supports multi-subtitle playback, press SUB-T button on the RC repeatedly to switch among languages. OSD (OnScreen Display) function Press OSD button on the RC repeatedly to show the current track/chapter, current time on the display. Title playing (for DVD only) During DVD mode, press TITLE/PBC button on the RC to activate the disc title list on the screen.
- Page 18 During playback press APS/PRG button on the RC to open the program menu. Press the Number buttons to select the track number and then press UP/DOWN/LEFT/RIGHT cursor buttons to move the cursor to PLAY. Choose PLAY to confirm. The selected track will be played. To cancel the programming choose CLEAR. Audio/Video/Picture file operations Insert the CD with mixed files (.mp3, .jpeg, .wma, mpeg4 files), press STOP button.
- Page 19 USB format supports 2.0. Capacity: up to 2 GB. SD/MMC mode Remove the front panel. Insert the card into the SD slot. Attach panel. Press SOURCE button to choose SD mode. SD cards brands: Canon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc. Capacity: up to 2 GB.
-
Page 20: Tv Tuner
TV tuner To receive TV broadcasts, install the TV antenna. For receiving TV broadcasts, stop your car where there is no obstacle to broadcast. Channel Search Press SOURCE button and press cursor buttons, then ENTER button (or touch the TV mode icon) to choose TV mode. Touch the screen once at any place, the menu will appear, choose AMS, the unit will scan and store TV programs automatically. -
Page 21: Operating With System Menu
Operating with System Menu To enter the System Setting Menu press MENU button (or press top right corner of the screen in Radio mode). You will enter Menu pages for Video Mode, Audio Mode and System Mode using UP/DOWN/LEFT/RIGHT cursor buttons or touching the needed items Video Mode You may adjust the settings: BRIGHT, COLOR, CONTRAST, TINT, V.MODE (STAN =>... -
Page 22: Mp3 Overview
MP3 overview Notes on MP3 MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write. - Page 23 With some CD-R or CD-RW media, data may not be properly written depending on their manufacturing quality. In this case, data may not be reproduced correctly. High quality CD-R or CD-RW disc is recommended. Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required. Note that the unit may not play Tracks in the order that you wrote them to the disc.
-
Page 24: System Setup Menu
System setup menu 1. Press the SETUP button on the RC to display the system setup menu. 2. Use LEFT/RIGHT cursor buttons on RC to select the desired menu: System setup, Language setup, Video setup. 3. Press ENTER to enter it. 4. - Page 25 Rating The rating level is for parents to control playing content and protect your children from violence and erotic. The disc, the level of which is higher than the setting level cannot be played. To change the parental control level you should enter the password (your or the general one: 0000). Default Reset to the initial factory setups.
-
Page 26: Bluetooth Operation
During pairing, please activate your mobile phone and input pairing code “0000” and confirm in your mobile phone. The unit will be identified by the mobile phone as “H-CMD4011”. If pairing success, the Bluetooth module will connect to mobile phone that has paired. - Page 27 Dial call Dial with the numeric button on the screen. Press the "0~9" buttons to input telephone number. Simultaneously, the input number will appear on the display. If a number is wrongly entered, press Green Arrow screen button to delete the incorrect number. Press ANSWER screen button to execute dialing.
-
Page 28: Back View Camera
Back view camera This unit is equipped with back view camera output. The camera is used to observe the situation behind the vehicle when you are backing the car. Please connect your back view camera with the back car video input. And connect the detecting wire for back a car with the rear gear light. -
Page 29: Anti-Theft System
Anti-theft system This unit is equipped with a slide-down detachable and mask panel. Panel can be detached and taken with you, helping to deter theft. Handling compact discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. -
Page 30: Troubleshooting Guide
Troubleshooting guide Symptom Cause Solution No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc cannot be Presence of CD disc inside the player. -
Page 31: Specification
Specification General Power supply 12 V DC Current consumption max. 10 A Maximum power output 50 Wx4 channels Fuse 10 A Dimensions (L x W x H) 187 x 50 x 170 mm Supported storages DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB/SD/MMC Supported formats DVD/SVCD/VCD/HDCD/MP3/WMA/CDDA/Picture-CD/JPEG/ MPEG 4 FM stereo radio Frequency range 87.5 - 108.0 MHz... - Page 32 For audio CD: 40 sec/for MP3: 120 sec 2 channel RCA (2V) Line out Specifications are subject to change without notice. Dimensions are approximate.
- Page 33 ..............................33 ..........................34 ..............................35 ..........................36 ............................40 ............................42 ............................44 DVD/CD ........................46 ................................52 ..........................53 3..............................54 ............................56 Bluetooth ............................58 ............................60 ...........................60 ........................60 ..............................61 ....................62 ........................63...
- Page 35 (ISO RCA)
- Page 40 SOURCE BAND CLK/STOP VOL/ENTER MENU 8. USB ST/RPT MUTE APS/PLAY/PAUSE OPEN 15. SD- RESET EJECT OPEN, RESET.
- Page 41 SUB-T R/L/LANGUAGE VOL-/VOL+/PREV/NEXT/SEL PLAY/PAUSE AF ( TA ( SETUP PTY ( GOTO MUTE BAND/RDM N/P/ANGLE APS/PRG ST/RPT STOP ENTER ENTER TITLE/PBC ANSWER/DI- ( OSD/ID3 HANG UP/DI+ ( (CR2025).
- Page 42 OPEN, RESET SOURCE SOURCE VOL+/VOL- SOURCE, : RADIO ( ) => DISC ( ) => SD ( ) => => BACK VIEW => INPUT => => Bluetooth. MUTE,...
- Page 43 : NORM => ROCK => POP => CLAS. MENU (System mode), CLK,...
- Page 44 BAND FM1, FM2, FM3, AM1, AM2. PREV/NEXT NEXT/PREV NEXT/PREV APS/PLAY/PAUSE APS/PLAY/PAUSE. APS/PLAY/PAUSE APS/PLAY/PAUSE...
- Page 45 (18 FM, 12 AM), NEXT/PREV ST/RPT ST OFF ( ST ON ( PREVIOUS/NEXT . « »).
- Page 46 DVD/CD PBC ( – PBC, – : CD/DVD/DVD±R/CD-R/- : DVD/SVCD/VCD/HDCD/MP3/MP4/WMA/CDDA/Picture-CD/JPEG . : MP3 (*.mp3) WMA (*.wma) : MPEG 2(*.vob) MPEG 1(*.dat) : JPEG (*.jpg) ISO 9660 ISO 9660 + Joliet - 44,1...
- Page 47 : 32 - 320 : *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, DRM. R/L: mono L ( .) mono R ( stereo ( RPT: TIT ( ESC: OPEN STOP EJECT PLAY/PAUSE APS/PLAY/PAUSE PLAY/PAUSE, PLAY/PAUSE...
- Page 48 MP3/MPEG-4/USB STOP PLAY/PAUSE, VCD/CD STOP PLAY/PAUSE, STOP 0-9. NEXT PREV PREV/NEXT ST/RPT : REP CHAPTER ( ) => REP TITLE ( ) => REP ALL ( ) => REP OFF ( : REP ONE ( ) => REP DIR ( ) =>...
- Page 49 : MONO L ( ), MONO R ( ), STEREO ( N/P/ANGLE, : NTSC => PAL => AUTO. SUB-T DVD, TITLE/PBC PBC ( PBC, ENTER, STOP,...
- Page 50 PBC, DVD/VCD/CD GOTO : Title ( ) => Chapter ) => Audio ( ENTER, VCD/CD APS/PRG PLAY. ENTER, CLEAR (.mp3, .jpeg, .wma, mpeg4), STOP. AUDIO PICTURE VIDEO. ENTER, ENTER...
- Page 51 STOP, USB. SRC/PWR SOURCE, USB. FAT 12/ FAT 16/ FAT 32 FAT 12/ 16 ( , 500 FAT 32 ( , 500 : 32 : 32 (id3tag USB 2.0. SD/MMC SOURCE, : Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, MMC: : Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems,...
- Page 52 SOURCE ENTER ( AMS, APS/PLAY/PAUSE APS/PRG NEXT/PREVIOUS 10+,...
- Page 53 MENU ( VIDEO ( BRIGHT ( ), COLOR ( CONTRAST ( ), TINT ( ), V.MODE ( ) (STAN => USER =>SOFT => BRIG) ( AUDIO ( : BASS ( TREBLE ( ), BALANCE ( ), FADER ( ), EQ ) (NORM, ROCK, JUZZ, CLAS, POP ( : LOUD ( BEEP, TOPIC, TIME DISP (...
- Page 54 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. «.mp3». «.mp3», « MP3» « », PC « » « » 256. VBR, . VBR: CD-R CD-RW, 44,1 ISO 9660,...
- Page 55 CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
- Page 56 SETUP ENTER, NTSC: PAL: 4:3 PS: 4:3 LB: 16:9: – 0000.
- Page 57 DIVX DivX, DivX. DivX 4.0, 5.0, 6.0.
- Page 58 Bluetooth Bluetooth Bluetooth Bluetooth SRC, Bluetooth, Bluetooth. SETUP, Bluetooth «0000». “ H-CMD4011”. Bluetooth «Connected». EXIT...
- Page 59 «0~9», ANSWER. ANSWER, ANSWER, ANSWER, HANG UP, HANG UP. TRANSFER;...
- Page 60 SOURCE (SRC) Back View (...
- Page 62 « ». RESET.
- Page 63 12 , . 10 187 50 170 DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB/SD/MMC DVD/SVCD/VCD/HDCD/MP3/MP4/WMA/CDDA/Picture- CD/JPEG 87,5 – 108,0 522 – 1620 16:9 PAL/SECAM/NTSC 480 x 234 300:1 : 110 , : 120 – 20...
- Page 64 CD: 40 MP3: 120 . RCA (2 )
