Chapter 2: Camera Configuration
Camera Settings (Advanced) Cont.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Auto Exposure Configuration
Maximum Exposure Time
Specifies the maximum exposure time when operating in Auto Exposure
mode, the range is 1/7 ~ 1/1000, with 1/1000 being the shortest exposure
length.
Maximum Sens Up Gain
Specifies the maximum gain when operating in Auto Exposure mode, the
range is 1 ~ 512, with 1 being the lowest gain.

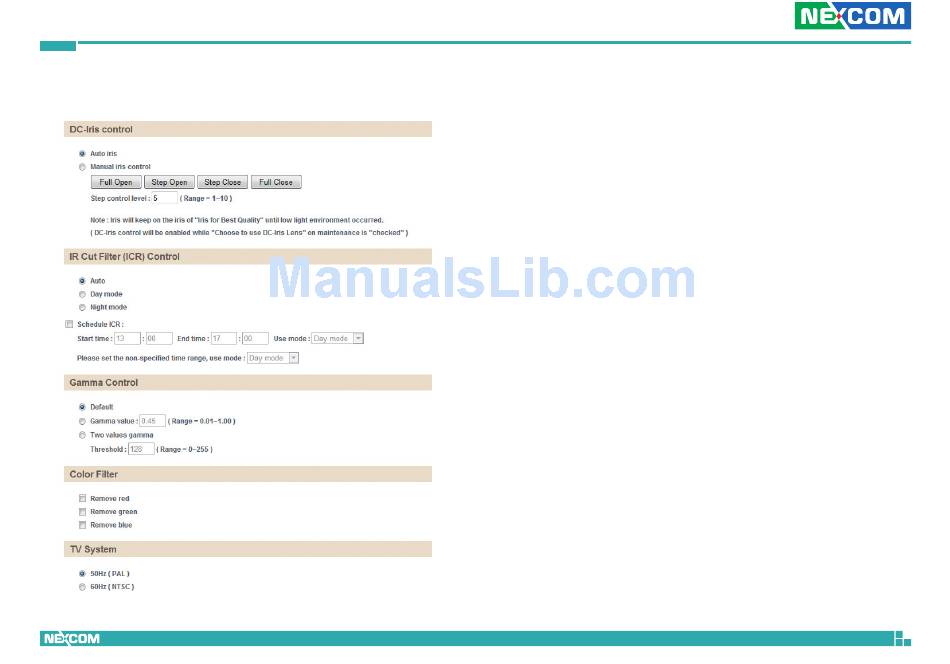

DC-Iris Control
Auto Iris
When enabled, the DC-Iris will adjust the opening automatically based on
the lighting levels in the environment.
Manual Iris Control
Enables manual control of the iris, there are 4 control options to choose
from.
Full Open:
Opens the iris to the maximum aperture.
Full Close:
Closes the iris to the smallest aperture
Step Open:
Opens the iris according to the step levels
specified in the Step Control Level.
Step Close:
Closes the iris according to the step levels
specified in Step Control Level.
Step Control Level:
Configures the step control level, the range is 1 to 10.
Note: Only available when a DC-iris lens is installed.
40
NCb-231 User Manual
