Chapter 2: Camera Configuration

Video

Video Stream

This section configures the settings of the video stream. There are 3 video
streams available, the live video from the main screen Viewer is stream 1.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.

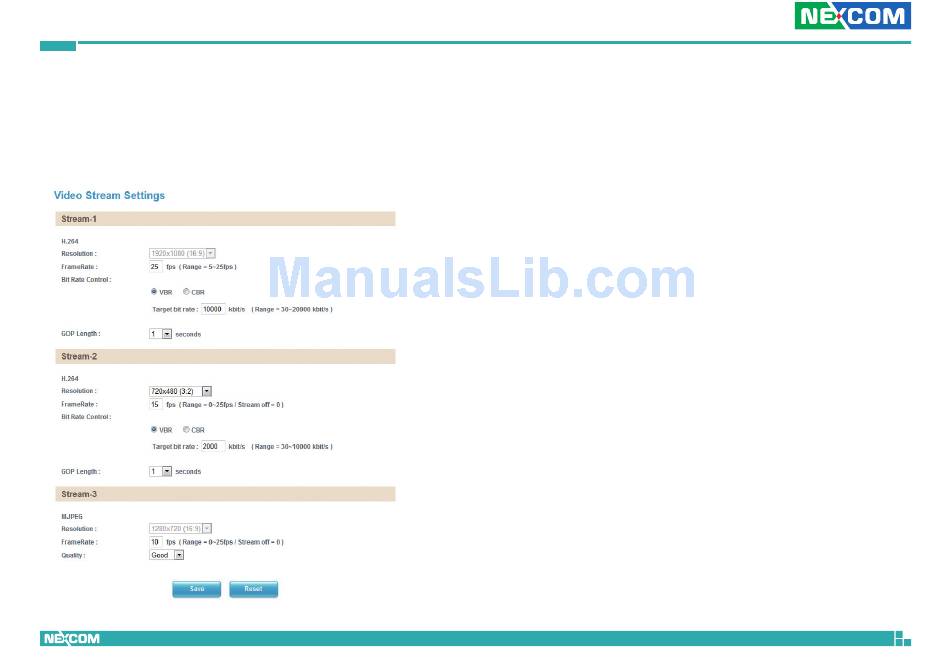

Stream 1

Resolution
Displays the resolution of the video stream.
FrameRate
Adjusts the frame rate of the video stream, the range is 5~25FPS.
Bit Rate Control
Configures the Bit Rate Control mode as VBR (variable bit rate), or CBR
(constant bit rate) for the stream.
Target Bit Rate
If the Bit Rate Control is set to CBR, you can manually set the bit rate in this
field, the range is 30~20000kbit/s.
GOP Length
Configures the GOP length of the stream. The options are 0.5, 1, 2, 3 and
4, setting "0.5 seconds" will yield the best video quality.
