Chapter 2: Camera Configuration

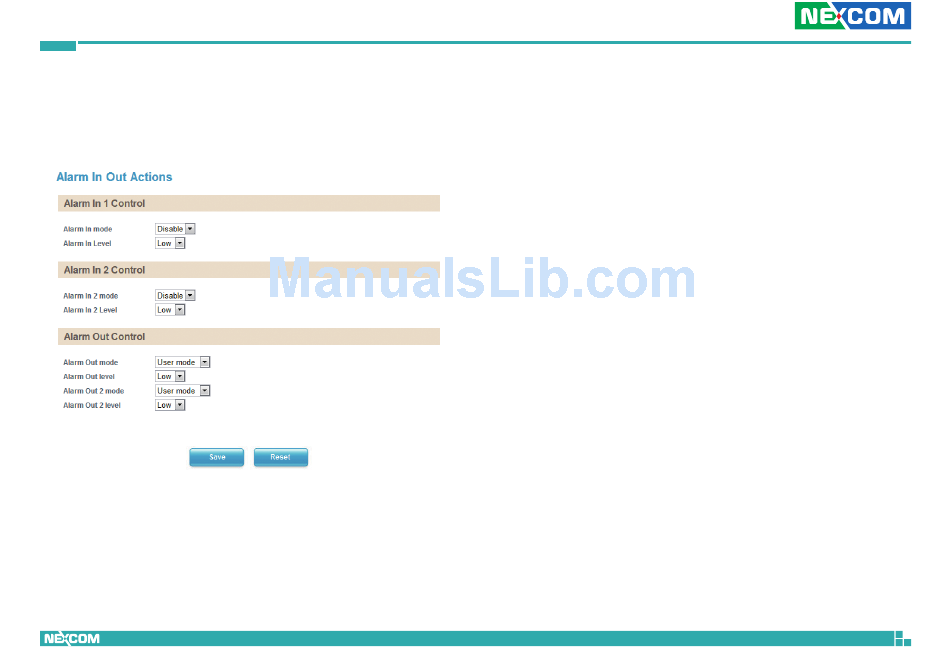

Alarm In/Out Trigger

This section configures the IP camera to work with external alarm in/out
devices.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.

Alarm In 1 Control and Alarm In 2 Control

Alarm In Mode and Alarm In 2 Mode
Enables or disables monitoring of alarm input1 and alarm input2. Enable
this option if an external sensor device connected to the alarm input1 and
alarm input2 requires monitoring.
Alarm In Level and Alarm In 2 Level
Specify the signal level required for triggering the alarm device connected to
the alarm output1 and alarm output2. The options are Low and High.

Alarm Out Control

Alarm Out Mode and Alarm Out 2 Mode
Specify the alarm out mode, the options are User Mode and Event Mode.
When User Mode is selected, the alarm output will be triggered based on
user configurations. When Event Mode is selected, the alarm output will
be triggered based on the configurations set in Event Actions. For more
information on Event Actions, please refer to page 28.
Alarm Out Level and Alarm Out 2 Level
Specify the alarm output action to perform when it is triggered. The options
are Low and High.
Save
Save button to apply the configurations, click on this button once all the
settings are confirmed for the new changes to take effect.
Reset
Reset button to discard all the settings applied.
