ATHENA

32 Wedgwood Road

Bicester, Oxon OX26 4UL

Table of Contents

Need help?

Do you have a question about the ATHENA and is the answer not in the manual?

Questions and answers

Summary of Contents for Pride ATHENA

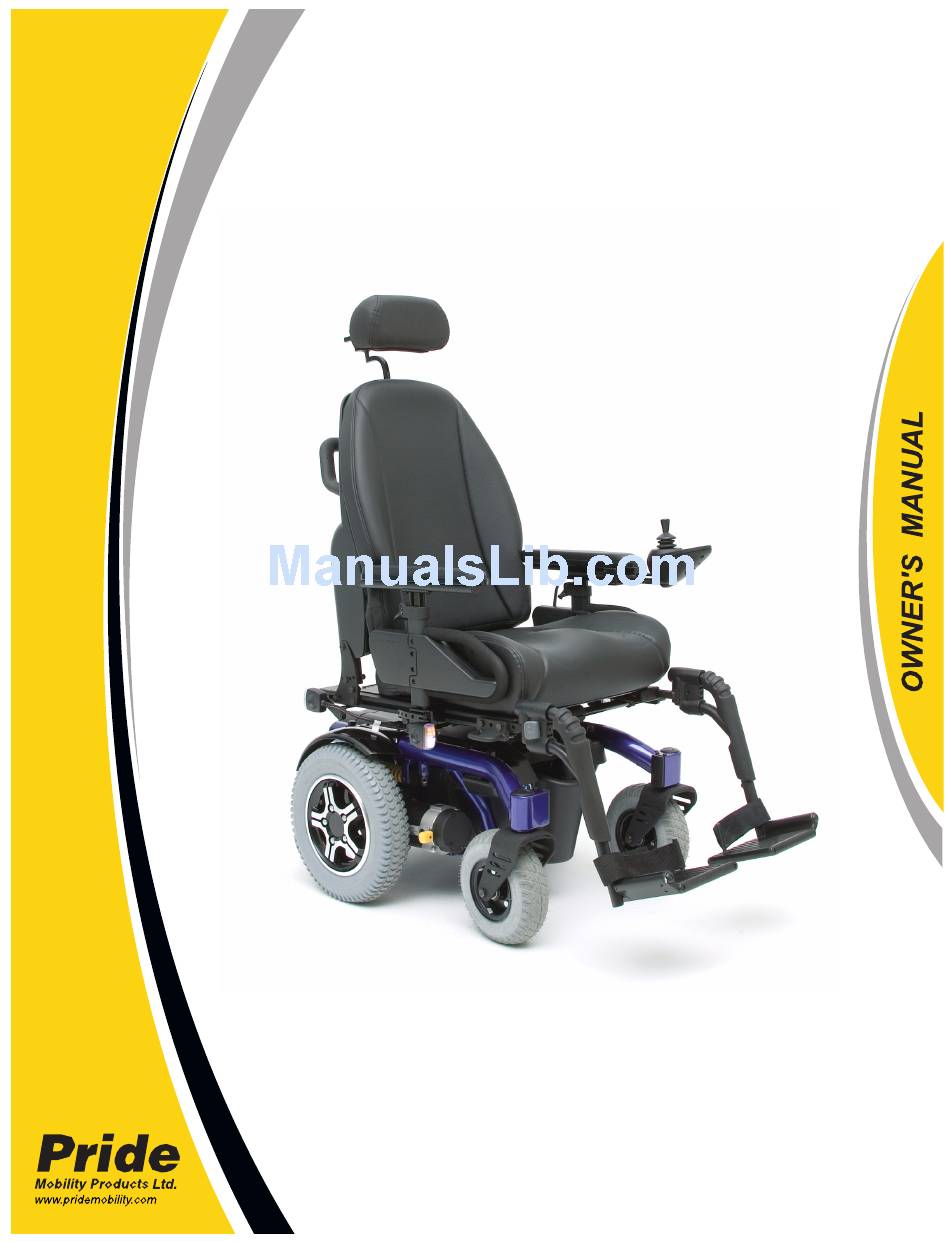

Page 1 ATHENA 32 Wedgwood Road Bicester, Oxon OX26 4UL...
Page 3: Table Of Contents
INTRODUCTION ........................... 4 SAFETY ..............................5 III. YOUR POWER CHAIR ........................17 IV. ASSEMBLY ............................21 COMFORT ADJUSTMENTS ......................22 VI. BATTERIES AND CHARGING ...................... 25 VII. CARE AND MAINTENANCE ......................29 VIII.WARRANTY ............................34 APPENDIX I - SPECIFICATIONS......................35 Athena www.pridemobility.com...
Page 4: Introduction
Pride to enhance or preserve the safe use of this product.
Page 5 Do not use a cell phone, walkie/talkie, laptop or other radio transmitter while operating. Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new batteries. Always replace both batteries at the same time. Athena www.pridemobility.com...
Page 6 EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m. Explosive conditions exist! Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Keep tools and other metal objects away from battery terminals. Contact with tools can cause electrical shock. www.pridemobility.com Athena...
Page 7 Connect Black wire to Black Negative (–) Terminal Post Pinch/Crush points created during assembly. Indicates that power chair, with similarly labeled seating system, conforms to ISO 7176-19 for transport of an occupied power chair in a motor vehicle. Indicates power chair securement points. Athena www.pridemobility.com...
Page 8 I I . S A F E T Y Disposal and recycling - Contact your Quantum Rehab Dealer for information on proper disposal and recycling of your Pride product and its packaging. Locked and in drive mode. Place unit on level ground and stand to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode.
Page 9: General Guidelines
Pride products. Pre-Ride Safety Check Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check before each use to make sure your power chair operates smoothly and safely.
Page 10: Your Power Chair
MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty. Pride will not be held responsible for injuries and/or property damage resulting from failure to observe weight limitations.
Page 11 Doing so could cause instability in your power chair. Pride recommends that the maximum slope of an incline you attempt to safely ascend or descend on your power chair does not exceed 10.5% (6°). See figure 1.
Page 12 Your power chair is designed to provide optimum stability under normal driving conditions—dry, level surfaces composed of concrete, blacktop or tarmac. However, Pride recognises that there will be times when you will encounter other surface types. For this reason, your power chair is designed to perform admirably on packed soil, grass and gravel.
Page 13: Removable Parts
Motor Vehicle Transport Pride recommends that you do not remain seated in your power chair while traveling in a motor vehicle. The power chair should be stowed in the boot of a car or in the back of a truck or van with the batteries removed and properly secured.
Page 14: Positioning Belts
I I . S A F E T Y WARNING! Pride does not recommend using the power chair as a seat in a motor vehicle. The power chair user should transfer into the vehicle seat and use the vehicle-installed belt restraint system if and whenever feasible.
Page 15 Pride recommends that the power chair user determine his/her personal limitations and practice bending and reaching in the presence of a qualified healthcare professional.
Page 16 User Positioning Pride recommends that all users be seated in an upright position with their pelvis positioned as far rearward as possible in the power chair seat. All users need to discuss pelvic positioning with their Quantum Rehab Dealer, therapist(s) or healthcare professional to determine appropriate pelvic position when seated on the power chair based on the user’s individual medical needs.
Page 17: Assembly

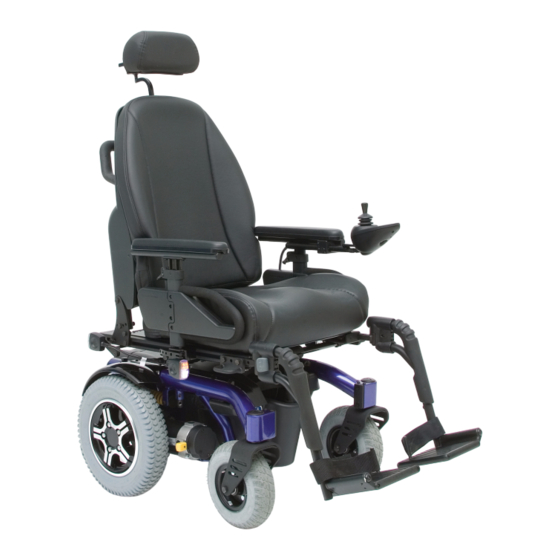

SEATBACK ARMREST SEAT ASSEMBLY JOYSTICK CONTROLLER (REMOTE PLUS SHOWN) SEAT BASE POWER BASE ASSEMBLY FRONT RIGGINGS (SWING-AWAY LEG RESTS SHOWN) DRIVE WHEEL CASTOR WHEEL Figure 5. The Athena Power Chair Athena www.pridemobility.com...
Page 18 MANUAL FREEWHEEL LEVER MOTOR/BRAKE ASSEMBLY MAIN CIRCUIT BREAKER Figure 6. The Athena Power Base BATTERY DOOR LATCH LOCATION ANTI-TIP WHEEL BATTERY DOOR LATCH BATTERY DOOR ANTI-TIP WHEEL Figure 7. The Athena Power Base (Rear View - Battery Door Down) www.pridemobility.com Athena...
Page 19 NOTE: If the lever is difficult to move in either direction, rock your power chair back and forth slightly. The lever should then move to the desired position. WARNING! Do not use the freewheel lever handles as tie-down points to secure this product. Athena www.pridemobility.com...
Page 20 I I I . Y O U R P O W E R C H A I R Figure 8. Freewheel Mode (Drive Disengaged) Figure 9. Drive Mode (Drive Engaged) www.pridemobility.com Athena...
Page 21 See figure 11. Refer to the supplement provided with your power chair for information on how to use the transit securement system. SECUREMENT BRACKET SECUREMENT BRACKET Figure 11. Transit Securement Brackets Athena www.pridemobility.com...
Page 22: Comfort Adjustments
Your Quantum Rehab Dealer has evaluated your power chair and made any necessary adjustments to suit your specific requirements. Do not change your seating configuration without first contacting Pride Mobility Products Ltd. or your Quantum Rehab Dealer.
Page 23 ANTI-TIP WHEEL the tyre to be properly adjusted. The user must also be seated in the power chair in order to properly adjust the anti-tip wheels. Figure 13. Anti-Tip Wheel Assembly Athena www.pridemobility.com...
Page 24 The positioning belt is not designed for use as a restraining device. WARNING! Pride does not recommend using the power chair as a seat in a motor vehicle. The power chair user...
Page 25: Batteries And Charging
V I . B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING The Athena uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level. Deep-cycle batteries are designed to handle a longer and deeper discharge.
Page 26 How often must I charge the batteries? Many factors come into play when deciding how often to charge the batteries. You may use your power chair all day on a daily basis or you may not use it for weeks at a time. www.pridemobility.com Athena...
Page 27 We work closely with our battery manufacturer to provide a battery that best suits your power chair’s specific demands. Fresh batteries arrive regularly at Pride and are promptly shipped with a full charge. During shipping, the batteries encounter temperature extremes that may influence initial performance. Heat robs the charge from the battery, and cold slows the power available and extends the time needed to recharge the battery (just as with a car battery).
Page 28 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container, and ship the batteries in separate boxes. www.pridemobility.com Athena...
Page 29: Care And Maintenance
V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Athena is a sophisticated power chair. Like any motorised vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from your Quantum Rehab Dealer. Preven- tive maintenance is very important.
Page 30 Take your power chair to your Quantum Rehab Dealer for yearly maintenance, especially if you use your power chair on a regular basis. This helps ensure that your power chair is functioning properly and helps prevent future complications. www.pridemobility.com Athena...
Page 31: Cleaning And Disinfection
WARNING! Be sure that the power to the controller is turned off and the power chair is not in freewheel mode before performing this procedure. WARNING! When changing a tyre, remove only the five lug nuts, then remove the wheel. If any further disassembly is required, deflate the tyre completely or it may explode. Athena www.pridemobility.com...
Page 32: Battery Replacement
WHEEL HUB REAR RIM HALF LUG NUTS Figure 16. The Athena Drive Wheel Figure 17. Athena Drive Wheel Disassembled Follow these easy steps for a quick and safe repair for both pneumatic and solid tyres: 1. Turn off the power to the controller.
Page 33 Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your Quantum Rehab Dealer. Athena www.pridemobility.com...
Page 34 Pride Mobility Products Ltd. cannot be deemed responsible. NOTE: Pride Mobility Products Ltd. provides parts only under warranty. Your Quantum Rehab Dealer is responsible for labour and service. Please contact your Quantum Rehab Dealer for information about these services and for any applicable charges.
Page 35: Appendix I - Specifications
Test conducted at maximum weight capacity. NOTE: This product conforms to all applicable ANSI-RESNA testing requirements and ISO 7176 series EN12184 standards. All specifications subject to change without notice. Athena www.pridemobility.com...
Page 36 A P P E N D I X I - S P E C I F I C A T I O N S LENGTH (WITHOUT FRONT RIGGINGS) 83.82 cm (33 in.) TURNING RADIUS (WITHOUT WIDTH FRONT RIGGINGS) 64.38 cm (25.375 in.) 59.69 cm (23.5 in.) GROUND CLEARANCE 6.67 cm (2.625 in.) Figure 19. Athena Dimensions and Ground Clearance www.pridemobility.com Athena...
Page 37 N O T E S Athena www.pridemobility.com...
Page 38 N O T E S www.pridemobility.com Athena...
Page 40 Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected Inspector *INFMANU3755* Product Serial Number...
