Dieser Ersatzteilkatalog wurde uns vom
Hersteller zur Verfügung gestellt*. Alle
Teile können über uns bezogen werden.
Sollte das entsprechende Teil noch nicht in
unserem Shop verfügbar sein, fragen Sie es
einfach per E‐Mail bei uns an.
E‐Mail: kontakt@somobil.de
Shop: https://www.somobil.de
* Druckfehler und Änderungen vorbehalten
Advertisement
Table of Contents
Related Manuals for Pride Apex Aluma Lite
Summary of Contents for Pride Apex Aluma Lite
- Page 1 Dieser Ersatzteilkatalog wurde uns vom Hersteller zur Verfügung gestellt*. Alle Teile können über uns bezogen werden. Sollte das entsprechende Teil noch nicht in unserem Shop verfügbar sein, fragen Sie es einfach per E‐Mail bei uns an. E‐Mail: kontakt@somobil.de Shop: ...

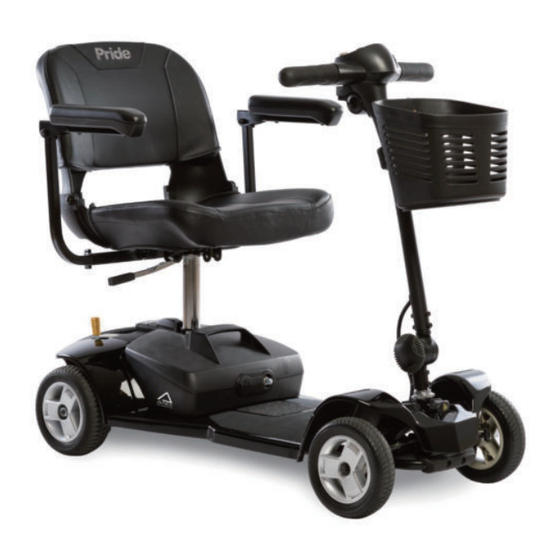

- Page 2 Apex Aluma Lite www.pridemobility.com ACN# 088 609 661 llustrated arts reakdown...
- Page 3 Pride IPB Manual that you may have. Please note that all pricing that is included with this manual is subject to change without any prior notice from Pride. Thank you for choosing products from Pride ®...
-
Page 4: Table Of Contents
Shroud Assembly Front ..................................13 Rear..................................14 SECTION V. Wheel Assembly Front ..................................15 Rear..................................16 SECTION VI. Seat Assembly Seat ..................................17 Under Seat Storage..............................18 SECTION VII. Owner’s Package ................................19 SECTION VIII. Decal Package ................................20 APPENDIX A. Electrical System Diagram..............................21 Apex Aluma Lite Rev.A/010720... -
Page 5: Frame Assembly Tiller
(Includes B1) Hand Grips Pivot Assembly (Includes D1) Adjustment Knob E1 Basket Assembly REF # PART # DESCRIPTION TILLER,ASSY,STANDARD,4 WHEEL B042100 GRIP,5.25"L,HAND,BLACK,FOAM P2040016 TILLER,ASSY,PIVOT,UPPER/LOWER B042101 PLASTIC,RAW,ASSY,KNOB,TILLER ADJUST B042102 FRAME,BASKET,ASSY,BLACK,PLASTIC,244.8MM W X 219.1MM H X 211.7MM L B042103 Apex Aluma Lite Rev.A/010720... -
Page 6: Front
STEERING STEM,ASSY,4 WHEEL B042104 KIT,BEARING/RACE,KEMCO P5080058 FRAME,ASSY,FRONT,4 WHEEL B042105 AXLE,ASSY,FRONT,4 WHEEL B042106 TILLER,KNOB,LOCK,ABS,SC40E/44E P2010407 SPRING,15.5MM FL X 0.90MM WIRE DIA X 10.80MM OD X RATE: 2.46N/MM,(LEE P7010445 NG: LCM- 090F-3) SCREW,SHCS,BLACK ZINC,M4-.7 X 10MM,GRADE 8 P5020108 BUMPER,ASSY,FRONT,BLACK B042107 Apex Aluma Lite Rev.A/010720... -
Page 7: Rear
Rear Frame Assy (Includes B1 & C1) Brake Lever Power Connector Transaxle Mounting Hardware Anti-tip Assembly REF # PART # DESCRIPTION FRAME,ASSY,REAR,3/4 WHEEL B042108 FRAME,ASSY,BRAKE LEVER,EXTENSION B042109 ELECTRONIC,ASSY,POWER CONNECTOR,HOUSING,FEMALE B042110 TRANSAXLE,ASSY,HARDWARE,MOUNTING,TRAVEL SCOOTERS B042111 WHEEL,ASSY,ANTI-TIP B042112 Apex Aluma Lite Rev.A/010720... -
Page 8: Seat Post And Lock-Up
I. Frame Assembly — Seat Post and Lock-up When applicable, assemblies are grouped by color. All components with that color are included in the assembly. Lock-up Assembly Seat Post Assembly REF # PART # DESCRIPTION FRAME,ASSY,LOCKUP B042113 SEAT POST,ASSY,UPPER,4 HOLE,ADJUSTABLE,W/PIN B042114 Apex Aluma Lite Rev.A/010720... -
Page 9: Drive Assembly
II. Drive Assembly Complete, Motor/Brake Assy Complete, Transaxle/Motor/Brake Assy When applicable, assemblies are grouped by color. All components with that color are included in the assembly. REF # PART # DESCRIPTION MOTOR,ASSY,MAIN TRANSAXLE/MOTOR/BRAKE,W/POWER CONNECTOR,6KMH P3030062 MOTOR,ASSY,MOTOR/BRAKE,W/POWER CONNECTOR B042115 Apex Aluma Lite Rev.A/010720... -
Page 10: Electronics Assembly Console
Throttle Pot Throttle Control Lever Front to Rear Harness REF # PART # DESCRIPTION ELECTRONIC,ASSY,TOP CONSOLE B042116 KNOB,GRAY,PLASTIC,SPEED POTB P2010401 ELECTRONIC,SPEED POT W/HARNESS,CTS,100K B3040011 SHROUD,ASSY,CONSOLE BOTTOM,BLACK B042119 ELECTRONIC,ASSY,THROTTLE POT B042120 LEVER,ASSY,THROTTLE CONTROL B042121 ELECTRONIC,HARNESS,FRONT-TO-REAR,XLR CONSOLE B042122 Apex Aluma Lite Rev.A/010720... -
Page 11: Controller
Controller/Motor/Brake Connector Controller Interface Harness REF # PART # DESCRIPTION ELECTRONIC,ASSY,CONTROLLER ELECTRONICS,S-DRIVE MK II,XLR TILLER B042123 CONTROLLER,ASSY,S-DRIVE,45AMP,MK II B042124 ELECTRONIC,HARNESS, HORN B3040016 ELECTRONIC,ASSY,BATTERY CONNECTOR/CONTROLLER B042125 Apex Aluma Lite,POWER HARNESS B3040007 ELECTRONIC,ASSY,CONTROLLER/MOTOR/BRAKE CONNECTOR,HOUSING B042127 ELECTRONIC,HARNESS,CONTROLLER INTERFACE/CHARGER B3040005 Apex Aluma Lite Rev.A/010720... -
Page 12: Battery Box, 12-Amp
12AH Battery(Lithium Battery) Battery Box Assembly (Includes D1, E1 & Harnessing) Circuit Breaker Fuse REF # PART # DESCRIPTION BATTERY,ASSY,BOX,12 AMP B042129 BATTERY,PACKAGED,Lithium,12AH P3010042 BATTERY BOX,12 AMP,SC40E/44E,W/OUT BATTERIES B042130 ELECTRONIC,CIRCUIT BREAKER,15 AMP P3060120 ELECTRONIC,FUSE,5 AMP,ATO P3060035 Apex Aluma Lite Rev.A/010720... -
Page 13: Charger
Power Harness(For AU) Power Harness(For DE) REF # PART # DESCRIPTION P3070016 ELECTRONIC,ASSY,CHARGER,OFFBOARD,LOW INHIBIT,100V-240V,2 AMP, W/XLR HARNESS,CE/CUL/UL APPROVED,W/UNITED KINGDOM POWERCORD B042131 ELECTRONIC,HARNESS, POWER CORD,AC W/UK PLUG P3070105 ELECTRONIC,HARNESS, POWER CORD,AC W/AU PLUG P3070106 ELECTRONIC,HARNESS, POWER CORD,AC W/DE PLUG Apex Aluma Lite Rev.A/010720... -
Page 14: Shroud Assembly Front
All components with that color are included in the assembly. Black Front Shroud Blue Front Shroud Red Front Shroud REF # PART # DESCRIPTION SHROUD,ASSY,FRONT BODY,BLACK B042132 SHROUD,ASSY,FRONT BODY,BLUE B042133 SHROUD,ASSY,FRONT BODY,RED B042134 Apex Aluma Lite Rev.A/010720... -
Page 15: Rear
Black Rear Shroud (Includes D1) Blue Rear Shroud (Includes D1) Red Rear Shroud (Includes D1) D1 Handle Assembly REF # PART # DESCRIPTION SHROUD,ASSY,REAR BODY,BLACK B042135 SHROUD,ASSY,REAR BODY,BLUE B042136 SHROUD,ASSY,REAR BODY,RED B042137 PLASTIC,ASSY,HANDLE,BLACK,REAR WING B042138 Apex Aluma Lite Rev.A/010720... -
Page 16: Wheel Assembly Front
V. Wheel Assembly — Front Complete Wheel Assembly REF # PART # DESCRIPTION WHEEL,ASSY,PU FOAM,SILVER RIM/BLACK TIRE,TRI-SPOKE P7060098 WHEEL,FRONT,COMPLETE Apex Aluma Lite Rev.A/010720... -
Page 17: Rear
V. Wheel Assembly — Rear Complete Wheel Assembly REF # PART # DESCRIPTION WHEEL,ASSY,PU FOAM,SILVER RIM/BLACK TIRE,TRI-SPOKE,2.5 X 8",REAR, P7060099 COMPLETE Apex Aluma Lite Rev.A/010720... -
Page 18: Seat Assembly Seat
The assembly must be purchased. Molded Seat, Seat Covers, Seat Frame Assembly, Armrests, and all required hardware. Seat Back Cover Accessory Pin Seat Base Cover Armpad Left Arm Rest Assembly Seat Plate Assembly (Includes H1 - L1) Apex Aluma Lite Rev.A/010720... -
Page 19: Under Seat Storage
IV. Seat Assembly — Seat REF # PART # DESCRIPTION A1 - L1 SEAT,ASSY,MOLDED PLASTIC,BLACK VINYL,17"W,17"D,14"H,W/EMBROIDERED B012011 PRIDE LOGO PLASTIC,ASSY,17"W,17"D,MOLDED PLASTIC,SEAT BACK/BASE B042139 SEAT,ASSY,BLACK VINYL,MOLDED PLASTIC,17"W,17"D,W/EMROIDERED PRIDE LOGO B042140 B042140 ARMREST,ASSY,BLACK,LEFT,MOLDED PLASTIC SEAT B042141 B042141 ARMREST,ASSY,BLACK,RIGHT,MOLDED PLASTIC SEAT B042142 ARMREST,PAD,BLACK,LEFT/RIGHT,10" P7070028... -
Page 20: Owner's Package
VII. Owne's Package Key Set Detent Pin REF # PART # DESCRIPTION KEY Set B042144 P7080015 PIN,COTTERLESS DETENT W/RING,.375" DIA X 2.00" GRIP LENGTH Apex Aluma Lite Rev.A/010720... -
Page 21: Decal Package
VIII. Decal Package REF # PART # DESCRIPTION DECAL,NAME,Apex Aluma Lite, REAR SHROUD , BATTERY BOX P4030215 *N/A DECAL,READ OWNER'S MANUAL,300 LB WEIGHT CAPACITY,LOOSE GARMENTS *N/A P4030207 DECAL DECAL,ISO,"AGM/GEL CELL/DOT CERTIFIED",L-1235-551 *N/A P4030211 DECAL,NOT RATED FOR OCCUPIED TRANSPORT,SCOOTER P4030208 *N/A... -
Page 22: Electrical System Diagram
A. Electrical System Diagram CONSOLE CONTROLLER VOLT METER HORN BUTTON CHARGER PORT SPEED HORN SWITCH THROTTLE ELEASMB7342 REVERSE HORN DWR9983H041 5A FUSE CIRCUIT CHARGER BREAKER PORT TRANSAXLE/MOTOR/BRAKE BATTERY BOX Apex Aluma Lite Rev.A/010720... - Page 23 Notes Apex Aluma Lite Rev.A/010720...
- Page 24 Pride Mobility Pr oducts Corporation ® 182 Susquehanna Avenue Exeter, PA 18643 Pride Mobility Pr oducts Company ® 5096 South Service Road Beamsville, ON L0R 1B3 Canada Pride Mobility Products Ltd. ® 32 Wedgwood Road Bicester, Oxfordshire OX26 4UL Pride Mobility Products Australia Pty.
