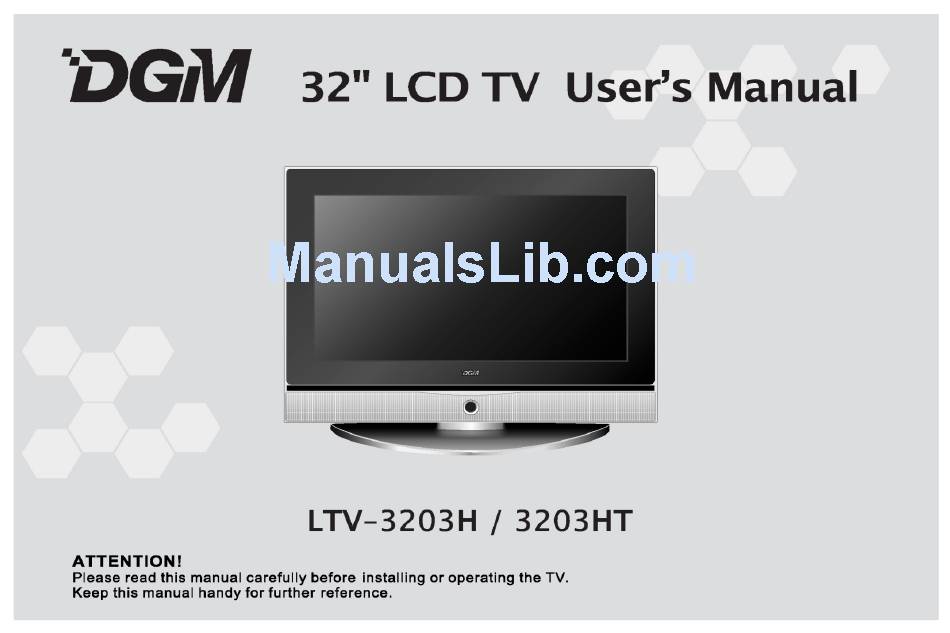

DGM LTV-3203H User Manual

32"
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading

Related Manuals for DGM LTV-3203H

Summary of Contents for DGM LTV-3203H

  • Page 2: Table Of Contents

    Contents Introduction ....................1 Warnings and cautions ..................2 Main unit descriptions ...................5 Remote control hand unit ................7 The OSD menus ..................13 The DVB OSD menus ..................23 Television installation .................30 Battery installation & replacement for remote control unit .......31 Troubleshooting ..................32 Specifications ....................33 Attention: DVB function for LTV-3203HT model only.

  • Page 3: Introduction

    Introduction Thank you very much for your purchase of our Digital LCD TV . It serves as a Digital TV . To enjoy your set to the full from the very beginning, read this manual carefully and keep it handy for ready reference. 1.

  • Page 4: Warnings And Cautions

    Warnings and cautions Warning High voltages are used in the operation of this product. Do not remove the back cover of the cabinet. Refer servicing to qualified service personnel. Warning To prevent fire or electrical shock hazard, do not expose the main unit to rain or moisture.
  • Page 5 Warnings and cautions Minimum distances Caution 10cm 10cm If the television is to be built into a compartment or 20cm similarly enclosed, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous. Caution Never stand on, lean on, push suddenly the product or its stand.
  • Page 6 Warnings and cautions Caution When the product is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet. Caution Avoid exposing the main unit to direct sunlight and other source of the heat.

  • Page 7: Main Unit Descriptions

    Main unit descriptions Control location 1.Power button 2.TV/AV button (TV/AV) 3.Menu button (MENU) 4.Volume down button ( V -) 5.Volume up button ( V + ) 6.Program down button ( P- ) 7.Program up button ( P+ ) 8.Power indicator 9.Remote sensor TV/AV MENU...
  • Page 8 3.VGA, YPbPr share audio input R2,L2. 4.YPbPr can also accepts signal of YCbCr format. 5.DVB function for LTV-3203HT model only, LTV-3203H is without DVB-T ANTENNA. 6.DVB-T Antenna can receive digital video broadcast signal. 7.Do not switch the Main Switch to on until the light of the Power Indicator disappears.

  • Page 9: Remote Control Hand Unit

    Remote control hand unit 1.[Power] or : Turn the display on/off. 2.[V-/V+],[ / ]: Press [V+] to increase volume. Press [V-]to decrease volume.[V+] also can cancel the Mute mode, reference [MUTE] key.[V- /V+] are also used as arrow keys when operating in the menu . [V+] function as [ ] ,[V-] function as [ ].
  • Page 10 Remote control hand unit 5.[MUTE]: Press this key, the sound is cut; Press key again or [ ] key, mute is cancelled. 6.[CALL]: Display the following information: Mute (1) The current program number or signal source. (2) The picture mode (3) The sound effects mode (4) The mode of sleep (5) The stereo mode...
  • Page 11 Remote control hand unit 10. [ZOOM]: Switch the size of the picture in the sequence as following ZOOM FULL 4:3 SUBTITLE ZOOM ZOOM FULL SUBTITLE In YPbPr mode, this function only work for 480i ,576i input. 11. [|/||]:For the signal from antenna,change A2\NICAM mode A2 mode: MONO STEREO MONO A2 bilingualism mode...
  • Page 12 Remote control hand unit : By repeatedly pressing this key, picture effects will change as follows: USER STANDARD MOIVE VIVID USER 04:28:18 : By repeatedly pressing this key, sound effects will change as follows: PERSONAL VOICE MUSIC THEATER 14. [Time]: Call time out. This televison automatically obtain time from transmitted teletext information in program 0.
  • Page 13 Remote control hand unit 17 . [TV MENU]: Call the main menu out, or quit to previous menu. 18. [SUBTITLE]:This is a multiplexed key of subtitle and subcode. Directly press this key in TV mode , the key functions is subtitle, which calls out the subtitle page. If already entered text mode via [TEXT] key, this key functions is subcode .
  • Page 14 Remote control hand unit 24. [REVEAL]: Open or close some hidden information of the current text page. 25.[DVB MENU]: Press [DVB MENU] can select the DVB source. In the DVB source, press [DVB MENU] to call the DVB main menu out or close the DVB menu. In the DVB source , [-/--] is not available;...

  • Page 15: The Osd Menus

    The OSD menus OSD main menu is called out by first time pressing menu key. The main menu contains 3 parts: a icon column, a menu title and a menu item box. At first time the menu is called out, the icon column menu title upper icon pops out and the menu title indicates as picture menu.
  • Page 16 The OSD menus A.In the state of that the input source is TV, VIDEO, S-VIDEO YPbPr SCART DVB 1.The picture menu a.The following picture is the sketch map of the picture menu. b. The definition of each option: 1.Brightness: Change the value of brightness with the key in the rang of 0 to 100.
  • Page 17 The OSD menus 2. The sound menu a. The following picture is the sketch map of the sound menu. b. The definition of each option: 1.Volume: Change the value of volume with the key in the rang of 0 to 100. 2.Balance: Change the value of balance with the key from -50 to 50,usually 0 is recommended.
  • Page 18 The OSD menus 9.The advance option including: (1). DUB.DBE: Select a bass enhancement mode from DUB, DBE or BBE and also could cancel the function of bass enhancement. * Some models do not have choice of BBE. (2) HP volume: Change the value of head phone volume with the key in the rang of 0 to 100.
  • Page 19 The OSD menus 3. The feature menu a. The following picture is the sketch map of the feature menu. b. The definition of each option: 1.Source OSD: Set the function of source OSD on or off. If set to on, source is always indicated on the left top. 2.Language: Select the language of the OSD menu from English French, German, Italian, Spanish and Russian.
  • Page 20 The OSD menus 4.Timer: Some options about auto shut down could be set in this item. Including sleep timer on or off, shut down time, power on time and the power on program. On/off timer could be set by directly pressing digit keys or canceled by pressing -/--. While RTC is set to mode AM/PM, could be used to change on/off timer between AM and PM.
  • Page 21 The OSD menus 8.PIC MISC:Advanced picture settings which respectively improve picture quality. Settings in this menu may take significant effects only for some particular picture. Sometimes dis-professinal user can not find difference to toggle functions on off. To switch on LTI(luminance transient improvement) usually makes picture a little bit sharper, while CTI(chrominance transient improvement) clarify edge of coloured area.
  • Page 22 The OSD menus 4. The installation menu a. The following picture is the sketch map of the installation menu. b. The definition of each option: 1.Program NR: switch the program by the sequence of program number increase or Decrease by using the key 2.Color system: select the color system from Pal-443, SECAM, UNKNOWN, AUTO and NTSC-443 by using the key 3.Sound System: select the sound system from AUTO, BG, I,...
  • Page 23 The OSD menus 7.Skip: When it is ON, the current program would be skipped while changing channel with [P+/P-] keys; but it still could be achieved through digit keys. A skipped program number displays in red. You can set those weak signals or certain programs not likely to watch to skip on.
  • Page 24 The OSD menus B.In the state of that the input source is VGA, HDMI 1.Display NO SYNC in the middle screen without signal input. The blue light glitters. [TV menu]and number key is unavailable. Switch to other source by [TV/AV],[V-/V+],[QV]. NO SYNC System goes to standby after 15 minutes of no signal waiting.

  • Page 25: The Dvb Osd Menus

    The DVB OSD menus DVB First Time Installation A For the first time installation: 1.When entering DVBT source for the first time system will Do you want to start automatic search? run this installation guide. Firstly, system will guide users to start automatic search.
  • Page 26 The DVB OSD menus Main Menu DVB OSD MENUS Channel List Press [DVB MENU] to enter the main menu page as the Favourites following sketch map shows: Guides Settings Common Interface Choose the Channel List menu and press [SELECT] to enter the next level menu in which lists all the channels that have been searched.
  • Page 27 The DVB OSD menus Select the Favourites menu in the main menu and press [SELECT] to enter the menu page. Use [ ] to select channels, and [ ] to select List. Press [SELECT] to enter or delete the selected channel into or out of the selected List. As the following sketch map shows: In the main menu, select Guides option and press [SELECT] to enter the Guides menu page as the following sketch map...
  • Page 28 The DVB OSD menus Select Now/Next EPG option and press [SELECT] to enter the Now/Next EPG Wednesday 30/10 14:13 next level submenu, as the following sketch map shows. The Channels Current Event Next Even t following column presents the current selected program and 1.BBC ONE Doctors Quincy...
  • Page 29 The DVB OSD menus In Guides menu, select Timeline Schedule EPG option and Timeline Schedule EPG Wednesday 30/10 14:05 press [SELECT] to enter the next level submenu as the Wednesday 30/10 14:00 14:45 15:30 1. BBC ONE following sketch map shows. Use [ ] and [ ] to see the 2.Eins Extra...
  • Page 30 The DVB OSD menus In Settings menu, select Configuration option and press [SELECT] to enter configuration menu as the following sketch map shows. DST: Set DST(daylight saving time) on/off. Subtitles: Open and close the subtitle. Banner: set the banner display time except you press [i]. Favorite mode: close favorite mode or select the favorite list.
  • Page 31 The DVB OSD menus In Settings menu, select Installation option and press [SELECT] to enter the Installation menu, as the following sketch map shows. Manual Search Automatic Search sub menu and First Time Installation sub Channel Number: menu have been introduced above. In Installation menu, select Manual Search option and press [SELECT] to enter the Manual Search menu, as the following sketch map shows.

  • Page 32: Television Installation

    Television installation Connect antenna or video facility 1.Use 75 coaxial cable plug or 300-75 impedance converter to plug in antenna input terminal on the rear of the cabinet. 2.Connect the video facility to the audio, video in jack on the rear of the cabinet.

  • Page 33: Battery Installation & Replacement For Remote Control Unit

    Battery installation & replacement for remote control unit The remote control uses two 1.5V AA batteries. For battery installation and replacement are as following: 1. Turn the remote control unit upside down. Press down the grip of battery compartment and slide the color in the direction of the arrow.

  • Page 34: Troubleshooting

    Troubleshooting Before arranging for service, firstly know the status and then check simply as follows: Problems Check No picture or sound. Check if the power supply is plugged in and the power switch is on. Picture is OK, no sound. Check if the volume control is set to the minimum or mute.

  • Page 35: Specifications

    Specifications...
  • Page 36 Specifications Note: All specifications are subject to change without notice. Different country marketed item, it is the few function with use manual content maybe is differential. All quality and size are approximate value.

This manual is also suitable for:

Ltv-3203ht
