INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS, CR97-003, CAN1-2.21-M85, IAS U.S. 4-96.

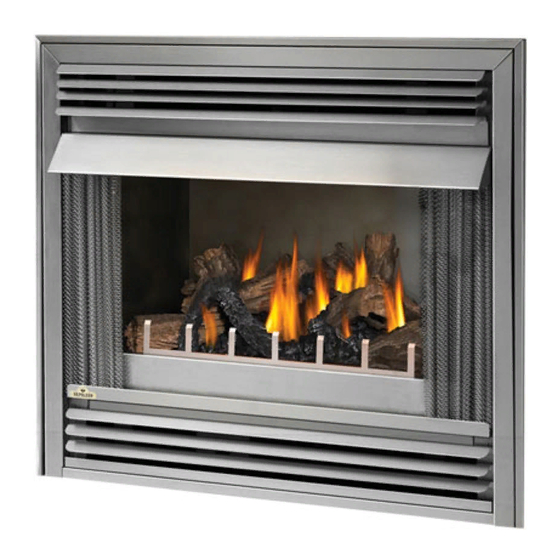

OUTDOOR GAS FIREPLACE
GSS36N
NATURAL GAS MODEL
GSS36P
PROPANE GAS MODEL
THIS APPLIANCE MUST BE
INSTALLED OUTSIDE
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.

SAFETY INFORMATION

WARNING
!
If the information in these instructions are
not followed exactly, a fi re or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the
fi re department.
- Installation and service must be performed by a
qualifi ed installer, service agency or the supplier.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleon.on.ca
$10.00
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
1.2
W415-0807 / 06.25.09
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSS36N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Napoleon GSS36N

Summary of Contents for Napoleon GSS36N

  • Page 1: Safety Information

    - Installation and service must be performed by a qualifi ed installer, service agency or the supplier. Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleon.on.ca W415-0807 / 06.25.09...

  • Page 2: Table Of Contents

    Table of contents INTRODUCTION WARRANTY DIMENSIONS GENERAL INSTRUCTIONS GENERAL INSTRUCTIONS INSTALLATION GAS INSTALLATION OPTIONAL WALL SWITCH INSTALLATION COMBUSTION AND VENTILATION AIR FRAMING CLEARANCE TO COMBUSTIBLES MINIMUM ENCLOSURE CLEARANCES MINIMUM MANTEL CLEARANCES NAILING TAB FINISHING LOG PLACEMENT HOOD LOGO PLACEMENT LOUVRE INSTALLATION OPERATION ADJUSTMENT VENTURI ADJUSTMENT...

  • Page 3: Introduction

    1.0 INTRODUCTION WARNING • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi re or injury. • Any changes to this appliance or its controls can be dangerous and is prohibited. •...

  • Page 4: Warranty

    After the fi rst year, with respect to this Limited Warranty, NAPOLEON® may, at its discretion, fully discharge all obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).

  • Page 5: Dimensions

    DIMENSIONS 27" " 33" " " " INLET 3" " RATING PLATE LOCATION GENERAL INSTRUCTIONS WARNING PROVIDE ADEQUATE ACCESSIBILITY FOR SERVICING AND OPERATING THE APPLIANCE. PROVIDE ADEQUATE VENTILATION. NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE. OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48” FROM THE FRONT FACE OF THE UNIT.

  • Page 6: General Instructions

    THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local codes. Installation practices vary from region to region and it is important to know the specifi cs that apply to your area, for example in Massachusetts State: •...

  • Page 7: Installation

    2.0 INSTALLATION GAS INSTALLATION WARNING RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS SPARKS OR OPEN FLAMES. SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE. PURGING OF THE GAS SUPPLY LINE SHOULD BE PERFORMED BY A QUALIFIED SERVICE TECHNI- CIAN.

  • Page 8: Combustion And Ventilation Air

    COMBUSTION AND VENTILATION AIR This appliance is intended for installation on an outdoor patio or in your yard. It must never be installed inside the warm air envelope of your structure. It is highly recommended that this appliance be installed in a “sheltered”...
  • Page 9 It is best to frame your appliance after it is positioned. Use 2x4’s and frame to local building codes. " " 3" OUTSIDE INSIDE " " CHASE CHASE 2' MIN. " 6" " WARNING USE ONLY NON-COMBUSTIBLE MATERIAL SUCH AS CEMENT BOARD, CERAMIC TILE, MARBLE, ETC.

  • Page 10: Minimum Enclosure Clearances

    MINIMUM ENCLOSURE CLEARANCES WARNING RISK OF FIRE! THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS SUCH AS BRICK, MARBLE, GRANITE, ETC., AS LONG AS THE FINISHING MATERIAL DOES NOT GO BELOW THE SPECIFIED DIMENSION AS ILLUSTRATED. AS AN ALTERNATIVE, YOU CAN FINISH THE APPLIANCE WITH DRYWALL, SEE DIAGRAM BELOW FOR DETAILS.

  • Page 11: Minimum Mantel Clearances

    MINIMUM MANTEL CLEARANCES WARNING RISK OF FIRE, MAINTAIN ALL SPECIFIED AIR SPACE CLEARANCES TO COMBUSTIBLES. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY CAUSE A FIRE OR CAUSE THE APPLIANCE TO OVERHEAT. ENSURE ALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT, MANTEL, FRONT, ETC.) ARE CLEARLY MAINTAINED.

  • Page 12: Finishing

    THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE. PHAZER logs and glowing embers exclusive to Napoleon, provide a unique and realistic glowing effect that is different in every installation. Take the time to carefully position the glowing embers for a maximum glowing effect.

  • Page 13: Hood

    HOOD The curtain mesh must be kept fully closed during operation to help prevent accidental burns from occurring. HOOD The heater must not be used when the hood is removed. Hook the hood over the lip of the curtain sup- port plate.

  • Page 14: Operation

    5.0 OPERATION WARNING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. When lit for the fi rst time, the appliance will emit an odor for a few hours. This is a normal temporary condition caused by the “burn-in”...

  • Page 15: Adjustment

    6.0 ADJUSTMENT VENTURI ADJUSTMENT WARNING CARBON CAN BE DISTRIBUTED IN SURROUNDING LIVING AREA IF THE AIR SHUTTER IS IMPROPERLY ADJUSTED. This appliance has an air shutter that has been factory set open according to the chart below: Closing the air shutter will cause a more yellow flame, but can lead to carboning. Opening the air shutter will cause a more blue flame, but can cause flame lifting from the burner ports.

  • Page 16: Maintenance

    Do not use abrasive cleaners or steel wool on the stainless steel parts of your Napoleon outdoor appliance. Doing so will scratch the fi nish. Surfaces should be cleaned with warm soapy water while the metal is still warm to touch.

  • Page 17: Replacements

    PROPANE GAS PILOT ASSEMBLY W455-0069 NATURAL GAS PILOT INJECTOR W455-0067 PROPANE GAS PILOT INJECTOR W725-0028 NATURAL GAS VALVE W725-0029 PROPANE GAS VALVE W385-0334 NAPOLEON® LOGO GL-667 LOG SET W135-0378 BACK LOG (#1) W135-0381 LEFT MIDDLE LOG (#2) W135-0382 RIGHT MIDDLE LOG (#3) W135-0380...
  • Page 18 W415-0807 / 06.25.09...

  • Page 19: Trouble Shooting

    9.0 TROUBLE SHOOTING WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT. SYMPTOM PROBLEM TEST SOLUTION Main burner goes out; pilot Pilot fl ame is not large Turn up the pilot fl ame. stays on.
  • Page 20 SYMPTOM PROBLEM TEST SOLUTION Pilot goes out while Gas piping is undersized. Turn on all gas appliances and see if pilot fl ame fl utters, standing; Main burner is in diminishes or extinguishes, especially when main burner ‘OFF’ position. ignites. Monitor appliance supply working pressure. Check if supply piping size is to code.

  • Page 21: Service History

    10.0 SERVICE HISTORY 43.1 W415-0807 / 06.25.09...

  • Page 22: Notes

    11.0 NOTES 44.1 W415-0807 / 06.25.09...
