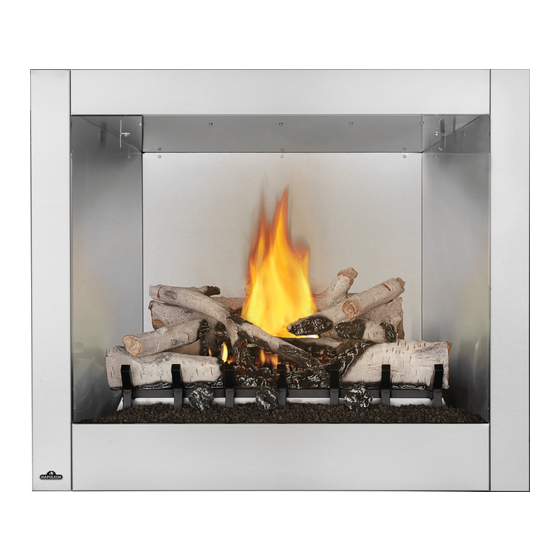

RIVERSIDE™ 36 CLEAN FACE OUTDOOR GAS FIREPLACE
Specifi cations
Model BTU
GSS36CF 40,000
Dimensions
Combustible Mantel Clearances
20 1/2
18 1/2
MANTEL
16 1/2
HEIGHT
14 1/2
8
2 4 6 8 10
MANTEL
DEPTH
Appliance Location
Fig. 1
Fig. 2
Fig. 3
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 0G8 Canada
Width
Actual Framing Actual
42" 44" 35 9/16" 46 9/16" 19 3/16"
FRONT VIEW
MANTEL
8"
6"
4"
2"
1"
TOP OF
APPLIANCE
35 3/4"
Any enclosure (shelter) in which the appliance is used must comply
with one of the following:
With walls on all sides, but at least one permanent opening at ground level
and no overhead cover (Fig. 1).
Within a partial enclosure which includes an overhead cover and no more than
two sidewalls. These sidewalls may be parallel, as in a breezeway, or at right
angles to each other (Fig. 2).
Within a partial enclosure which includes an overhead cover and three wide-
walls, as long as 30 percent or more of the horizontal periphery of the enclo-
sure is permanently open (Fig.3).
Height Depth
Framing Actual
RIGHT SIDE VIEW
TOP VIEW
Gas Inlet Locations
• 1(866)820-8686
Viewing Area
Framing
20 1/2" 26" x 35 1/4"
W415-1914 / 12.17.18
