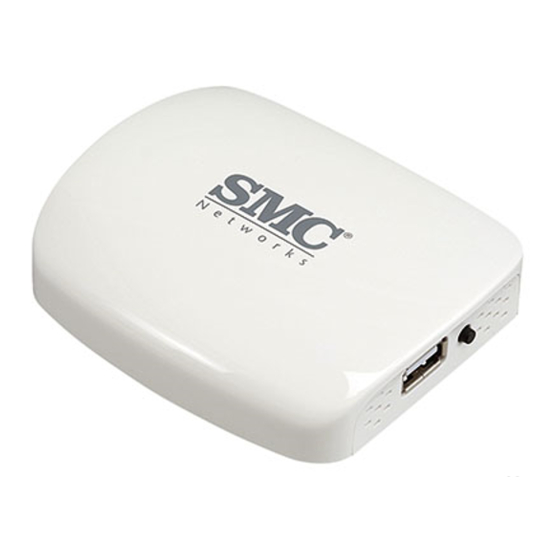

USER GUIDE

WiShare
Wireless TV Adapter
SMCWTVA100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WiShare SMCWTVA100 and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks WiShare SMCWTVA100

Summary of Contents for SMC Networks WiShare SMCWTVA100

  • Page 1: User Guide

    USER GUIDE WiShare Wireless TV Adapter SMCWTVA100...
  • Page 2 Wireless TV Adapter User Guide No. 1, Creation Road III, Hsinchu Science Park, 30077, Taiwan, R.O.C. July 2013 TEL: +886 3 5638888 E072013-KS-R02 Fax: +886 3 6686111...
  • Page 3 Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC.

  • Page 4: Warranty And Product Registration

    ARRANTY AND RODUCT EGISTRATION To register SMC products and to review the detailed warranty statement, please refer to the Support Section of the SMC Website at http:// www.smc.com. – 4 –...

  • Page 5: Compliances

    OMPLIANCES EDERAL OMMUNICATION OMMISSION NTERFERENCE TATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 6 This information technology equipment complies with the requirements of the Council Directive 89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain voltage limits and the Amendment Directive 93/68/EEC. For the evaluation of the compliance with these Directives, the following standards were applied: Health (Article 3.1(a) of the R&TTE Directive) ◆...

  • Page 7: About This Guide

    BOUT UIDE This guide details the hardware features of the wireless TV adapter, URPOSE including its physical and performance-related characteristics, and how to install the device and use its configuration software. This guide is for Smart Phone and PC users with a working knowledge of UDIENCE computers.

  • Page 8: Table Of Contents

    System Requirements for Media Share Mode (DLNA) NSTALLATION UIDE How to Connect the TV Adapter Install Screencasting Software Connect a Device to the SMCWTVA100 Non-Bridged Connection Setups Wired Connection Setup Wireless Connection Setup Hardware Reset to Factory Default Settings OFTWARE...
  • Page 9 ONTENTS PERATION ODES PC to TV Mode Using PC to TV (Windows PC Users) Additional PC to TV Controller Menu Items Mirror PIN and PBC Mode Mirror PBC Versus PIN Mode Setup Mirror PBC or PIN From an Android Device Media Share Mode (DLNA Mode) Using AirFun (Windows PC Users)
  • Page 10 ONTENTS Mode Switch Additional Functions Status Configuration Remote Restart Reset to Factory Default Configuration PECIFICATIONS – 10 –...

  • Page 11: Figures

    Figure 25: PC to TV Icon Figure 26: PC to TV Server Selection and Login Window Figure 27: PC to TV Controller Figure 28: Mirror Mode—SMCWTVA100 in Mirror PBC and PIN Mode. Figure 29: Mirror Mode—Accessing Miracast Within Android Figure 30: Mirror Mode—Launching Miracast.
  • Page 12 ONTENTS Figure 32: Mirror Mode—Connecting Figure 33: Mirror Mode—Connected Figure 34: Media Share Mode Figure 35: Connect to SMCWTVA100 Figure 36: Launch AirFun Figure 37: Search and Connect to Device Figure 38: AirFun Activate Figure 39: Select Photos Figure 40: View Photo...
  • Page 13 ONTENTS Figure 68: Display Settings Figure 69: Password Setting Figure 70: Mode Switch Figure 71: Status Menu Figure 72: Configuration Menu Item Figure 73: Remote Menu Item Figure 74: Restart Confirmation Dialog Box – 13 –...

  • Page 14: Tables

    ABLES Table 1: System Requirements (PC to TV Mode) Table 2: Current Miracast Devices Supported Table 3: System Requirements (Media Share Mode) Table 4: Remote Option Button Menus – 14 –...

  • Page 15: Introduction

    HD. You can also make business presentations or play music, photos or video directly from your smartphone or tablet by Wi-Fi. The SMCWTVA100 can be used with Windows, Android, and Apple iOS systems to share your happiness.

  • Page 16: Package Contents

    | Introduction HAPTER Package Contents ACKAGE ONTENTS The packaging should contain the following items: SMCWTVA100 ◆ HDMI cable ◆ AV Cable ◆ Power adapter ◆ Quick Installation Guide ◆ ◆ Resource CD, including this User Guide and AirFun Software Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact your distributor.

  • Page 17: Figure 2: Side View

    | Introduction HAPTER Key Hardware Features 3. E LAN P THERNET This port connects the TV adapter to a LAN over Ethernet. For example, you can connect it to a spare port on your home WI-FI router. 4. P OWER UTTON When the DC power adapter is attached and connected to a power source, the power button must be depressed to power on the unit.

  • Page 18: System

    Please check the SMC website for a list of currently supported devices or check with your device’s manufacturer. Currently the following devices are known to function correctly with the SMCWTVA100 using Mirror mode: Table 2: Current Miracast Devices Supported...

  • Page 19: System Requirements For Media Share Mode (Dlna)

    EQUIREMENTS FOR EDIA HARE The SMCWTVA100 is designed to be a DLNA-DMR (digital media renderer) device, which means you are able to stream video, music, and photo content from a PC (Windows 7 or Windows 8 OS), smartphone, or tablet- PC to your TV.

  • Page 20: Installation Guide

    Connect the HDMI cable to the HDMI output of the SMCWTVA100 and to the HDMI input of your TV, projector or monitor. To turn on the SMCWTVA100, push in the power button until it clicks in the depressed position. Follow the on-screen instructions to set up the SMCWTVA100. The...

  • Page 21: Install Screencasting Software

    “How to Connect the TV Adapter” on page Connect your laptop, smartphone, or tablet-PC to the SMCWTVA100 using Wi-Fi. The SMCWTVA100 AP default SSID is the shown on the initial screen as SMCWTVA100 xxx. See Figure 4 on page 22; the “Name:”...

  • Page 22: Figure 3: Connecting To The Smcwtva100 Using A Pc

    Figure 4: Enter the URL of the SMCWTVA100 SSID ONNECT TO THIS DEFAULT USING NPUT THIS INTO YOUR ’ ROWSER S ADDRESS FIELD When the SMCWTVA100 Web UI finishes loading, as shown in Figure login with the password: – 22 –...

  • Page 23: Figure 5: Web Ui Login

    SMCWTVA100 to screencast over and, if necessary, simultaneously allow your device to have Internet access. Your device can use the SMCWTVA100 as a bridge to a local Internet connection such as an Internet router or connect to it from a local LAN or WLAN.

  • Page 24: Figure 7: Stand-Alone Connection Setup

    Figure 7 on page 24), select “Virtual AP only” (default setting). Click Apply and no further steps are necessary. You are now ready to use the SMCWTVA100 in the Virtual AP (stand-alone) configuration. Go to “Operation Modes” on page 45 for procedures on how to screencast.

  • Page 25: Figure 8: Bridge To Wireless Connection Setup

    Internet connection and then click Apply in the Quick Settings menu with Bridge To Ethernet selected in the drop-down menu. The SMCWTVA100 will reboot to receive a new IP address over the wired internet connection. No further steps are necessary you are now ready to use the SMCWTVA100 in the Bridge to Ethernet configuration.

  • Page 26: Non-Bridged Connection Setups

    ETUPS If your PCs, smartphones, and tablets already connect to a local LAN or WLAN that the SMCWTVA100 can also connect to, then it is not necessary to connect your devices directly over wireless to the SMCWTVA100 except in Miracast or Mirror mode (Miracast protocol is a point-to-point wireless only protocol).

  • Page 27: Wireless Connection Setup

    WLAN using its Wi-Fi interface. All devices (except those using ONNECTION ETUP Miracast) can connect to the SMCWTVA100 over the local W/LAN in order to screencast. Use the “Bridge over Wireless” mode in the Quick Connect setup to use this mode.
  • Page 28 | Installation Guide HAPTER Non-Bridged Connection Setups Power must be connected to the SMCWTVA100 while you are simultaneously pressing the Mode and Power On/Off buttons for 5 seconds. – 28 –...

  • Page 29: Software Installation

    OFTWARE NSTALLATION This chapter shows you how to quickly install both the AirFun and PC to TV software plus the iMediaShare App. The chapter includes: ◆ PC to TV and AirFun Installation (Windows) iMediaShare App Installation (Android) ◆ iMediaShare App Installation (iOS) ◆...
  • Page 30 | Software Installation HAPTER PC to TV and AirFun Installation (Windows) Select “Typical Installation” to install both Airfun and PC to TV software. Otherwise, select “Custom Installation” to install only one of the two. When you have made your selection, click “Install”. From the drop-down menu select the desired language and then click the left button at the bottom to continue.
  • Page 31 | Software Installation HAPTER PC to TV and AirFun Installation (Windows) When the install preparation is completed click Next to continue the Airfun install. Select the target install folder for the Airfun software or click the “Change” button and select a new folder. When ready click Next. –...
  • Page 32 | Software Installation HAPTER PC to TV and AirFun Installation (Windows) Confirm that you are ready to install Airfun. Click Back to change your Airfun install settings otherwise click “Install” to continue the Airfun software installation. When the Airfun software is installed the “Wizard Completed” box will appear.
  • Page 33 | Software Installation HAPTER PC to TV and AirFun Installation (Windows) Select the desired language from the drop-down menu and click “OK”. In the welcome screen click the Next button. – 33 –...
  • Page 34 | Software Installation HAPTER PC to TV and AirFun Installation (Windows) Click Next to accept the target directory for the PC to TV software installation. Otherwise, select a new target directory by clicking the “Browse” button and then click Next. To accept the default start menu location click Next.
  • Page 35 | Software Installation HAPTER PC to TV and AirFun Installation (Windows) Verify the target installation directory and the start menu location and then click Install. Wait for the software installer to complete. – 35 –...
  • Page 36 PC to TV and AirFun Installation (Windows) When the “Waiting for Connection” box appears, connect your PC to the SMCWTVA100 over wireless and wait for the Next Step button to become solid. Click the Next Step button when it becomes solid (it becomes solid when the installer has detected a wireless connection to the SMCWTVA100).
  • Page 37 ■ over wireless and bridges Internet connectivity from the WLAN to your PC, smartphone or tablet. Bridge to Ethernet—The SMCWTVA100 connects to a local LAN over ■ Ethernet cable and bridges Internet connectivity from the LAN to your PC, smartphone or tablet.
  • Page 38 | Software Installation HAPTER PC to TV and AirFun Installation (Windows) The PC to TV software installer is finished. Click “Finish” to close the installer. Once the installation is completed, the PC to TV software requires the PC to reboot before you can use it. Make sure you reboot the PC before using your new software.

  • Page 39: Imediashare App Installation (Android)

    | Software Installation HAPTER iMediaShare App Installation (Android) EDIA HARE NSTALLATION NDROID To install the iMediaShare app for an Android smartphone or tablet, follow these steps: Only the installation interface for an Android smartphone is shown in this guide. However, the app installation screens are similar for all Android systems.

  • Page 40: Figure 15: Install Imediashare App - Android Users

    | Software Installation HAPTER iMediaShare App Installation (Android) Click “Install” to start the installation. Figure 15: Install iMediaShare App - Android Users Click “Accept & download”. Figure 16: Download iMediaShare App - Android Users – 40 –...

  • Page 41: Figure 17: Imediashare App Is Installed - Android Users

    | Software Installation HAPTER iMediaShare App Installation (Android) The iMediaShare app is installed. Figure 17: iMediaShare App is Installed - Android Users Launch iMediaShare app and start to share your photos, music and videos. Figure 18: Launch iMediaShare App - Android Users –...

  • Page 42: Imediashare App Installation (Ios)

    | Software Installation HAPTER iMediaShare App Installation (iOS) EDIA HARE NSTALLATION To install the iMediaShare app for an iPad or iPhone, follow these steps: Only the installation interface for an iPad is shown in this guide. However, the app installation screens are similar for all iOS systems. Go to App Store from the iPad desktop.

  • Page 43: Figure 21: Install Imediashare App - Ios Users

    | Software Installation HAPTER iMediaShare App Installation (iOS) Click “Install App” and wait for the software installation procedure to complete. Figure 21: Install iMediaShare App - iOS Users The iMediaShare app will display on the desktop when installation is complete. Figure 22: iMediaShare App Install Complete - iOS Users –...

  • Page 44: Figure 23: Activate Imediashare App - Ios Users

    | Software Installation HAPTER iMediaShare App Installation (iOS) Launch iMediaShare app and start to share your photos, music and videos. Figure 23: Activate iMediaShare App - iOS Users – 44 –...

  • Page 45: Operation Modes

    “Connect a Device to the SMCWTVA100” on page 21". Connect the HDMI or CVBS output to the display system you would like to use. Press the mode button on the SMCWTVA100 until it is in the PC to TV mode. – 45 –...

  • Page 46: Figure 24: Pc To Tv Mode Screen

    The PC to TV Server Selection and Login window (Figure 26) will appear; select the correct SMCWTVA100 xxx and input the login code. Your SMCWTVA100 “xxx” number and login code is on the PC to TV mode screen on your display system, see Figure 24. Click the OK button and the PC to TV controller will appear.

  • Page 47: Additional Pc To Tv Controller Menu Items

    Click the Volume Up button to increase the audio output level. Click the Volume Down button to decrease the audio output level. Click the Information icon to display current SMCWTVA100 configuration information. Click the Tools icon to access a pull down menu. Items available are Panel Control—Play/Stop, Webpage—Configuration (Web UI)/Remote,...

  • Page 48: Mirror Pin And Pbc Mode

    Android device’s screen onto a television or other display device. Your Android device can stream up to 1080p HD video and 5.1 surround sound to the SMCWTVA100’s output. Mirror PIN and PBC both use a protocol called Miracast in order to stream display and audio content.

  • Page 49: Setup Mirror Pbc Or Pin From An Android Device

    | Operation Modes HAPTER Mirror PIN and PBC Mode Click the mode switch on the side of the SMCWTVA100 until it is in ETUP IRROR either the Mirror PBC or PIN mode. PIN F ROM AN NDROID EVICE Figure 28: Mirror Mode—SMCWTVA100 in Mirror PBC and PIN Mode.

  • Page 50: Figure 30: Mirror Mode-Launching Miracast

    Slide the switch at the right top of the screen to On. The Android device should find the SMCWTVA100 and list its MAC address, which is also displayed on the HDMI or CVBS output screen. Figure 31: Mirror Mode—Selecting the SMCWTVA100 Slide the switch to turn on the Miracast protocol.

  • Page 51: Figure 32: Mirror Mode—Connecting

    Wait for the connection. If you are using PIN mode, input the PIN code shown on the display output of the SMCWTVA100. PIN mode may not be supported by your device. Should it fail to operate with the SMCWTVA100, check if your device supports PIN mode with your device’s manufacturer. – 51 –...

  • Page 52: Figure 33: Mirror Mode—Connected

    HAPTER Mirror PIN and PBC Mode After a few moments, you should see a “Wi-Fi Direct Succeed (Wait IP)” message on the SMCWTVA100 display output and then, a moment later, the Android device screen is displayed. Figure 33: Mirror Mode—Connected...

  • Page 53: Media Share Mode (Dlna Mode)

    | Operation Modes HAPTER Media Share Mode (DLNA Mode) (DLNA M EDIA HARE Put the SMCWTVA100 into Media Share mode using the Mode button. SING PC U INDOWS SERS Figure 34: Media Share Mode Start the Airfun software on your PC.

  • Page 54: Figure 36: Launch Airfun

    | Operation Modes HAPTER Media Share Mode (DLNA Mode) Click the AirFun icon on your desktop to launch the software. Figure 36: Launch AirFun AirFun will connect to the TV adapter automatically. Figure 37: Search and Connect to Device The AirFun main screen displays. Figure 38: AirFun Activate –...

  • Page 55: Figure 39: Select Photos

    | Operation Modes HAPTER Media Share Mode (DLNA Mode) HOTOS Select the photo from the local PC and drag it to AirFun main screen “Photo/Music Playback” folder. Then click “Play”. Figure 39: Select Photos The selected photo will display on your TV/monitor or projector. Figure 40: View Photo To stop displaying photos at any time, click the red box with a white X located in the upper right corner of the Airfun photo window.

  • Page 56: Figure 41: Select Audio File

    | Operation Modes HAPTER Media Share Mode (DLNA Mode) UDIO ILES Select the audio file from the local PC and drag it to the AirFun main screen “Photo/Music Playback” folder. Then click “Play”. Figure 41: Select Audio File The selected audio file will start to play on your TV/monitor or projector.

  • Page 57: Figure 43: Select Video File

    | Operation Modes HAPTER Media Share Mode (DLNA Mode) IDEO Select the video file from the local PC and drag it to the AirFun main screen “Video Playback” folder. Then click “Play”. Figure 43: Select Video File The selected video file will start to play on your TV/monitor or projector. Figure 44: Play Video To stop playing a video at any time, click the red box with a white X located in the upper right corner of the Airfun video window.

  • Page 58: Using Imediashare (Android Users)

    | Operation Modes HAPTER Media Share Mode (DLNA Mode) Enable your Wi-Fi connection and Connect to the SMCWTVA100 with ID SING I EDIA HARE “SMCWTVA100 XXX”. NDROID SERS Make sure the SMCWTVA100 is in MediaShare mode. Figure 45: Connect to SMCWTVA100 Launch the “iMediaShare”...

  • Page 59: Figure 47: Select The Desired File Type

    | Operation Modes HAPTER Media Share Mode (DLNA Mode) From the screen, select the desired file type to play. Only the photo display is shown in this section, music and video display screens are similar to the photo display. Figure 47: Select the Desired File Type Select the photo from albums.

  • Page 60: Using Imediashare (Ios Users)

    Figure 49: Photo Ready for Display The selected photo will display on your TV or monitor. For other advanced settings, see “Remote Options” on page Enable your Wi-Fi connection and connect to the SMCWTVA100 with ID SING I EDIA HARE “SMCWTVA100 XXX”.

  • Page 61: Figure 51: Launch Imediashare

    | Operation Modes HAPTER Media Share Mode (DLNA Mode) Launch the “iMediaShare” program and follow the instructions below to share the photo, music, or video. Figure 51: Launch iMediaShare From the screen, select the desired file type to play. Only the photo display is shown in this section, music and video display screens are similar to the photo display.

  • Page 62: Figure 53: Select A Photo

    Media Share Mode (DLNA Mode) Select the photo from albums. Figure 53: Select a Photo Select “SMCWTVA100 XXX” from the media list. Figure 54: Photo Ready for Display The selected photo will display on your TV or monitor. For other advanced settings, see “Remote Options”...

  • Page 63: Nas (Usb) Mode

    “Remote Options” on page 65”. Press the Mode button until the SMCWTVA100 is in Media Share Mode. Wait for the USB file system to appear on your display system. Figure 55: USB Mode Use the web browser remote control to navigate through the folder system of your USB stick to select the video, image or audio file you wish to play or view and then click OK.

  • Page 64: Additional Controls In Nas (Usb) Mode

    Click the Zoom button to toggle the screen zoom level to 1x, 2x. 3x. 4x. or IRMWARE PGRADE If the SMCWTVA100 firmware needs to be updated, follow these steps to upgrade the firmware. Plug your USB flash drive into your computer.

  • Page 65: Remote Options

    You can access the remote control from a PC, tablet or smartphone. Enter the URL of the SMCWTVA100 (http://xxx.xxx.xxx.xxx/remote) in your web browser. A remote control will display. Use the navigation buttons and OK to select various media.

  • Page 66: Figure 59: Remote Control

    | Operation Modes HAPTER Remote Options Figure 59: Remote Control Click on the Setup button to display an OSD menu to configure network, audio, video and system settings. For further information see “Setup Using the OSD Menu” on page While displaying image files or playing audio or video files, click the “Option”...

  • Page 67: Setup Using The Osd Menu

    Network—Sets wireless or wired network settings. ■ Audio—Sets advanced audio output settings. ■ Video—Sets advanced video output settings. ■ System—Options for the system language, upgrading the ■ firmware, setting the SMCWTVA100 to factory default values or displaying the current software versions. – 67 –...

  • Page 68: Network

    IP settings to either DHCP or Fixed IP. Device Name—Select this option to set a new device name for the ■ SMCWTVA100. Note the default name is always: SMCWTVA100 xxx. WIFI Connection—In Bridge to Wireless mode select this option to ■...

  • Page 69: Audio

    Setup Using the OSD Menu wireless operating region (select a country matching your ● region) Virtual AP Bridge—Depending on your SMCWTVA100 connection ■ setup select the appropriate connection mode here for either wired, wireless or stand-alone operation. See “” on page 19".

  • Page 70: System

    Setup Using the OSD Menu Language—Selects the menu language. Select either: English, ■ YSTEM Mandarin, Japanese, Spanish, French, German, or Italian. Factory Default—Returns the SMCWTVA100 to the factory default ■ configuration for all settings. Version Info—Displays a list of all software versions currently ■...

  • Page 71: Web Configuration

    Ethernet. See the section “” on page 19 for more information on how to use this menu item. If you want to connect your SMCWTVA100 to a local LAN, use this menu to ETWORK ETTINGS configure its IP settings.

  • Page 72: Wireless Configuration

    Obtain an IP address automatically—Check this radio button ■ here to set the SMCWTVA100 to use DHCP to automatically receive its network IP settings from the LAN you connect it to. Use the following address:—Check this radio button to configure ■...

  • Page 73: Security Settings

    If the Encryption setting is set to WPA2/WPA then enter a password ■ to be used to gain access to the SMCWTVA100 wireless AP. The SMCWTVA100 wireless AP can use either 2.4 or 5 GHz RF bands for ETTINGS wireless communication. Use this menu to select either band for your device’s wireless connections.

  • Page 74: Virtual Ap Bridge

    RIDGE Quick Setting menu item. From the drop-down menu you can select to connect the SMCWTVA100 to a local LAN either using a wireless or Ethernet cable connection. As in the Quick Setting menu item you can also select the Virtual AP option to use the SMCWTVA100 in standalone mode and connect your device directly to the SMCWTVA100 without internet.

  • Page 75: Display Output Setting

    | Web Configuration HAPTER Display Output Setting Virtual AP only—Select this item to set your SMCWTVA100 to ● operate in standalone mode and only provide a wireless connection to devices without internet. Bridge to Ethernet—Select this item to set your SMCWTVA100 ●...

  • Page 76: Mode Setting

    ETTING Besides the mode button located on the side panel of the SMCWTVA100, in WITCH this menu you can select to put the SMCWTVA100 into either PC to TV or Media Share mode. Figure 70: Mode Switch Click the down arrow and select either PC to TV mode or Media ■...

  • Page 77: Additional Functions

    Within the configuration menu item you can find a link button which will ONFIGURATION automatically load the SMC support page for the SMCWTVA100. On the support page you will find the latest updates, documents, drivers and firmware for the SMCWTVA100.

  • Page 78: Remote

    Clicking the Restart menu item will reboot the SMCWTVA100. A ESTART confirmation dialog box will prevent you from accidently rebooting the SMCWTVA100. Click the OK button to continue otherwise click Cancel to stop the reboot. Figure 74: Restart Confirmation Dialog Box See the section: “Hardware Reset to Factory Default Settings”...

  • Page 79: Specifications

    PECIFICATIONS LAN Port:10/100 Mbps HYSICAL NTERFACE USB Input: USB2.0 Type A x 1 (firmware upgrade only) HDMI Output: HDMI x 1 AV Composite Power Button Reset Button 2.4/5 GHz 802.11/b/g/n TANDARDS 2.4 GHz Channels: 11:(CH1-11): United Stated 13:(CH1-13): Europe 14:(CH1-14): Japan 5.8 GHz Channels: 12: United Stated 13: Europe...
  • Page 80 | Specifications HAPTER LVD (EN60950) AFETY ECURITY Operating: 0 °C to 40 °C (32 to 104 °F) EMPERATURE Storage: 0 °C to 40 °C (32 to 104 °F) Operating: 10% to 90% (non-condensing) UMIDITY Storge: 10%-90% (non-condensing) – 80 –...
  • Page 81 (for Asia-Pacific): Technical Support information at www.smc-asia.com (for Asia-Pacific): Technical Support information at www.smc-asia.com Hsinchu Science Park Hsinchu Science Park Taiwan 30077 Taiwan 30077 Tel: +886 3 5638888 Tel: +886 3 5638888 Fax: +886 3 6686111 Fax: +886 3 6686111 www.smcnetworks.co.kr www.smcnetworks.co.kr SMCWTVA100 SMCWTVA100 www.smc.com www.smc.com...
