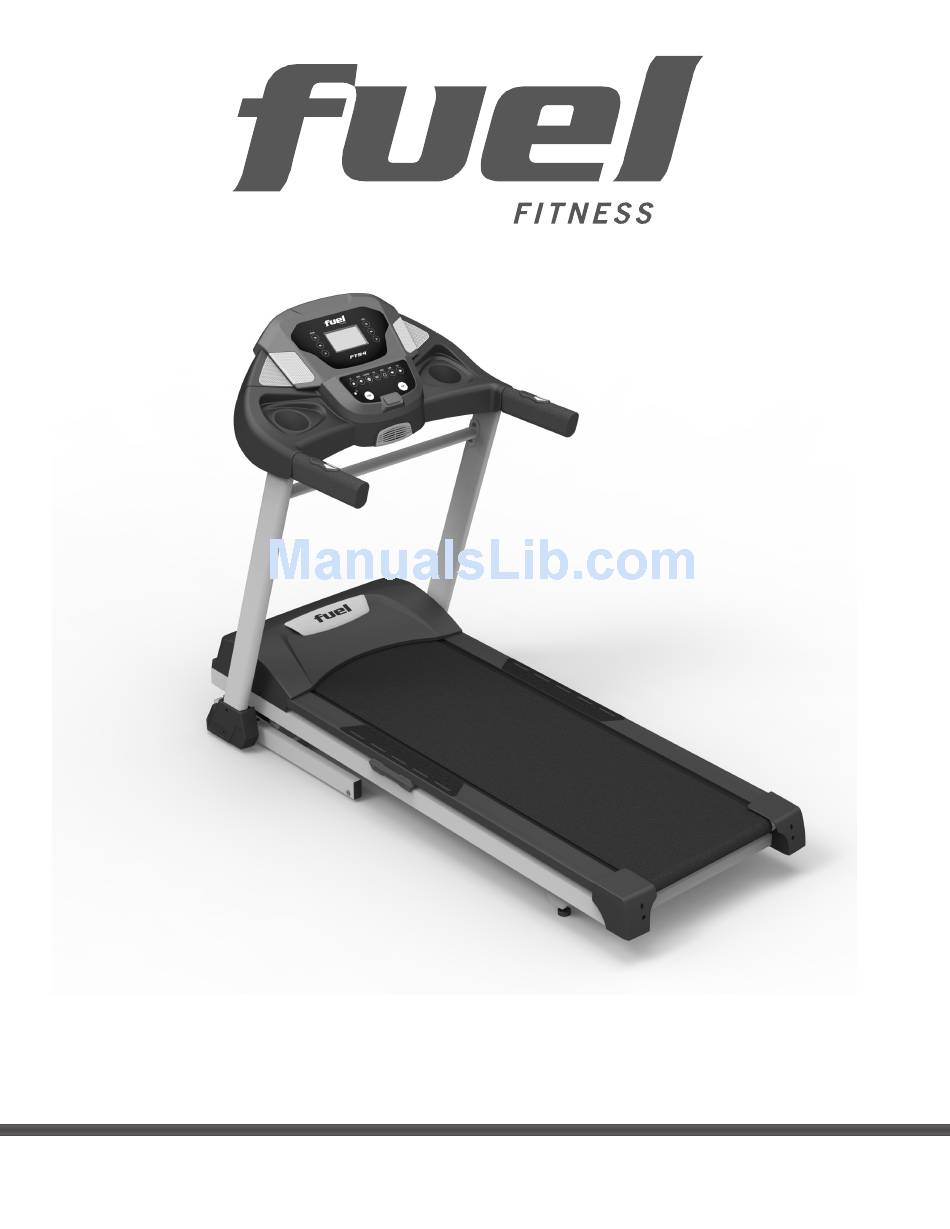

FT94 TREADMILL
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT94 and is the answer not in the manual?

Questions and answers

Related Manuals for Fuel Fitness FT94

Summary of Contents for Fuel Fitness FT94

  • Page 1 FT94 TREADMILL OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product Registration Important Safety Instructions Important Electrical Instructions Important Operation Instructions FT94 Assembly Instructions Operation of Your Treadmill Programmable Features Heart Rate General Maintenance Manufacturer’s Limited Warranty ATTENTION THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THIS APPLI- CATION.

  • Page 3: Product Registration

    FUEL FITNESS will do all we can to make your ownership experience as pleasant as possible for many years to come. If you have questions, or if parts are missing or damaged, or you require customer service, call 1-866-697-6531.

  • Page 4: Important Safety Instructions

    Quality athletic shoes are recommended to avoid leg fatigue. Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! FT94 TREADMILL...

  • Page 5: Important Electrical Instructions

    (shown below) can be installed by a qualified electrician. The green colored rigid ear-lug, or the like, extending from the adapter, must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw. FT94 TREADMILL...

  • Page 6: Important Operation Instructions

    • NEVER mount or dismount the treadmill while the belt is moving. FUEL Fitness treadmills start with at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow acceleration is proper after you have learned to operate the unit.

  • Page 7: Hardware Step

    #128. M5 x P0.8 x 10L Button Head Socket Bolt Phillips Head Screws (4 pcs) (4 pcs) ASSEMBLY TOOLS #90. 13mm Wrench #103. M6 L Allen Wrench #102. Combination M5 Al- len Wrench & Phillips Head Screw Driver FT94 TREADMILL...

  • Page 8: Ft94 Assembly Instructions

    FT94 ASSEMBLY INSTRUCTIONS MAIN BASE FRAME Take out the treadmill from the carton and lay it aside on the smooth ground. UPRIGHTS & CABLES Hardware Step 2 #99. 5/16” x UNC18 x1/2” Hex Head Bolt (8 pcs) #100. Ø8” x Ø18 x 1.5T Flat Washer (8 pcs) NOTE: This step may work better with a second person assisting.
  • Page 9 Insert Console Assembly (21) into right and left Uprights (4) and (5) and secure with four Button Head Socket Bolts (125) with four Split Washers (80) by using Combination M5 Allen Wrench & Phillips Head Screw Driver (102). FT94 TREADMILL...
  • Page 10 Button Head Socket Bolt (4 pcs) Install Console Mast Support (9) between Left and Right Uprights (4) and (5). Use the combination M5 Allen Wrench and Phillips Head Screw Driver (102) to tighten four Button Head Socket Bolts (125). FT94 TREADMILL...
  • Page 11 Phillips Head Screw (4 pcs) Install Frame Base Cover (L) and (R),(38) and (39) on the Frame Base and secure with four Phillips Head Screws (128) by using Combination M5 Allen Wrench & Phillips Head Screw Drive (102). FT94 TREADMILL...
  • Page 12 *At the rear roller area to relieve pressure on the locking system. TRANSPORTATION INSTRUCTIONS The treadmill is equipped with four transport wheels that are engaged when the treadmill is folded. After folding simply roll the treadmill away. FT94 TREADMILL...

  • Page 13: Operation Of Your Treadmill

    OPERATION OF YOUR TREADMILL FT94 CONSOLE Audio Input Large LCD Convenient water Jack for with feedback Integrated bottle holder and customized Turbo Fan to and scrolling Speakers for cargo compartment listening keep you cool message center MP3 player for phone or MP3 player...
  • Page 14 Press the INCLINE 5/6 keys to achieve desired level of effort. Three Quick access key of 3, 6 • and 9 are also available to adjust the incline percent. The incline range is from 0 to 10 levels. • The display will indicate incline position as adjustments are made. FT94 TREADMILL...
  • Page 15 Note: This is only a rough guide used for comparison of different exercise sessions, which cannot be used for medical purposes. TO TURN TREADMILL OFF 1. Remove tether cord. 2. Turn off the main switch on the front of the treadmill, below the motor cover. FT94 TREADMILL...

  • Page 16: Programmable Features

    PROGRAMMABLE FEATURES The FT94 Treadmill provides 24 programs(P1,P2,P3……P24). Fourteen of them (P1-P14)have only preset speed program while the last 10 (P15-24) have combinational speed and incline both pro- grammed. Be aware of the last 10 programs which are designed for the advanced users so that TO SELECT AND START A PRESET PROGRAM 1.

  • Page 17: Heart Rate

    A definition of the lines’ goal is in the bottom left-hand corner of the chart. Whether your goal is weight loss or cardiovascular fitness, it can be achieved by training between 60% and 80% of your MHR. Consult your physician before participating in any exercise program. FT94 TREADMILL...
  • Page 18 If you are feeling tired and sluggish, it is because your body needs a break. In this condi- tion, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. FT94 TREADMILL...

  • Page 19: General Maintenance

    - that connects the motor to the front roller. If that belt is loose it feels similar to the walking belt being loose. Tightening the motor belt should be done by a trained service person. FT94 TREADMILL...
  • Page 20 Adjustments will become less of a maintenance concern as the belt is used. Proper belt tracking is an owner responsibility common with all treadmills. ATTENTION Damage to the running belt resulting from improper tracking / tension adjustments is not covered under the FUEL Fitness warranty. FT94 TREADMILL...
  • Page 21 Drag the garment the length of the entire belt 1-2 times. Remove the garment. Do not lubricate with anything other than FUEL Fitness approved lubricant. YOUR TREADMILL COMES WITH ONE TUBE OF “LUBE” AND EXTRA TUBES CAN BE ORDERED Keeping the deck lubricated at the recommended intervals ensures the longest life possible for your treadmill.
  • Page 22 Plug is disconnected. Make sure plug is firmly pushed into 115 VAC wall outlet. Breaker panel circuit breaker may be tripped. Treadmill defect. Contact FUEL Fitness. Tread-belt does not stay centered The user may be walking while favoring or putting more weight on either the left or right foot.
  • Page 23 10 mph, incline level 10). speed and incline calibration. The unit returns to ready mode automatically when calibration ends 3. Please do not change the engineering mode setting values otherwise the speed or the incline value alters FT94 TREADMILL...

  • Page 24: Manufacturer's Limited Warranty

    MANUFACTURER’S LIMITED WARRANTY FUEL Fitness Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. FUEL Fitness’s responsibilities include providing new or remanufactured parts, at FUEL Fitness’s option, and technical support to our independent...
  • Page 26 ©2014 All RIghts Reserved. FT94 Owner’s Manual...
