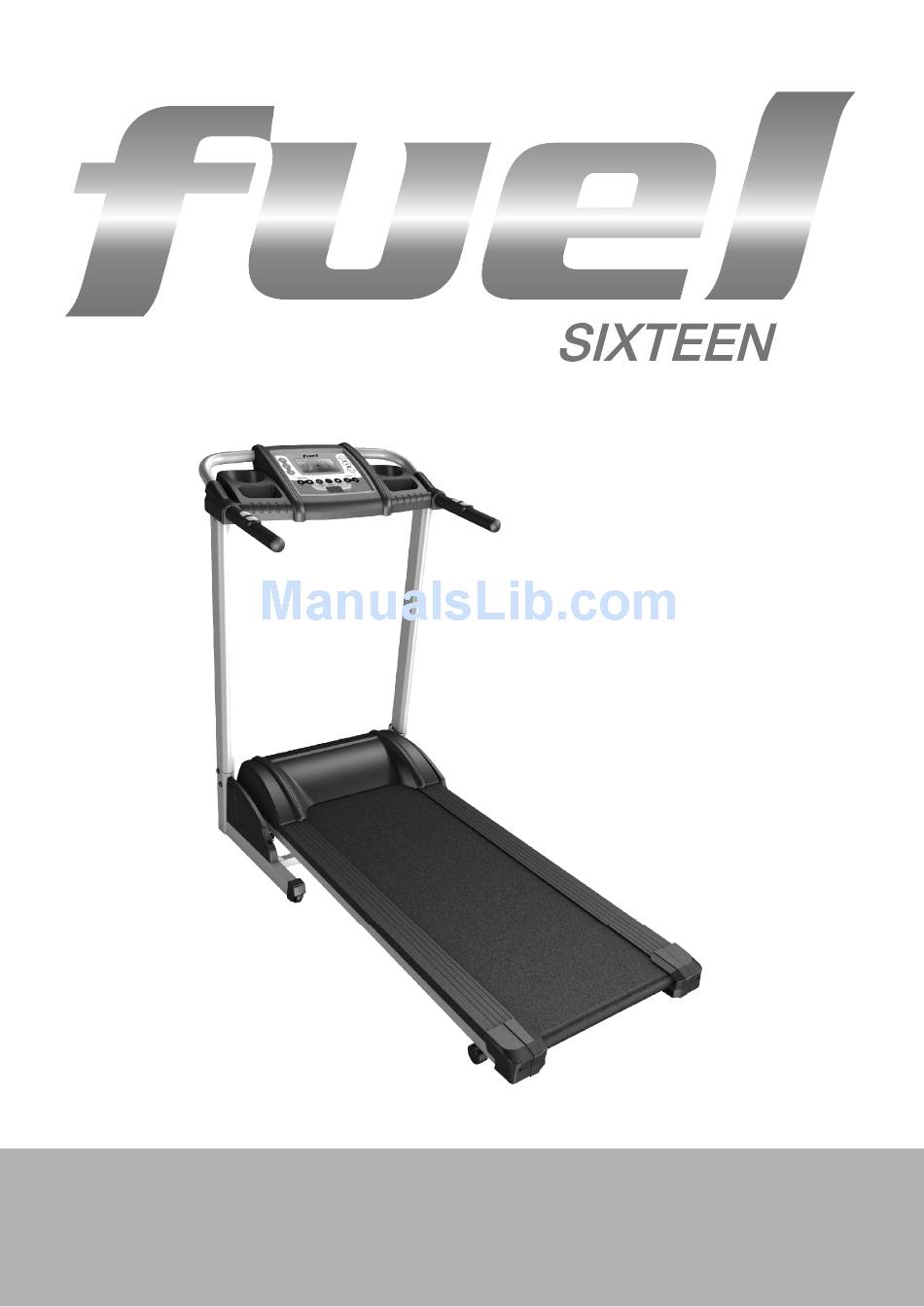

  • Page 1 OWNER’ S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR TREADMILL!

  • Page 2: Safety Hints

    SAFETY HINTS IMPORTANT: THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY SAFETY PRECAUTIONS Thank you for purchasing our product. Even though we go to great efforts to ensure the quality of each product, occasional errors and/or omissions do occur. In any event should you find this product to be defective or missing a part please contact our Customer Service Department.
  • Page 3 Please familiarize yourself with the maintenance advice provided for you. SPECIFICATIONS • Drive Motor: 2.0 HP • Speed Range: 1.0 –16 kmph • Running Surface: 420 m/m x 1200 m/m • Incline Level: 0-12 Levels •...

  • Page 4: Assembly Pack Check List

    CHECK LIST #90. Ø8 × Ø18 × 1.5T Flat Washer (8pcs) #91. Ø8 × Ø23 × 1.5T #89. 5/16" × UNC18 × 15L Curved Washer (6pcs) Button Head Socket Bolt (14pcs) #36. Quadrate Safety Key (1pc) #94.Lubricant (1pc) #92. Combination M5 Allen Wrench...
  • Page 5 ASSEMBLY ASSEMBLY Step 1. Take out the Treadmill from the carton and lay it aside on the smooth ground. Step2. Thread 10P Computer Cable (Lower) (46) through Right Upright (4).
  • Page 6 1. Install the Right and Left Upright (4,5) into the Frame Base (2). 2. Secure the Right and Left Upright (4,5) to the Frame Base (2) with the 8pcs of 5/16" × 15m/m Button Head Socket Bolts (89), 4pcs of 5/16"× 18 × 1.5T Flat Washers (90) and 4pcs of 5/16"×...

  • Page 7: Computer Operation Instructions

    “Quick Speed” keys Press one of these keys to select “walk”, “jog” or “run” speed whichever you desire. The maximum speed is 16 km/h. “Quick Incline” keys Press one of these keys to select incline level “3”, “6” or “9” whichever you desire. The highest incline level is 12.
  • Page 8 In ready mode, pulling off the safety key, the display shows E0. Pressing and hold MODE key then putting on the safety key, the unit enters engineering mode. 1. Press Clear/SET key to change the set value (wheel size 46, minimum speed 1KM, maximum speed 16 KM, incline level 12) 2.
  • Page 9 FUNCTIONS Incline Feature Incline may be adjusted anytime after belt movement. The incline range is from 0 to 12 levels. Folding and unfolding of the treadmill Folding First, hold the rear frame with your hand and pull up until you hear a click which means the folding system has been locked.
  • Page 10 FUNCTIONS...
  • Page 11 UNFOLDING FOLDING TRANSPORT UNFOLDING Pull locking knob and hold running deck and lower down to the floor. (As shown Figure 1_2.) FOLDING Pull the locking knob with right hand, left hand lift the running deck up to 30cm then two hands lift it until it is locked by the locking knob.

  • Page 12: Belt Tracking Adjustmeant

    BELT TRACKING ADJUSTMEANT If during use you notice that walking belt either shifts to the right or the left of center, first remove "Safety Key" and unplug equipment from AC power source. Using Allen wrench provided, turn left rear roller adjustment as indicated below clockwise no more the 1/4"...

  • Page 13: Treadmill Lubrication

    TREADMILL LUBRICATION LUBRICATION IS EXTREMELY IMPORTANT – FAILURE TO LUBRICATE AS PER INSTRCTIONS WILL RESULT IN DAMAGE TO THIS MACHINE Your treadmill should require little maintenance other then periodically applying lubricant. Lubricating under the treadbelt will ensure superior performance and extend its life expectancy. HOW TO CHECK TREADBELT FOR PROPER LUBRICATION? Lift one side of the treadbelt and feel the top surface of the treadboard.

  • Page 14: Weight Training

    AEROBIC EXERCISE Aerobic exercise is any sustained activity that sends oxygen to your muscles via your heart and lungs. Aerobic exercise improves the fitness of your lungs and heart - your body’s most important muscle. Aerobic exercise fitness is promoted by any activity that uses your large muscle -arms, legs, or buttock, for example.
  • Page 15 WARM UP Quadriceps Stretch With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot up. Inner Thigh Stretch Sit with the soles of your feet together with your knees pointing outward.
  • Page 16 OVERVIEW CHART...

  • Page 17: Parts List

    Incline Motor Drive Belt Motor Bracket Drive Motor Running Belt Running Deck Front Roller W/Pulley 16~3 Magnet Rear Roller Sleeve for Frame Base Front Wheel Rear Wheel Sleeve Console 20~1 Console Top Cover 20~2 Console Bottom Cover 20~4 300m/m_Safety Switch Module W/Cable 20~7 Ø3 ×...
  • Page 18 3/8" × UNC16 × 3/4"_Hex Head Bolt M8 × P1.25 × 60L_Hex Head Bolt M8 × P1.25 × 12L_Hex Head Bolt 5/16" × UNC18 × 1"_Button Head Socket Bolt 3/8" × UNC16 × 1-3/4"_Hex Head Bolt 3/8" × UNC16 × 2"_Flat Head Socket Bolt 1/2"...
  • Page 19 PARTS LIST DESCRIPTION Q'TY Ø8 × Ø18 × 1.5T_Flat Washer Ø8 × Ø23 × 1.5T_Curved Washer Combination M5 Allen Wrench & Phillips Head Screw Driver Lubricant Ø5 × 19L_Tapping Screw Ø3.5 × 16L_Tapping Screw Sensor Rack 15 × 30m/m_Square End Cap Rubber Foot 100 Rear Roller Cover 101 Ø5 ×...
