SoundTube SM-EZ Series Install Instructions

SOUNOTUSE.
0
Lead.
or
follow.
· ' Install Instructions For:
SM-EZ
Series
sM52-EZ-BK. sM52-EZ-WH. sM52-EZ-WX-BK. sM52-EZ-wx-wH.
SM82-EZ-BK, SM82-EZ-WH, SM82-EZ-WX-BK & SM82-EZ-WX-WH

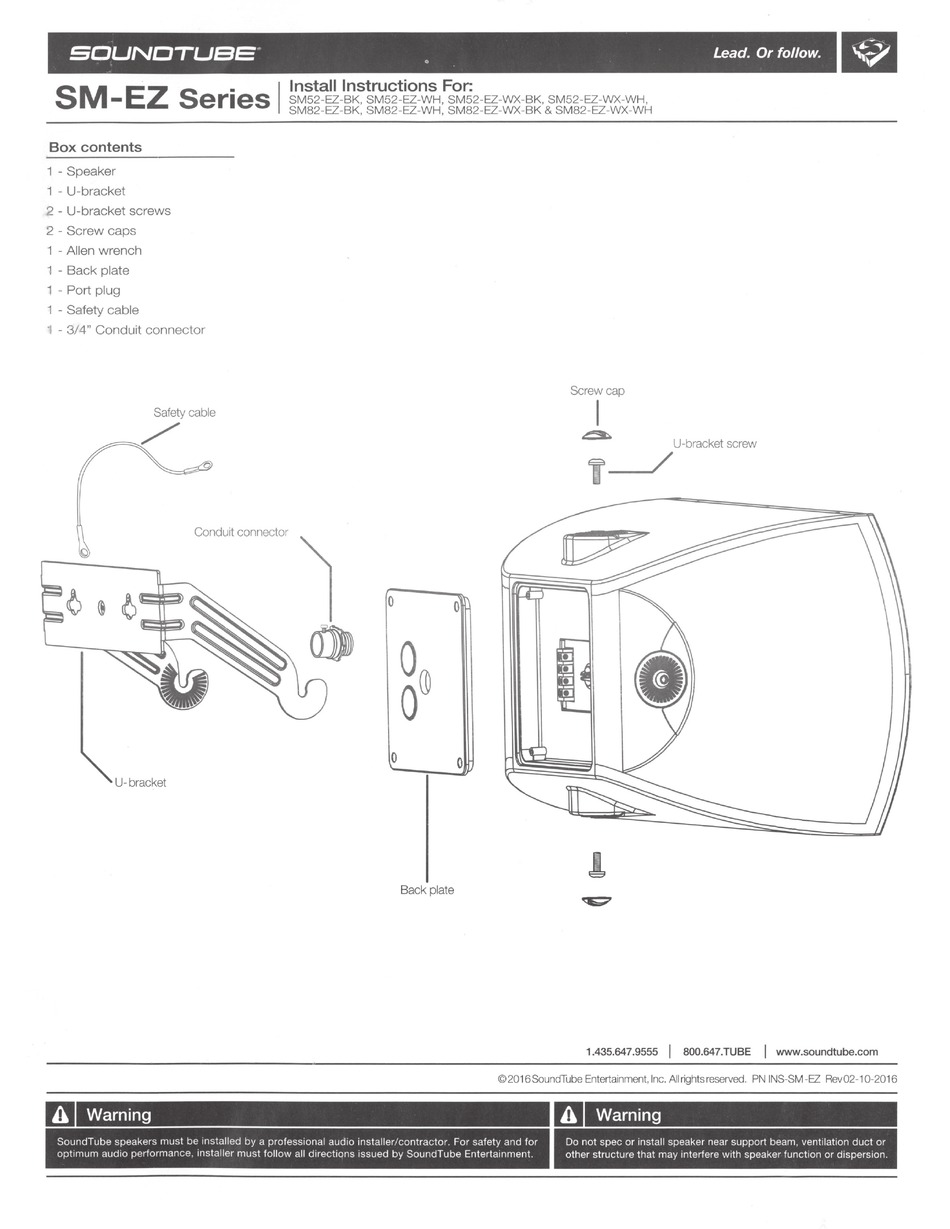

Box contents
1 -Speaker
1 - U-bracket
2 - U-bracket screws
2 - Screw caps
- A llen wrench
1 - Back plate
1 - Port plug
1 - Safety cable
1 -
3/4" Conduit connector
Condu1t connector
~
U-bracket
0
0
Screw cap
I
U-bracket screw
T_/
0
00
0
0
Back plate
1.435.647.9555
I
800.647.TUBE
I
www.soundtube.com
©2016SoundTube Entertainment, Inc. All rights reservec. PN INS-SM -EZ Rev02-1 0-2016
m
Warning
SoundTube speakers must be 1nstalled by a profess1onal aud10 Installer/contractor For safety and for
opt1mum aud1o performance mstaller must fo llow all
d~rect 1 ons
1ssued by SoundTube Entertamment
m
Warning
Do not spec or Install speaker near support beam, ventilation duct or
other structure that may Interfere w1th speaker funct1on or d1spers1on
