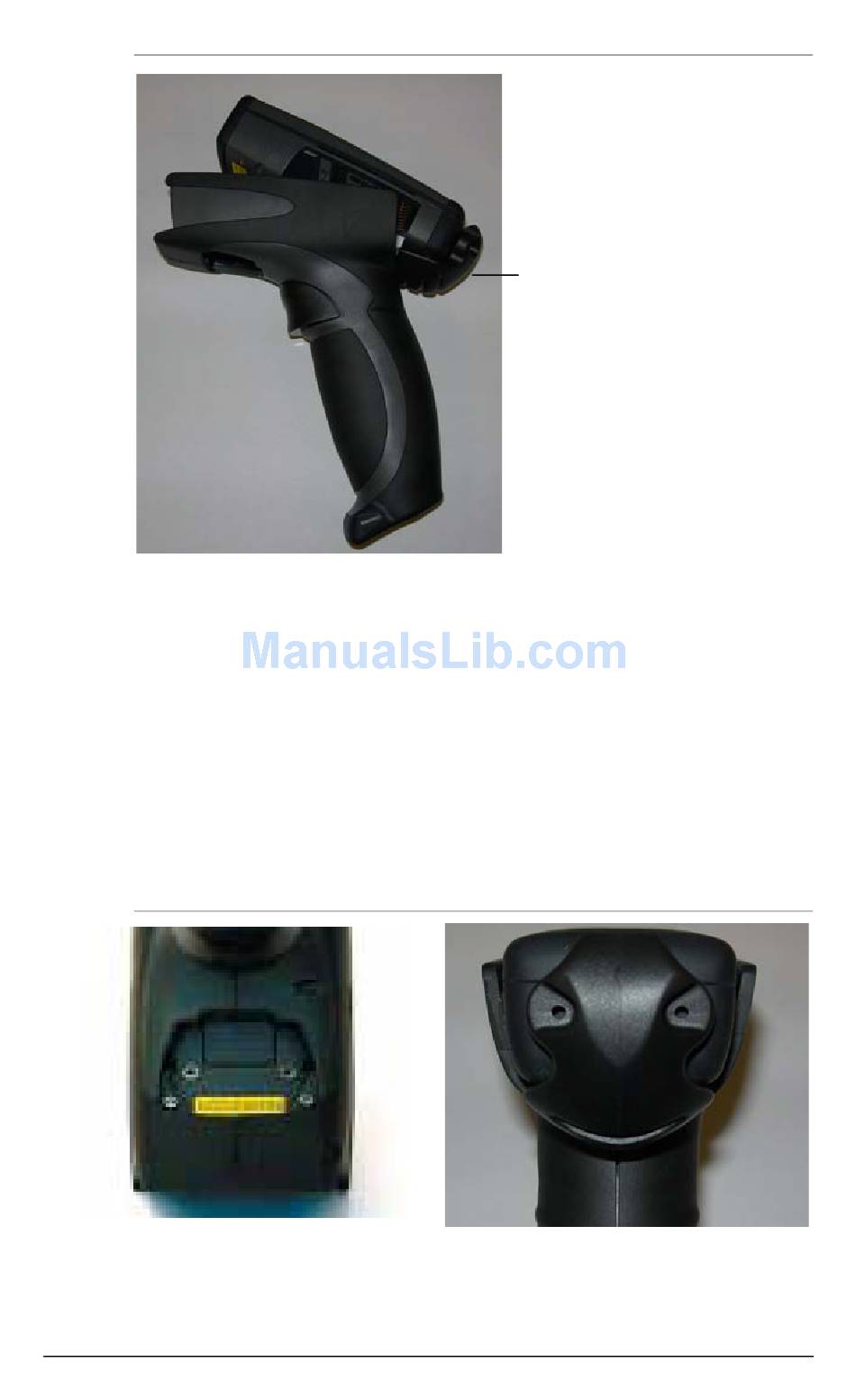

FIGURE 1–3.
Insert the tab on the back of the handle into the reader
2.
(Figure 1–3).
Snap the reader onto the handle, matching the battery
3.
compartment to the battery connectors, visible inside the
handle, as shown in Figure 1–3.
The HE40T can be secured further with threaded screws on the
under side of the handle, and on the end of the flexible connector, as
shown in Figure 1–4.
FIGURE 1–4.
Rev 2.0.0, Jan 2009
Attaching the H2 Handle
Location of Threaded Screws
HE40T Quickstart Guide
Flexible
Connector
3
