LR3000 Thermal Printer. Revision 1.0

2.3.3. USB Interface

2.3.3.1. Specification

The port to the PC is a USB 2.0, which operates with the following characteristics:
USB 2.0 with drivers for Microsoft™ Windows 2000™, Windows 2003™, Windows
XP™, Windows Vista™ or better.

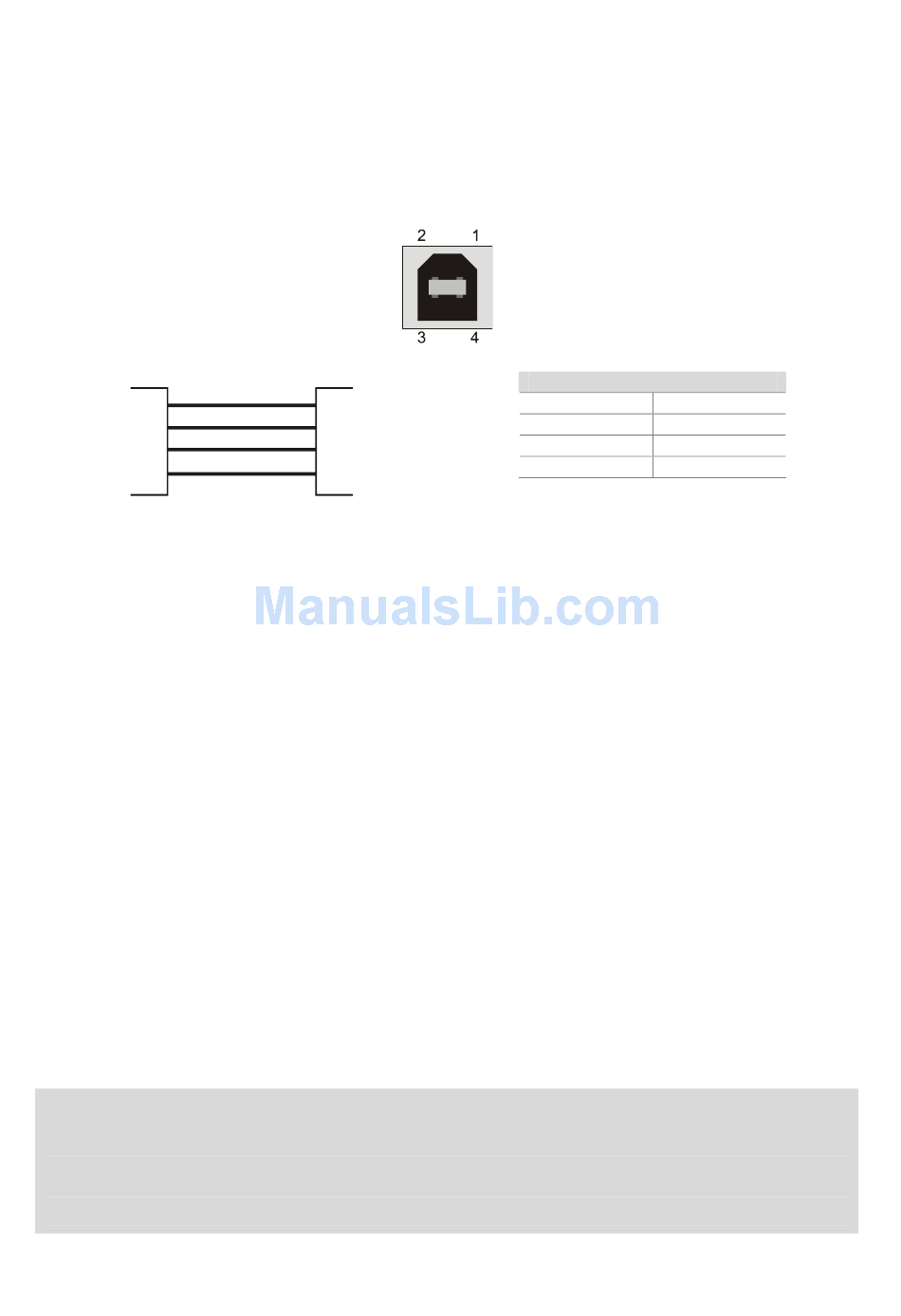

2.3.3.2. Cable connection

Male
Type A
1
2
3
4

2.3.4. Ethernet Interface

2.3.4.1. Specification
The port to the PC is an Ethernet, which operates with the standard characteristics
of Ethernet 10/100. To use the printer configure the IP address and net mask that
the printer will use. If no value is configured, it will be used what is in the memory
of the printer (configured by the Printer's Menu). The standard configuration is
10.10.100.100 and the net mask is 0.0.0.0.
To choose another IP configuration access the printer's menu turning on the printer
with the key PAPER FEED pressed. When it begins to print, release the button. In
the end of the impression press PAPER FEED once, it will be printed the
Configurations of the Printer. Press the key PAPER FEED again, to enter in the
configuration of the printer. Than, press the key CUT to move forward in the
printer's menu, until the option IP address. Now it is only press the key PAPER FEED
and chooses among one of the pre-programmed configurations in the printer, as
follows:
IP Address: 10.10.100.100
IP Address: 10.1.1.250
IP Address: 172.16.1.250
IP Address: 172.16.1.250
IP Address: 192.168.1.250
IP Address: 192.168.1.250
Choose the configuration and press the button CUT twice to conclude and leave the
Printer's Menu.
The communication port is fixed and it is configured with the number 9100. This value cannot
be modified. To change the IP address and the net mask of the printer use the user's
software. You can download the User's Software on Logic Controls website:
Male
Type B
1
2
3
4
Subnet mask: 0.0.0.0
Subnet mask: 255.0.0.0
Subnet mask: 255.255.0.0
Subnet mask: 255.240.0.0
Subnet mask: 255.255.255.0
Subnet mask: 255.255.0.0
ATTENTION!
www.LogicControls.com
Pino Sinal
1 VBUS
2 D -
3 D+
4 GND
