International Point of Sale: CornerStore POS

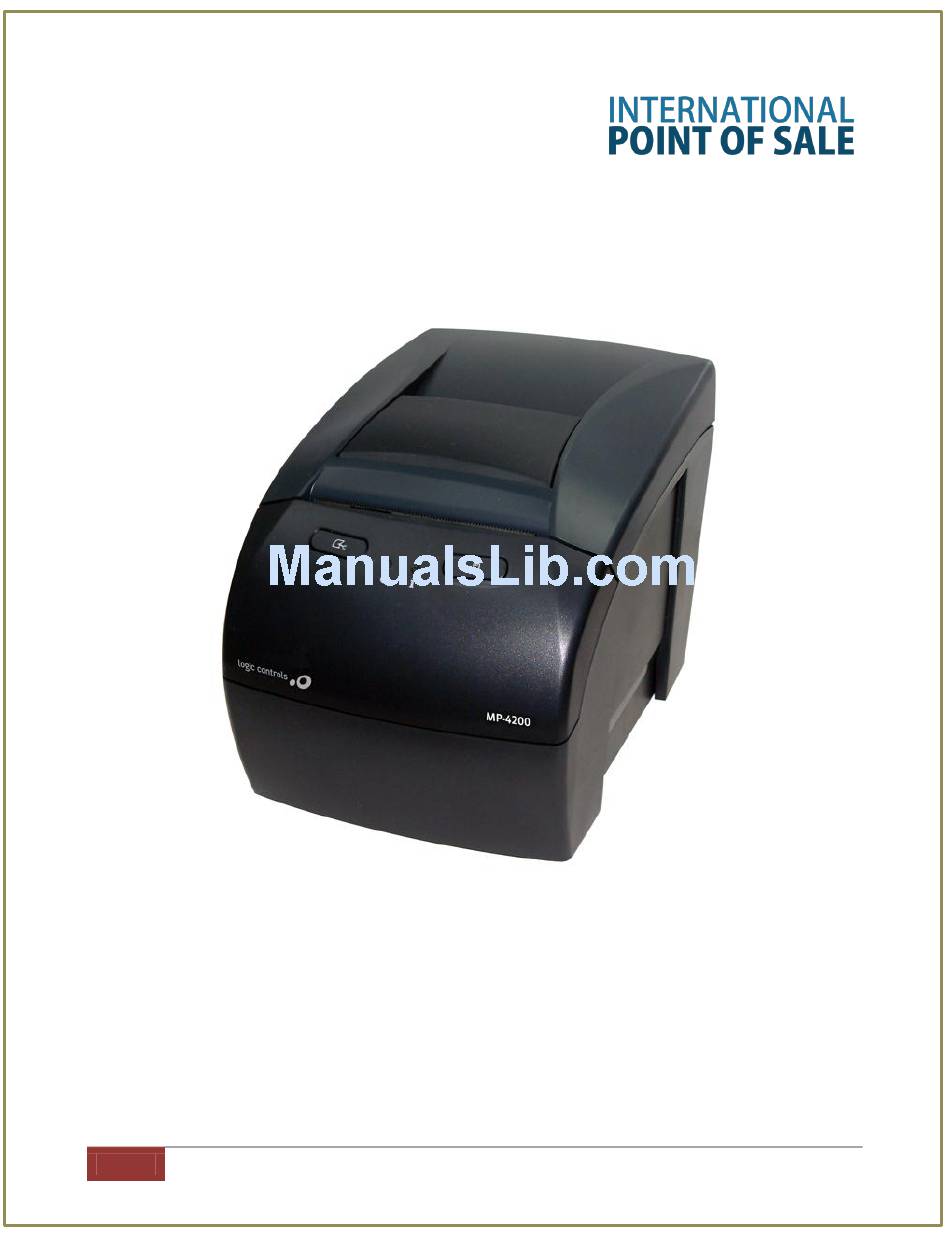

Installation Instruction for Logic Controls MP-4200 TH Receipt Printer
This guide covers in detail the installation of the drivers for the Logic Controls MP-4200 TH
Receipt Printer and Cash Drawer along with how to configure them for CornerStore.
1
1-866-468-5767 or 201-928-0222
International Point of Sale

Advertisement

loading
Need help?

Need help?

Do you have a question about the MP-4200 TH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Logic Controls MP-4200 TH

Summary of Contents for Logic Controls MP-4200 TH

  • Page 1 International Point of Sale: CornerStore POS Installation Instruction for Logic Controls MP-4200 TH Receipt Printer This guide covers in detail the installation of the drivers for the Logic Controls MP-4200 TH Receipt Printer and Cash Drawer along with how to configure them for CornerStore.
  • Page 2 International Point of Sale: CornerStore POS How to install receipt printer MP4000TH Step 1: Create a folder named “Spooler” on your desktop. Step 2: Download the driver: http://cornerstorepos.com/downloads/hardware/MP4200_Spooler.exe Step 3: Click Run Step 4: Click Browse, then select the spooler folder you created on the desktop. 1-866-468-5767 or 201-928-0222 International Point of Sale...
  • Page 3 International Point of Sale: CornerStore POS Step 4: Click Install. Step 5: Open the spooler folder, if you are using 32 bit then open the LciSetup_LR3K_V4.1.1 If you are using 64 Bit use the LciSetup_LR3K_x64_v4.1.1. To check if you have 32 or 64 bit operating system, go to Start > Right Click Computer > Properties.
  • Page 4 International Point of Sale: CornerStore POS Step 6: Click OK. Step 7: Click Next. Step 8: Select the printer MP4000TH and click Continue. 1-866-468-5767 or 201-928-0222 International Point of Sale...
  • Page 5 International Point of Sale: CornerStore POS Step 9: Make sure USB is selected, and then click Add a New Port, follow the directions on screen to make sure the proper com port is produced. Click Install Printer. If it asks you to install a driver click Install.
  • Page 6 International Point of Sale: CornerStore POS Installing the OPOS driver Download the Driver: http://cornerstorepos.com/downloads/hardware/MP4200_OPOS.exe Step 1: Click Run Step 2: Click Next 1-866-468-5767 or 201-928-0222 International Point of Sale...
  • Page 7 International Point of Sale: CornerStore POS Step 3: Click Next Step 4: Click Next 1-866-468-5767 or 201-928-0222 International Point of Sale...
  • Page 8 International Point of Sale: CornerStore POS Step 5: Click Next Step 6: Click Install 1-866-468-5767 or 201-928-0222 International Point of Sale...
  • Page 9 International Point of Sale: CornerStore POS Step 7: Turn your printer on and click OK Step 8: Click Continue Anyway (This may or may not pop up) 1-866-468-5767 or 201-928-0222 International Point of Sale...
  • Page 10 International Point of Sale: CornerStore POS Step 9: Click Finish, the OPOS Driver Setup should open. 1-866-468-5767 or 201-928-0222 International Point of Sale...
  • Page 11 International Point of Sale: CornerStore POS Using the OPOS Setup Step 1: Press New 1-866-468-5767 or 201-928-0222 International Point of Sale...
  • Page 12 International Point of Sale: CornerStore POS Step 2: Make sure the fields below match the fields in the window, make sure the COM port matches the one for your computer. 1-866-468-5767 or 201-928-0222 International Point of Sale...
  • Page 13 International Point of Sale: CornerStore POS Step 3: Click New and type a name for your printer. Click OK, then click Test. A test page should print. Click OK. Step 4: Click the CashDrawer tab, and then click New. 1-866-468-5767 or 201-928-0222 International Point of Sale...
  • Page 14 International Point of Sale: CornerStore POS Step 5: Make sure the fields match the ones below. Then click New. Step 6: Type an appropriate name for the cash drawer Step 7: Click OK then Test. If successful click OK and exit the program. 1-866-468-5767 or 201-928-0222 International Point of Sale...
  • Page 15 International Point of Sale: CornerStore POS Setting up the printer with CornerStore Open CornerStore and log in. Go to Setup -> Hardware Setup -> Printers. Then under Receipt Printer select the MP4300TH. 1-866-468-5767 or 201-928-0222 International Point of Sale...
  • Page 16 International Point of Sale: CornerStore POS Then open up the Cash Drawer Tab and select the MP4200TH Cash Drawer 1-866-468-5767 or 201-928-0222 International Point of Sale...
