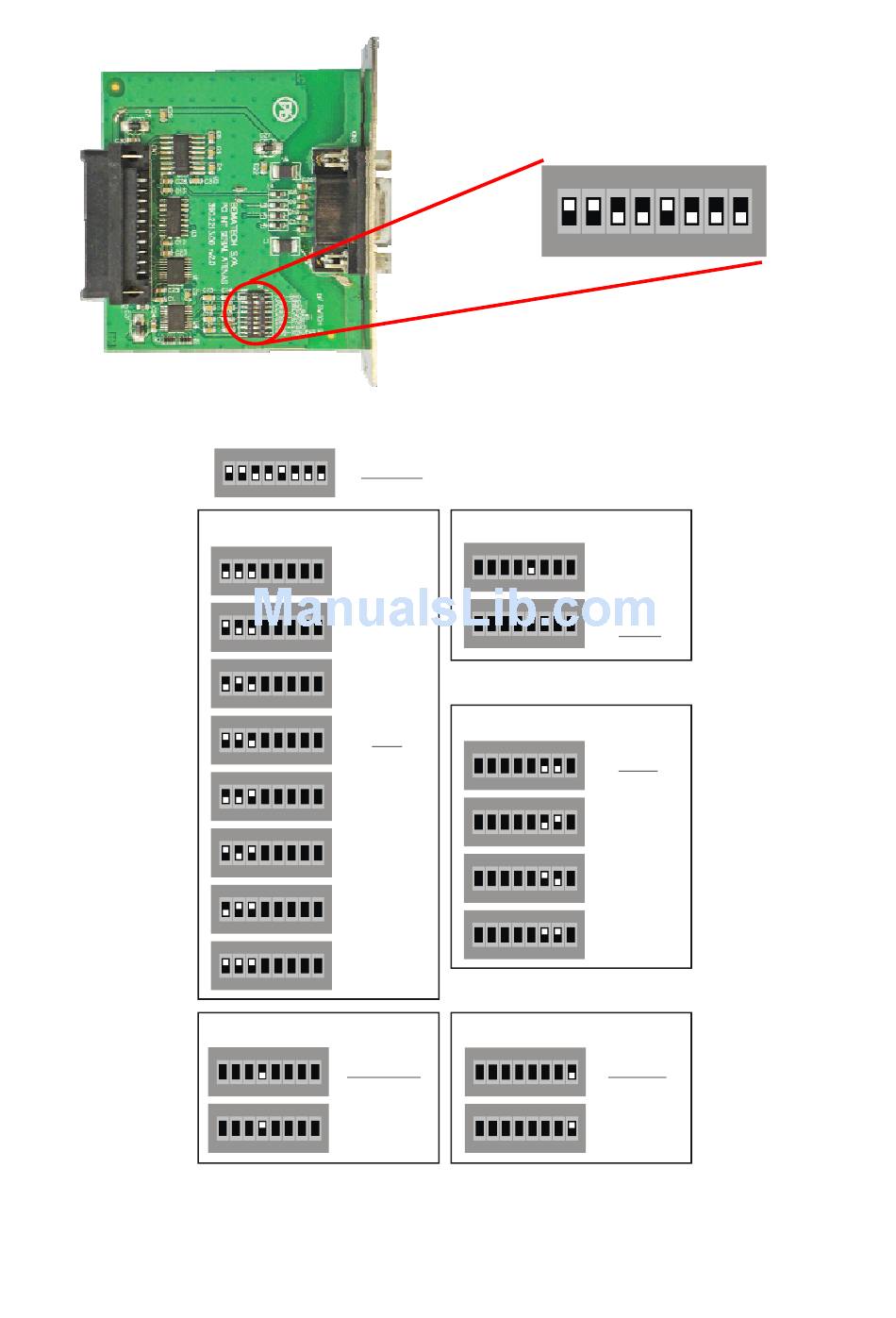

Serial Dip Switch table
ON DIP
DEFAULT
1 2 3 4 5 6 7 8
DIP SWITCH BAUD RATE
ON DIP
1200
1 2 3 4 5 6 7 8
ON DIP
2400
1 2 3 4 5 6 7 8
ON DIP
4800
1 2 3 4 5 6 7 8
ON DIP
9600
1 2 3 4 5 6 7 8
ON DIP
19200
1 2 3 4 5 6 7 8
ON DIP
38400
1 2 3 4 5 6 7 8
ON DIP
115200
1 2 3 4 5 6 7 8
ON DIP
230400
1 2 3 4 5 6 7 8
DIP SWITCH STOP BITS
ON DIP
1 STOP BIT
1 2 3 4 5 6 7 8
ON DIP
2 STOP BIT
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
DIP SWITCH LENGTH
ON DIP
7 BITS
1 2 3 4 5 6 7 8
ON DIP
8 BITS
1 2 3 4 5 6 7 8
DIP SWITCH PARITY
ON DIP
NONE
1 2 3 4 5 6 7 8
ON DIP
EVEN
1 2 3 4 5 6 7 8
ON DIP
ODD
1 2 3 4 5 6 7 8
ON DIP
NONE
1 2 3 4 5 6 7 8
DIP SWITCH HANDSHAKING
ON DIP
RTS/CTS
1 2 3 4 5 6 7 8
ON DIP
XON/XOFF
1 2 3 4 5 6 7 8
