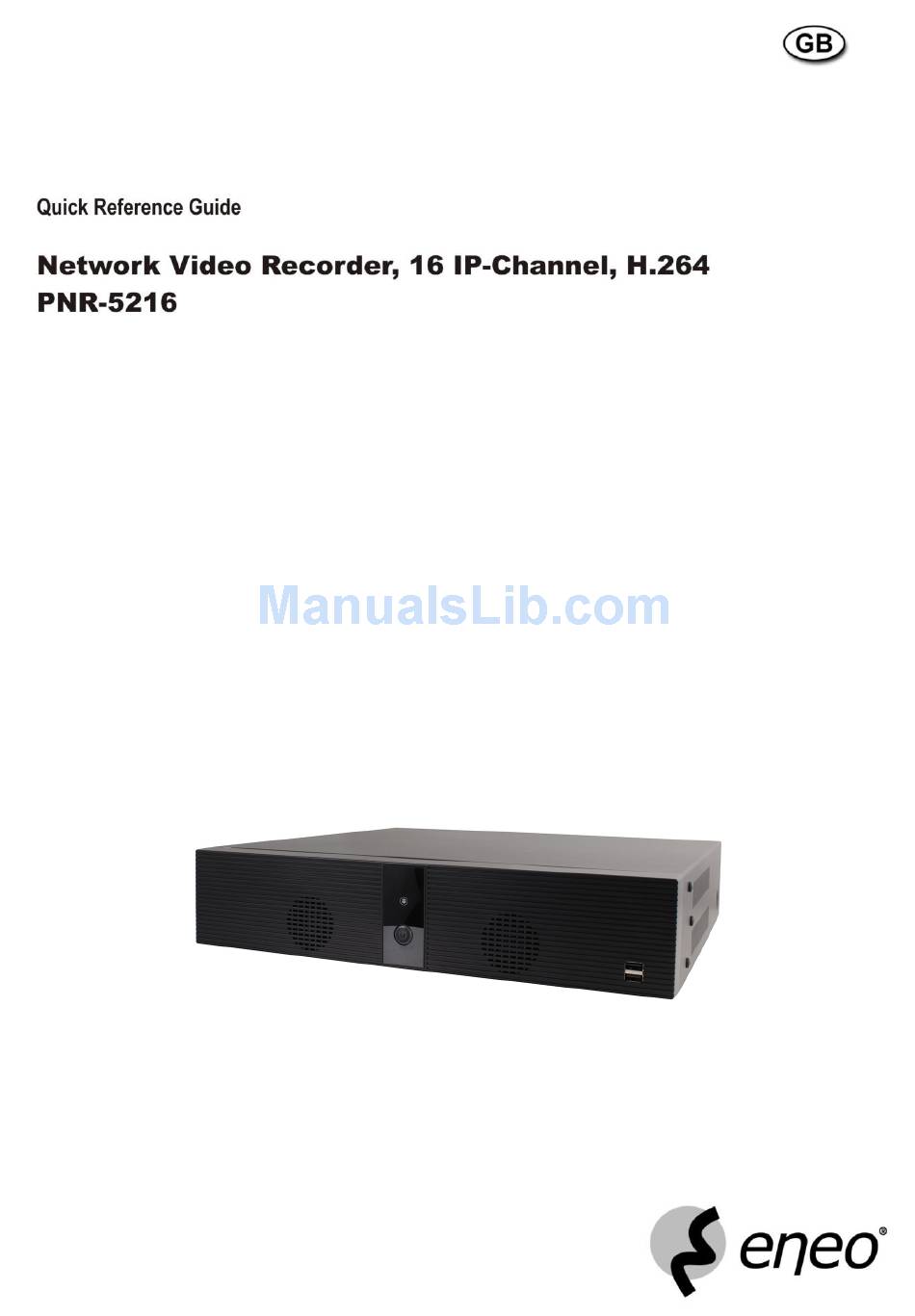

Eneo PNR-5216 Quick Reference Manual

16 ip-channel, h.264 network video recorder
Hide thumbs Also See for PNR-5216:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNR-5216 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eneo PNR-5216

  • Page 3 Network Video Recorder WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 4: Quick Reference Guide

    Quick Reference Guide Important Safeguards 1. Read Instructions 11. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. in the risk of fire or electric shock. 2.
  • Page 5: Table Of Contents

    Network Video Recorder Table of Contents Chapter 1 — Introduction .................... 1 1.1 Features ......................1 1.2 System Diagram ....................2 1.3 Rear Panel ......................2 1.4 Front Panel ......................3 1.5 Upgrade ......................3 Remote Upgrade ....................4 1.6 Tuning On/Off the System ................. 7 Chapter 2 —...
  • Page 6 Quick Reference Guide...
  • Page 7: Chapter 1 - Introduction

    Network Video Recorder Chapter 1 — Introduction 1.1 Features This network video recorder (NVR) provides monitoring of video from network video transmitters, network cameras and DVRs, recording of monitoring video (DVR excluded) and playback of video recorded in the NVR system or DVR. ...
  • Page 8: System Diagram

    Quick Reference Guide NOTES:  This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).  The software included in this product contains some Open Sources. You may obtain the complete corresponding source code from us. See the Open Source Guide on the software CD (OpenSourceGuide\ OpenSourceGuide.pdf) or as a printed document included along with the User's Manual.
  • Page 9: Front Panel

    Network Video Recorder 1.4 Front Panel ① Power Button: Turns on or off the system. It is lit when the unit is turned on. ② HDD LED: Flickers when the unit accesses to the hard disk drive. ③ USB Port: Connects the USB devices. NOTE: Windows may not operate properly when using the USB connectors on the front panel of the unit, depending on the model type of the USB device.
  • Page 10: Remote Upgrade

    Quick Reference Guide Remote Upgrade You can upgrade the NVR system remotely by using the installation file of the software version to upgrade if an update service is running. Update Service Setup 1. Run the Service Manager program in the NVR system.
  • Page 11 Network Video Recorder 5. Designate the folder path to install the service. Clicking the Disk Cost… button shows the available and required disk space for each hard disk drive for the installation. Then click Next. 6. When the following screens appear, click Next. NOTE: .NET Framework and the Visual C++ Runtime Libraries are installed automatically, and it may take some time.
  • Page 12 Quick Reference Guide  Option: Designates the upgrade file or sets up the port number of the update server. − Update Package: Designates the folder path of the upgrade installation file. − Port Setup: Sets the port number of the update server. ...
  • Page 13: Tuning On/Off The System

    Network Video Recorder 3. Click the Update button at the bottom of the Update Manager screen. For a Client system with no iNEX service program installed, clicking the Update button upgrades the Client program. For the NVR system connects to the update service periodically and automatically upgrades if necessary. 1.6 Tuning On/Off the System Pressing the power button on the front panel turn on the system and the iNEX program runs.
  • Page 14: Chapter 2 - Getting Started

    Quick Reference Guide Chapter 2 — Getting Started 2.1 Connecting The iNEX program runs automatically when the NVR system turns on. You are required to log in to the NVR system as follows. Login Go to the System Menu at the top left corner of the screen and click Login. ...
  • Page 15: System Setting

    Network Video Recorder 2.2 System Setting Run the Setup program and set up the NVR system. Click the (System Setup) button to display the system setup screen. Date/Time  Date, Time, Time Zone: Displays the date, time and time zone of the NVR system. ...
  • Page 16 Quick Reference Guide Network A list of network cards installed in the NVR system is displayed. Selecting a network card displays the network information of the selected network card and clicking the Setup button allows you to change the network settings. Ask your network provider for details about the network connection type and connection information for the NVR system or the IP address of the DNS server.
  • Page 17: Registering Devices

    Network Video Recorder NOTE: The NVR system name you entered in the Name field should be checked by clicking the Check button, otherwise the DVRNS changes will not be saved. When entering no name or a name already registered on the DVRNS server, an error message displays. ...
  • Page 18 Quick Reference Guide  Protocol: Select the protocol or manufacturer of the device to scan. Event related functions may not be supported depending on the protocol that the device uses (supported for the iNEX protocol and some versions of the ONVIF Conformance and Axis protocol), and some other functions may not be supported depending on the settings of the device.
  • Page 19 Network Video Recorder NOTES:  Depending on the model, the device may not be supported even though the iNEX program supports the device's protocol. Ask your dealer or distributor about supported models.  If the device uses the ONVIF Conformance protocol, you can select either the manufacturer (or iNEX protocol) or the ONVIF Conformance protocol.
  • Page 20 Quick Reference Guide NOTES:  If the device is a DVR, it might be necessary to enter the DVR port numbers depending on the specifications and version of the DVR.  When registering a four-channel network video transmitter which uses the iNEX protocol, all four cameras are automatically registered even if some of the four cameras are disabled.
  • Page 21: Live Video Monitoring

    Network Video Recorder 2.4 Live Video Monitoring 1. Check that the devices were added to a device group in the Site list. 2. Click the Live tab on the tab panel → Select a site to connect to from the Site list, and drag and drop it on the Live screen. Live video from the selected site is displayed on the screen.
  • Page 22: Playing Recorded Video

    Quick Reference Guide 2. Double click anywhere in the empty space of each schedule window, and the Preset setup window appears. 3. Select a desired Preset from the Preset list, or click the button to add a new Preset. Selecting a Preset from the list and clicking the button deletes the selected Preset or allows you to edit the selected Preset settings.
  • Page 23: Chapter 3 - Remote Monitoring

    Network Video Recorder Chapter 3 — Remote Monitoring You can monitor video from devices registered on the NVR system or play back video recorded in the NVR system remotely by installing the iNEX Client program on a PC. Operating the iNEX Client program on a PC is identical to on the NVR system.
  • Page 24 Quick Reference Guide 4. When the following screen appears, click Next. Refer to the User’s Manual which is included on the CD for the setup instructions in detail.
  • Page 25: Chapter 4 - Federation Service

    Network Video Recorder Chapter 4 — Federation Service The federation service allows you to monitor live video from devices registered on the NVR system and to play back video recorded in the NVR system that are registered on the federation service. System Requirements ...
  • Page 26: Getting Started

    Quick Reference Guide 4. When the following screen appears, click Next. Refer to the User’s Manual which is included on the CD for the setup instructions in detail. 4.2 Getting Started Running Services When the federation service installed, the service runs automatically. You can also start or stop running the service manually.
  • Page 27: System Setting

    Network Video Recorder  Site Name: Select the federation service to connect to from the list. Select Local Host as the default setting if the federation service is running in the current system. You can add other federation services to the list or modify information about the federation service in the list by clicking the button at the right.
  • Page 28: Registering Services

    Quick Reference Guide  Server Address, Server Port: Enter the IP address (domain name) and port number of the DVRNS server that the NVR system to register is registered.  Use SSL: Allows you to enhance the security of data transferred between services of the iNEX program by using the SSL (Secure Sockets Layer) protocol.
  • Page 29: Live Video Monitoring

    Network Video Recorder  Site Name: Enter the name of the NVR system (administration service).  Service Address, Port: Enter the IP address and port number of the NVR system. − Use DVRNS: If the NVR system uses the DVRNS function, selecting Use DVRNS allows you to enter the NVR system’s name registered on the DVRNS server instead of the IP address.
  • Page 30: Playing Recorded Video

    Quick Reference Guide 2. Click the Live tab on the tab panel → Select a site to connect to from the Site list, and drag and drop it on the Live screen. Live video from the selected site is displayed on the screen. Monitoring video in the Client program of the federation server is identical to monitoring of the NVR system (administration service).
  • Page 31: Chapter 5 - Specification

    Network Video Recorder Chapter 5 — Specification VIDEO Video Input Network video transmitter, network camera D-Sub: One Monitor Outputs DVI: One Supported Resolution 352x240, 704x240, 704x480, 1280x720, 1920x1080 Video Codec H.264, MPEG-4, M-JPEG Display Speed max. 480ips @ 704x480 or 64ips @ 1920x1080 (images per second) Record Speed 16-ch Model: max.
  • Page 32 Quick Reference Guide eneo ® is a registered trademark of Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 www.videor.com...
