Kenwood CT/KXF-W Instruction Manual

Ct/kxf-w series stereo cassette deck.
Hide thumbs

Advertisement

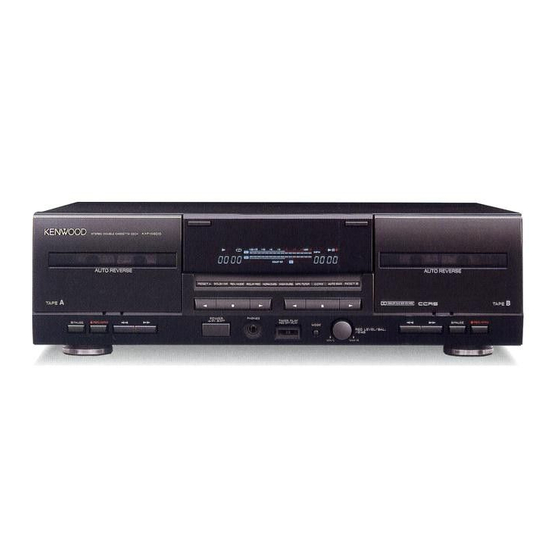

STEREO CASSETTE DECK
CT/KXF-W SERIES
CT-203
KXF-W4010
CT-2050
KXF-W6010
INSTRUCTION MANUAL
KENWOOD CORPORATION
This manual contains instructions for four models. Model availability and features
(functions) may differ depending on country and sales area.
gli apparecchi Sintonizzatori per casa Kenwood modelli KT-2080, KT-3080 rispondono
alle prescrizioni dell'art. 2 comma 1 del D.M. 28 agosto 1995, n. 548.
Kenwood Electronics Italia S.p.A. - via G. Sirtori, 7/9 - 20129 Milano
B60-3706-00 HZ ( K, P, T, M, X, Y )
99/3 2 1 98/12 11 10 9 8 7 6 5 4 3
SI DICHIARA CHE :
Fatto a Milano il 15 febbraio 1996
ID

Advertisement

Table of Contents

   Related Manuals for Kenwood CT/KXF-W

   Summary of Contents for Kenwood CT/KXF-W

  • Page 1: System Control Cord

    2 comma 1 del D.M. 28 agosto 1995, n. 548. Fatto a Milano il 15 febbraio 1996 Kenwood Electronics Italia S.p.A. - via G. Sirtori, 7/9 - 20129 Milano B60-3706-00 HZ ( K, P, T, M, X, Y )
  • Page 2: Audio Cord

    Introduction Before applying power Units are designed for operation as follows. U.S.A. and Canada ... AC 120 V only Australia ... AC 240 V only Safety precautions WARNING TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN...
  • Page 3: Table Of Contents

    Special features Dolby HX pro and Auto-Bias function DPSS function CCRS function Dubbing function Unpacking Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost. Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company without delay.
  • Page 4: Important Items

    Important items Maintenance Cleaning Unplug this appliance from the wall outlet before cleaning. Do not use volatile solvents such as alcohol, paint thinner, gasoline, or benzine, etc. to clean the cabinet. Use a clean dry cloth. Cleaning the head section Cleaning the heads and peripheral com- ponents Cotton swab...
  • Page 5: Handling The Cassette Tape

    Handling the cassette tape Notes on cassette tape Safety tab (accidental erasure prevention tab) After an important recording has been finished, break the safety tab, to prevent the recorded contents from being erased or recorded on accidentally. For A side For B side To re-record Apply tape only to the position...
  • Page 6: System Connections

    System connections Make connections as shown below. When connecting the related system components, refer also to the instruction manuals of the related components. Caution: Do not plug in the power lead until all connections are completed. Except for U.S.A., Canada Caution regarding placement To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) equal to, or greater than, shown below.
  • Page 7 2. If your amplifier or receiver does not have a system control terminal, do not connect any system control cords to the system control terminals on the other components. 3. Do not connect system control cords to any components other than those specified by KENWOOD. It may cause a malfunction and damage your equipment.
  • Page 8: Controls And Indicators

    Controls and indicators Operation indicators (Deck A) 2, 3 Transportdirection indicators ¶ Recording indicator (CT-2050/ KXF-W6010 only) Pause indicator (CT-2050/ KXF-W6010 only) Deck A COUNTER indicators CT-2050/KXF-W6010 STEREO DOUBLE CASSETTE DECK KXF-W6010 AUTO REVERSE TAPE ¶ PAUSE REC/ARM ¶ PAUSE REC/ARM &...
  • Page 9 1 Deck A This deck is used exclusively for play- back. (CT-203/KXF-W4010 only) This deck is capable of both playback and recording. (CT-2050/KXF-W6010 only) 2 Deck A eject (0) key Press to open the cassette holder of deck A. 3 Deck B eject (0) key Press to open the cassette holder of deck B.
  • Page 10: Preparation For Playback (recording)

    Preparation for playback (recording) Before playback (recording) Set the TIMER switch to OFF. Set the POWER switch to ON. Playback (recording) preparation Load a cassette tape in deck A or B. Press the eject (0) key. Insert a tape and close the cassette holder. Deck A: Playback only.
  • Page 11: Listening To Cassette Tapes

    Listening to cassette tapes Preparation Make “Playback (recording) preparation”. Normal playback Start playback Press the play (2 or 3) key. To play side B. ÷ Tapes are played in the directions indicated by their respective indicators on the display. To pause playback (CT-203/KXF-W4010; Deck B only) CT-2050/KXF-W6010 CT-203/KXF-W4010 ÷...
  • Page 12: Relay Playback

    This function plays back the tapes in both decks A and B continuously and repeatedly. Relay playback Load cassette tapes in both decks. Open the cassette holders of decks A and Insert cassette tapes and close the cas- sette holders of decks A and B. Deck A: Playback only.
  • Page 13 CT-2050/203/KXF-W6010/W4010 (En/M)
  • Page 14: Convenient Music Search (dpss)

    Convenient music search (DPSS) The DPSS (Direct Program Search System) enables the following convenient operations according to the instructions of the operation keys (these operation are however not available on both decks simultaneously). The DPSS functions are based on the detection of non-recorded spaces of 4 seconds or more between tunes. 1.
  • Page 15: Rewind & Play Operation

    Rewind & Play operation This operation cannot be performed with the remote control (of the separately sold amplifier). Direction of tape direction indicator: 3. Press simultaneously. Direction of tape direction indicator: 2. Press simultaneously. Single-tune repeated playback operation Play the tune to be repeated. Press the play key of the same direction as the current tape transport direction.
  • Page 16: How To Record (ct-203/kxf-w4010; Deck B Only)

    How to record (CT-203/KXF-W4010; Deck B only) The cassette deck incorporates the Dolby HX Pro headroom extension function and auto-bias function to provide a re- cording with superior high-frequency characteristics. Since this unit is not designed for recording with metal (TYPE ) tapes, do not use metal tapes for recording.
  • Page 17 Start recording. Press the REC/ARM (¶) key. CT-2050/KXF-W6010 ¶ CT-203/KXF-W4010 Press once. Play the music source from the begin- ning. Bias level adjustment (Deck B of the CT-2050/KXF-W6010 only) The MODE key can be used to adjust the bias level. Press the MODE key and select the "BIAS"...
  • Page 18 To pause recording temporarily To resume recording Pause PAUSE ÷ The 8 indicator lights. How to provide non-recorded blanks between programs In stop mode During recording Press successively twice. ¶ REC/ARM To start recording again from the biginning The following procedure is useful when you want to cancel recording in progress and re-start it. A non-recorded space of about 4 seconds or more should be reserved before the position where recording was started.
  • Page 19: Relay Recording (ct-2050/kxf-w6010 Only)

    Relay recording (CT-2050/KXF-W6010 only) This function allows to record sound continuously from deck A to B. Since this unit is not designed for recording with metal (TYPE ) tapes, do not use metal tapes for recording. Preparation Make “Playback (recording) preparation”. (If relay recording is required, insert tapes in both decks A and B.
  • Page 20: Tape Dubbing Operation (deck A \ Deck B)

    Tape dubbing operation (Deck A \ Deck B) The dubbing refers to the copy of the recorded contents of a tape to another tape (tape in Deck A \ tape in Deck B). Since this unit is not designed for recording with metal (TYPE Preparation Load the tape to be played in deck A and the tape to be recorded in deck B.
  • Page 21: Convenient Cd Recording (ct-203/kxf-w4010; Deck B Only)

    Convenient CD recording (CT-203/KXF-W4010; Deck B only) By connecting this unit with a KENWOOD "f", "ƒ", " and a KENWOOD CD player with a SYSTEM CONTROL jack using system control cords, recording on this unit and playback on the CD player can be started simultaneously.
  • Page 22: Recording Of Cd Playback (ccrs)(deck B Only)

    When connected with a KENWOOD amplifier,CD player provided with "f", "ƒ", " system control cord, this unit allows to use the CCRS, which starts recording automatically after setting the optimum recording level for the CD and tape to be used in recording.
  • Page 23: Timer Operations

    REC OFF PLAY Set the timer. 1. When connecting the KENWOOD equipment (amplifier, CD player) and the system, remove the disc from the CD player. 2. If relay playback is required, set to “[ 3. If tapes are inserted in both decks A and B, timer playback starts with deck B.
  • Page 24: Timer Recording Of Tuner Broadcast(ct-203/kxf-w4010; Deck B Only)

    Preparation Set the power switches of the compo- nents to ON. Set the input selector of the amplifier to TUNER. Receive the desired radio station with the tuner. Make "Playback (recording) preparation". (If relay recording is required, insert tapes in both decks A and B.) (Remove the disc from the CD player.) Timer recording of tuner broadcast (CT-203/KXF-W4010;...
  • Page 25: In Case Of Difficulty

    In case of difficulty What appears to be a malfunction may not always be serious. If your unit should not perform as expected, consult the table below to see if the problem can be corrected before seeking help from your dealer or service representative. Operation to reset The microcomputer may fall into malfunction (impossibility to oper- ate, erroneous display, etc.) when the power cord is unplugged while...
  • Page 26 Symptom Recording is not initiated when the REC/ ARM (¶) key is pressed. Noise level is high. Sound is vibrating. Playback or recording starts immediately when the power is switched ON. With some tapes, a squeaky noise is produced when the tape is stopped automatically. This is due to the tape protection function, and not Note Note a malfunction.
  • Page 27: Glossary

    The auto-bias function automatically adjusts the tape's bias value to ensure optimum recording performance with each and every tape. CCRS (Computer-controlled CD Recording System) When connected with a KENWOOD amplifier,CD player provided with "f", "ƒ", " control cord, this unit allows to use the CCRS, which starts recording automatically after setting the optimum recording level for the CD and tape to be used in recording.
  • Page 28: Specifications

    Weight (Net) ... 4.6 kg (10.6 lb) 1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice. 2. The full performance may not be exhibited in an extremely cold location (under a water-freezing temperature).
