ZIF Socket Operation

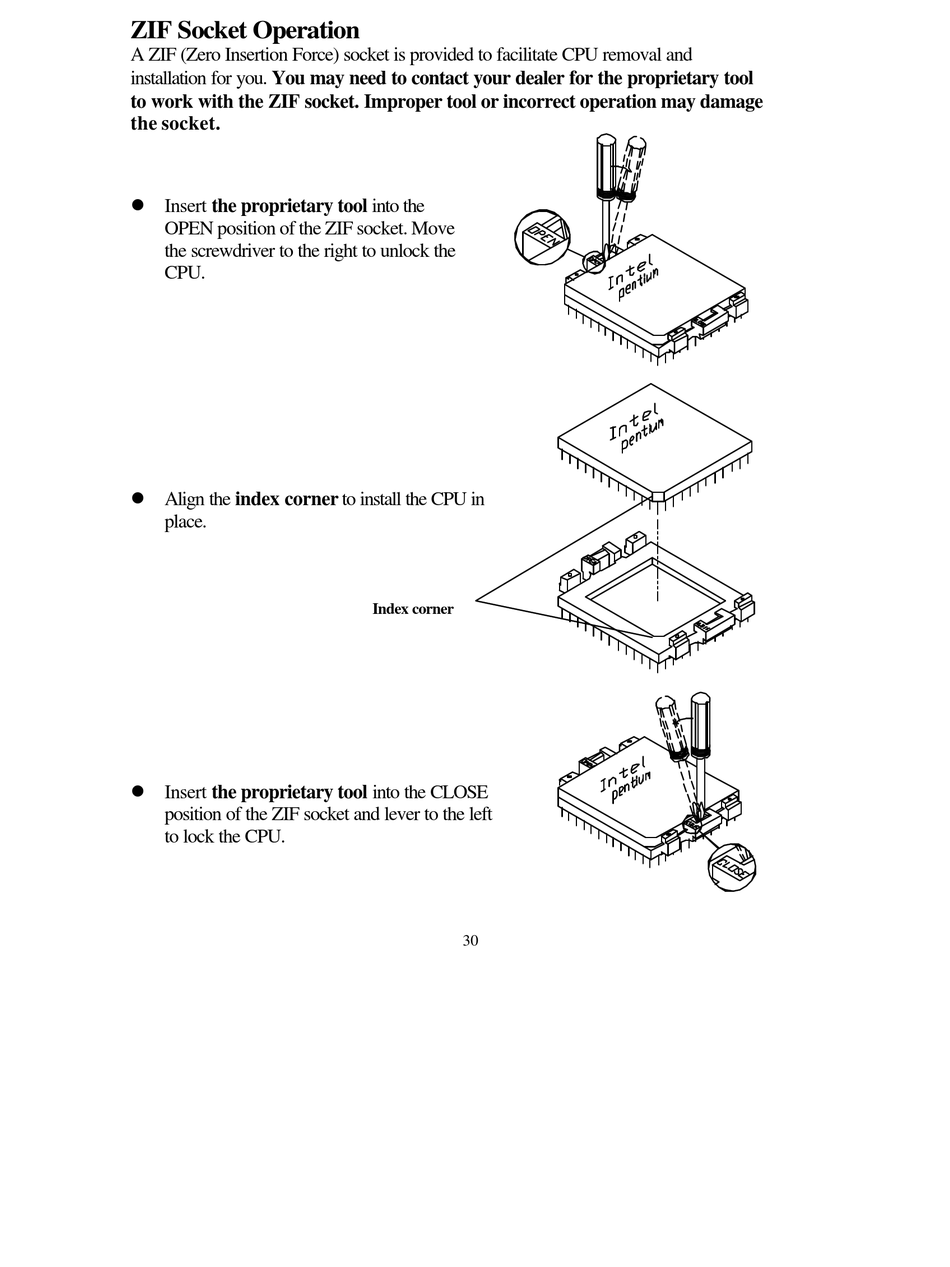

A ZIF (Zero Insertion Force) socket is provided to facilitate CPU removal and
installation for you. You may need to contact your dealer for the proprietary tool
to work with the ZIF socket. Improper tool or incorrect operation may damage
the socket.
l Insert the proprietary tool into the
OPEN position of the ZIF socket. Move
the screwdriver to the right to unlock the
CPU.
l Align the index corner to install the CPU in
place.
l Insert the proprietary tool into the CLOSE
position of the ZIF socket and lever to the left
to lock the CPU.
Index corner
