- Page 1 EVO42 42mm (1-5/8”) MAGNETIC DRILLING SYSTEM Instruction Manual Read instructions before operating this tool. Guard omitted for illustrative purposes only. This Instruction Manual was originally written in (UK) English. www.evolutionsteel.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE Original Instructions Introduction Guarantee Read instructions before operating this tool. Technical Specification Explanation of Labels and Symbols Intended use of this Power Tool Prohibited use of this Power Tool SAFETY PRECAUTIONS Electrical Safety Outdoor Use General Power Tool Safety Instructions Specific Safety Instructions GETTING STARTED Unpacking... -
Page 3: Introduction
Technical help is also available from your supplier. the use of our merchandise or from any other cause. Evolution Power Tools is not liable for any www.evolutionpowertools.com/register costs incurred on such goods or consequential damages. -
Page 4: Technical Specification
TECHNICAL SPECIFICATION VIBRATION WARNING: When using this machine Max Machine Height (mm): 670 (26-1/4”) the operator can be exposed to high Min Machine Height (mm): 360 (14-1/8”) levels of vibration transmitted to the hand Machine Width (mm): 180 (7”) and arm. It is possible that the operator could Machine Depth (mm): 300 (11-3/4”) develop “Vibration white finger disease”... -
Page 5: Explanation Of Labels And Symbols
• This power tool is intended to be used for warning and/or instruction labels are missing drilling holes with annular cutters and twist or damaged. Contact Evolution Power Tools for drills, in an industrial environment. replacement labels. • The machine is designed to be held onto... -
Page 6: Electrical Safety
ELECTRICAL SAFETY - EU ONLY! DO NOT CONNECT THE BROWN (LIVE) OR BLUE (NEUTRAL) TO THE EARTH PIN WARNING: Operating on a lower than MARKED E ON THE 3 PIN PLUG. rated voltage will result in the electro magnet being at reduced power and the Ensure that the outer insulation is gripped by machine may become insecure whilst cutting. -
Page 7: General Power Tool Safety Instructions
EVO42 POWER TOOL GENERAL SAFETY f) If operating a power tool in a damp INSTRUCTIONS location is unavoidable, use a residual current device (RCD) protected supply. Use of WARNING: Read all safety warnings and an RCD reduces the risk of electric shock. -
Page 8: Specific Safety Instructions
that cannot be controlled with the switch is ensure that the mains power supply cannot dangerous and must be repaired. be interrupted or compromised accidentally. c) Disconnect the power tool from the power source and/or battery pack from the Do not use other appliances on the same power tool before making any adjustments, power socket, as any variation in voltage changing accessories, or storing power tools. - Page 9 EVO42 • Never carry the Magnetic Drill by the power 3) ADJUSTING GIBS (Dovetail Slides) FREE PLAY cord. Carrying the Magnetic Drill by the power cord could cause damage to the insulation or Periodically check, lubricate and adjust as the wire connections resulting in electric shock or fire.
- Page 10 5) PREPARATION and SETTING UP. 6) DURING CUTTING OPERATIONS. The Electromagnet on this machine is designed WARNING: The swarf and the slug to adhere to ferrous metallic surfaces only. produced will be hot and sharp. • When using annular cutters ensure that the WARNING: The electro magnet fitted to this machine is a two stage magnet.
-
Page 11: Getting Started Unpacking
EVO42 GETTING STARTED Additional Accessories Available In addition to the accessories supplied with this machine the following accessories are UNPACKING available from Evolutions online shop at Caution: This packaging contains sharp objects. www.evolutionpowertools.com or from your Take care when unpacking. This machine could local retailer. -
Page 12: Machine Overview

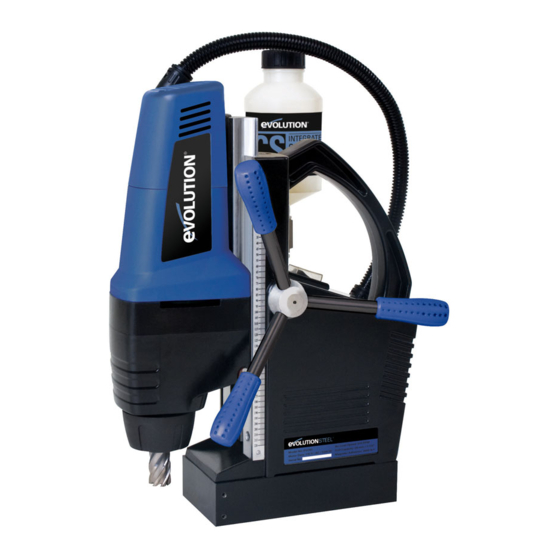

MACHINE OVERVIEW Photograph showing machine with annular cutter fitted 1. MAGNET ON/OFF SWITCH 5. SECONDARY SLIDE LOCKING LEVER 2. MOTOR ON/OFF SWITCH 6. SAFETY STRAP 3. GUARD 7.COOLANT TANK 4. ANNULAR CUTTER 8. SPINDLE BOSS & FEED HANDLES www.evolutionsteel.com... - Page 13 EVO42 MACHINE OVERVIEW Photograph showing machine with 3 jaw chuck & twist drill fitted 1. 3 JAW CHUCK 2. DRILL BIT www.evolutionsteel.com...
-
Page 14: Assembly And Preparation
WARNING: The power cord assembly is a custom terminated one. Replacement should only be carried out by a qualified Fig. 3 technician. Only use replacement parts recommended by Evolution Power Tools. • Place the machine onto a piece of clean 10 mm thick Mild Steel plate that is larger than the magnetic base of the machine. - Page 15 EVO42 • Operate the Red switch (Fig. 4) situated at the rear of the machine to energise the magnet. • Check that the machine is firmly attached to the Mild Steel plate. • Operate the Black motor switch located on the top of the machine.
- Page 16 SETTING UP WARNING: Before using the machine ensure that you have read the sections on the intended and prohibited of use of this machine. This machine should only be used for hole boring/drilling whilst attached to the work piece by the electro-magnetic base. WARNING: This machine is intended for use at any angle, but only if the electro-magnet is in full working order and has sufficient hold on the work piece material.
- Page 17 EVO42 To ensure Coolant/Lubrication flow: • Release the Coolant/Lubrication bottle cap. This will prevent a vacuum being created that will stop the Coolant/Lubrication fluid from flowing. • Gently squeeze the Coolant/Lubrication bottle to force the Coolant/ Lubrication through to the cutter.
-
Page 18: Maintenance
• Correctly position the machine on the work piece, with the electro magnet energised and with the safety strap secured in place. • Check for sufficient Coolant/Lubrication fluid flowing at the cutter. • Start the motor by selecting the ON position of the BLACK switch, located on top of the machine. -
Page 19: Environmental Protection
EVO42 WARNING: Do not attempt to clean by inserting pointed objects through openings in the machines casings etc. The machines air vents should be cleaned using compressed dry air. Excessive sparking may indicate the presence of dirt in the motor or worn out carbon brushes. -
Page 20: Service Parts Diagram
SERVICED PARTS LIST www.evolutionsteel.com... - Page 21 EVO42 SERVICED PARTS LIST www.evolutionsteel.com...
-
Page 22: Declaration Of Conformity
EN61000-3-2 :2006/A2:2009 EN61000-3-3: 2008 Product Details: Description: 42mm (1-5/8”) Industrial Magnetic Drilling System Evolution Model No: EVO42 Brand Name: EVOLUTION Voltage: UK: 230V + 110V, US: 120V Intput: 1200W (10A) The technical documentation required to demonstrate that the product meets the requirements of directive has been compiled and is available for inspection by the relevant enforcement authorities, and verifies that our technical file contains the documents listed above and that they are the correct standards for the product as detailed above. - Page 23 EVO42 Notes: www.evolutionsteel.com...
