UTY-RSKY
UTY-RSKG
UTY-RSKYT
INSTALLATION MANUAL

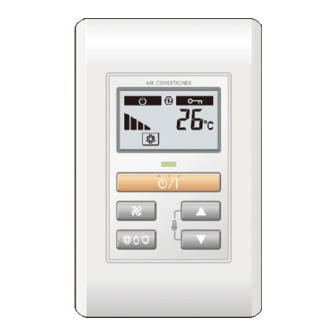

SIMPLE REMOTE CONTROLLER
For authorized service personnel only.
INSTALLATIONSANLEITUNG
EINFACHE FERNBEDIENUNG
Nur für autorisiertes Fachpersonal.
MANUEL D'INSTALLATION
TÉLÉCOMMANDE SIMPLE
Pour le personnel d'entretien autorisé uniquement.
MANUAL DE INSTALACIÓN
MANDO A DISTANCIA SIMPLE
Únicamente para personal de servicio autorizado.
MANUALE DI INSTALLAZIONE
TELECOMANDO SEMPLICE
A uso esclusivo del personale tecnico autorizzato.
ΕΓΧΕΙΡΙΔΙΟ ΕΓΚΑΤΑΣΤΑΣΗΣ
ΑΠΛΟ ΤΗΛΕΧΕΙΡΙΣΤΗΡΙΟ
Μόνο για εξουσιοδοτημένο τεχνικό προσωπικό.
MANUAL DE INSTALAÇÃO
CONTROLO REMOTO SIMPLES
Apenas para pessoal de assistência autorizado.
РУКОВОДСТВО ПО УСТАНОВКЕ
ПРОСТОЙ ПРОВОДНОЙ ПУЛЬТ ДУ
Только для авторизованного обслуживающего персонала.
KURULUM KILAVUZU
BASİT UZAKTAN KUMANDA
Yalnızca yetkili servis personeli için.
仅针对授权的专业维修人员。
PART NO. 9371068077-08
安装说明书
简易遥控器
