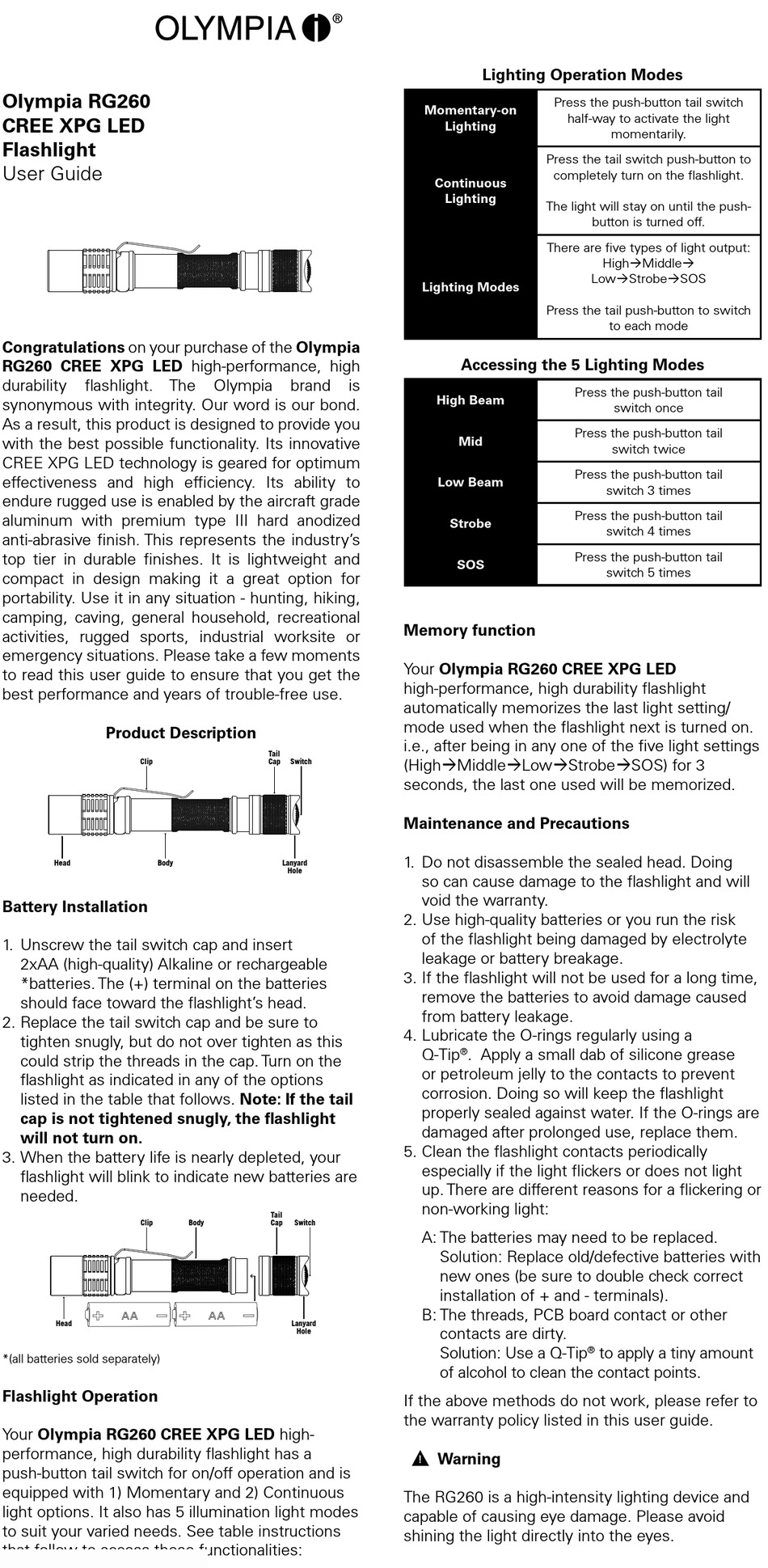

Olympia RG260 CREE XPG LED User Manual

Olympia RG260
CREE XPG LED
Flashlight

User Guide

Congratulations on your purchase of the Olympia
RG260 CREE XPG LED high-performance, high
durability flashlight. The
synonymous with integrity. Our word is our bond.
As a result, this product is designed to provide you
with the best possible functionality. Its innovative
CREE XPG LED technology is geared for optimum
effectiveness and high efficiency. Its ability to
endure rugged use is enabled by the aircraft grade
aluminum with premium type III hard anodized
anti-abrasive finish. This represents the industry's
top tier in durable finishes. It is lightweight and
compact in design making it a great option for
portability. Use it in any situation - hunting, hiking,
camping, caving, general household, recreational
activities, rugged sports, industrial worksite or
emergency situations. Please take a few moments
to read this user guide to ensure that you get the
best performance and years of trouble-free use.

Product Description

Clip
Head

Battery Installation

1. Unscrew the tail switch cap and insert
2xAA (high-quality) Alkaline or rechargeable
*batteries. The (+) terminal on the batteries
should face toward the flashlight's head.
2. Replace the tail switch cap and be sure to
tighten snugly, but do not over tighten as this
could strip the threads in the cap. Turn on the
flashlight as indicated in any of the options
listed in the table that follows. Note: If the tail
cap is not tightened snugly, the flashlight
will not turn on.
3. When the battery life is nearly depleted, your
flashlight will blink to indicate new batteries are
needed.
Clip
Head
*(all batteries sold separately)

Flashlight Operation

Your Olympia RG260 CREE XPG LED high-
performance, high durability flashlight has a
push-button tail switch for on/off operation and is
equipped with 1) Momentary and 2) Continuous
light options. It also has 5 illumination light modes
to suit your varied needs. See table instructions
that follow to access these functionalities:
Olympia brand
Tail
Cap Switch
Body Lanyard
Hole
Tail
Cap
Body Switch
Lanyard
Hole

Lighting Operation Modes

Momentary-on
Lighting
Continuous
Lighting

Lighting Modes

Accessing the 5 Lighting Modes

is
High Beam
Mid
Low Beam
Strobe
SOS

Memory function

Your Olympia RG260 CREE XPG LED
high-performance, high durability flashlight
automatically memorizes the last light setting/
mode used when the flashlight next is turned on.
i.e., after being in any one of the five light settings
(HighMiddleLowStrobeSOS) for 3
seconds, the last one used will be memorized.

Maintenance and Precautions

1. Do not disassemble the sealed head. Doing
so can cause damage to the flashlight and will
void the warranty.
2. Use high-quality batteries or you run the risk
of the flashlight being damaged by electrolyte
leakage or battery breakage.
3. If the flashlight will not be used for a long time,
remove the batteries to avoid damage caused
from battery leakage.
4. Lubricate the O-rings regularly using a
Q-Tip . Apply a small dab of silicone grease
®
or petroleum jelly to the contacts to prevent
corrosion. Doing so will keep the flashlight
properly sealed against water. If the O-rings are
damaged after prolonged use, replace them.
5. Clean the flashlight contacts periodically
especially if the light flickers or does not light
up. There are different reasons for a flickering or
non-working light:
A: The batteries may need to be replaced.
Solution: Replace old/defective batteries with
new ones (be sure to double check correct
installation of + and - terminals).
B: The threads, PCB board contact or other
contacts are dirty.
Solution: Use a Q-Tip
of alcohol to clean the contact points.
If the above methods do not work, please refer to
the warranty policy listed in this user guide.
Warning
!
The RG260 is a high-intensity lighting device and
capable of causing eye damage. Please avoid
shining the light directly into the eyes.
Press the push-button tail switch
half-way to activate the light
momentarily.
Press the tail switch push-button to
completely turn on the flashlight.
The light will stay on until the push-
button is turned off.
There are five types of light output:
HighMiddle
LowStrobeSOS
Press the tail push-button to switch
to each mode
Press the push-button tail
switch once
Press the push-button tail
switch twice
Press the push-button tail
switch 3 times
Press the push-button tail
switch 4 times
Press the push-button tail
switch 5 times
to apply a tiny amount
®
