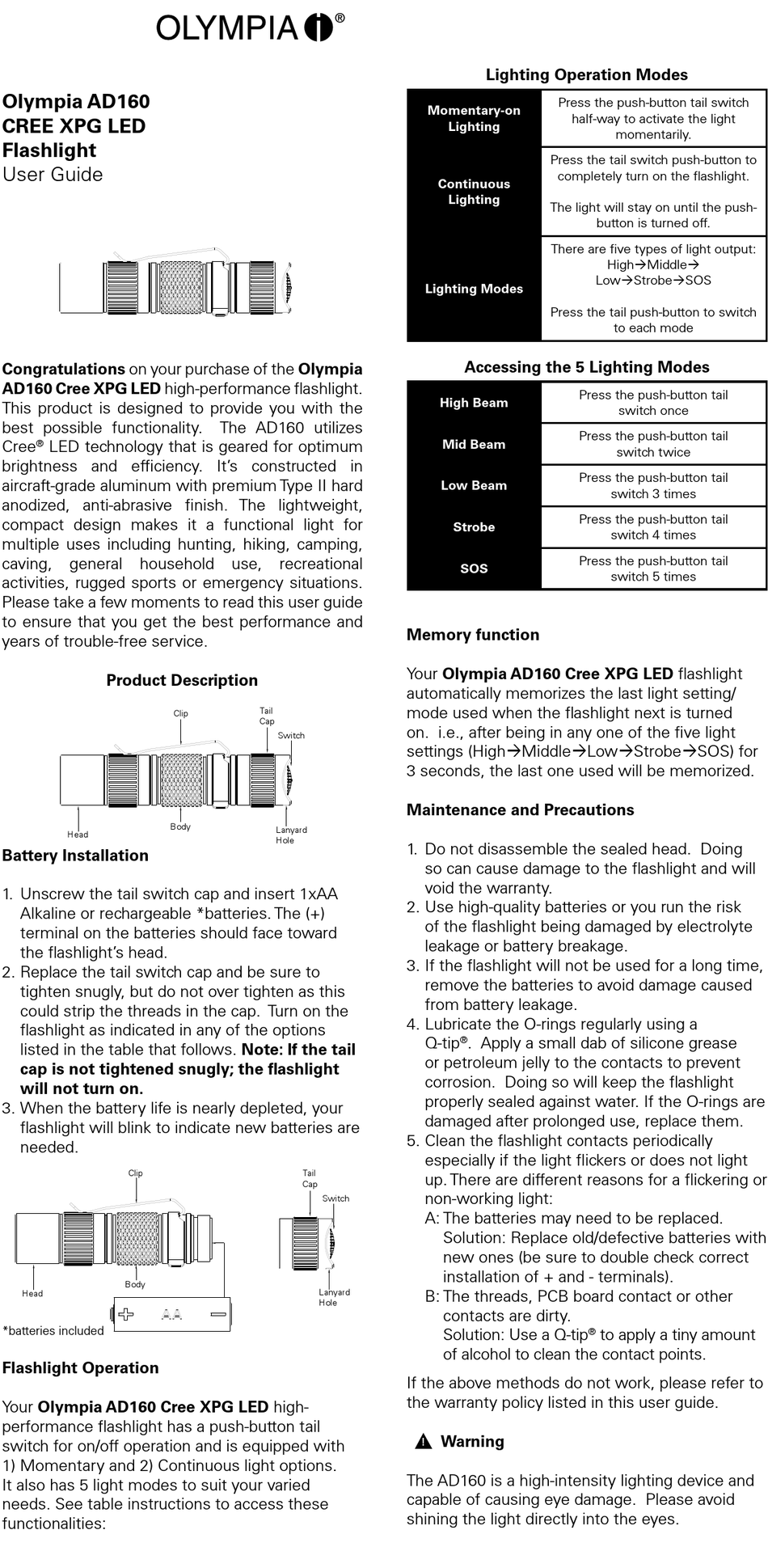

Olympia AD160 User Manual

Olympia AD160
CREE XPG LED
Flashlight
User Guide

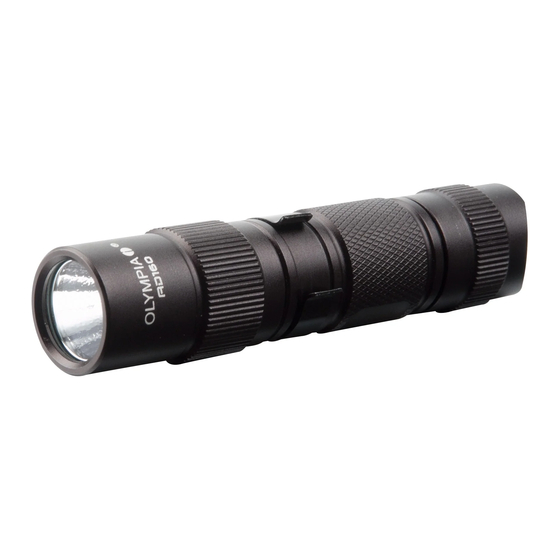

Congratulations on your purchase of the Olympia
AD160 Cree XPG LED high-performance flashlight.
This product is designed to provide you with the
best possible functionality.
Cree LED technology that is geared for optimum
®
brightness and efficiency. It's constructed in
aircraft-grade aluminum with premium Type II hard
anodized, anti-abrasive finish. The lightweight,
compact design makes it a functional light for
Head
multiple uses including hunting, hiking, camping,
caving, general household
activities, rugged sports or emergency situations.
Please take a few moments to read this user guide
to ensure that you get the best performance and
years of trouble-free service.
Product Description
Head
Head
Battery Installation
1. Unscrew the tail switch cap and insert 1xAA
Alkaline or rechargeable *batteries. The (+)
terminal on the batteries should face toward
the flashlight's head.
Clip
2. Replace the tail switch cap and be sure to
tighten snugly, but do not over tighten as this
could strip the threads in the cap. Turn on the
flashlight as indicated in any of the options
listed in the table that follows. Note: If the tail
Head
cap is not tightened snugly; the flashlight Body
Head
will not turn on.
3. When the battery life is nearly depleted, your
flashlight will blink to indicate new batteries are
needed.
Clip
Body
Head
*batteries included
Flashlight Operation
Your Olympia AD160 Cree XPG LED high-
performance flashlight has a push-button tail
switch for on/off operation and is equipped with
1) Momentary and 2) Continuous light options.
It also has 5 light modes to suit your varied
needs. See table instructions to access these
functionalities:
Tail
Clip
The AD160 utilizes
Cap
Switch
Body
Lanyard
Hole
use, recreational
Clip
Tail
Clip
Cap
Switch
Body
Body
Lanyard
Hole
Clip
Tail
Cap
Switch
Body
Lanyard
Hole
Tail
Cap
Momentary-on
Lighting
Continuous
Lighting
Lighting Modes
High Beam
Mid Beam
Low Beam
Strobe
SOS
Memory function
Tail
Cap
Switch
Your Olympia AD160 Cree XPG LED flashlight
automatically memorizes the last light setting/
mode used when the flashlight next is turned
on. i.e., after being in any one of the five light
settings (HighMiddleLowStrobeSOS) for
Lanyard
3 seconds, the last one used will be memorized.
Hole
Maintenance and Precautions
1. Do not disassemble the sealed head. Doing
so can cause damage to the flashlight and will
void the warranty.
2. Use high-quality batteries or you run the risk
of the flashlight being damaged by electrolyte
Tail
leakage or battery breakage.
Cap
Switch
3. If the flashlight will not be used for a long time,
remove the batteries to avoid damage caused
from battery leakage.
4. Lubricate the O-rings regularly using a
Q-tip
®
Lanyard
or petroleum jelly to the contacts to prevent
Hole
corrosion. Doing so will keep the flashlight
properly sealed against water. If the O-rings are
damaged after prolonged use, replace them.
5. Clean the flashlight contacts periodically
especially if the light flickers or does not light
up. There are different reasons for a flickering or
non-working light:
Switch
A: The batteries may need to be replaced.
Solution: Replace old/defective batteries with
new ones (be sure to double check correct
installation of + and - terminals).
B: The threads, PCB board contact or other
Lanyard
Hole
contacts are dirty.
Solution: Use a Q-tip
of alcohol to clean the contact points.
If the above methods do not work, please refer to
the warranty policy listed in this user guide.
Warning
!
The AD160 is a high-intensity lighting device and
capable of causing eye damage. Please avoid
shining the light directly into the eyes.
Lighting Operation Modes
Press the push-button tail switch
half-way to activate the light
Press the tail switch push-button to
completely turn on the flashlight.
The light will stay on until the push-
button is turned off.
There are five types of light output:
HighMiddle
LowStrobeSOS
Press the tail push-button to switch
Accessing the 5 Lighting Modes
Press the push-button tail
Press the push-button tail
Press the push-button tail
Press the push-button tail
Press the push-button tail
. Apply a small dab of silicone grease
to apply a tiny amount
®
momentarily.
to each mode
switch once
switch twice
switch 3 times
switch 4 times
switch 5 times
