NOTE: This step is applicable after the neccessary wiring is completed.

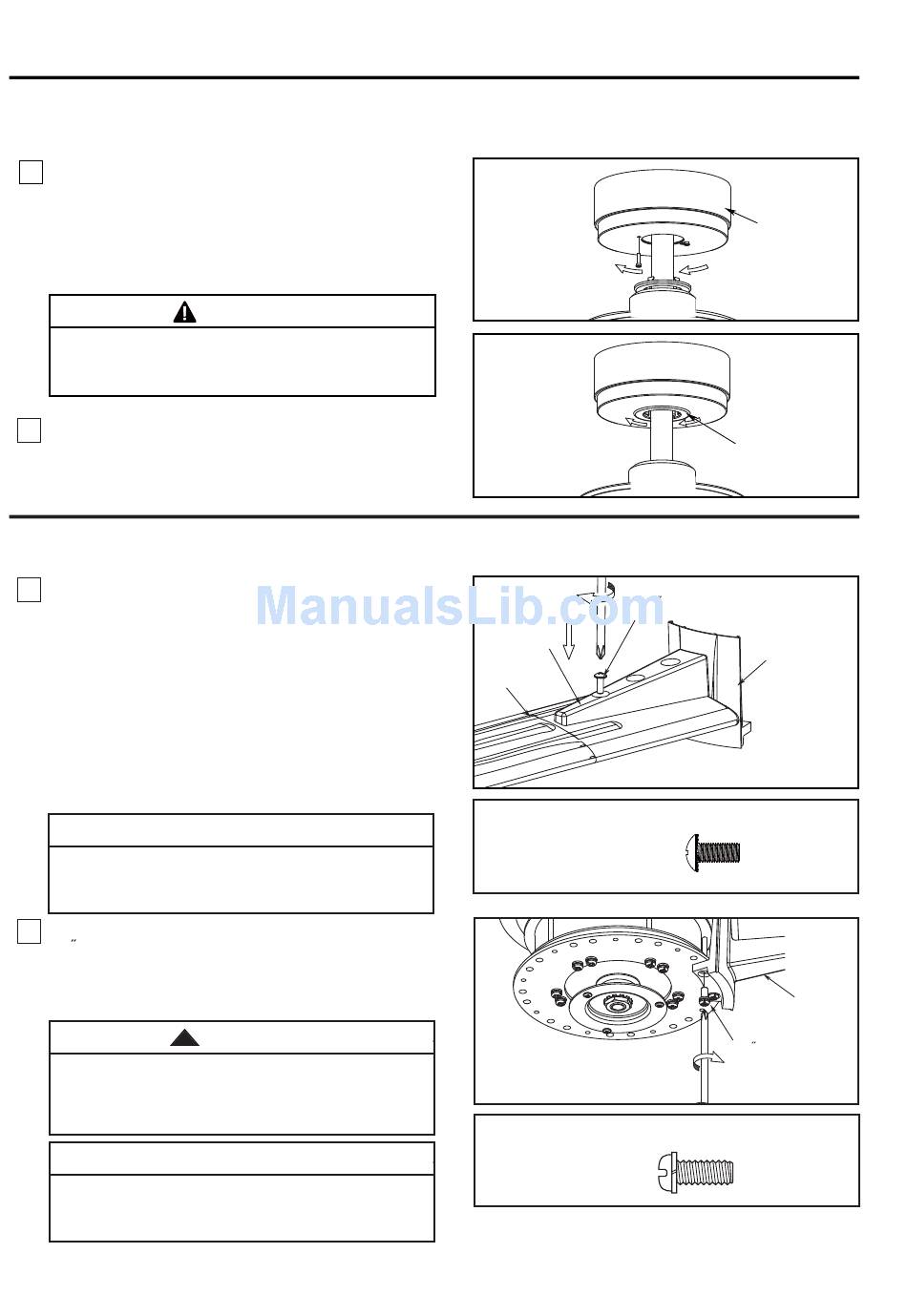

1. Remove one of the two shoulder screws in the

hanger bracket. Loosen the second shoulder screw

without fully removing it. Assemble canopy by

rotating key slot in canopy over shoulder screw in

hanger bracket. Tighten shoulder screw. Fully

assemble and tighten second shoulder screw that

was previously removed. (Figure 1)

To avoid possible fire or shock, make sure that the

electrical wires are completely inside the canopy

housing and not pinched between the housing and the

ceiling.

Securely attach and tighten the canopy screw cover

over the shoulder screws in the hanger bracket utilizing

the keyslot twist-lock feature. (Figrue 2)

How to Assemble the Ceiling Fan Blades

1. Lay flat side of blade holder on a flat surface with the

inside of the blade holder arm facing up. This is the side

with the threaded posts and pitched foot. Position the

blade over the blade holder with the threaded posts

showing. Make sure the bottom edge of the blade is fully

seated against the blade holder. Place blade cover

on top of the blade, positioning the holes over the

threaded posts. With a Phillips screwdriver, thread three

screws into the posts but do not fully tighten.Prior to final

tightening, position the centerline of the blade holder

with the center of the end of the blade. Tighten three

screws to secure the blade. (Figure 1)

Do not connect fan blades until the fan is completely

installed. Installing the fan with blades assembled

may result in damage to the fan blades.

2. Secure the blade holders to the flywheel using the

1/4 -20 x 11 mm screws through the holes located

on the bottom of the flywheel. (Figure 2)

NOTE:

Periodically check blade holder hardware and

resecure if necessary.

To reduce the risk of personal injury, do not bend the

blade holders when installing, balancing the blades

or cleaning the fan. Do not insert foreign objects in

between the rotating blades.

To reduce the risk of electric shock, disconnect the

electrical supply circult to the fan before installing

light kit.
