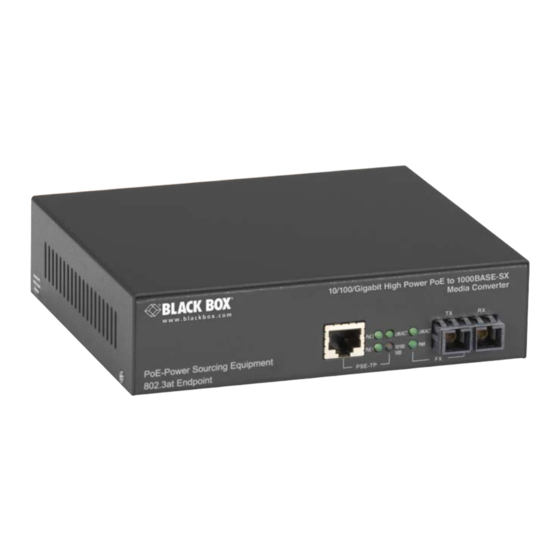

LPS530A-MM
10/100/Gigabit High Power PoE to 1000BASE-SX Media Converter
Converts high speed Gigabit Ethernet
from copper to fiber and also powers PoE
access points/cameras.
IEEE802.3at PoE (Power over Ethernet) PSE+ compatible.
Supports LFP (Link Fault Pass-through) and FEF (Far End Fault).
Supports jumbo frames up to 9KB.
PSE RJ-45 Pin-out Alternatives A/B Auto detection.
PSE MDI power enable/disable.
Advertisement
Table of Contents
Related Manuals for Black Box LPS530A-MM
Summary of Contents for Black Box LPS530A-MM
- Page 1 LPS530A-MM 10/100/Gigabit High Power PoE to 1000BASE-SX Media Converter Converts high speed Gigabit Ethernet from copper to fiber and also powers PoE access points/cameras. IEEE802.3at PoE (Power over Ethernet) PSE+ compatible. Supports LFP (Link Fault Pass-through) and FEF (Far End Fault).
- Page 2 10/100/Gigabit High Power PoE to 1000BASE-SX Media Converter Federal Communications Commission and Industry Canada Radio Frequency Interference Statements This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment.
- Page 3 PSE RJ-45 Pin-out Alternatives A/B Auto detection RoHS Compliance 3. Package Contents Your package should include the following items. If anything is missing or damaged, please contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. (1) Gigabit Ethernet High Power PoE Converter...
- Page 4 4. Front and Back Panels Front Panel LED Indicators There are six diagnostic LEDs located on the front panel of the LPS530A-MM Media Converter. These LED indicators provide administrators with real-time system status. The following table describes each LED indicator. Color...
- Page 5 FEF prevents loss of valuable data transmitted over an invalid link. Using LFP and FEF troubleshooting features of LPS530A-MM, both end devices can be notified of a loss of fiber link. When link fault pass through function is enabled, link status on TX port will inform the FX port of the same device and vice versa.
- Page 6 10/100/Gigabit High Power PoE to 1000BASE-SX Media Converter 6. PoE Technology Power over Ethernet or PoE technology describes a system to transfer electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. This technology is useful for powering IP telephones, wireless LAN access points, network cameras, remote network switches, embedded computers, and other appliances where it would be inconvenient, expensive (mains wiring must often be done by qualified and/or licensed electricians for legal or insurance reasons), or infeasible to supply power separately.
- Page 7 10/100/Gigabit High Power PoE to 1000BASE-SX Media Converter 7. Installation • Power installation Power requirement: 100–240 VAC, 50–60Hz Connect to an AC power source with an AC power cord. • Cabling Requirements To help ensure a successful installation and keep the network performance good, make sure you use the required cable. Cables with worse specifications will cause the LAN to work poorly.
- Page 8 LPS530A-MM, rev. 1 ______________________________________________________________________ 724-746-5500 l www.blackbox.com...
