NETWORK SERVICES
Sourcing Equipment (PSE) and are fully compatible with Powered Devices (PD) that
comply with the IEEE802.3af standard. In addition, these converters have PD signature
sensing and power monitoring features per the IEEE 802.3af standard.
Part Number
Port One - Copper
10/100/1000Base-T
LPS1000A-MM
RJ-45
100 m (328ft.)*
LPS1000A-SM
RJ-45
100 m (328 ft.)*
LPS1000A-1SFP
RJ-45
100 m (328 ft.)*
LPS1000A-2SFP
RJ-45
100 m (328 ft.)*
*Cable distances are the typical maximum cable distance. Actual distance is dependent
upon the physical characteristics of the network installation.
Mounting options (sold separately)
Part Number
Description
LPS1000-Wall
Wall Mount Bracket
LPS1000-DINRAIL
DIN Rail Mtg. Bracket

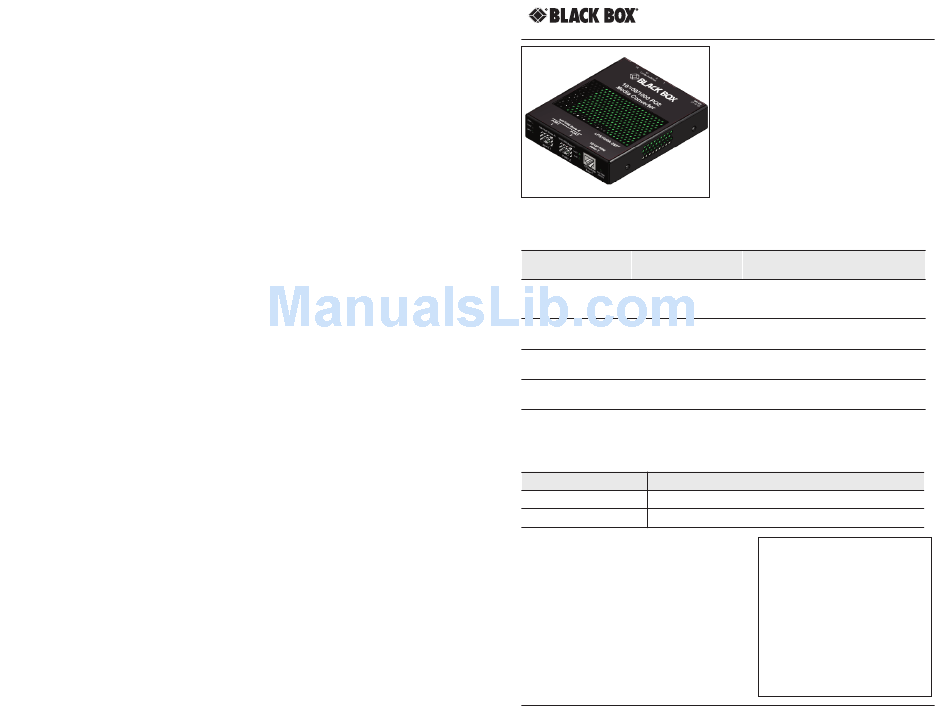

LPS1000A User's Guide
The LPS1000A media converters enable
businesses to provide power to network
devices over the existing CAT5 data
connection. The LPS1000A AC powered PoE
media converters combine data received over a
fiber optic link with -48VDC power, provides
power to Data Terminal Equipment (DTE) and
Power Devices (PD) over unshielded twisted
pair cable. These PoE converters are Power
Port Two - Fiber
SC, 1000Base-SX, 850 multimode
62.5μm: 220m ( 722ft )
50μm: 550m ( 1804ft)
SC, 1000Base-LX, 1310 single mode
10km (6.2 miles)
100/1000Base-X
SFP slot (empty)
(2) 100/1000Base-X
SFP slots (empty)
Enclosure Mounting . . . . . . . . . .5
DIP Switches . . . . . . . . . . . . . . .6
Internal Jumpers . . . . . . . . . . .10
Operations . . . . . . . . . . . . . . .11
Cable Specifications . . . . . . . . .12
Troubleshooting . . . . . . . . . . .14
Contact Us . . . . . . . . . . . . . . .17
