USER MANUAL
LPS500A-MM-LC-R3, LPS500A-MM-SC-R3, LPS500A-SM-10K-LC-R3
10/100/1000B-T
TO 1000B-X POE
PSE GBE MEDIA
CONVERTER
24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM

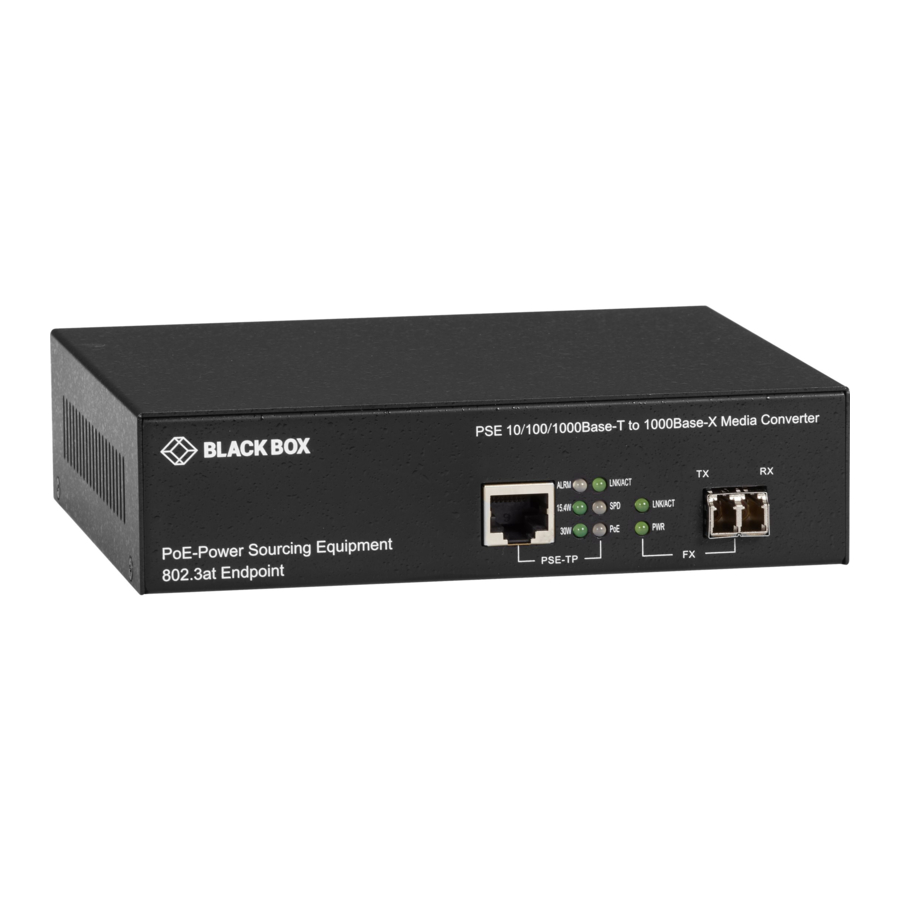

10/100/1000BASE-T PoE PSE To 1000BASE-X
Media Converter
PoE-Power Sourcing Equipment
ALRM
LNK/ACT
KINSUN
15.4 W
SPD
LNK/ACT
30 W
PoE
PWR
PSE-TP
TX
RX
FX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPS500A-MM-LC-R3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Black Box LPS500A-MM-LC-R3

  • Page 1 USER MANUAL LPS500A-MM-LC-R3, LPS500A-MM-SC-R3, LPS500A-SM-10K-LC-R3 10/100/1000B-T TO 1000B-X POE PSE GBE MEDIA CONVERTER 24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM ALRM LNK/ACT KINSUN 15.4 W LNK/ACT 10/100/1000BASE-T PoE PSE To 1000BASE-X Media Converter 30 W PoE-Power Sourcing Equipment PSE-TP...
  • Page 2: Table Of Contents

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TABLE OF CONTENTS TECHNICAL SUPPORT 1.877.877.2269 CONTENTS SAFETY INFORMATION ....................................3 1. SPECIFICATIONS ......................................4 2. OVERVIEW ........................................5 2.1 INTRODUCTION ......................................5 2.2 AVAILABLE MODELS ....................................5 2.3 FEATURES ........................................5 2.4 WHAT’S INCLUDED ....................................
  • Page 3: Safety Information

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 SAFETY INFORMATION TECHNICAL SUPPORT 1.877.877.2269 SAFETY INFORMATION CAUTION: Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge. To protect your device, always: Š...
  • Page 4: Specifications

    32 to 122° F (0 to 50° C) Humidity 5% to 95% Mechanical LPS500A-MM-LC-R3: (1) RJ-45 PoE, (1) pair of multimode LC; Connectors LPS500A-MM-SC-R3: (1) RJ-45 PoE, (1) pair of multimode SC; LPS500A-SM-10K-LC-R3: (1) RJ-45 PoE, (1) pair of singlemode LC Dimensions 1.6”...
  • Page 5: Overview

    2.4 WHAT’S INCLUDED Your package should contains the following items. If anything is missing or damaged, contact Black Box Technical Support at 877-877-2269 or info@blackbox.com Š 10/100/1000BASE-T to 1000BASE-X PoE PSE GbE Media Converter Š...
  • Page 6: Hardware Description

    (6) TP LEDs: PoE, TP LNK/ACT, SPD, ALRM, 15.4 W, 30 W Indicates twisted-pair port status (2) FX LEDs: Power, FX LNK/ACT Indicates fiber port status LPS500A-MM-LC-R3 : (1) multimode LC connector: LPS500A-MM-SC-R3: (1) multimode SC connector; Links to Gigabit fiber network LPS500A-SM-10K-LC-R3: (1) singlemode LC connector...
  • Page 7: Installing The Converter

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: INSTALLING THE CONVERTER TECHNICAL SUPPORT 1.877.877.2269 3. INSTALLING THE CONVERTER PSE TP-Fiber Converter with Powered Device (PD) 1. Connect the PSE media converter to an AC power source. 2. Install the UTP media cable to the IEEE 802.3af PD converter. ALRM LNK/ACT KINSUN...
  • Page 8 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: INSTALLING THE CONVERTER TECHNICAL SUPPORT 1.877.877.2269 1000BASE-X Fiber Network Converter/Switch PoE PSE TP-to-GbE Fiber Converter PoE PD or PoE Splitter FIGURE 3-2. PSE TO PD OR POE SPLITTER Signal Pairs 48V 8 7 6 5 4 3 2 1 RJ-45 Connector CAT-5 Cable...
  • Page 9: Wdm Single Fiber Model

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: WDM SINGLE-FIBER MODEL TECHNICAL SUPPORT 1.877.877.2269 4. WDM SINGLE FIBER MODEL The TP-Fiber converter is specially designed with an optic Wavelength Division Multiplexing (WDM) model that can transport a bidirectional full duplex signal over a single fiber simultaneously.
  • Page 10: Link Fault Passthrough

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: LINK FAULT PASSTHROUGH TECHNICAL SUPPORT 1.877.877.2269 5. LINK FAULT PASSTHROUGH The LFP (link fault passthrough) in a TX/FX converter application is controlled by the software and instantly takes effect. Link status on one port is propagated to the other port to notice the remote nodes.
  • Page 11 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: LINK FAULT PASSTHROUGH TECHNICAL SUPPORT 1.877.877.2269 GbE Fiber Remote Switch Switch Station Fiber Cable FIGURE 5-5. THE STATUS AS TP CABLE A IS BROKEN GbE Fiber Remote Switch Switch Station Fiber Cable...
  • Page 12: Led Description

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 6: LED DESCRIPTION TECHNICAL SUPPORT 1.877.877.2269 6. LED DESCRIPTION TABLE 6-1. LED INDICATORS COLOR FUNCTION Lit when fiber connection is good FX LNK/ACT Green Blinks when packet is forwarding on fiber port Lit when TP connection is good TP LNK/ACT Green...
  • Page 13: Dip Switch And Reset Button

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 7: DIP SWITCH AND RESET BUTTON TECHNICAL SUPPORT 1.877.877.2269 7. DIP SWITCH AND RESET BUTTON RESET FIGURE 7-1. RESET BUTTON AND S1—BIT 1, 2, 3 CONFIGURATION AND SETTING Reset: Once S1-1, S1-2 is changed, press this button to activate the setting S1-1 Bridge mode : Cut through (default) or Normal S1-2 LFP : LFP enabled(default) or disabled S1-3 PoE ON/OFF : Enable(default) or disable...
  • Page 14: Cable Connection Parameter

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 8: CABLE CONNECTION PARAMETER TECHNICAL SUPPORT 1.877.877.2269 8. CABLE CONNECTION PARAMETER 1000BASE-SX/LX networks only support full-duplex mode. The Switch based Media Converter breaks up TP and Fiber segments’ collision domain to extend the cabling distance. Š...
  • Page 15: Electronic Emission Notices

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 APPENDIX A: REGULATORY INFORMATION TECHNICAL SUPPORT 1.877.877.2269 A.1 ELECTRONIC EMISSION NOTICES This equipment has been tested and found to comply with the FCC Part 15, Subpart B, Class A and protection requirements of European Emission Standard as follows: EMI Comply with FCC Part 15 Class A &...
  • Page 16: Nom Statement

    NEED HELP? LEAVE THE TECH TO US LIVE 24/7 APPENDIX A: REGULATORY INFORMATION TECHNICAL SUPPORT 1.877.877.2269 A.3 NOM STATEMENT 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3.
  • Page 17: Disclaimer

    B.1 DISCLAIMER Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Corporation may revise this document at any time without notice.
  • Page 18 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 NOTES TECHNICAL SUPPORT 1.877.877.2269 __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________\ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _______ 1.877.877.2269 BLACKBOX.COM...
  • Page 19 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 NOTES TECHNICAL SUPPORT 1.877.877.2269 __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________\ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _______ 1.877.877.2269 BLACKBOX.COM...
  • Page 20 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TECHNICAL SUPPORT 1.877.877.2269 © COPYRIGHT 2021. BLACK BOX CORPORATION. ALL RIGHTS RESERVED. LPS500A-MM-LC-R3_USER_REV2.PDF...
