Summary of Contents for Black Box LGC010A-R2

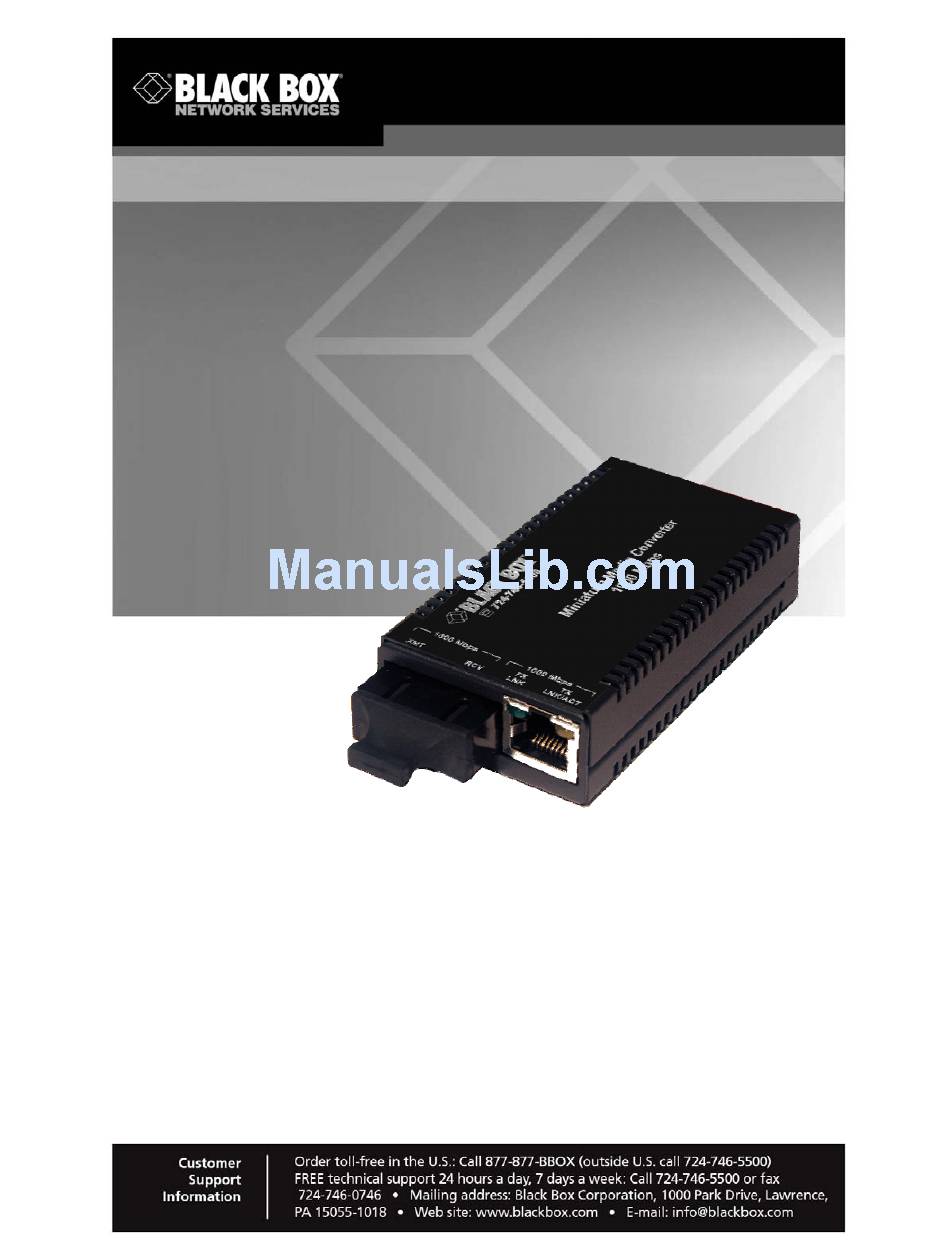

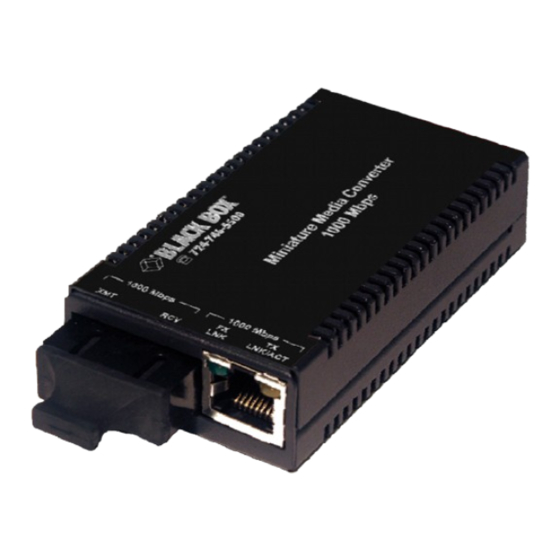

- Page 1 LGC010A-R2 LGC014A-R2 LGC011A-R2 LGC015A-R2 LGC012A-R2 LGC016A-R2 LGC013A-R2 LGC017A-R2 Gigabit Miniature Media Converters Connect Gigabit Ethernet copper ports to fiber optic cable.
- Page 2 To meet FCC requirements, shielded cables and power cords are required to connect this device to a personal computer or other Class A certified device. This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada. Page 2 724-746-5500 | blackbox.com LGC010A-R2...
- Page 3 For more detailed information about proper disposal, please contact local authorities, waste disposal services, or the point of purchase for this equipment. LGC010A-R2 724-746-5500 | blackbox.com Page 3...
-
Page 4: Table Of Contents
Overview: About the Gigabit Miniature Media Converters ....7 Install the Gigabit Miniature Media Converters ........8 Operation....................9 LED Operation..................9 Contacting Black Box ................10 Fiber Optic Cleaning Guidelines ............11 Electrostatic Discharge Precautions ............ 11 Page 4 724-746-5500 | blackbox.com... -
Page 5: Part Numbers
Part Numbers Part Numbers Part Number Description LGC010A-R2 TX/SX-MM850-SC LGC011A-R2 TX/LX-SM1310-SC LGC012A-R2 TX/LX-SM1310/PLUS-SC LGC013A-R2 TX/LX-SM1550/LONG-SC LGC014A-R2 TX/SSLX-SM1310-SC (1310xmt/1550rcv) Single-Strand Fiber LGC015A-R2 TX/SSLX-SM1550-SC (1550xmt/1310rcv) Single-Strand Fiber LGC016A-R2 TX/SSLX-SM1310/PLUS-SC (1310xmt/1550rcv) Single-Strand Fiber LGC017A-R2 TX/SSLX-SM1550/PLUS-SC (1550xmt/1310rcv) Single-Strand Fiber LGC010A-R2 724-746-5500 | blackbox.com Page 5... -
Page 6: Specifications
+32°F to +122°F (0°C to +50°C) Temperature Storage Temperature -4°C to +158°F (-20°C to +70°C) Humidity 5% to 90% (non-condensing); 0 to 10,000 ft. altitude Dimensions 0.83”H x 1.80”W x 3.35”D (2.1cm x 4.6cm x 8.5cm) Page 6 724-746-5500 | blackbox.com LGC010A-R2... -
Page 7: Overview: About The Gigabit Miniature Media Converters
1000Base-T copper, and always operate at Full-Duplex. Single strand fiber versions are also available. The Gigabit Miniature Media Converters offer plug-and-play operation, including the AutoCross feature which automatically selects between a crossover workstation or straight-through repeater hub connection depending on the connected device. LGC010A-R2 724-746-5500 | blackbox.com Page 7... -
Page 8: Install The Gigabit Miniature Media Converters
3. Install the Gigabit Miniature Media Converters The Gigabit Miniature Media Converters install in a Black Box PowerTray 18-Slot DC or can be used as standalone media converters. As standalones, the Gigabit Miniature Media Converters use a universal external switching power cube with 100 to 240 ±10% VAC input and 5VDC output. -
Page 9: Operation
Glows green when a link is established on the fiber port. TX LNK/ACT Glows amber when a link is established on the copper port; blinks amber when activity is detected on the copper port. LGC010A-R2 724-746-5500 | blackbox.com Page 9... -
Page 10: Contacting Black Box
Chapter 5: Contacting Black Box 5. Contacting Black Box Black Box Customer Service Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Free technical support, 24 hours a day, 7 days a week. Call: 724-746-5500 or Fax: 724-746-0746... -
Page 11: Fiber Optic Cleaning Guidelines
2. Dust caps are installed at Black Box to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. If you need to disconnect the fiber device, reinstall the protective dust caps. - Page 12 LGC010A-R2 Rev. 1 55-80730BB-00 Rev. B1...
