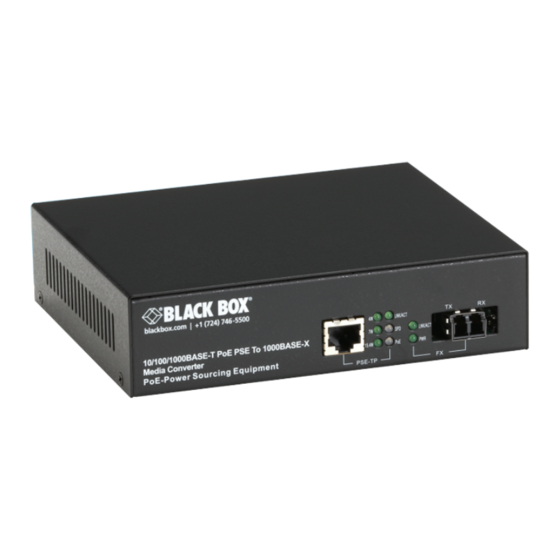

PoE PSE Media Converter, 10/100/1000BASE-T to 1000BASE-SX/LX
Connect two types of network segments together
easily and inexpensively at Gigabit speeds while
also supplying power to PoE/PD devices such as
VoIP phones.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) •
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 •
Support
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •
Information
Web site: www.blackbox.com • E-mail: info@blackbox.com
LPS500A-MM-SC
LPS500A-SM-10K-SC
BLACK BOX
May 2010
LPS500A-MM-LC
LPS500A-SM-10K-LC
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box LPS500A-MM-SC
Summary of Contents for Black Box LPS500A-MM-SC

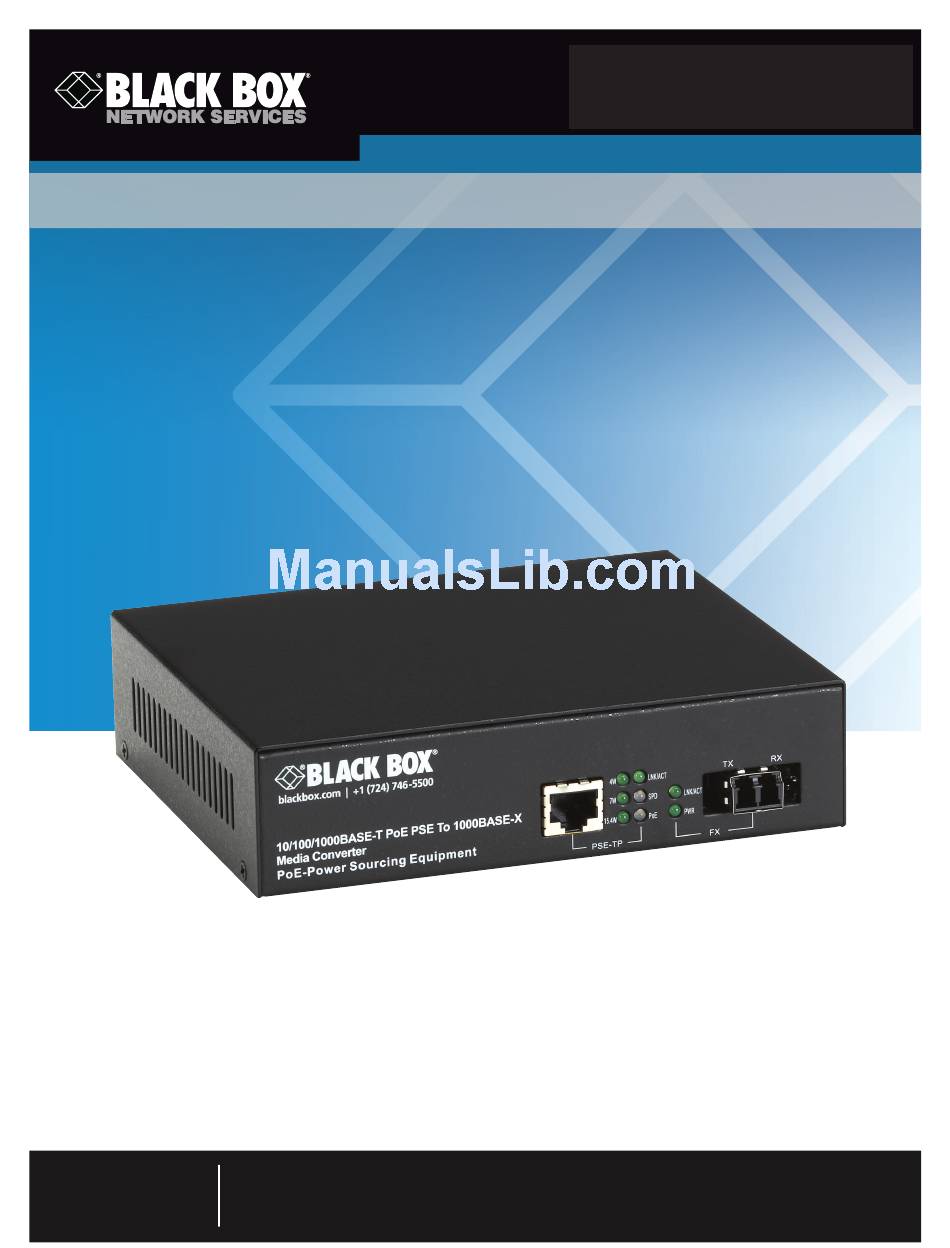

- Page 1 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) • Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 • Support Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 • Information Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 PoE PSE Media Converters, 10/100/1000BASE-T to 1000BASE-SX/LX Federal Communications Commission and Industry Canada Radio Frequency Interference Statements This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It hasbeen tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment.
- Page 3 NOM Statement Instrucciones de Seguridad (Normas Oficiales Mexicanas Electrical Safety Statement) 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3.
- Page 4 PoE PSE Media Converters, 10/100/1000BASE-T to 1000BASE-SX/LX Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
-
Page 5: Table Of Contents
Table of Contents Table of Contents Chapter Page 1. Specifications ...................................... 6 2. Overview ......................................7 2.1 Introduction ....................................7 2.2 Features ...................................... 7 2.3 What’s Included ..................................8 2.4 Front and Back Panels ................................. 8 2.5 LED Indicators ..................................... 9 2.6 Side Panel DIP Switches and Reset Button ........................... -
Page 6: Specifications
PoE PSE Media Converters, 10/100/1000BASE-T to 1000BASE-SX/LX 1. Specifications Data Transfer Rate: 1000 Mbps: 1,488,000 pps; 100 Mbps: 148,800 pps; 10 Mbps: 14,880 pps Fiber Cable: 50/125, 62.5/125, or 100/140 µm multimode; 8.3/125, 8.7/125, 9/125, or 10/125 µm single-mode Flow Control: IEEE 802.3x compliant for full-duplex; backpressure flow control for half-duplex PSE Power Feeding Supports: “Endpoint”... -
Page 7: Overview
FEF prevents loss of valuable data transmitted over an invalid link. Available models include: • LPS500A-MM-SC: PoE PSE Media Converter, 10/100/1000BASE-T to 1000BASE-SX, SC connectors, multimode fiber • LPS500A-SM-10K-SC: PoE PSE Media Converter, 10/100/1000BASE-T to 1000BASE-SX, SC connectors, single-mode fiber, 10 km •... -
Page 8: What's Included
PoE PSE Media Converters, 10/100/1000BASE-T to 1000BASE-SX/LX 2.3 What’s Included Your package should include the following items. If anything is missing or damaged, please contact Black Box Technical Support at 724-746-5500. • (1) 10/100/1000BASE-T To 1000BASE-X PoE Media Converter • (1) AC power cord •... -
Page 9: Led Indicators
Chapter 2: Overview Table 2-1. Front- and back-panel components. Number Component Description RJ-45 port Links to twisted-pair Gigabit Ethernet LED indicators Described in Table 2-2. (2) SC or LC connectors Links to fiber. 3-prong power outlet Links to power cord. 2.5 LED Indicators Table 2-2. - Page 10 PoE PSE Media Converters, 10/100/1000BASE-T to 1000BASE-SX/LX Figure 2-3. DIP switches and Reset button on the converter’s side panel. Table 2-3. Side panel components and their functions. Component Setting Function Reset button Press once After you change the DIP switch settings, you must press the Reset button for changes to take effect.
-
Page 11: Installation
Chapter 3: Installation 3. Installation 3.1 Connecting Hardware The 10/100/1000BASE-T PoE PSE to 1000BASE-X Media Converter requires no software configuration. To install the media converter, follow the steps below: 1. Connect the PSE media converter to an AC power source. 2. -
Page 12: Poe Endpoint Rj-45 Pin Assignment
PoE PSE Media Converters, 10/100/1000BASE-T to 1000BASE-SX/LX 3.2 PoE Endpoint RJ-45 Pin Assignment IEEE 802.3af assigns pairs on the RJ-45 connector of the CAT5 cable as shown in Figure 3-2. Endpoint: -48V via twisted-pair Pins 1, 2, 3, 6. Figure 3-2. Endpoint PSE RJ-45 male connector. 724-746-5500 | blackbox.com Page 12... -
Page 13: Link Fault Passthrough
Chapter 4: Link Fault Passthrough 4. Link Fault Passthrough This converter supports link fault passthrough (LFP). Link status on one port is sent to the other port to identify the remote nodes. If the twisted-pair port is unplugged, the converter stops transmission on the fiber port. This causes the remote fiber node link to fail. - Page 14 PoE PSE Media Converters, 10/100/1000BASE-T to 1000BASE-SX/LX Gigabit Remote Gigabit Ethernet Ethernet station Fiber switch switch Fiber cable Figure 4-4. Normal status via one LFP. Gigabit Remote Gigabit Ethernet Ethernet station Fiber switch switch Fiber cable Figure 4-5. The status when twisted-pair Cable A is broken. Gigabit Remote Gigabit Ethernet...
-
Page 15: Cable Connection Parameters
Chapter 5: Cable Connection Parameters 5. Cable Connection Parameters 1000BASE-SX/LX networks only support full-duplex mode. The switch-based media converter breaks the twisted-pair and fiber segments’ collision domain to extend the cabling distance. TP cable limitations: CAT5 and up to 328 feet (100 m) Table 5-1. - Page 16 About Black Box Black Box Network Services is your source for more than 118,000 networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 20 seconds or less.
