Black Box LPD500A User Manual

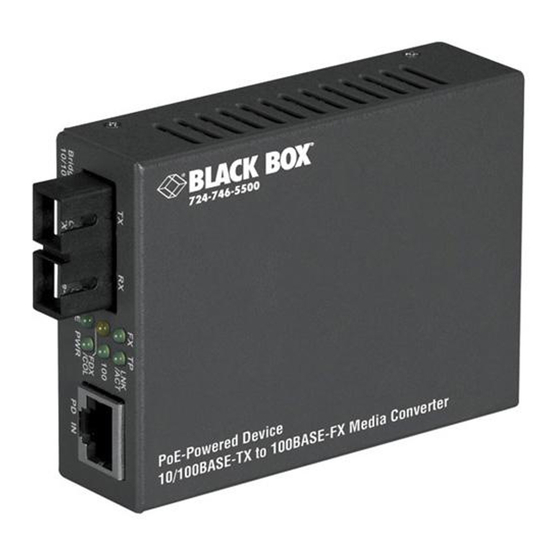

Pd poe 10/100base-tx to 100base-fx media converter
Hide thumbs Also See for LPD500A:
Table of Contents

Advertisement

Quick Links

©
Copyright 2006. Black Box Corporation. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPD500A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box LPD500A

Summary of Contents for Black Box LPD500A

  • Page 1 © Copyright 2006. Black Box Corporation. All rights reserved.
  • Page 2 (outside U.S. call CUSTOMER toll-free 877-877-BBOX 724-746-5500 FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 SUPPORT Mailing address: Black Box Corporation , 1000 Park Drive, Lawrence, PA 15055-1018 INFORMATION Web site: www.blackbox.com E-mail: info@blackbox.com...

  • Page 4: Federal Communications Commission

    FCC AND ICRFI STATEMENTS FEDERAL COMMUNICATIONS COMMISSION INDUSTRY CANADA RADIO FREQUENCY INTERFEREN CE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
  • Page 5 PD PoE 10/100BASE-TX to 100BASE-FX Media Converter INSTRUCCIONES DE SEGURIDAD (Normas Oficiales Mexicanas Electrical Safety Statement) 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3.

  • Page 6: Trademarks Used In This Manual

    TRADEMARKS USED IN THIS MANUAL ST is a registered trademark of AT&T. BLACK BOX and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark...

  • Page 7: Specifications

    PD PoE 10/100BASE-TX to 100BASE-FX Media Converter 1. Specifications Standards: IEEE802.3u 10/100Base-TX, 100Base-FX, IEEE802.3af Power over Ethernet UTP Cable: Cat. 5 cable or up, up to100 meter μ Fiber Cable: 50/125, 62.5/125 or 100/140 m multi-mode μ 8.3/125, 8.7/125, 9/125 or 10/125 m single-mode PoE Power Reception Supports: Endpoint: via TP pin 1, 2, 3, 6 Midspan: via TP pin 4, 5, 7, 8...
  • Page 8 NOTE AC-DC +5V Adapter is available upon request. 2.3 What’s Included Your package should contain the following items. If anything is missing or damaged, please contact Black Box at 724-746-5500. • PD PoE 10/100BASE-TX to 100BASE-FX Media Converter • CD-ROM containing this user’s manual in PDF format...
  • Page 9 PD PoE 10/100BASE-TX to 100BASE-FX Media Converter 2.4 Hardware Description Figure 2-1 shows the PD PoE 10/100BASE-TX to 100BASE-FX Media Converter’s front panel. The LED indicators in the figure are described in Table 2-1. LED Indicators Fiber Port TP Port Figure 2-1.
  • Page 10 CHAPTER 2: Overview The media converter’s rear panel is shown in Figure 2-2. 5V DC DC Jack DIP Switches DC Jack: 2.5 mm DC Input: +5V DC jack’s central post is 2.5 mm wide. Figure 2-2. Rear panel.

  • Page 11: Installing The Converter

    PD PoE 10/100BASE-TX to 100BASE-FX Media Converter 3. Installing the Converter 3.1 Installing Instruction CAUTION Wear a grounding device to avoid damage from electrostatic discharge. Be sure that the power switch is OFF before you connect the power cord to the power source. 1.
  • Page 12 CHAPTER 3: Installing the Converter PD PoE 10/100BASE-TX to 100BASE-FX Media Converter 100BASE-FX fiber network Fiber Optic Cat.5 Cable PSE Device Figure 3-1 Connection among PSE PoE Converter and TP Cables Figure 3-2 Endpoint PSE RJ-45 Male Connector NOTE IEEE 802.3af assigns pairs on the RJ-45 connector and Cat.5 cable of Endpoint PSE.
  • Page 13 PD PoE 10/100BASE-TX to 100BASE-FX Media Converter 3.2 Connecting to TP , Fiber Device Converter TP Port 10/100 TP AUTO, FORCE selectable: Bit 1, 2, 3 of S1 a. AUTO: 10/100 NWay Auto-negotiation b. FORCE: 100 or 10, FDX or HDX Converter Fiber Port 100FX 100Mbps duplex selectable: Bit 5 of S1 a.
  • Page 14 CHAPTER 3: Installing the Converter 3.3 Cable Connection Parameter 100Base-X network allows 512-bit time delay between any two node-stations in a collision domain. Switch-based Media Converter breaks up TP and Fiber segments’ collision domain to extend the cabling distance. TP Cable Limitations: Cat. 5 and up to 100m Converter Fiber Cable Limitations: Multi-mode Half-duplex 412 m...

  • Page 15: Link Fault Pass Through

    PD PoE 10/100BASE-TX to 100BASE-FX Media Converter 4. Link Fault Pass Through This media converter supports link fault pass through (LFP) in TX/FX converter application. Link status on one port is propagated to the other port to notice the remote nodes. If TP port is unplugged, this converter stops transmission on fiber port.
  • Page 16 CHAPTER 4: Link Fault Pass Through Ethernet Switch Ethernet Switch Remote Station TP Cable TP Cable Figure 4-3 The status as Fiber Cable B or C is broken Warning The LFP (Link Fault Pass Through) function works only when both two converters own this capability in pairs.

  • Page 17: Troubleshooting

    • Package it carefully. We recommend that you use the original container. • If you are shipping the PD PoE 10/100BASE-TX to 100BASE-FX Media Converter for repair, make sure you include everything that came in the original package. Before you ship, contact Black Box to get a Return Authorization (RA) number.

This manual is also suitable for:

Lpd501aLpd502aLpd503aLpd506aLpd507a
