Summary of Contents for Sennheiser e912
- Page 1 Bedienungsanleitung Instuctions for use Notice d‘emploi Istruzoni per l‘uso Instruccione para el uso Gebruiksaanwijzing...
- Page 2 Bedienungsanleitung.............. 3 Instructions for use ...............11 Notice d’emploi ..............19 Istruzioni per l’uso..............27 Instrucciones para el uso............35 Gebruiksaanwijzing...............43...

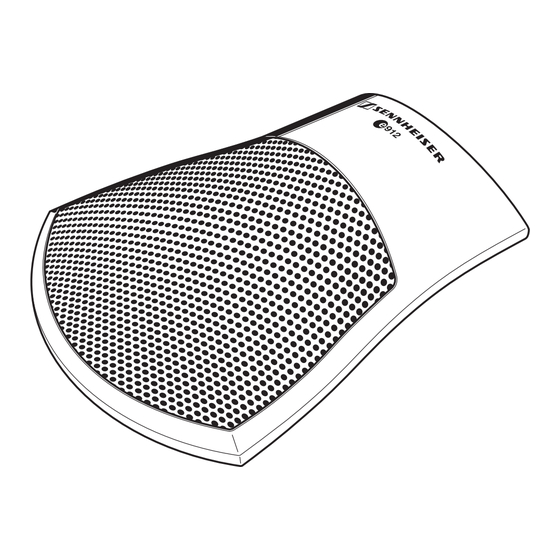

- Page 3 High-quality pre-polarized condenser microphone with half-cardioid pick-up pattern, acoustically optimized for speech, vocal and instrument miking. The 912 is suitable for use in grand pianos or on theater and opera stages, conference tables, altars, lecterns, etc. Incidental rear noise is effectively rejected. 912 is available in two color variants: e 912 WH (white) Cat.
- Page 4 Features Frequency response and sensitivity tailored for speech, vocal and instrument miking Very unobtrusive due to flat design Extremely rugged sound inlet basket Rubber damping plate on base Mounting slots for mounting the micorphone to e.g. table tops Gold-plated XLR connector Integrated electronics (instead of in-line pre-amp) Delivery includes 912 microphone...
-
Page 5: Positioning The Microphone
Positioning the microphone Boundary microphones make use of the pressure effects at a room boundary and need to be mounted on a flat sur- face: Position Resulting sound Commentary Altar or lectern: Less room resonance Unobtrusive due to on a sound-reflecting portions or comb filter flat design;... - Page 6 If necessary, in the theater combine with cloakrooms overhead micro- phones (e.g. Sennheiser ME 36 with MZH 30 B & MZC 30) Grand piano / piano: Very transparent and Instrument is easy mounted to the powerful sound;...
-
Page 7: Frequency Response Curve
Polar diagram 0° 30° 30° 60° 60° 90° 90° 120° 120° 150° 150° 180° 2000 Hz 125 Hz 250 Hz 4000 Hz 500 Hz 8000 Hz 16000 Hz 1000 Hz Frequency response curve - 20 - 30 - 40 - 50 - 60 - 70 1000 2000... -
Page 8: Specifications
Specifications Transducer principle pre-polarized condenser microphone Frequency response 20–20,000 Hz Pick-up pattern half-cardioid Sensitivity (free field, no load at 1 kHz) 10 mV/Pa < 100 Ω Nominal impedance (at 1 kHz) Min. terminating impedance 1 kΩ Phantom powering 48 V / 1.1 mA Max. -
Page 9: Overview Of Microphone Applications
Overview of microphone applications Variant Application Vocals Choirs Studio, acoustic instruments Orchestra Trumpet, trombone Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overhead Conference table, altar Lectern Theater stage... -
Page 10: Manufacturer Declarations
Manufacturer Declarations Approval Sennheiser electronic GmbH & Co. KG declare that this device is in com- pliance with the applicable CE standards and regulations. WEEE Declaration Your Sennheiser product was developed and manufactured with high- quality materials and components which can be recycled and/or reused. - Page 12 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 12/05 511961/A01...
