Summary of Contents for Sennheiser Evolution e 912

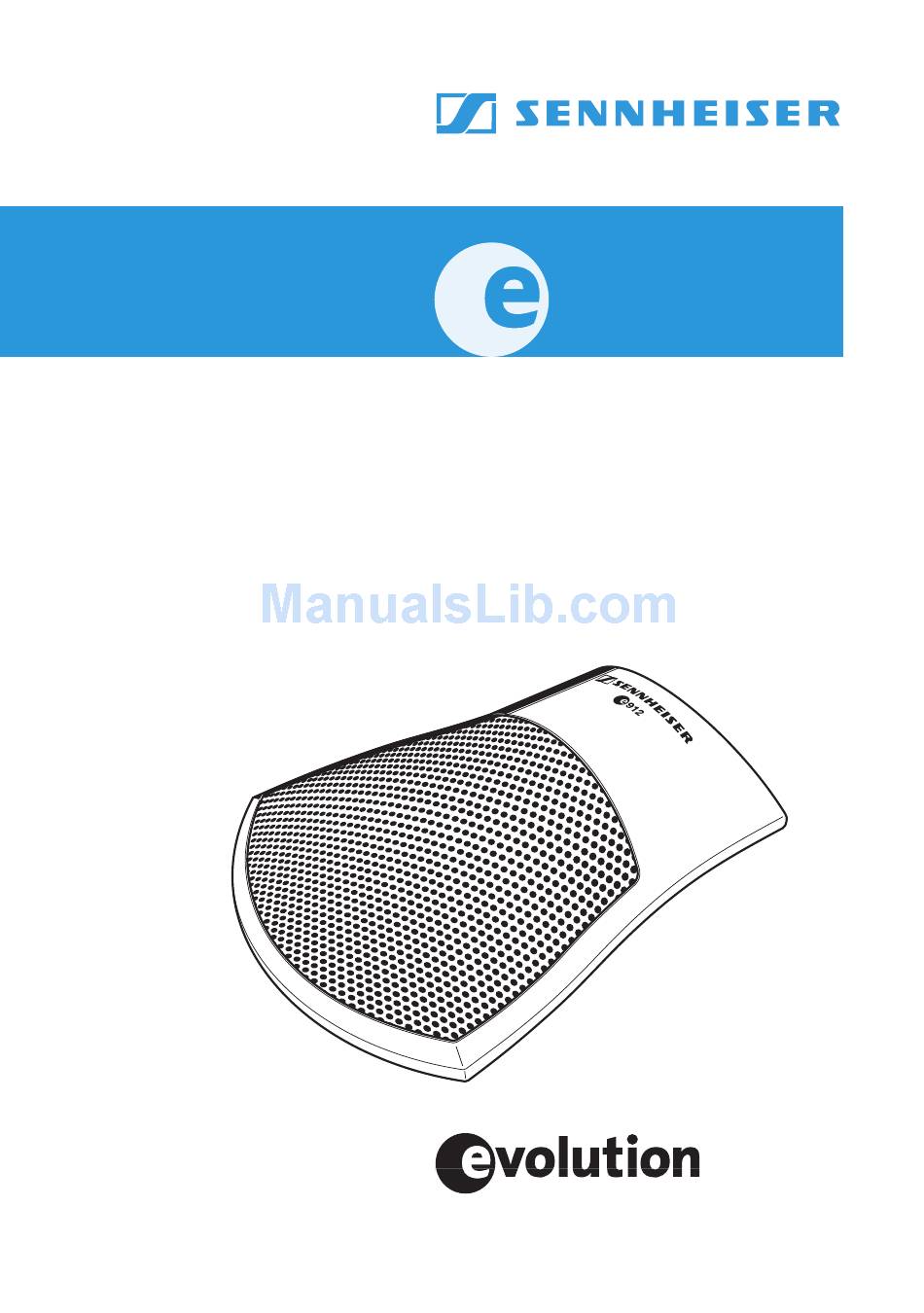

- Page 1 Bedienungsanleitung Instuctions for use Notice d‘emploi Istruzoni per l‘uso Instruccione para el uso Gebruiksaanwijzing...
- Page 2 High-quality pre-polarized condenser microphone with half-cardioid pick-up pattern, acoustically optimized for speech, vocal and instrument miking. The 912 is suitable for use in grand pianos or on theater and opera stages, conference tables, altars, lecterns, etc. Incidental rear noise is effectively rejected.
- Page 3 Very unobtrusive due to flat design Extremely rugged sound inlet basket Rubber damping plate on base Mounting slots for mounting the micorphone to e.g. table tops Gold-plated XLR connector Integrated electronics (instead of in-line pre-amp) Delivery includes 912 microphone Pouch Instructions for use Warranty Certificate...
-
Page 4: Positioning The Microphone
Positioning the microphone Boundary microphones make use of the pressure effects at a room boundary and need to be mounted on a flat sur- face: Position Altar or lectern: on a sound-reflecting surface Conference rooms: lying on the table; directed towards the... - Page 5 *) The cardioid pick-up pattern has an opening angle of approx. 130°. Try to position the microphone so that the sound source (conference participant, speaker or instrument) is located in this angle area (see polar diagram).
-
Page 6: Frequency Response Curve
Polar diagram 30° 60° 90° 120° 150° 125 Hz 250 Hz 500 Hz 1000 Hz Frequency response curve - 20 - 30 - 40 - 50 - 60 - 70 0°, 1 m 0° 180° 1000 2000 0°, 5 cm 30°... -
Page 7: Specifications
Min. terminating impedance Phantom powering Max. sound pressure level at 1 kHz 136 dB SPL Connector Weight Dimensions Pin assignment of XLR-3 connector pre-polarized condenser microphone 20–20,000 Hz half-cardioid 10 mV/Pa < 100 Ω 1 kΩ 48 V / 1.1 mA XLR-3 550 g Length: 126.5 mm... -
Page 8: Overview Of Microphone Applications
Overview of microphone applications Variant Application Vocals Choirs Studio, acoustic instruments Orchestra Trumpet, trombone Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overhead Conference table,... -
Page 9: Manufacturer Declarations
Manufacturer declarations Warranty 2 years Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regula- tions. Batteries or rechargeable batteries Please dispose of batteries or rechargeable batteries as special waste or return them to your specialist dealer. - Page 10 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 12/05 511961/A01...
