Summary of Contents for Sennheiser e914

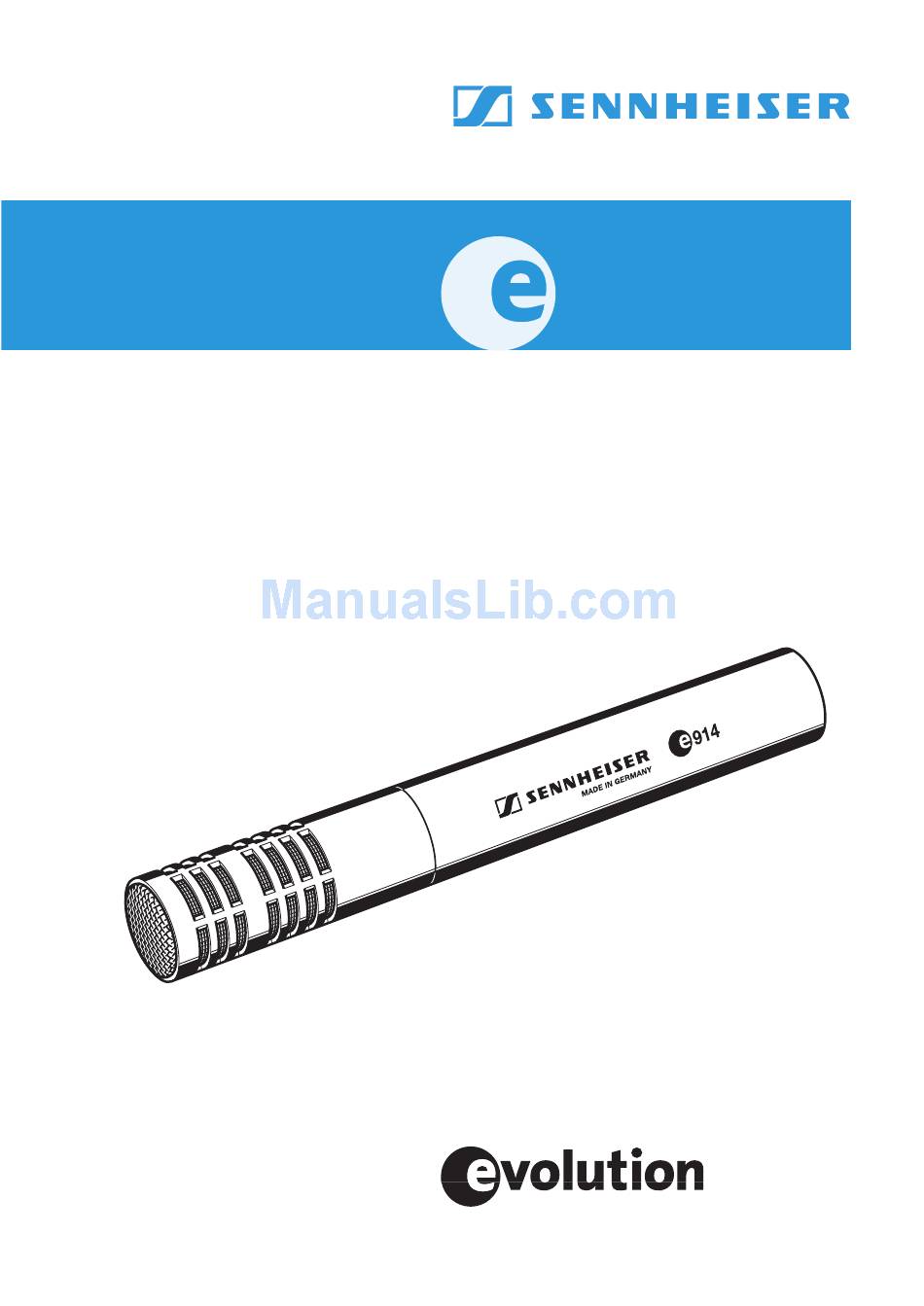

- Page 1 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
- Page 2 Bedienungsanleitung.............. 3 Instructions for use ...............11 Notice d’emploi ..............19 Istruzioni per l’uso..............27 Instrucciones para el uso............35 Gebruiksaanwijzing...............43...
- Page 3 The cardioid 914 is a pre-polarised condenser microphone designed for demanding applications which require a wide frequency response, high sound pressure level, fast transient response and a compact design. With its frequency response of 20 Hz to 20 kHz, the 914 is able to capture the full sound of the instrument, while its cardioid pick-up pattern isolates the microphone from...
-
Page 4: Delivery Includes
Delivery includes 914 microphone Pouch MZQ 800 microphone clamp MZW 64 windshield Instructions for use Warranty Certificate Note: The microphone head is not compatible with the K6 powering module. - Page 5 Sensitivity and bass filter 914 is equipped with a three-position sensitivity switch (A) and a bass filter switch (B). Adjusting the sensitivity (A) The microphone sensitvity can remain unchanged (0) or be reduced by 10 dB or 20 dB. The latter is recommended when there is a risk that the microphone or subsequent microphone input is overmodulated, e.g.
- Page 6 Frequency response curves with different sensitivities - 35 - 40 - 45 - 50 - 55 - 60 - 65 - 70 5000 10000 20000 Hz 1000 2000 0 dB -10 db -20 db Adjusting the bass filter (B) 914 has been designed for an extended low- frequency bass response.
-
Page 7: Positioning The Microphone
Positioning the microphone Percussion Position Commentary Positioning the microphone a few centimetres above the outer edge of the hi-hat aiming down gives a natural, clear sound. If necessary, remove unwanted low- frequency signal portions by high pass filtering. Attention: When closing the hi-hat, a strong air current is created on the edge. -
Page 8: Polar Diagram
Polar diagram 0° 30° 30° 60° 60° 90° 90° 120° 120° 150° 150° 180° 2000 Hz 125 Hz 250 Hz 4000 Hz 500 Hz 8000 Hz 16000 Hz 1000 Hz Pin assignment of XLR-3 connector... -
Page 9: Specifications
Specifications Transducer principle pre-polarised condenser microphone Frequency response 20–20,000 Hz Pick-up pattern cardioid Phantom powering 48 V/2.2 mA Sensitivity (free field, no load at 1 kHz) 7 mV/Pa; 2.3 mV/Pa / 0.7 mV/Pa (with pre-attenuation) Equivalent noise level A-weighted (DIN IEC 651) 19 dB CCIR-weighted (CCIR 468-3) 30 dB Pre-attenuation... -
Page 10: Overview Of Microphone Applications
Overview of microphone applications Variant Application Vocals Choirs Studio, acoustic instruments Orchestra Brass / Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overheads... - Page 11 Sennheiser electronic GmbH & Co. KG erklären, dass dieses Gerät die anwendbaren CE-Normen und Vorschriften erfüllt. Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations. Certification Sennheiser electronic GmbH & Co. KG déclarons que cet appareil est en conformité...
- Page 12 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 09/04 511911/A01...
