Sennheiser evolution e 914 Instruction Manual

Stage microphones
Hide thumbs Also See for evolution e 914:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instructions for Use Manual, User Manual
e 914
Bedienungsanleitung
Insruction manual
Notice d'emploi
Instruzioni per l'uso
Instrucciones de uso
Manual de instruções
Gebruiksaanwijzing
Stage Microphones

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the evolution e 914 and is the answer not in the manual?

Questions and answers

Related Manuals for Sennheiser evolution e 914

Summary of Contents for Sennheiser evolution e 914

  • Page 1 e 914 Bedienungsanleitung Insruction manual Notice d‘emploi Instruzioni per l‘uso Instrucciones de uso Manual de instruções Gebruiksaanwijzing Stage Microphones...
  • Page 2 0° 0° 30° 30° 125 Hz 60° 60° 250 Hz 500 Hz 1,000 Hz 90° 90° 2,000 Hz 4,000 Hz 8,000 Hz 120° 120° 16,000 Hz 150° 150° 180° 180° - 10 - 20 flat roll off cut off...

  • Page 3: Important Safety Information

    • Only use attachments, accessories or spare parts specified by Sennheiser. During operation • Liquids entering the product can short-circuit the electronics or damage the mechanics. Keep all liquids away from the product.

  • Page 4: Package Contents

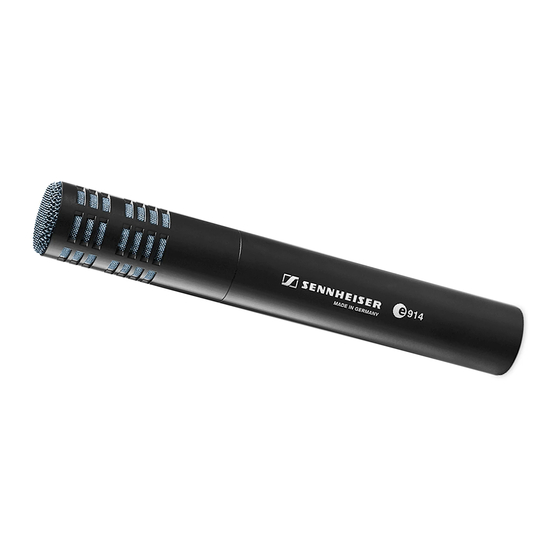

    The e 914 The cardioid e 914 is a pre-polarised condenser microphone designed for demanding applications which require a wide frequency response, high sound pressure level, fast transient response and a compact design. With its frequency response of 20 Hz to 20 kHz, the e 914 is able to capture the full sound of the instrument, while its cardioid pick- up pattern isolates the microphone from other on-stage signals.

  • Page 5: Using The Microphone

    Sensitivity and bass filter The e 914 is equipped with a three-position sensitivity switch ( ) and a bass filter switch ( Adjusting the sensitivity ( The microphone sensitvity can remain unchanged (0) or be reduced by 10 dB or 20 dB. The latter is recommended when there is a risk that the microphone or subsequent microphone input is overmodulated, e.g.

  • Page 6: Specifications

    Cleaning and maintaining the e 914 Caution Liquids can damage the electronics of the product! Liquids entering the housing of the product can cause a short-circuit and damage the electronics. Keep all liquids away from the product. Do not use any solvents or cleansing agents. Unscrew the sound inlet basket Remove the foam insert from the sound inlet basket Use a slightly damp cloth to clean the sound inlet basket...

  • Page 7: Connector Assignment

    6.3 mm balanced Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. FOR AUSTRALIA ONLY Sennheiser goods come with guarantees that cannot be excluded under the Australian Consumer Law.

  • Page 8: Ce Declaration Of Conformity

    Please dispose of this product at the end of its operational lifetime by taking it to your local collection point or recycling center for such equipment. CE Declaration of Conformity • RoHS Directive (2011/65/EU) • EMC Directive (2004/108/EC) The declaration is available at www.sennheiser.com/download.
  • Page 10 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany, Publ. 12/16, 511911/A05...
