ADJ X-move LED plus User Instructions page 5

SET UP (continued)
the end, or anywhere in the middle. Therefore, the first fixture controlled by the controller could be the last
fixture in the chain. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA
assigned to address 1 to that unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation): The X-Move LED Plus™
can be controlled via DMX-512 protocol. The X-Move LED Plus™ is be a eight channel DMX
unit. The DMX address is set electronically using the controls on the front panel of the unit.
Your unit and your DMX controller require a approved DMX-512 110 Ohm Data cable for
data input and data output (Figure 1). We recommend Accu-Cable DMX cables. If you are
making X-Move LED Plus™ Set Up your own cables, be sure to use standard 110-120 Ohm
shielded cable (This cable may be purchased at almost all professional sound and lighting
stores). Your cables should be made with a male and female XLR connector on either end of
the cable. Also remember that DMX cable must be daisy chained and cannot be split.

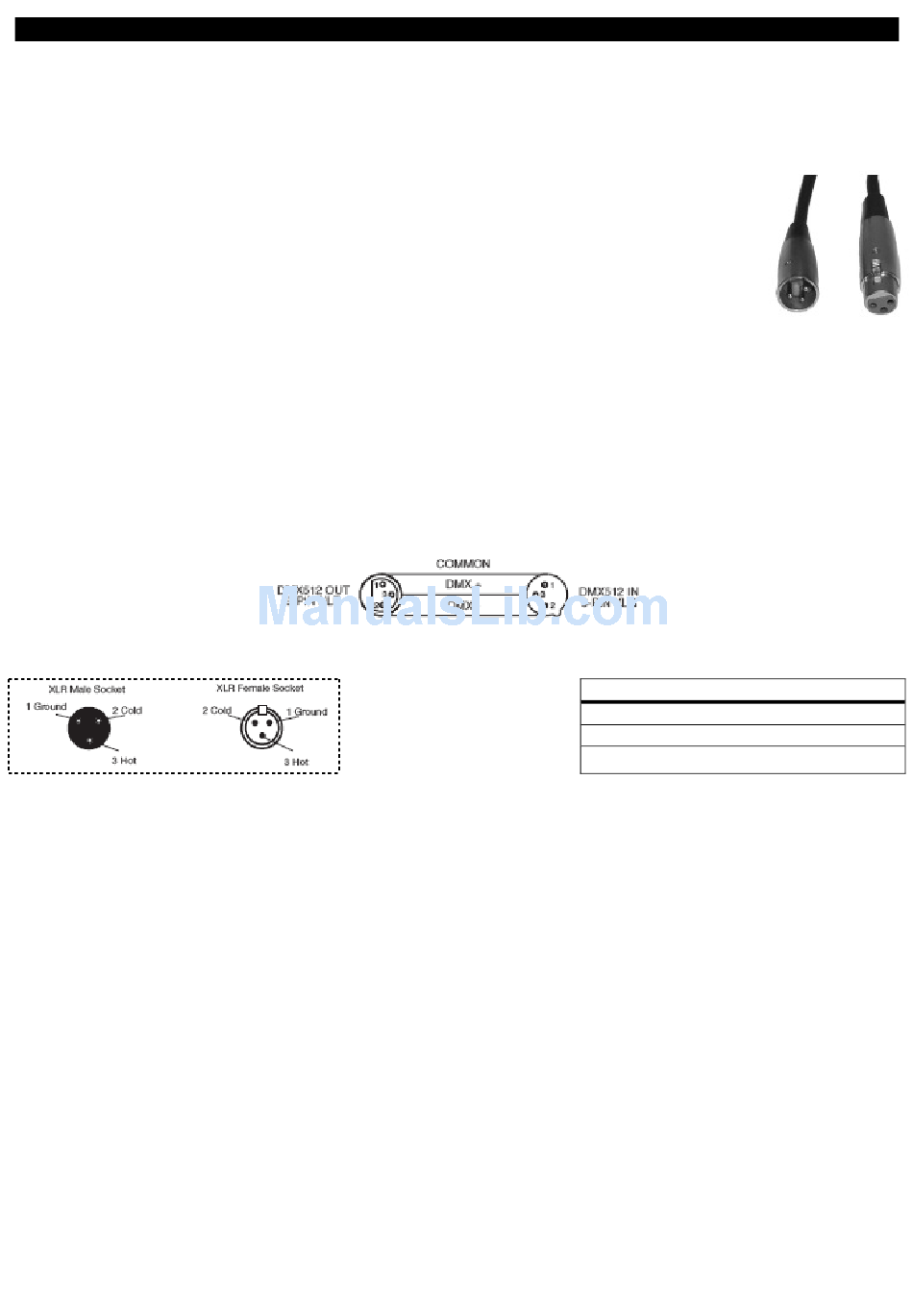

Notice: Be sure to follow figures two and three when making your own cables. Do not use the ground lug on
the XLR connector. Do not connect the cable's shield conductor to the ground lug or allow the shield conductor
to come in contact with the XLR's outer casing. Grounding the shield could cause a short circuit and erratic
behavior.
A.D.J. Supply Europe B.V. – www.americandj.eu – X-Move LED Plus™ Instruction Manual Page 5
Figure 3
Figure 2
XLR Pin Configuration
Pin1 = Ground
Pin2 = Data Compliment (negative)
Pin3 = Data True (positive)
Figure 1
