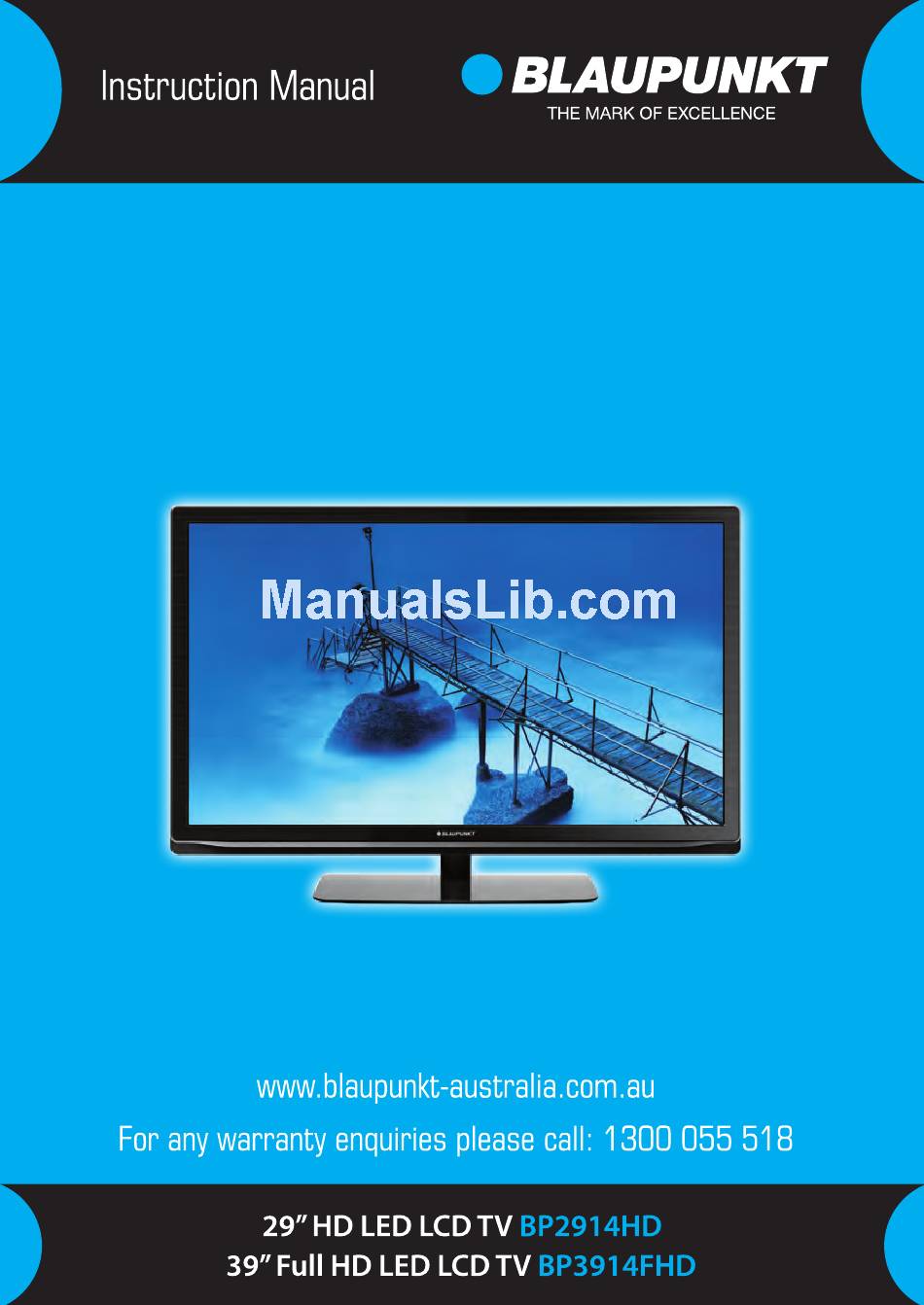

Blaupunkt BP2914HD Instruction Manual

29"/39" hd led lcd tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP2914HD and is the answer not in the manual?

Questions and answers

Related Manuals for Blaupunkt BP2914HD

Summary of Contents for Blaupunkt BP2914HD

  • Page 2: Table Of Contents

    Your safety is very important. Please ensure you read the “Safety Instructions” before you operate this unit. The BLAUPUNKT range has been designed to give you many years of trouble-free service. In the unlikely event that your product fails to work normally, please call one of our qualified service engineers on the below free warranty line - 1300 055 518.
  • Page 3 Unpacking The following items will be included with the purchase of a BLAUPUNKT TV. Please refer to the correct model number outlined below for your specific accessories. If any items are missing from the below list, please contact the warranty line on 1300 055 518.

  • Page 4: Tv Stand Installation

    Do not cover the ventilation openings when using the TV. TV Stand Installation The BLAUPUNKT TVs come with a separated panel and base stand. Please see below detailed instructions of how to connect your stand to your TV. Place the TV with the display side down on a flat surface. Use a cloth or soft mat to protect your TV during installation.

  • Page 5: Wall Mount Bracket Installation

    Wall Mount Bracket Installation This TV is VESA Standard wall mountable. There are 4 VESA standard holes (BP2914HD - 200mm x 100mm) (BP3914FHD - 200mm x 200mm) on the back panel of the TV. The wall mount bracket and screws are not included with your TV as they may be purchased together from your local retailer. To attach your bracket use the 4 holes provided to screw your bracket to your TV.
  • Page 6 Sockets View (BP2914HD)         LED Back View (BP3914FHD) - 5 -...
  • Page 7 AV Output: The AV Output allows you to connect the unit to external video system. HEADPHONE Output: For private listening to the TV (BP2914HD). VGA Input: The VGA Input allows you to connect your TV to your PC to use as a monitor.

  • Page 8: Remote Control

    Remote Control Layout   ‐ 7 ‐ ...
  • Page 9 Remote Control Layout 1. MUTE: Press to disable or enable the sound output. 2. ASPECT: Press to change the picture aspect ratio. 3. FAV: Press to access your favourite channels list. 4. NUMERIC KEY: Press for direct access to channels. 5.
  • Page 10 possible to use navigation with the colour keys. 33. SOURCE: Press to display the Input Source List, to switch between the different inputs to the television. 34. EXIT: To exit the main menu, press the Exit Button or to cancel setting selections. 35.

  • Page 11: Installation & Connection

    Installation and Connection 1. Connect the TV RF antenna cable to the RF IN port on the back of the TV. 2. To connect your video sources (including DVD, VCR, PVR or Camcorder) you can connect them to the Video Input via an RCA Cable (Red, White and Yellow cables).
  • Page 12   3) After auto tuning, the amount of programs found and stored will be shown on the display and the first channel will begin to play automatically.   4) To change between Digital TV (DTV) and Analog TV (ATV), press the SOURCE Button on the remote control to select the preferred mode.

  • Page 13: Main Menu Operations

    4. Press the HOLD Button to freeze the page. 5. Press the Subpage Button (certain pages contain sub-pages which are automatically displayed) to stop or resume sub-page acquisition the indication appears top left. 6. Press the REVEAL Button to display or hide the concealed information. 7.
  • Page 14   DTV Manual Tuning Use the ▼ or ▲ Buttons to select DTV Manual Tuning in the Channel Menu. Then press the ◄or ► Buttons to select the individual DTV channel you wish to store and press the OK Button to begin search. Press the Menu Button to return to previous Menu or press the EXIT Button to exit.
  • Page 15 Notes:  You need to set the Sound System before manual tuning.  For Australia, Sound system is BG. Program Edit Press the ▲or▼ Buttons to select Program Edit in the Channel Menu. Then press the OK Button to enter the sub-Menu. Then you will need to select the program you wish to edit.
  • Page 16   Picture Menu To enter the Picture Menu, press the MENU Button and then press the ◄ or ► Buttons to select the Picture Menu. Press the OK Button to enter. Once in the Picture Menu, press the ▲ or ▼ Buttons to select the options you wish to adjust. Press the OK Button to enter the sub-Menu.
  • Page 17 Audio Description includes spoken descriptions of; body language, expressions and movements. This feature is particularly helpful for low vision or blind users to still be able to utilise their BLAUPUNKT TV. In the sound menu you can turn on Audio Description and adjust the sound level by pressing the ◄ or ► Buttons.
  • Page 18   Clock: The Clock is updated by DTV program. Off Time / On time: Once the On or OFF timer is set to ON, you may set the auto OFF or ON time personally. This will enable you to have the unit turn on or off at as selected time.  ...
  • Page 19 Press the ▼ or ▲ Buttons to select PVR File System, then press the OK Button to enter sub-Menu and then use the ▼ or ▲ Buttons to scroll through the options. Select Check PVR File System and then press the OK Button to enter. This function will check the USB speed.
  • Page 20       Notes: No matter which size is booked for recording, all the data in the allocated partition of the Hard Disc Drive file will be lost after formatting. Please ensure that you start with a blank partition on your Hard Disk to ensure you don’t lose any data.  ...
  • Page 21 Lock Menu To enter the Lock Menu, press the MENU Button, then press the ◄ or ► Button to select the Lock Menu, and press the OK Button to enter.   Lock System Press the OK Button to enter. You will be asked to input your password or the default password to activate this setting. The default password is “6666”.
  • Page 22 Parental Guidance Select ‘Parental Guidance’ and press the OK Button to enter the sub-Menu. In this Menu you will be able to set the program rating and block selected rating/programs from view. Hotel Lock To turn on the Hotel Lock feature, you must select the Hotel Lock sub-Menu in the Lock Menu and press the OK Button to enter.

  • Page 23: Media Player

                    Clear Lock: This option allows you to clear all lock settings. Press the OK Button to confirm. Media Player To playback media files from your USB/HDD or to playback recorded programs, press the Source Button on your remote control and then select the Media Player option.

  • Page 24: Epg Menu

    PLAY Button to begin play of the files you have selected. If there is more than one page of files use the I<< or >>I Buttons skip to the next or previous page. To stop play of a media file, just press the Stop Button on the remote and to pause play, press the Pause Button.
  • Page 25 To see what is going to be broadcast after the current program, press the ◄or ► Button. To view a different channel, press the ▲ or ▼ Buttons. To exit the EPG Menu, press the EPG or EXIT Button. Please Note: Please refer to the bottom of the EPG screen for the basic remote control key functions. Record In EPG mode, press the RED Button on the remote control to select a program to be recorded.

  • Page 26: Dtv Recording

          Remind (Blue Button) In the EPG Menu, press the BLUE Button to set a program reminder. The below Reminder Menu will then be displayed and you can use the ◄or ► Buttons to set the program reminder details. You will be able to set reminder to occur Once, Everyday or Weekly.

  • Page 27: Time Shift

    Notes:  Ensure the storage device used to record is inserted into the USB Input on the back of the unit and is compatible for recording. If your storage device is not compatible, you will be asked to format it. Press the MENU Button to enter the PVR File System to format your device.
  • Page 28     Press the ▼ / ▲ Button to select the option that you want to adjust in the Screen Menu and press the ◄ / ► Button to adjust. After finishing your adjustment, press the MENU Button to save and return to the previous Menu. Auto Adjust Press the ▼...

  • Page 29: Troubleshooting

    If you have any issues or queries about the functions of this TV, please check the below table as we have provided you with FAQs to assist with any issues or visit our FAQ page online at www.blaupunkt-australia.com.au If this table is not of assistance, please contact the BLAUPUNKT WARRANTY line on 1300 055 518.

  • Page 30: Specifications

    Specifications   Model No. BP2914HD Screen size 29 inches Screen format 16:9 Resolution 1366*768 Contrast 2500:1 Brightness 290 cd/m² Display colours 16.7M View angle 150° (horizontal) / 160° (vertical) Response time 8 ms TV system DTV: DVB-T ; ATV: PAL I/BG/L/DK Audio: MPEG2 Audio Layer I&II...
  • Page 31   Model No. BP3914FHD Screen size 39 inches Screen format 16:9 Resolution 1920*1080 Contrast 3000:1 Brightness 300 cd/m² Display colours 16.7M View angle 150° (horizontal) / 160° (vertical) Response time 6.5 ms TV system DTV: DVB-T ; ATV: PAL I/BG/L/DK Audio: MPEG2 Audio Layer I&II DTV decode Video: MPEG2 Transport MP@HL...

  • Page 32: Display Modes (Vga Only)

    Display Modes (VGA Only)   RESOLUTION V.Freq.(Hz) H.Freq.(KHz) 720*400 31.47 640*480 31.47 800*600 35.156 800*600 37.88 800*600 48.08 1024*768 48.36 1024*768 56.48   Display modes which are not listed in the above table, may not be supported, by this unit. For an optimal picture it is recommended to choose a mode listed in the table above.

  • Page 33: Safety Instructions

    Safety Instructions Please read these operating instructions carefully before you operate this unit. 1. Clean with a dry cloth only, to clean up dust, water drops or smudges from the screen or cabinet. Also make sure you disconnect the TV when you are cleaning the unit. 2.

  • Page 34: Warranty

    In the unlikely event that your product fails to work normally, please contact BLAUPUNKT WARRANTY on 1300 055 518 and have your receipt of purchase on hand.

This manual is also suitable for:

Bp3914fhd
