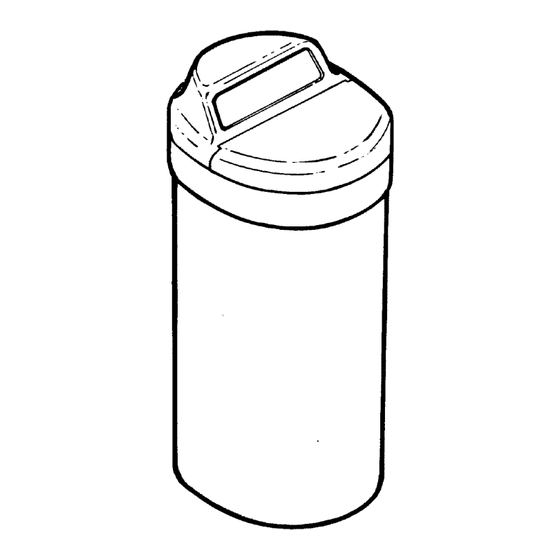

Kenmore 625.34857 Owner's Manual

Deluxe demand water softeners
Hide thumbs

Advertisement

OWNER'S
MANUAL
MODEL NOS.
625.348570
625.348590
Caution:
Read and Follow
All Safety Rules and
Operating
Instructions
Before First Use of
This Product.
If you have questions
when
installing,
operating
or main-
taining
your
softener,
and
when
setting
the timer,
call
this toll-free
number...
1-800-426-9345
SAVE THIS MANUAL
Deluxe Demand Water Softeners
• Warranty
• Start Up / Setting Timer
• How It Works
• Care Of
• Specifications
• Repair Parts
Use plastic bag and tie provided, to hang manuals nearby
the softener for future reference.
Sears, Roebuck and Co., Hoffman Estates,
IL 60179 USA
