To operate the Defy AUTOMAID washing machine:

1. Sorting – Sort laundry by color, fabric type, and dirt level.
2. Loading – Place laundry inside the drum without exceeding the maximum load.
3. Detergent & Softener – Add detergent and fabric softener to the correct compartments in the dispenser drawer.
4. Select Temperature – Adjust the temperature control knob as needed.
5. Choose Wash Programme – Turn the programme selector to the desired wash cycle.
6. Select Additional Options – Choose any extra functions like No Heat or Rinse and Hold if necessary.
7. Start the Machine – Press the power "ON" button. The indicator light will turn on, and the wash cycle will begin.
8. Unloading – The machine stops automatically at the end of the cycle. After about 2 minutes, the indicator light turns off, and the door lock deactivates.
9. Remove Laundry – Open the door, take out the laundry, and check if all items are removed.
10. Leave Door Open – Keep the door slightly open to help drying and prevent odors.

For maintenance, ensure the detergent drawer, filters, and pump filter are cleaned regularly.

This answer is automatically generated

Craig

March 2, 2025

How do I access the pump filter on a Defy Automaid washing machine model number DAW265?Thanx

Summary of Contents for Defy AUTOMAID

Page 1: Table Of Contents
Owner’s Manual AUTOMAID CONTENTS 2 Installation 4 Detergent Drawer 4 Control Panel 5 Features 6 Preparation 7 Description Of Programme - Normal Wash 8 Description Of Programme - Delicate Wash 8 Description Of Programme - Wool Wash 9 Operating The Machine...
Page 2: Installation
You are now the proud owner of one of the finest and most modern washing machines that today’s technology can produce. You and your Automaid are going to make a great team together. But first it will pay if you really get to know each other. This book will tell you all you need to know about your machine, what it will do and how to do it.
Page 3 Note: The machine should not be transported without the transport fittings securely in place. To achieve this, remove the lid to gain access to the locating keyways. Insert and turn the transport fittings a half turn clockwise to secure them and replace the lid.
Page 4: Detergent Drawer
2. Do not connect the machine through a double adaptor. It requires a dedicated power point 3. If the power-cord should ever need replacing, use only a genuine cord available from the nearest Defy Service Centre. The appliance must be earthed and the manufacturer and seller do not accept responsibility for any damage due to incorrect electrical connection.
Page 5: Features
FEATURES 1 Detergent dispenser See the section detailing the detergent dispenser on the previous page. 2 Rinse and hold Selecting this feature will stop the machine during the final rinse cycle with water in the tub. The position on the programme selector knob is marked with This prevents drip-dry and permanent press articles from waiting in a ‘dry’...
Page 6: Preparation

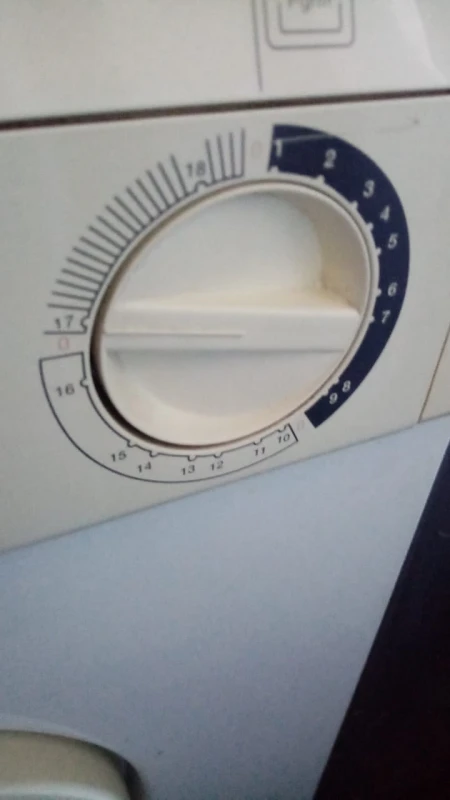

7 Wash programme selector Turn the knob clockwise until the marker aligns with the desired programme number on the knob. WARNING: SWITCH THE MACHINE OFF BEFORE TURNING THE KNOB AND DO NOT TURN THE KNOB IN AN ANTICLOCKWISE DIRECTION AS THIS COULD DAMAGE THE TIMER MECHANISM 8 Indicator light This light indicates when the machine is switched on.
Page 7: Description Of Programmes - Normal Wash
DESCRIPTION OF PROGRAMMES – Normal Wash PROGR TEMP FABRIC PROGRAMME DETERGENT OPTION TYPES LOAD DESCRIPTION DRAWER BUTTONS 45ºC White cotton and Pre-wash at 45’C A B C Super rinse. linen without Main wash at 85’C No spin. special finishes. 4 Rinses. Heavily soiled 2 Intermediate spins.
Page 8: Description Of Programme - Delicate Wash
DESCRIPTION OF PROGRAMMES – Delicate Wash PROGR TEMP FABRIC PROGRAMME DETERGENT OPTION TYPES LOAD DESCRIPTION DRAWER BUTTONS 45ºC Coloured nylon, Pre-wash at 45’C A B C Super rinse. polyester, and Main wash at 85’C No spin. articles with 4 Rinses. Rinse and special finishes.
Page 9: Operating The Machine
You should be able to fit a hand between the top of the drum and the washload in the drum. The maximum recommended load of dry clothing that may be washed at one time in your Automaid is 5kg. Washing 1. Plug the machine in and switch on at the wall socket.
Page 10: Care And Maintenance
CARE AND MAINTENANCE 1. Switch off the power at the wall socket. Do not touch the plug with wet hands 2. Close the water tap after the completion of the wash cycle. 3. Wipe the inside of the wash drum and rubber door seal with a soft dry cloth after completion of the wash.
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Width x Depth x Height 600 mm x 600 mm x 850 mm Voltage 230V 50Hz Capacity—Dry clothes 5 kg. Spin speed 550 r/m Max absorbed power 2150W Heater 1900W Motor—Wash 350W Motor—Spin 750W Water intake Cold fill 3/4 inch BSP fitting Mobility 4 Feet—2 Adjustable at front Min water pressure...
Page 12: Problem Washing - Check List
PROBLEM WASHING – CHECK LIST Greasy stains on washing. Use more detergent if washing is heavily soiled. • Use both pre-wash and main wash programmes. • Check that the machine is not overloaded. • Grey, dirty looking washing. Use more detergent if the washing is heavily soiled or if the machine is located in a •...
Page 13 The machine does not drain or spin. Check: That the drain hose is not kinked or obstructed. • That the outlet pipe or sink is not blocked. • The machine does not fill with water. Check: That the water tap is open. •...
