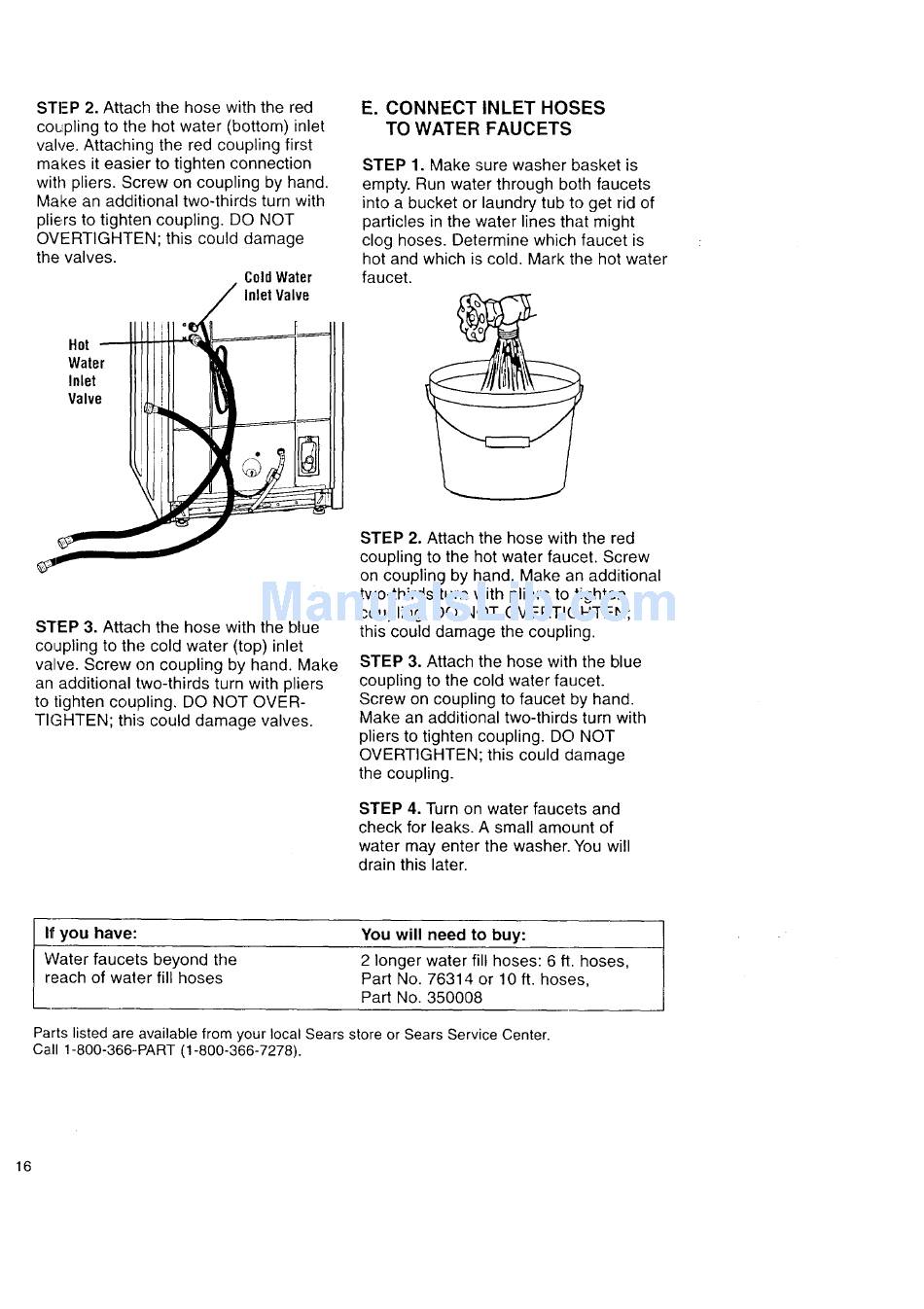

STI--P 2. Attach the hose with the red
coL_pling to the hot water (bottom) inlet
valve. Attaching the red coupling first
makes it easier to tighten connection
with pliers. Screw on coupling by hand.
Make an additional two-thirds turn with
pliers to tighten coupling. DO NOT
OVERTIGHTEN; this could damage
the valves.
C01d Water
Illlt ill:
Hot __L__I_
water IIIllill IlN I
Inlet II1llill Ill i i
STEP 3. Attach the hose with the blue
coupling to the cold water (top) inlet
valve. Screw on coupling by hand. Make
an additional two-thirds turn with pliers
to tighten coupling, DO NOT OVER-
TIGHTEN; this could damage valves.
E. CONNECT INLET HOSES
TO WATER FAUCETS
STEP 1. Make sure washer basket is
empty. Run water through both faucets
into a bucket or laundry tub to get rid of
particles in the water lines that might
clog hoses. Determine which faucet is
hot and which is cold. Mark the hot water
faucet.
STEP 2. Attach the hose with the red
coupling to the hot water faucet. Screw
on coupling by hand. Make an additional
two-thirds turn with pliers to tighten
coupling. DO NOT OVERTIGHTEN;
this could damage the coupling.
STEP 3. Attach the hose with the blue
coupling to the cold water faucet.
Screw on coupling to faucet by hand.
Make an additional two-thirds turn with
pliers to tighten coupling. DO NOT
OVERTIGHTEN; this could damage
the coupling.
STEP 4. Turn on water faucets and
check for leaks. A small amount of
water may enter the washer. You will
drain this later.
If you have: You will need to buy:
Water faucets beyond the 2 longer water fill hoses: 6 ft. hoses,
reach of water fill hoses Part No. 76314 or 10 ft. hoses,
Part No. 350008
Parts listed are available from your local Sears store or Sears Service Center.
Call 1-800-366--PART (1-800-366-7278).
