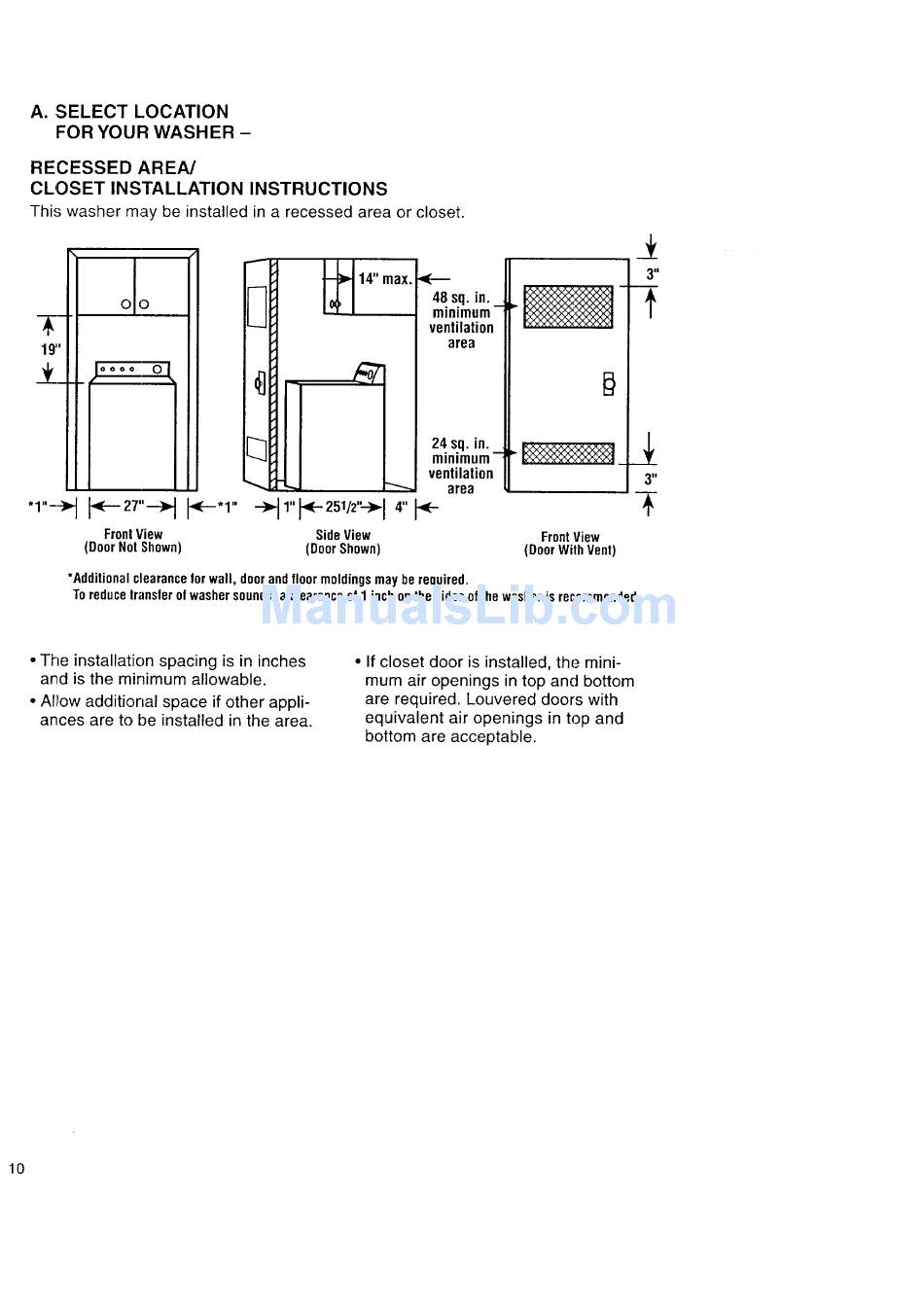

A. SELECT LOCATION
FOR YOUR WASHER -
RECESSED AREA/
CLOSET INSTALLATION INSTRUCTIONS
This washer may be installed in a recessed area or closet.
19"
*1"---_"
0 0
Ioooo O
48 sq. in.
minimum -
ventilation
area
24 sq. in.
minimum-
ventilation
area
1"1.- 2s,/2' 14-
Side View
(Door S hown)
#
[,<--- 27" _ 1-<--'1"
FrontView FrontView
(DoorNotShown) (DoorWithVent)
3"
3"
*Additional clearanceforwall, doorandfloor moldingsmay he required.
Toreducetransferofwashersounds, a clearanceofI inchon the sidesofthe washeris recommended.
• The installation spacing is in inches
and is the minimum allowable.
• AI]_ow additional space if other appli-
ances are to be installed in the area.
• If closet door is installed, the mini-
mum air openings in top and bottom
are required. Louvered doors with
equivalent air openings in top and
bottom are acceptable.
10
