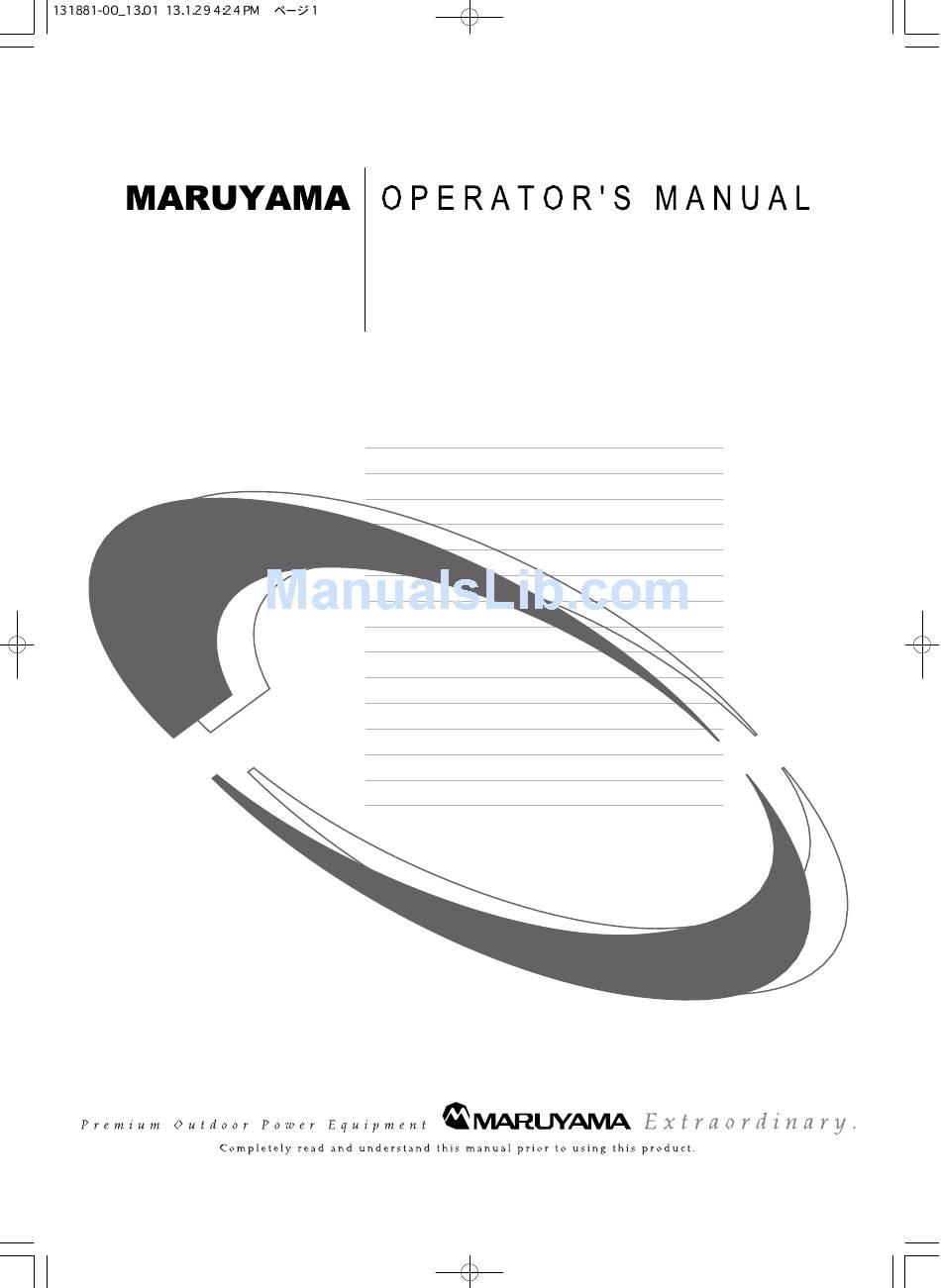

  • Page 1 BL85 BACKPACK BLOWER...
  • Page 2 Backpack Blower. Important safety instructions will be identified by the following safety symbol: Failure to comply with the instructions in this manual may result in serious injury or death. For additional assistance, contact any local authorized Maruyama dealer. ANUAL AFETY...
  • Page 3 MARKING MODEL NAME SERIAL No. C-Tick LABEL WARNING LABEL CAUTION LABEL Warning label • Always remove dirt or mud to make the indications legible. • The following alarm labels are attached. Alarm label Read operation manual thoroughly. Prohibition of fire Make sure you read the operation manual Don't put a naked flame close to a place thoroughly prior to use.
  • Page 4: Operating Techniques

    WARNING Read and understand this Owner's/Operator's Manual before using the power blower. Be thoroughly familiar with the proper use of the power blower. Never allow children to operate the power blower. It is not a toy. Never allow adults to operate the unit without first reading the Owner's / Operator's Manual.
  • Page 5: Specifications

    2-Cycle Engine Oil or any quality 2-cycle engine oil designed for use in air-cooled, high performance 2-cycle engines. The MARUYAMA BACKPACK POWER BLOWER comes with an Owner's / Operator's Manual. Assembly and attachment of the throttle lever bracket and blower pipes are required.
  • Page 6: Before Operation

    Standard AIR CLEANER RECOIL STARTER THROTTLE LEVER ENGINE BLOWER HOUSING BENT PIPE STRAIGHT PIPE BAND SWIVEL PIPE CLAMP FLEXIBLE PIPE FUEL TANK PRIMER BULB RETURN PIPE SHOULDER STRAPS BACK PAD SERIAL NUMBER HIP BELT Accessories (BLOWER HOUSING) BEFORE OPERATION Be sure the power blower is correctly assembled and all fasteners and fittings are properly secured. THROTTLE LEVER Standard Before operating the power blower, release the knob, knove the throttle grip to the position in the...
  • Page 7 For your fuel premix, only use Maruyama 50:1 2-Cycle Oil or a quality oil designed for 2-cycle air-cooled engine.
  • Page 8 FUEL; MIXING GASOLINE AND OIL CAUTION! If Maruyama brand oil is not used, Gasoline 50:1 2-Cycle Oil never use a mixing ratio less than 50:1 5 Litres 100 ml regardless of the oil package mixing instructions. Ratios less the 50:1, (for...
  • Page 9: Starting Procedure

    OPERATING INSTRUCTIONS STARTING PROCEDURE STEP #1) STEP #2) Pump the "PRIMER BULB" under of the Move the "CHOKE LEVER" fully up ward to carburetor until fuel can be seen flowing the closed position. If the engine is already through the "FUEL-RETURN LINE". warm, only a partial or open (no choke) choke setting may be required.
  • Page 10: Blower Operation

    Allow the engine to "WARM-UP" at less than 1/2 speed. If a MARUYAMA engine fails to start after following the above procedures, contact an authorized MARUYAMA dealer. BLOWER OPERATION When the engine has warmed-up, the power blower can be positioned on the back of the operator.
  • Page 11: Regular Maintenance

    REGULAR MAINTENANCE Before each use, the power blower should be inspected for proper assembly and fitness of all components. All fasteners should be checked for correct tightness. Always inspect for fuel leaks. WARNING Do not attempt to start or operate a power blower that indicates a fuel leak. AIR FILTER AIR FILTER (PAPER)
  • Page 12: Cooling Fins

    GENERAL CLEANING AND TIGHTENING The MARUYAMA power blower will provide maximum performance for many hours, if it is main- tained properly. Good maintenance includes regular checking of all fasteners for correct tightness, and cleaning the entire machine. Contact an authorized MARUYAMA dealer for additional maintenance suggestions.
  • Page 13: Emission Control Information

    Owners Manual at your own expense. The Maruyama Limited Emission Control System Warranty requires that you return your (Blower, Trimmer, Hedge Trimmer) to an authorized Maruyama (Blower, Trimmer, Hedge Trimmer) dealer for remedy under warranty.
  • Page 14: Fuel Recommendations

    FUEL RECOMMENDATIONS FUEL The Kawasaki TK series 2-stroke engines require a gasoline-oil mixture. Use only clean, fresh, unleaded regular grade gasoline. Octane Rating The octane rating of a gasoline is a measure of its resistance to "knocking". Use of a minimum of 87 octane of the antiknock index is recommended. The antiknock index is posted on service station pumps.
  • Page 15: Idling Speed Adjustment

    2. Do not tamper with the carburetor setting to increase the maximum engine speed. 3. If adjustment is needed, have it performed by your authorized MARUYAMA service dealer. Carburetor adjustments are made at the factory and are not adjustable without disassembling the carburetor.
  • Page 16 4-15, Uchikanda 3-chome, Chiyoda-ku, Tokyo TEL 81-3-3252-2285 http://www.maruyama.co.jp P/N 131881-00 13.01 TAP/F...
